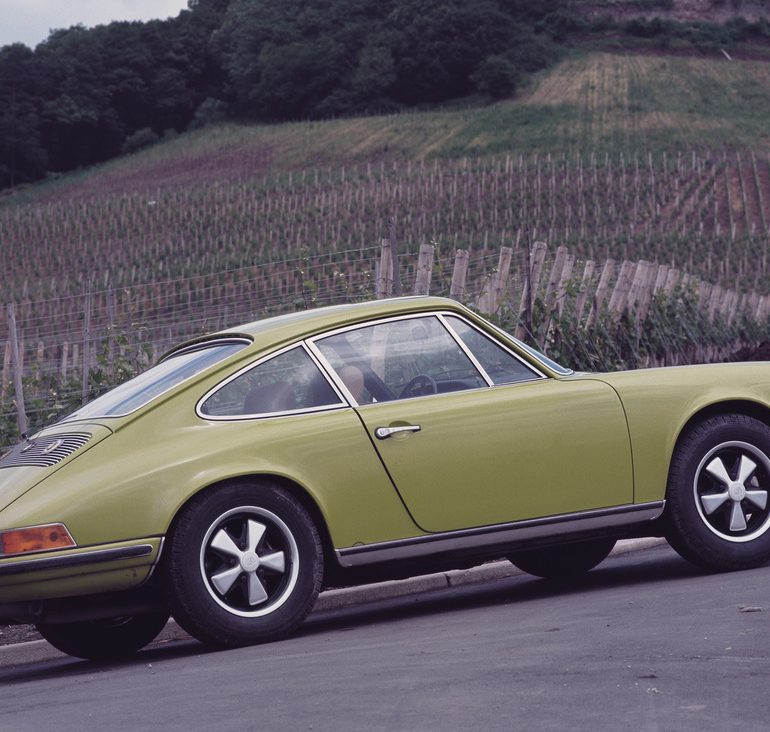

1970 Porsche 911 E 2.2 Coupé


1970 Porsche 911 E 2.2 Coupé

The Porsche 911E was the mid-range option in the 911 lineup. It produced 155 bhp and featured all the upgrades that came with C-Series production including longer wheelbase, Fuchs alloy wheels. Both the E and S model 911 had an aluminium engine-lid and aluminium bumpers.

1970 Porsche 911 E 2.2 Coupé

In Detail

type Series Production Car
built at Stuttgart, Germany
engine Flat-6 w/Dry Sump Lubrication
position Rear Longitudinal
aspiration Natural
valvetrain Chain-Driven SOHC
fuel feed Mechanical Injection
displacement 2195 cc / 133.9 in³
bore 84.0 mm / 3.31 in
stroke 66.0 mm / 2.6 in
compression 9.1:1
power 115.6 kw / 155 bhp @ 6200 rpm
specific output 70.62 bhp per litre
bhp/weight 142.99 bhp per tonne
torque 191 nm / 140.9 ft lbs @ 4500 rpm
redline 7400
body / frame Unit Steel
driven wheels Rear Engine / RWD
wheel type Aluminum Alloy
front tires 185/70-15 Michelin
rear tires 185/70-15 Michelin
front brakes Vented Discs w/ Vacuum Assist
rear brakes Vented Discs w/ Vacuum Assist
front wheels F 38.1 x 15.2 cm / 15.0 x 6.0 in
rear wheels R 38.1 x 15.2 cm / 15.0 x 6.0 in
steering Rack & Pinion
curb weight 1084 kg / 2390 lbs
wheelbase 2268 mm / 89.3 in
front track 1374 mm / 54.1 in
rear track 1355 mm / 53.3 in
length 4163 mm / 163.9 in
width 1610 mm / 63.4 in
height 1321 mm / 52.0 in
transmission 5-Speed Manual
gear ratios 3.091:1, 1.778:1, 1.217:1, 0.926:1, 0.759:1
final drive 4.428:1
