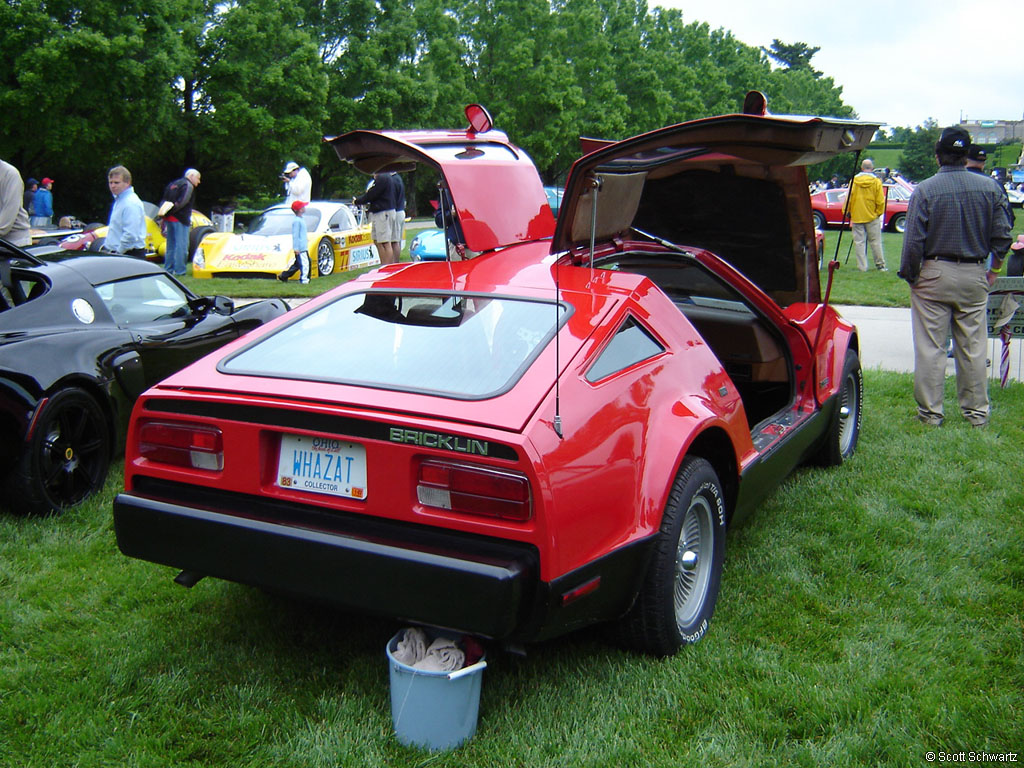

1975 Bricklin SV1


1975 Bricklin SV1

1975 Bricklin SV1

In Detail

price $ $7,490
engine V8
valvetrain OHV
displacement 5896 cc / 359.8 in³
bore 103.6 mm / 4.08 in
stroke 87.4 mm / 3.44 in
compression 8.5:1
power 164.1 kw / 220 bhp @ 4400 rpm
specific output 37.31 bhp per litre
bhp/weight bhp per tonne
torque 427.1 nm / 315 ft lbs @ 3100 rpm
body / frame Arcylic Panels
driven wheels Front Engine / RWD
front tires FR60-15
rear tires FR60-15
front brakes F Discs R Drums
f brake size x 277 mm / x 10.9 in
r brake size x 254 mm / x 10.0 in
front wheels F 38.1 x 17.8 cm / 15 x 7 in
rear wheels R 38.1 x 17.8 cm / 15 x 7 in
steering Recirculating Ball
curb weight 1613 kg / 3555 lbs
wheelbase 2438 mm / 96 in
front track 1478 mm / 58.2 in
rear track 1445 mm / 56.9 in
length 4521 mm / 178 in
width 1717 mm / 67.6 in
height 1245 mm / 49.0 in
transmission 4-Speed Manual
gear ratios 2.23:1, 1.77:1, 1.35:1, 1.00:1, :1
final drive 3.54:1
top speed ~178.6 kph / 111 mph
0 – 60 mph ~9.9 seconds
0 – 1/4 mile ~17.8 seconds
