1986 Ferrari GTO Evoluzione


1986 Ferrari GTO Evoluzione

Ferrari also built five 288 GTO Evoluzione models with more aggressive and aerodynamic body styling and increased power.

The engine in the 288 GTO Evoluzione originally put out as much as 650 hp (480 kW). With weight of 940 kg (2,072 lb) the car had a top speed of 225 mph (362 km/h).

These cars form the clearest visual link between the 288 GTO and the F40 soon to follow.

All five are still in existence with one owned by the Factory on display in the engine manufacturing facility in Maranello.

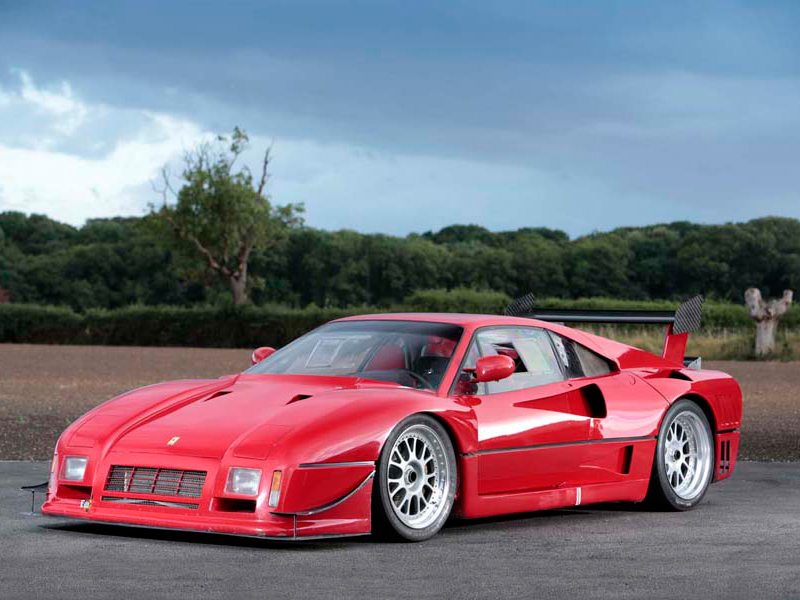

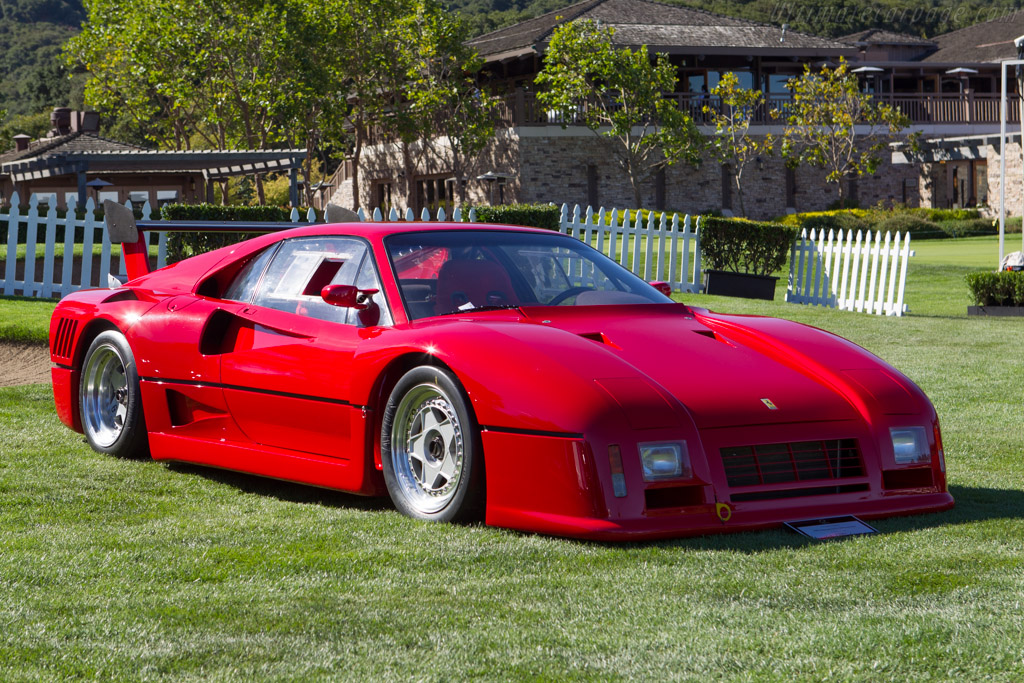

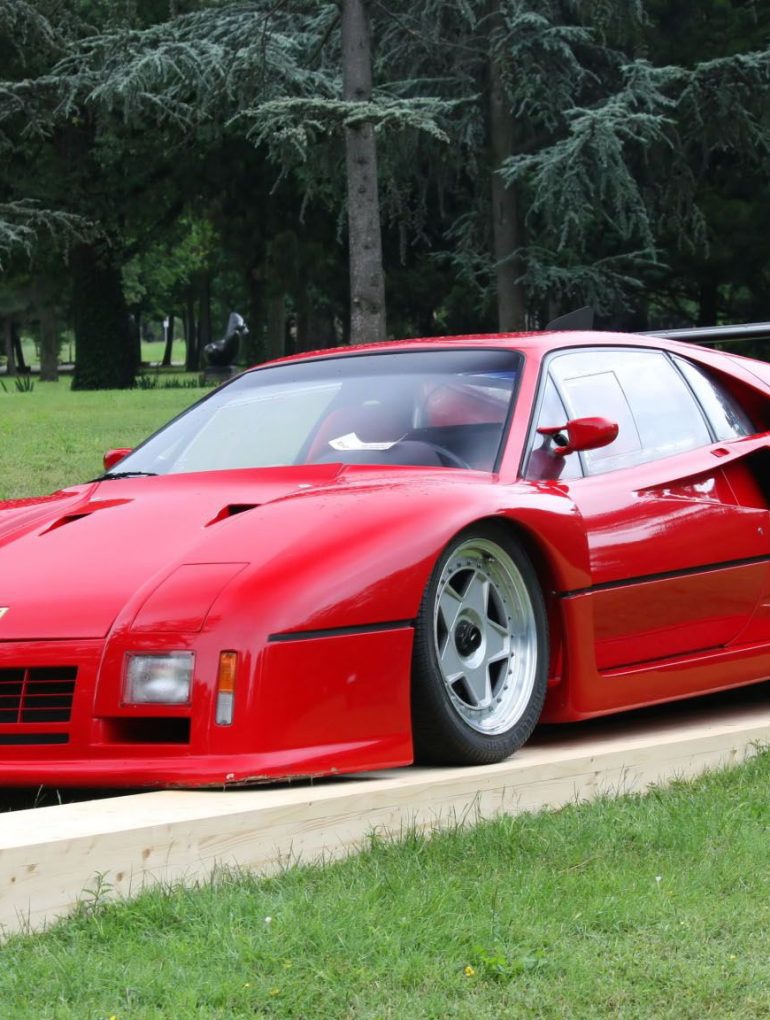

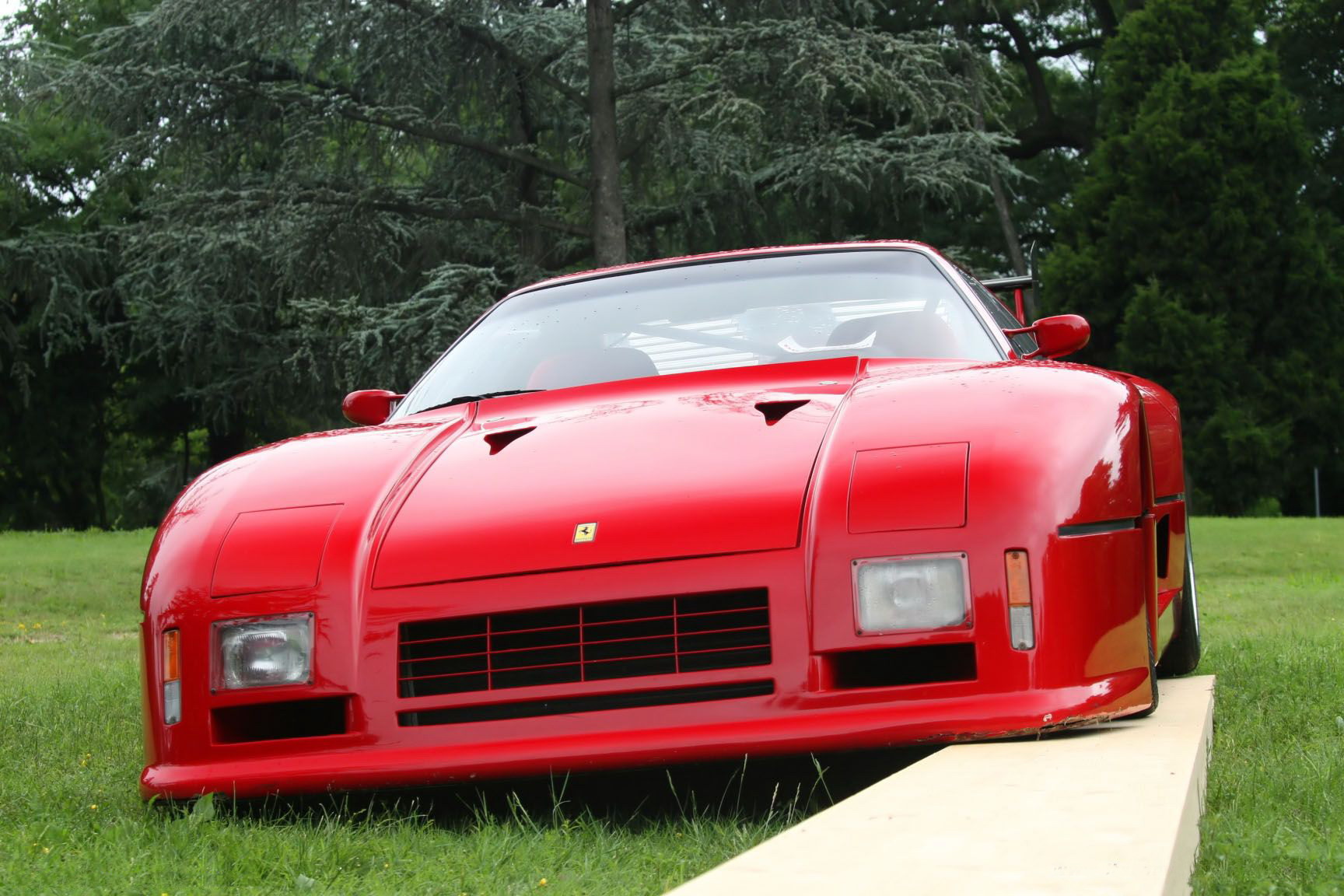

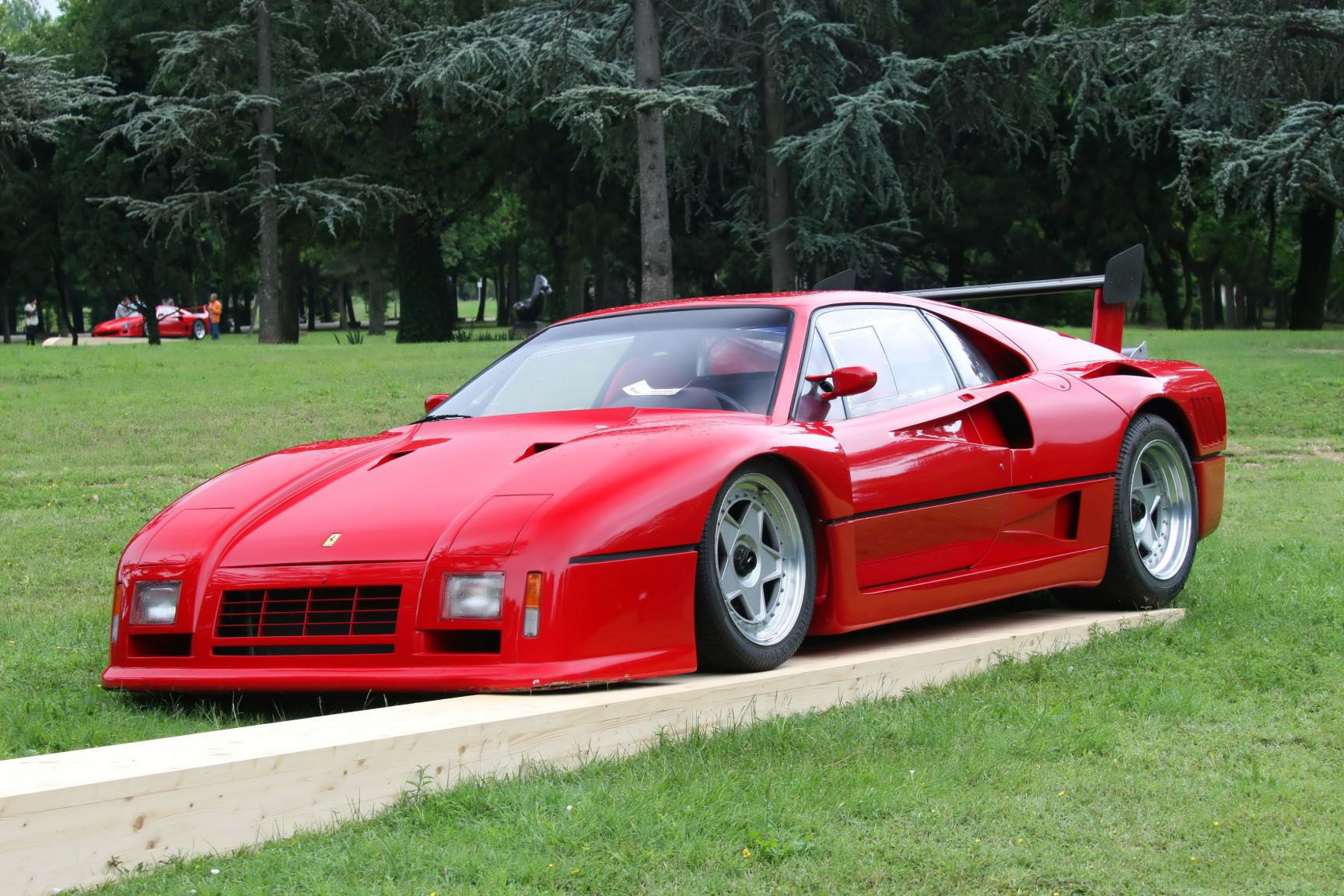

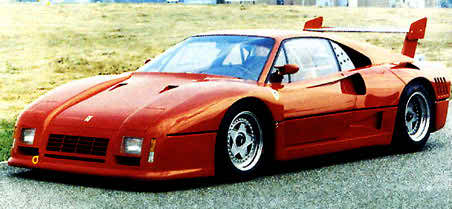

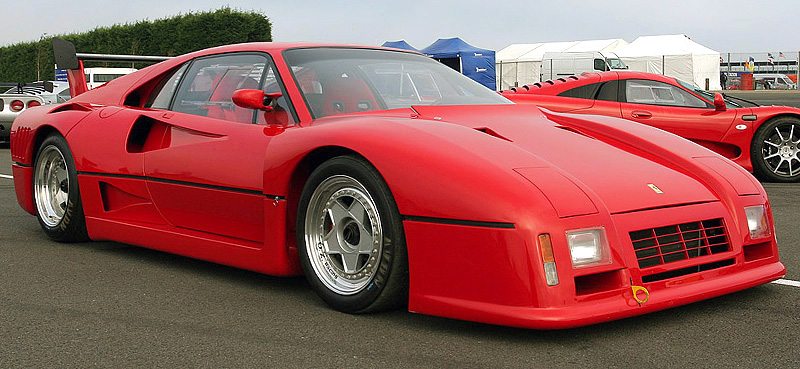

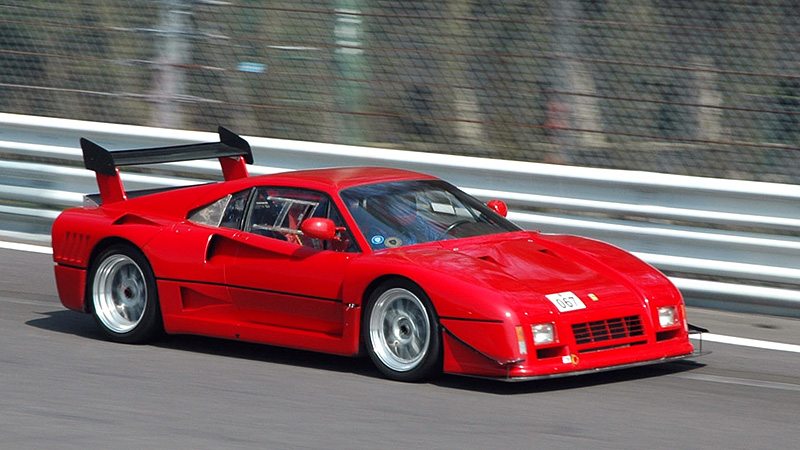

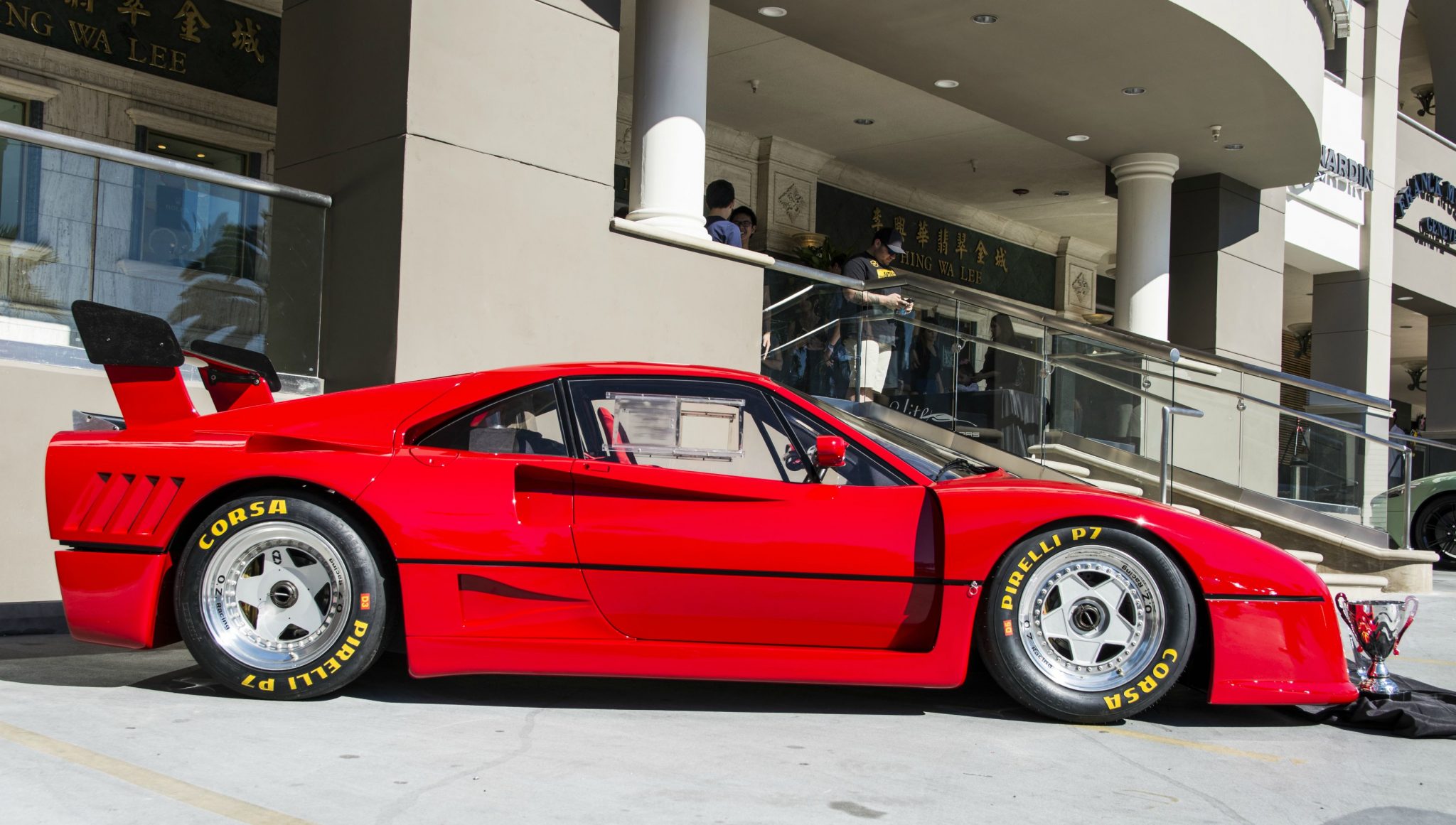

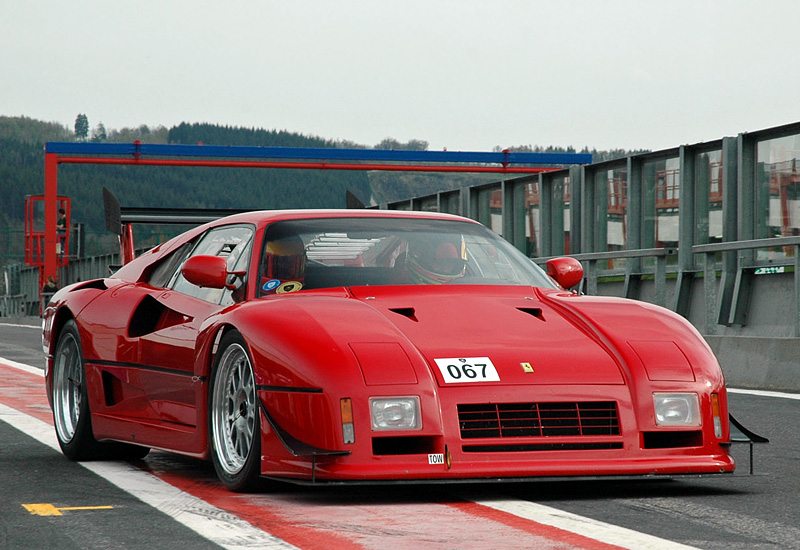

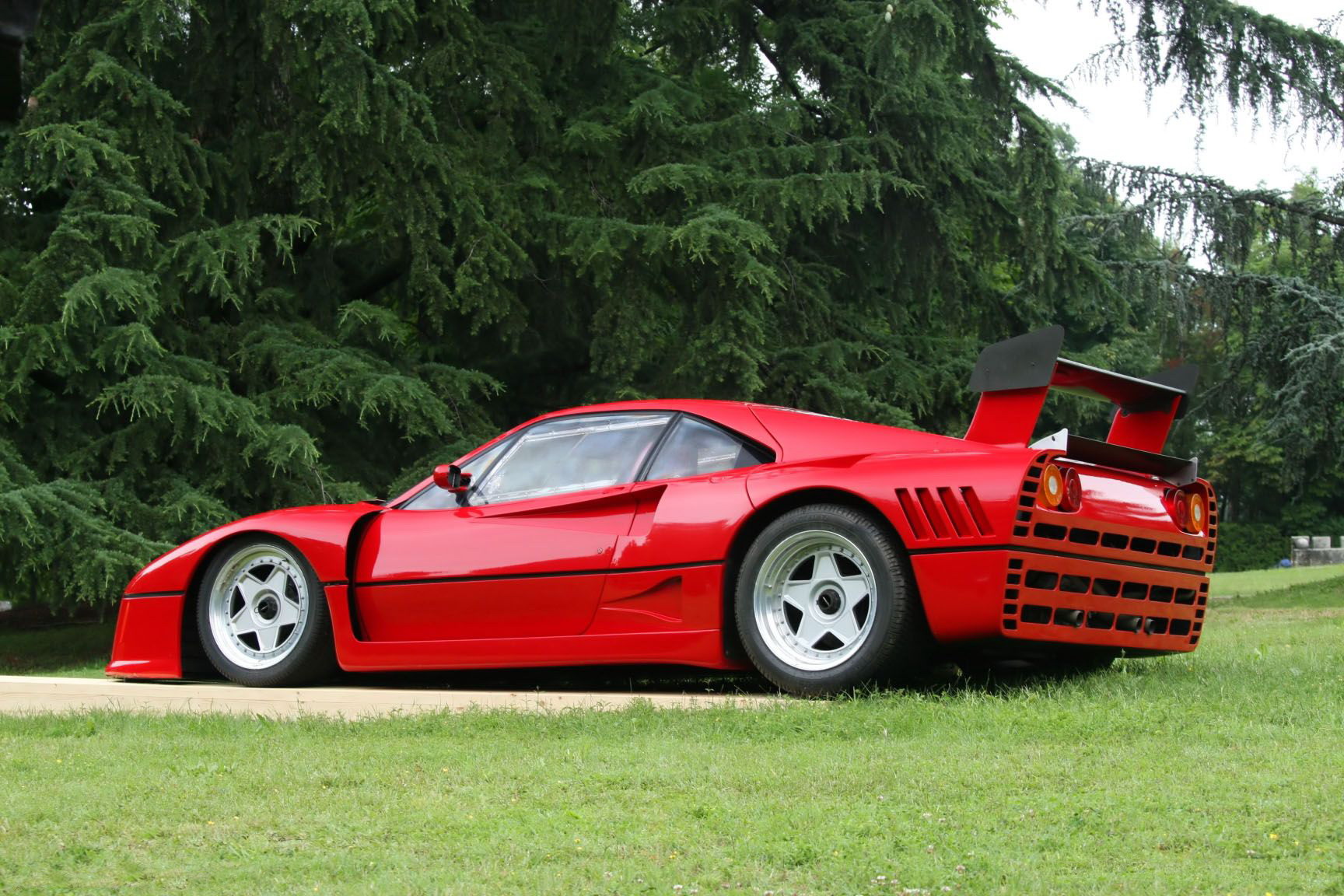

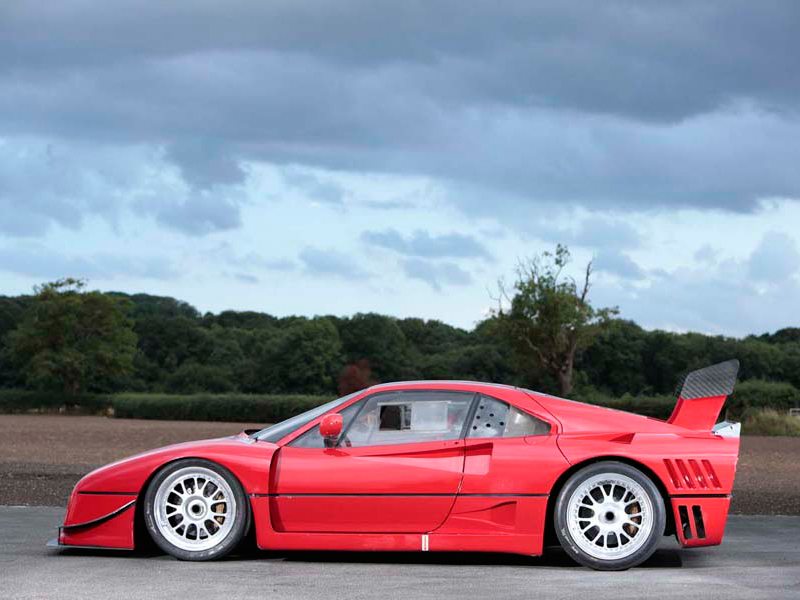

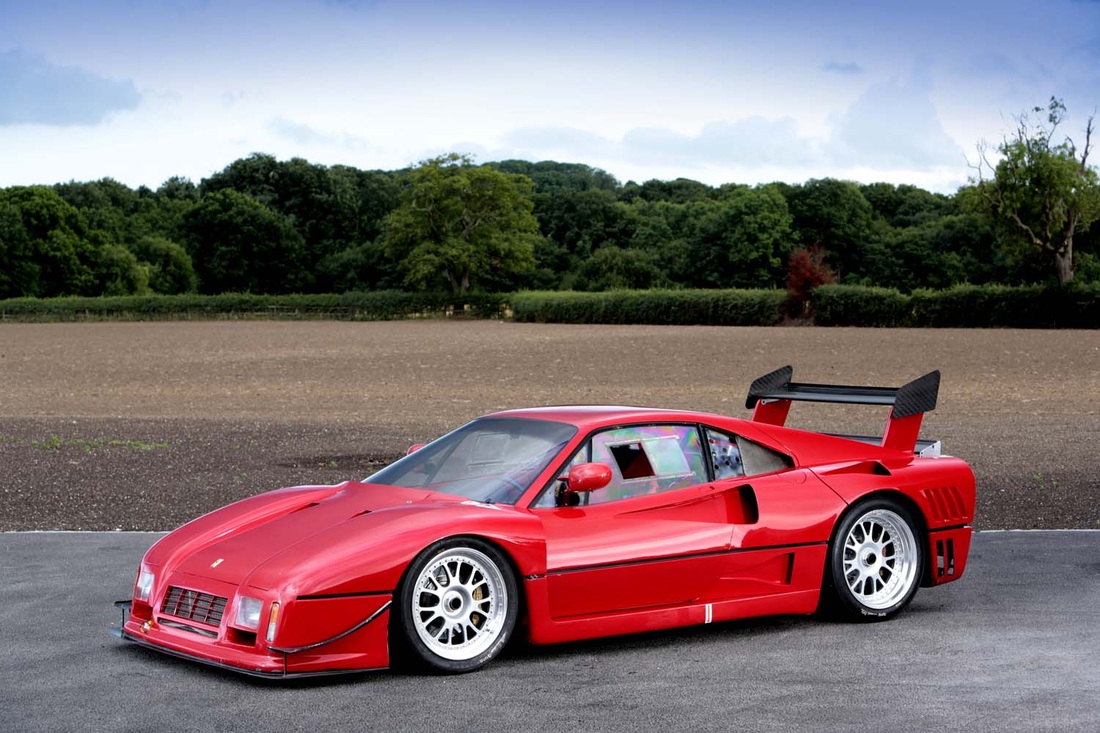

1986 Ferrari GTO Evoluzione Images

1986 Ferrari 288 GTO Evoluzione



1986 Ferrari GTO Evoluzione Video



In Detail

submitted by Richard Owen
type Racing Car
body stylist Giuliano Michelotto
coachbuilder Michelotto
production 5
price $ $ 767,600
engine F114B V8
aspiration Twin IHI Turbochargers w/Heat Exchangers
valvetrain DOHC, 4 Valves per Cyl
fuel feed Weber-Marelli Electronic Injection
displacement 2855 cc / 174.2 in³
bore 80 mm / 3.1 in
stroke 71 mm / 2.79 in
compression 7.8:1
power 484.7 kw / 650.0 bhp @ 7800 rpm
specific output 227.67 bhp per litre
bhp/weight 674.97 bhp per tonne
torque 667.0 nm / 491.9 ft lbs @ 4800 rpm
body / frame Tubular Steel Space Frame
driven wheels Mid Engine / RWD
wheel type Cast Aluminum Alloy
front tires 21/62×16 Michelin Racing
rear tires 35/66×16 Michelin Racing
front brakes Brembro Ventilated Discs
rear brakes Brembro Ventilated Discs
front wheels F 40.6 x 20.3 cm / 16 x 8 in
rear wheels R 40.6 x 31.8 cm / 16 x 12.5 in
steering Rack & Pinion
f suspension A-Arms w/Coil Springs, Shock Absorbers, Anti-Roll Bar
r suspension A-Arms w/Coil Springs, Shock Absorbers, Anti-Roll Bar
curb weight 963 kg / 2122 lbs
wheelbase 2450 mm / 96.5 in
length 4225 mm / 166.3 in
width 1970 mm / 77.6 in
height 1100 mm / 43.3 in
transmission 5-Speed Manual
tran clutch Multi-Plate
top speed ~370.0 kph / 229.9 mph
0 – 60 mph ~4.0 seconds
