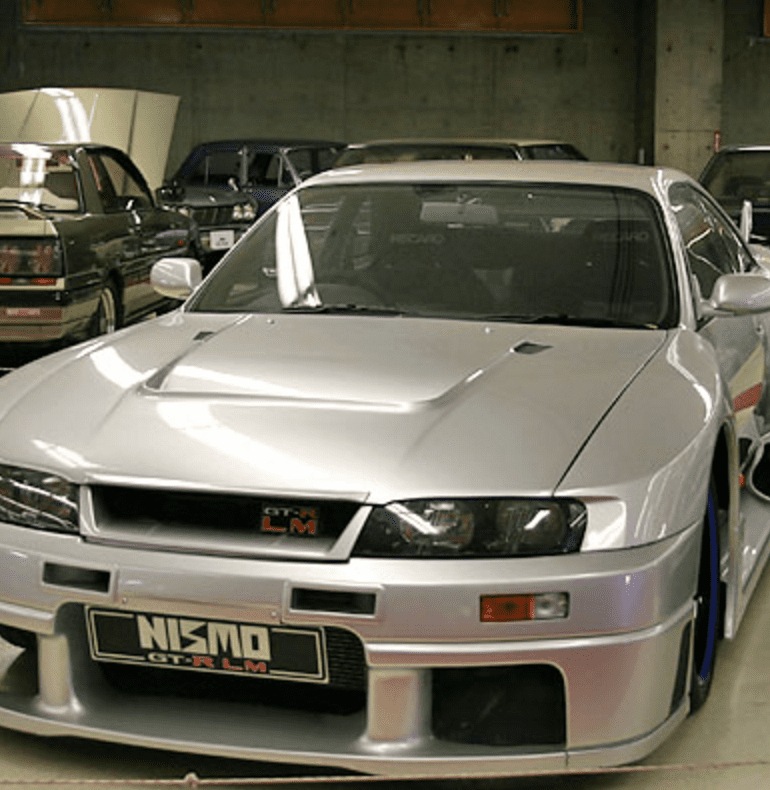

1996 NISMO Skyline GT-R LM Road Car


1996 NISMO Skyline GT-R LM Road Car

1996 NISMO Skyline GT-R LM Road Car

The only machines that can enter the 24 Hours of Le Mans race in the GT class are so-called GT cars, based on vehicles approved for use on public roads. Based on the Skyline GT-R, this vehicle was created as an official road car so NISMO could take part in the 1996 Le Mans; it was actually registered in the UK (although never marketed).

1996 NISMO Skyline GT-R LM Road Car

In Detail

type Racing Car
built at Japan
engine RB26DETT Inline-6
position Front Longitudinal
valvetrain Belt Driven DOHC 4 valves / cyl
displacement 2568 cc / 156.7 in³
bore 86 mm / 3.39 in
stroke 73.3 mm / 2.89 in
compression 8.5:1
power 223.7 kw / 300 bhp @ 6500 rpm
specific output 116.82 bhp per litre
bhp/weight 189.87 bhp per tonne
torque 373 nm / 275.1 ft lbs @ 4500 rpm
driven wheels 4WD
front tires 265/35R18
rear tires 265/35R18
front brakes Ventilated Discs
rear brakes Ventilated Discs
front wheels F 45.7 x 22.9 cm / 18 x 9 in
rear wheels R 45.7 x 22.9 cm / 18 x 9 in
f suspension Double Wishbones
r suspension Double Wishbones
curb weight 1580 kg / 3483 lbs
front track 1550 mm / 0.6 in
rear track 1580 mm / 62.2 in
length 4675 mm / 184.1 in
width 1888 mm / 74.3 in
height 1300 mm / 51.2 in
transmission 5-Speed
