2001 Pontiac Grand Am Hot Wheels Concept


2001 Pontiac Grand Am Hot Wheels Concept

2001 Pontiac Grand Am Hot Wheels Concept

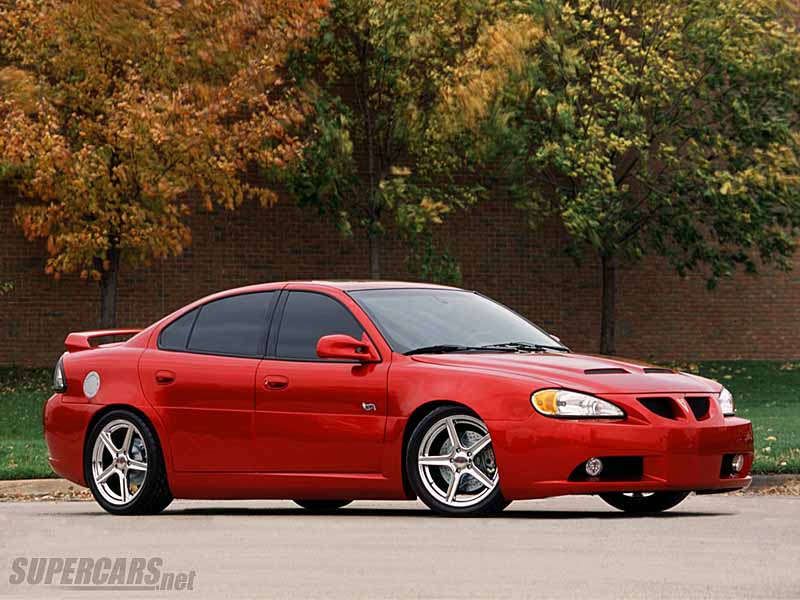

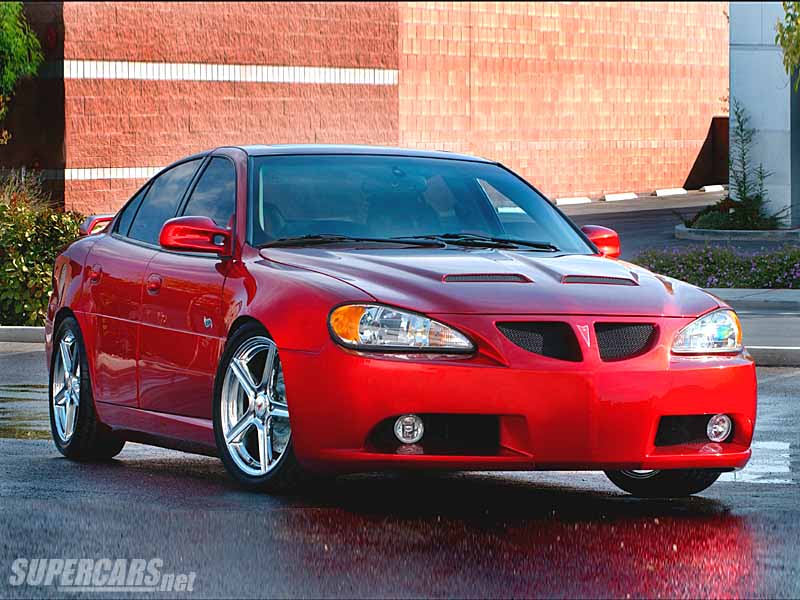

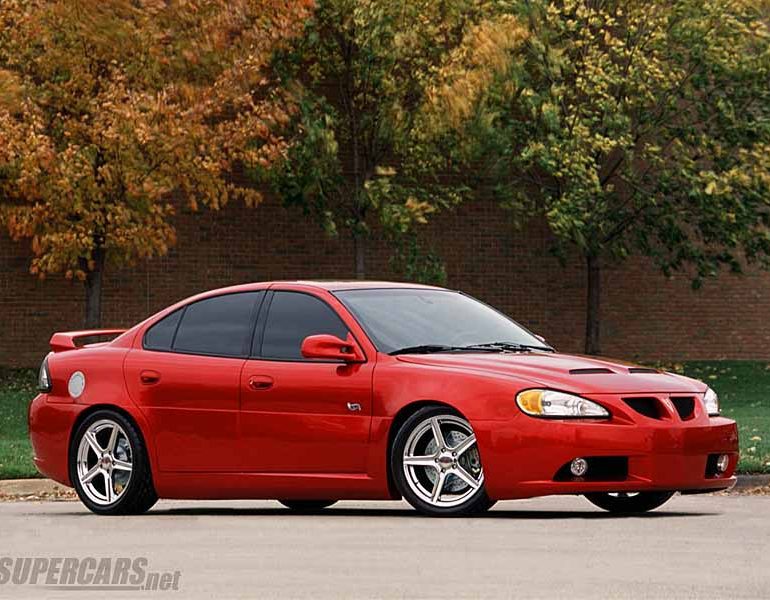

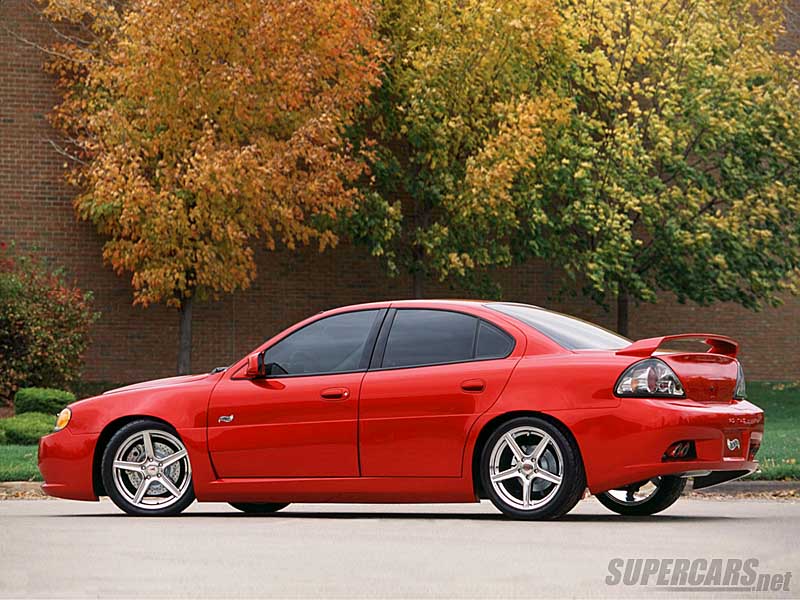

The Grand Am Hot Wheels model sports extensive exterior modifications to make it look like it should be running on the famous orange Hot Wheels track. Suspension modifications lower the ride height, and the car rides on 18-inch Z-rated BFGoodrich tires on polished alloy wheels.

A Ram Air hood-mounted induction system, new front and rear fascias with a basket-handle rear spoiler, wheel opening flares and a racing stripe paint job complete the car’s aggressive look. It also features clear taillamp lenses with red and orange bulbs and a recessed, NASCAR-style quick-fill fuel filler.

The interior features an abundance of Hot Wheels graphics incorporated into the seatbacks, door panels and instrument panel. The steering wheel, shift knob and shift boot are all trimmed in leather. Under the hood, the Ram Air-powered engine roars through the low-restriction Borla dual exhaust system.

In Detail

submitted by Richard Owen
engine V6
position Front Longitudinal
aspiration Natural
valvetrain OHV 2 Valves / Cyl
displacement 3350 cc / 204.4 in³
bore 92 mm / 3.62 in
stroke 84 mm / 3.31 in
compression 9.5:1
power 130.5 kw / 175.0 bhp @ 5200 rpm
specific output 52.24 bhp per litre
bhp/weight bhp per tonne
torque 277.94 nm / 205.0 ft lbs @ 4000 rpm
redline 6000
front brakes Vented Discs w/Power Assist & ABS
f brake size x 277 mm / x 10.9 in
rear brakes Vented Discs w/Power Assist & ABS
r brake size x 200 mm / x 7.9 in
f suspension MacPherson struts with lower control arms
r suspension MacPherson struts with lower control arms
transmission 4T45-E 4-Speed Auto
gear ratios 2.92:1, 1.57:1, 1.00:1, 0.71:1, :1
final drive 3.05:1
