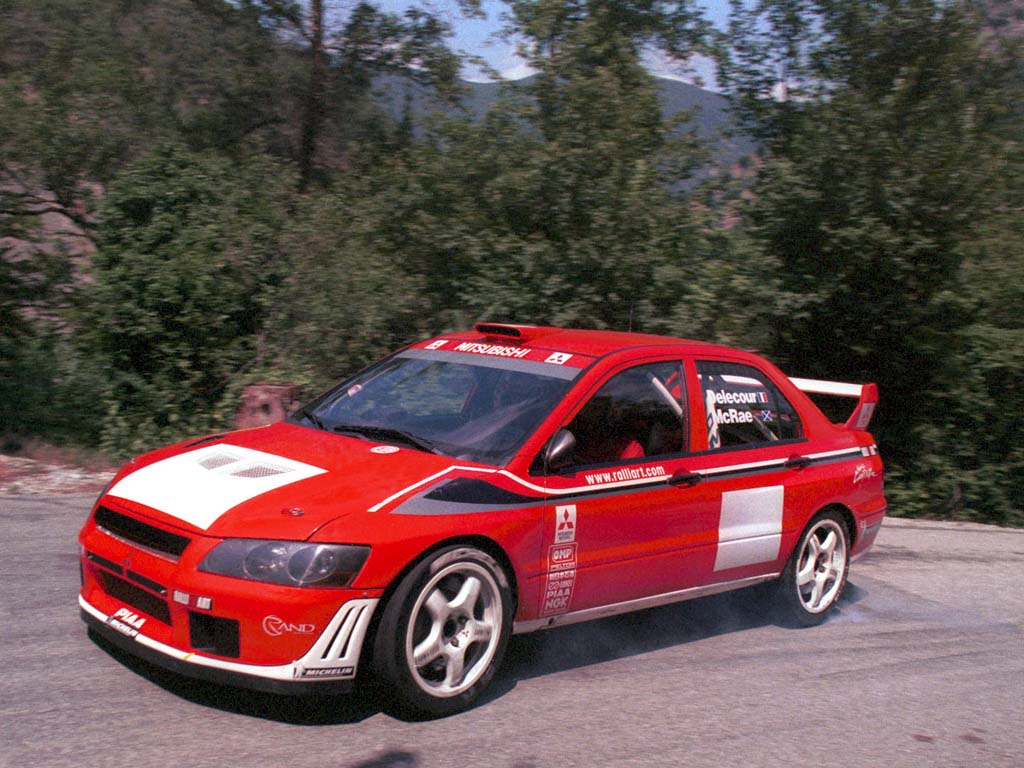

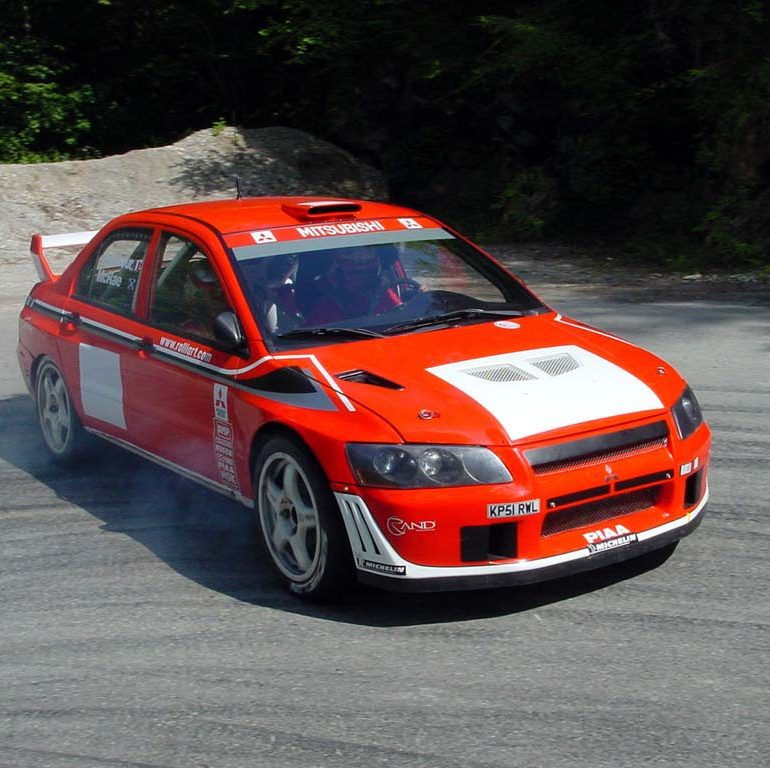

2002 Mitsubishi Lancer Evoution VII WRC2


2002 Mitsubishi Lancer Evoution VII WRC2

2002 Mitsubishi Lancer Evoution VII WRC2



After half a season with the new evoltion 7 platform, Mitsubishi have updated their car. The WRC2 comes after a mediocre start to the 2002 WRC season. Drivers Delecour & McRae have only scored 2 points together in the 2002 season. Hopefully the new car, which better reflects the updated WRC regulations, will prepare Mitsubishi for a better result in 2003.

In Detail

submitted by Richard Owen
engine 4G63 Inline-4
position Front Transverse
valvetrain 4 Valves per Cyl
displacement 1996 cc / 121.8 in³
bore 85.5 mm / 3.37 in
stroke 86.9 mm / 3.42 in
power 223.7 kw / 300.0 bhp @ 300.0 rpm
torque 540 nm / 398.3 ft lbs @ 3500 rpm
body / frame Unit Steel
driven wheels 4WD
front tires Michelin
rear tires Michelin
front brakes Vented Discs w/6-Pot Calipers
rear brakes Vented Discs w/4-Pot Calipers
steering Rack & Pinion w/Power Assist
f suspension MacPherson Struts w/Coil Springs
r suspension MacPherson Struts w/Coil Springs
wheelbase 2600 mm / 102.4 in
front track 1550 mm / 61.0 in
rear track 1550 mm / 61.0 in
length 4360 mm / 171.7 in
width 1770 mm / 69.7 in
transmission 6 Speed INVECS type Shift
drag 1.0 Cd
