2005 Aston Martin V8 Vantage
Tuesday 1st March, 2005 – First shown as a concept car in 2003, Aston Martin unveiled the production version of its eagerly awaited V8 Vantage at the 2005 Geneva International Motor Show. ”The V8 Vantage is a significant car for us,” explained Dr Ulrich Bez, CEO of Aston Martin. ”It is now the third model in our range and is the culmination of the first phase of reinvigorating the Aston Martin brand around the world that began in the year 2000.”

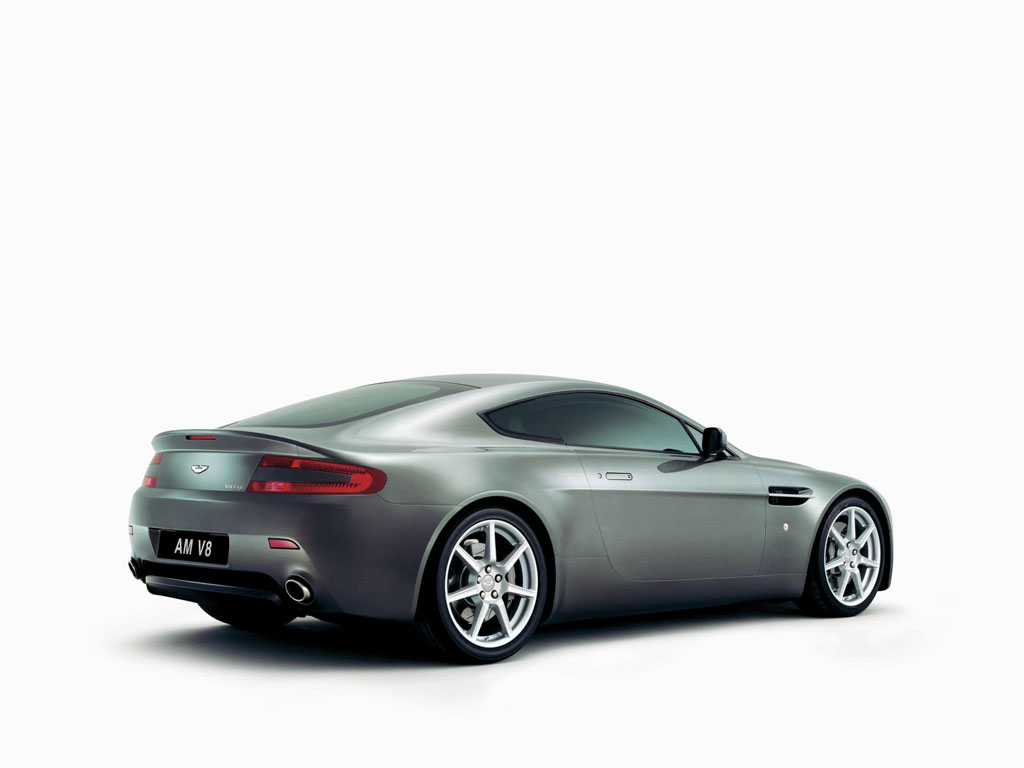

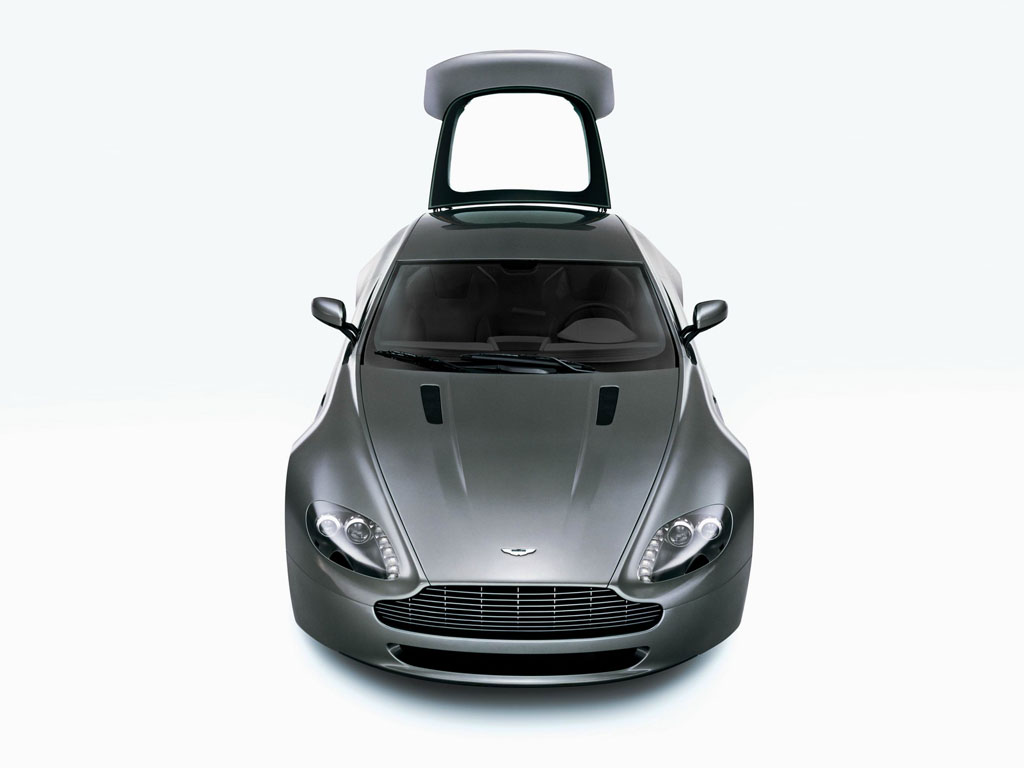

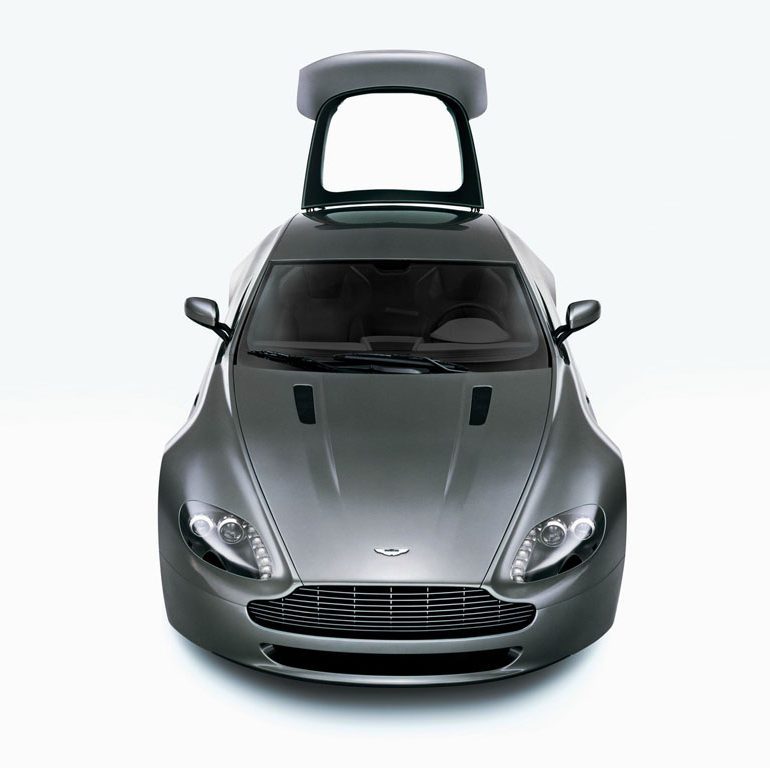

The V8 Vantage is a two-seater, with the rear environment offering a large luggage shelf area accessed by a tailgate. The long bonnet and two-seater cabin create an instantly recognisable stance, while minimal front and rear overhangs, combined with a wide track, appear to push the rear wheels out and enhance the extremities of the bodywork.
Offered with an imaginative combination of different leathers, contemporary fabrics and aluminium, V8 Vantage customers will have an extensive choice of standard body and trim colours from which to choose.
Inside, Aston Martin’s craftsmanship is matched to striking 21st century style. The dials are made from aluminium, and together with the switchgear have a very distinct design and unique Aston Martin look and feel.
The V8 Vantage has endured the most extensive test and development programme in the Company’s 91 year history. 78 Prototypes were vigorously tested more than 1 million miles. High speed testing was conducted at the Nardo test track in Italy and extensive testing was carried out at Nurburgring’s Nordschleife in Germany.
The V8 Vantage is the second model to use Aston Martin’s unique VH (Vertical Horizontal) architecture. Constructed from lightweight aluminum extrusions, precision castings and pressings, the underframe is bonded with aerospace adhesives and mechanically fixed with self-piercing rivets. The unique architecture provides an excellent backbone, while the use of materials such as lightweight alloys, magnesium and advanced composites for the body further contributes to the car’s low weight and high rigidity.

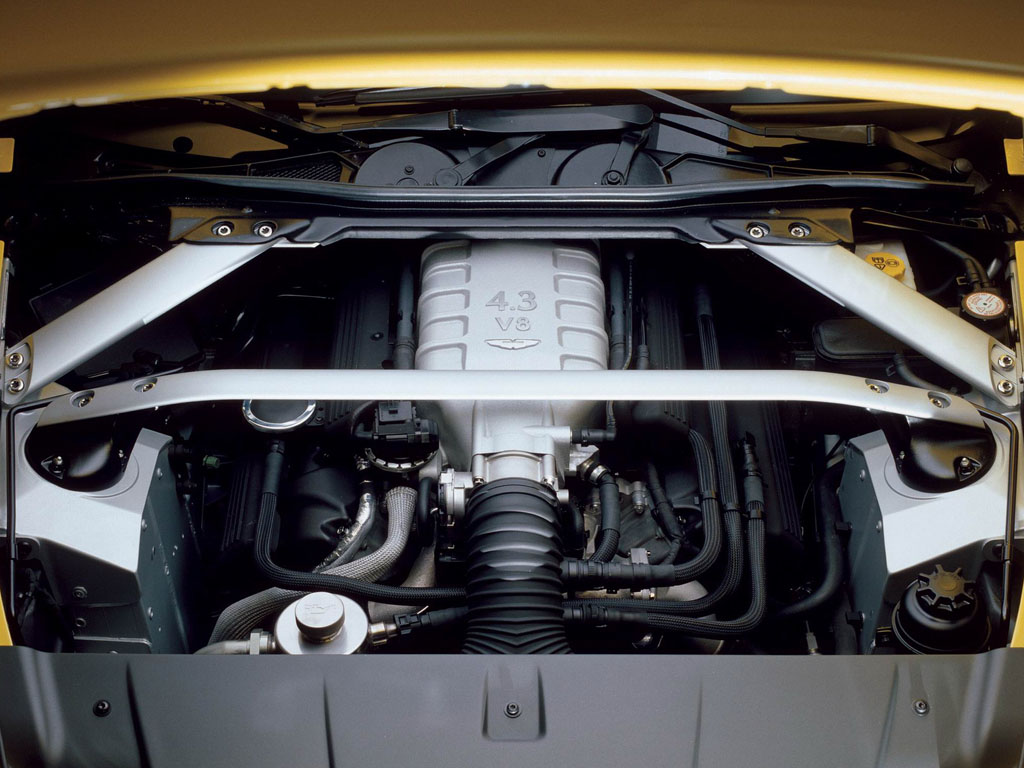

The all new 380 bhp engine is a 4.3 litre, low emissions all aluminium alloy V8, unique to Aston Martin. The advanced quad-cam 32-valve engine is individually hand assembled by skilled Aston Martin technicians at the company’s new engine production facility in Cologne, Germany, where every Aston Martin engine is built.
The layout of the powertrain adopts a transaxle configuration, whereby the front mid-mounted engine is connected to the transmission – at the rear of the car – via a cast aluminium torque tube and carbon fibre prop-shaft. This configuration provides the car with a 49:51 weight distribution, giving outstanding handling characteristics and excellent all round capabilities. The V8 Vantage will be initially offered with a 6-speed manual transmission and other alternatives will be announced at a later date.
Deliveries of the V8 Vantage to customers in the UK and Europe will begin in late summer and in North America and the rest of the world by the end of the year. It will be built at Aston Martin’s Headquarters at Gaydon, Warwickshire, UK, and completes the current Aston Martin line-up that comprises the flagship Vanquish S, the elegant DB9 and the agile V8 Vantage
Story by Aston Martin Lagonda Limited, edited by Supercars.net
|submitted by||Richard Owen|
|type||Series Production Car|
|built at||Gaydon, Warwickshire, England|
|body stylist||Henrik Fisker|
|price $||$ 124,300|
|engine||V8 w/Dry Sump Lubrication|
|valvetrain||4 Valves per Cyl w/Variable Inlet Camshaft Timing|
|displacement||4280 cc / 261.2 in³|
|bore||89 mm / 3.5 in|
|stroke||86 mm / 3.39 in|
|power||283.4 kw / 380 bhp @ 7000 rpm|
|specific output||88.79 bhp per litre|
|bhp/weight||242.04 bhp per tonne|
|torque||410 nm / 302.4 ft lbs @ 5000 rpm|
|body / frame||Aluminium Alloy, Steel, Composite & Magnesium Alloy Body over Bonded Aluminium Structure|
|driven wheels||RWD w/Traction Control|

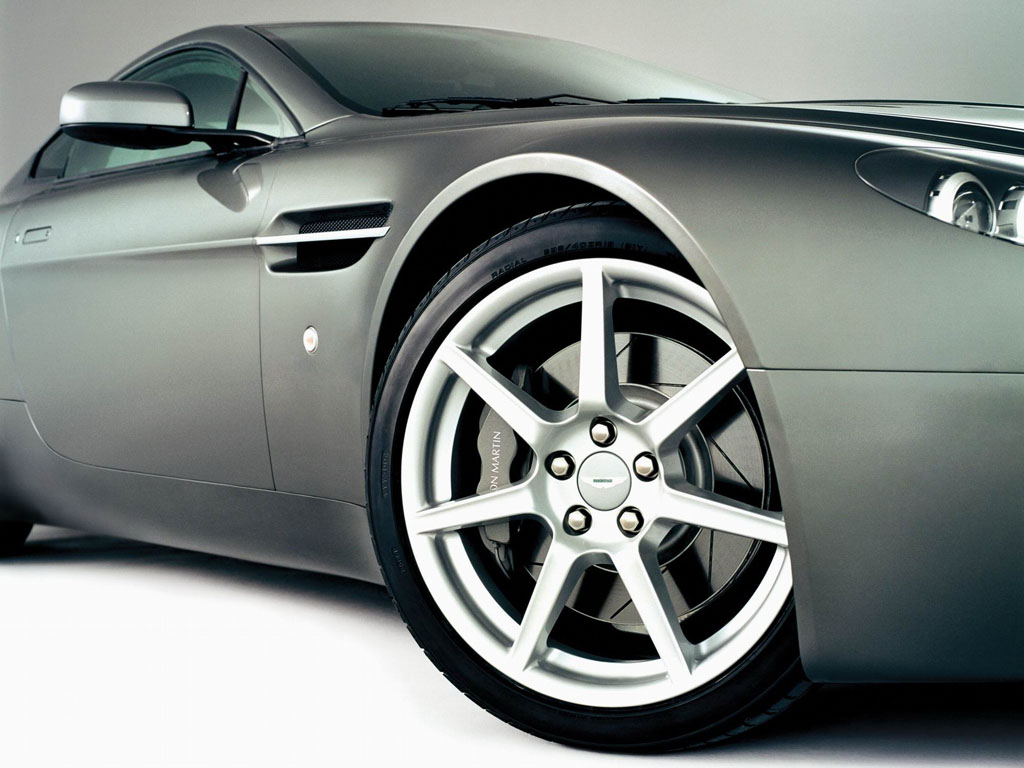

|front tires||235/45 ZR18 Bridgestone Potenza|
|rear tires||275/40 ZR18 Bridgestone Potenza|
|front brakes||Ventilated & Grooved Discs w/4-Piston Brembro Calipers|
|rear brakes||Ventilated & Grooved Discs w/4-Piston Brembro Calipers|
|front wheels||F 45.7 x 21.6 cm / 18 x 8.5 in|
|rear wheels||R 45.7 x 24.1 cm / 18 x 9.5 in|
|steering||Rack & Pinion w/Power Assist|
|f suspension||Double Aluminium Wishbones w/Coil Over Monotube Dampers, Anti-Roll Bar|
|r suspension||Double Aluminium Wishbones w/Coil Over Monotube Dampers, Anti-Roll Bar|
|curb weight||1570 kg / 3461 lbs|
|wheelbase||2600 mm / 102.4 in|
|front track||1568 mm / 61.7 in|
|rear track||1562 mm / 61.5 in|
|length||4683 mm / 184.4 in|
|width||1866 mm / 73.5 in|
|height||1255 mm / 49.4 in|
|transmission||Mid-Mounted 6-Speed Graziano Manual Gearbox|
|gear ratios||3.154:1, 1.974:1, 1.435:1, 1.148:1, 0.935:1, 0.775:1|
|top speed||~281.6 kph / 175 mph|
|0 – 60 mph||~4.8 seconds|
|0 – 100 mph||~11.9 seconds|
|0 – 1/4 mile||~13.2 seconds|
|city fuel econ epa||19.60 L/100 km or 12 mpg-us|
|hwy fuel econ epa||12.38 L/100 km or 19 mpg-us|
