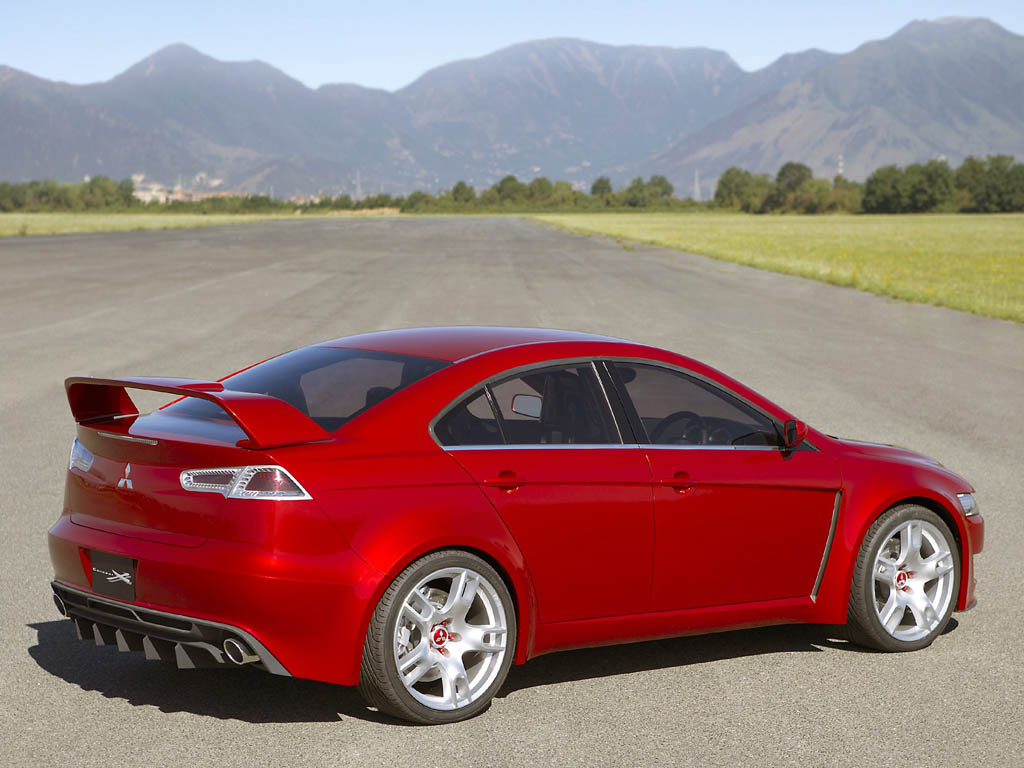

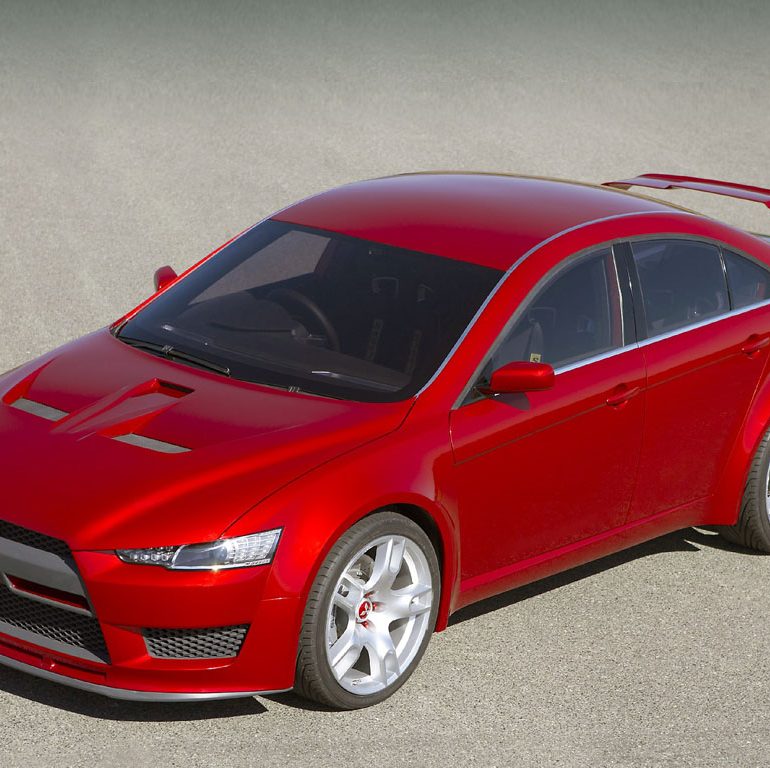

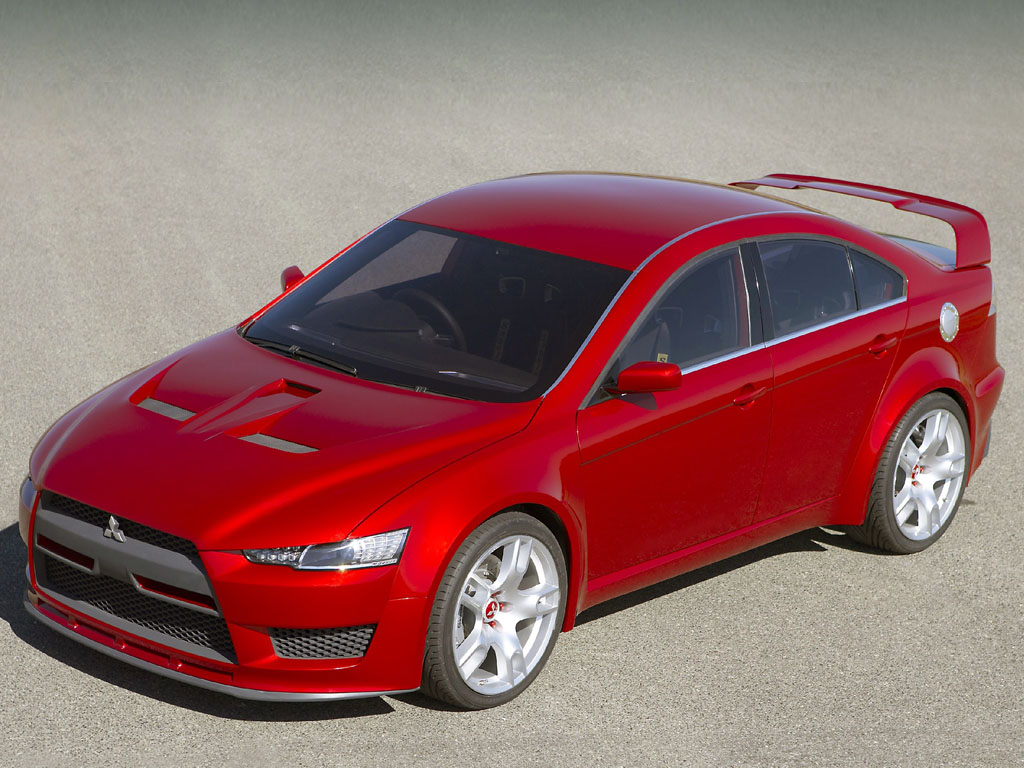

2005 Mitsubishi Concept-X

2005 Mitsubishi Concept-X

2005 Mitsubishi Concept-X

Mitsubishi Concept-X debuts the company’s design for the next generation Lancer Evolution.

The Concept-X is powered by a 2.0-litre 4-cylinder DOHC MIVEC intercooler-turbocharged engine that delivers instant response at all engine speeds with flat torque that keeps pulling up to the red line. Concept-X uses a clutchless 6-speed auto-manual transmission with paddle shifters mounted on the steering column to deliver slicker shifting and higher transmission efficiency than a regular manual gearbox.

The ring-structure frame design produces a significant increase in body stiffness, while the use of aluminium in the bonnet, boot lid, bumpers, roof and front and rear door panels reduces weight. Weight reduction, lowering the centre of gravity and reducing the moment of inertia, all contribute to better motive performance and better handling. The suspension features a MacPherson strut at the front and a multi-link arrangement at the rear. Working in conjunction with Mitsubishi Motors’ ‘Roll Control Suspension’ technology, this design delivers extraordinary levels of ride and road holding.

Concept-X showcases Mitsubishi’s Super All Wheel Control (S-AWC) technology. A further step up the evolutionary ladder for Mitsubishi Motors’ four-wheel drive traction and handling technology, S-AWC realises cutting-edge levels of dynamic control. Based on Mitsubishi’s full-time 4WD system, as used in Lancer Evolution, S-AWC adds Active Brake Control, Active Steering System and Roll Control Suspension technologies to create a fully integrated system.

Story by Mitsubisho

In Detail

submitted by Richard Owen
engine MIVEC Inline-4
valvetrain DOHC 4 Valves / Cyl
displacement 1995 cc / 121.7 in³
driven wheels AWD
front tires 255/35R20
rear tires 255/35R20
f brake size mm / in
r brake size mm / in
front wheels F 50.8 x 22.9 cm / 20 x 9 in
rear wheels R 50.8 x 22.9 cm / 20 x 9 in
wheelbase 2650 mm / 104.3 in
front track 1565 mm / 61.6 in
rear track 1565 mm / 61.6 in
length 4350 mm / 171.3 in
width 1830 mm / 72.0 in
height 1470 mm / 57.9 in
transmission 6-Speed Auto-Manual
gear ratios :1
