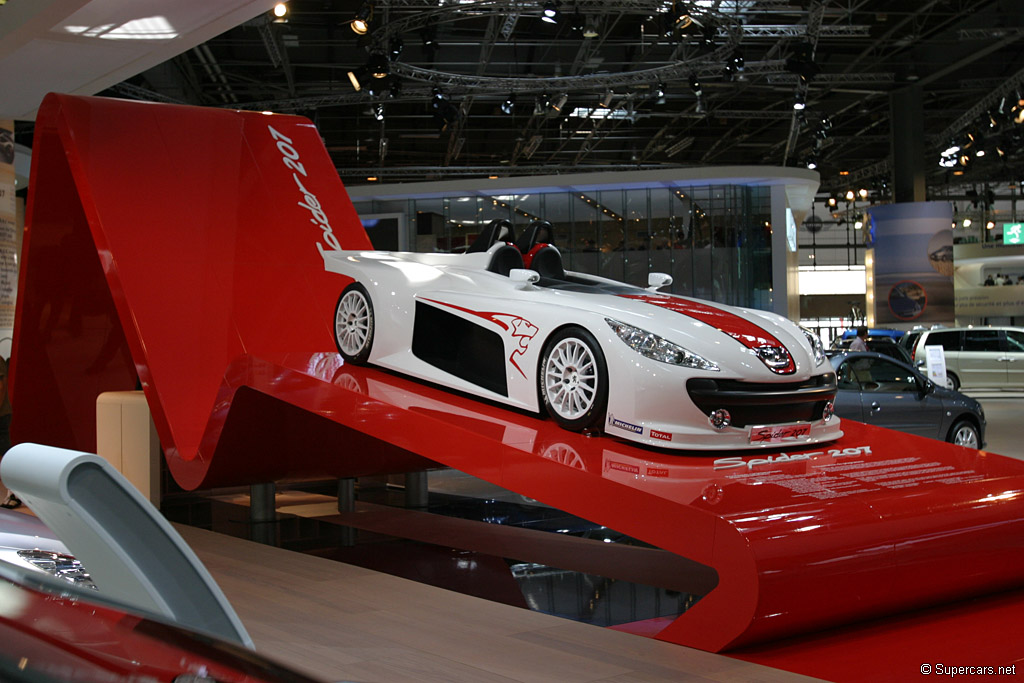

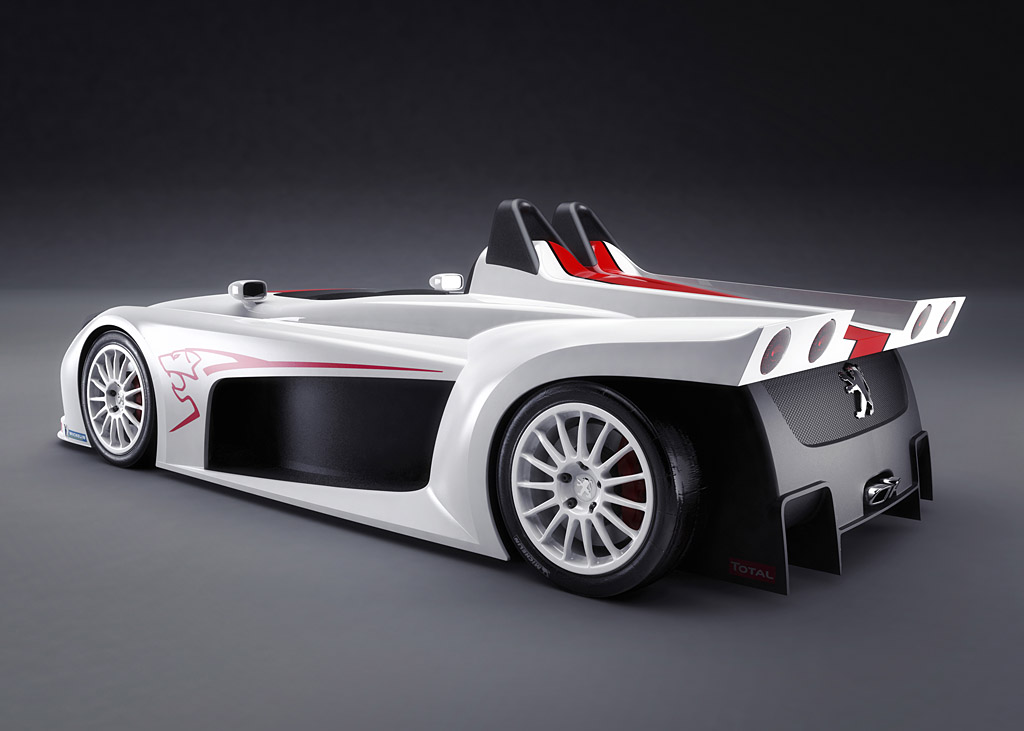

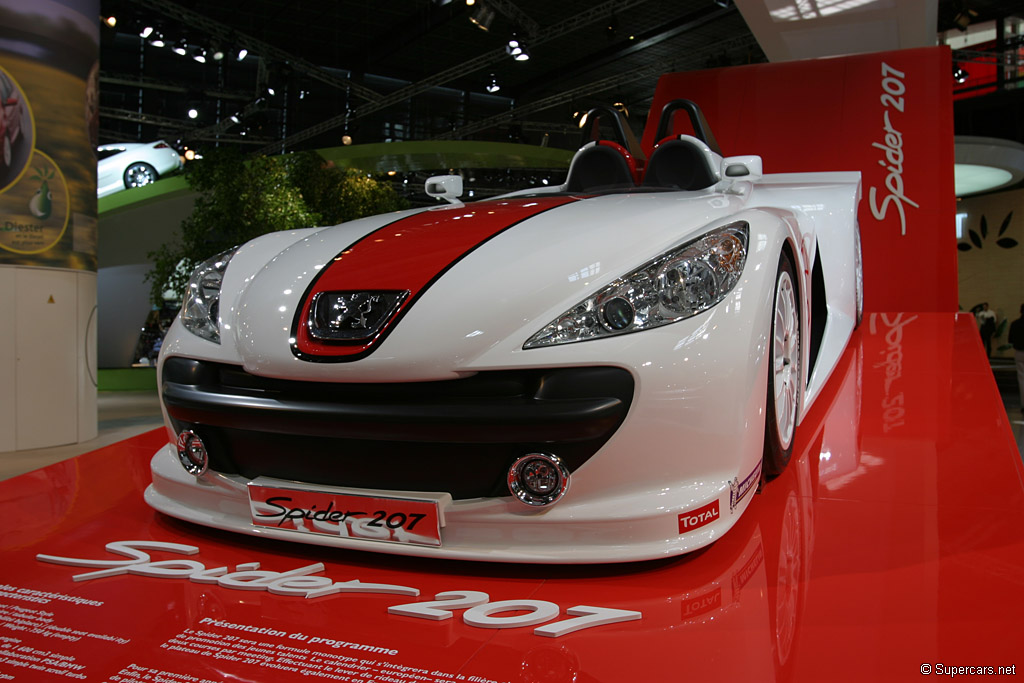

The Spider 207, which received its world premiere in Paris, is developed from the 20Cup concept car but features a more conventional 4-wheel architecture and a rear transverse engine. This car, intended to be driven in a single class category, will provide intense and genuine driving pleasure, combined with the use of a production engine offering a high
level of torque and reliability.

This category will be the curtain raiser to all five rounds of the Le Mans Series (LMS) and an extra event will also take place in France as part of the Rencontres Peugeot Sport. It is a racing car embodying the attributes of both LMP1 and LMP2 cars and complying with ACO regulations, particularly as regards rollover protection.

The chassis is tubular and consists of three main parts for reasons of repairability and the engine-gearbox assembly occupies a central rear transverse position. For driver safety, the car’s structure (chassis, front and rear rollover bars, crash box, and steering column) meets the requirements of IAF regulations governing Sports Cars (LMP1 and LMP2).

In Detail

submitted by Richard Owen
engine THP EP6 DTS Inline-4
valvetrain DOHC, 4 Valves per Cyl w/VVT
fuel feed Direct Petrol Injection
displacement 1598 cc / 97.5 in³
bore 77 mm / 3.03 in
stroke 85.8 mm / 3.38 in
power 130.5 kw / 175 bhp
specific output 109.51 bhp per litre
bhp/weight 243.06 bhp per tonne
torque 240 nm / 177.0 ft lbs @ 1600 rpm
redline 6500
wheel type Aluminum Monoblock
front tires 21/65-18 Michelin
rear tires 21/65-18 Michelin
f brake size mm / in
r brake size mm / in
front wheels F 45.7 x 20.3 cm / 18 x 8 in
rear wheels R 45.7 x 20.3 cm / 18 x 8 in
curb weight 720 kg / 1587 lbs
wheelbase 2600 mm / 102.4 in
front track 1505 mm / 59.3 in
rear track 1615 mm / 63.6 in
length 4131 mm / 162.6 in
width 1854 mm / 73.0 in
transmission Sadev ST 74-14 6-speed Transmission
gear ratios :1
