2006 Rinspeed Imola


2006 Rinspeed Imola

2006 Rinspeed Imola

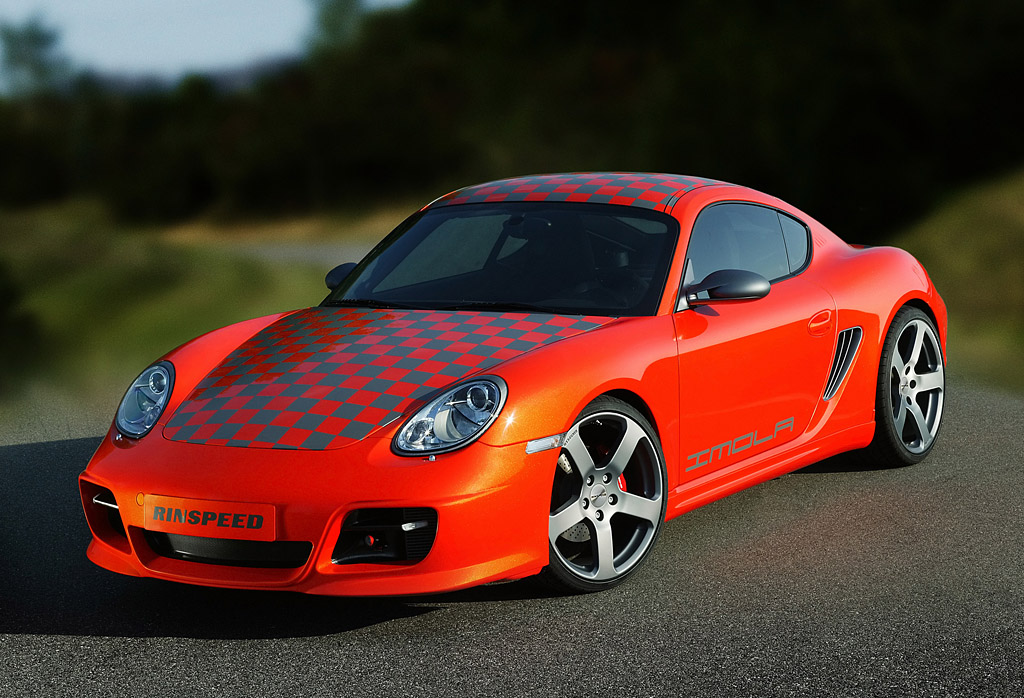

The Swiss Porsche tuner Rinspeed transforms the Porsche Cayman also optically in an more bitingly reptile. The effect-orange color paint exclusively mixed by the German paint manufacturer Lesonal lets the ducked reptile appear to be even more aggressive and dynamic.

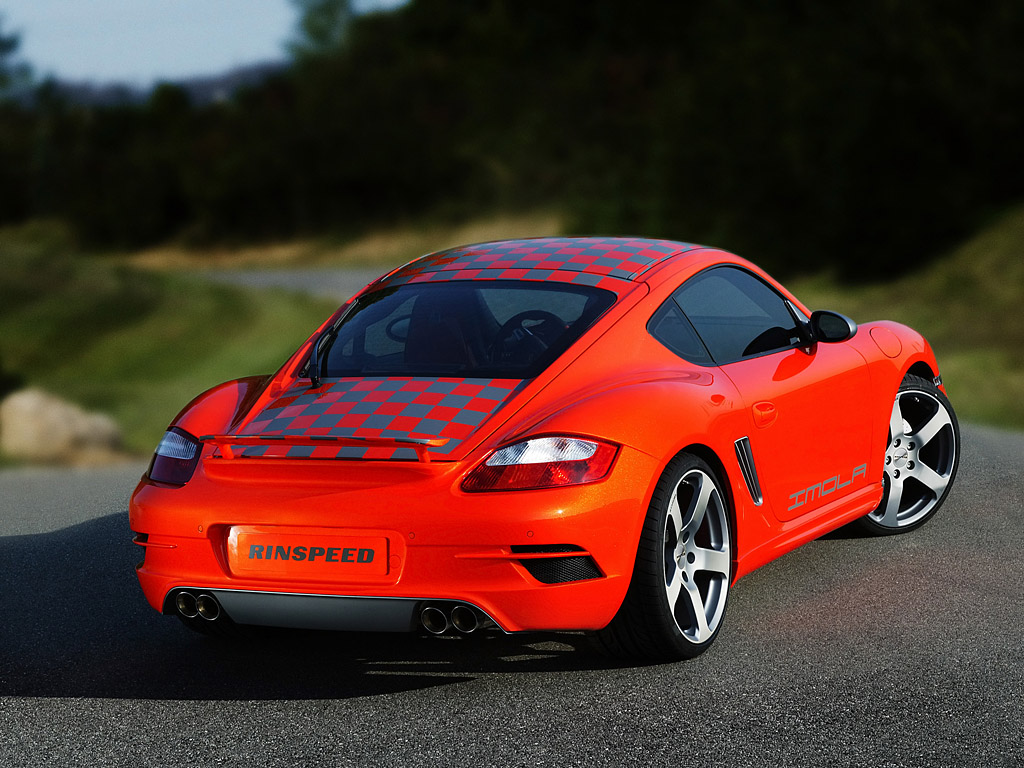

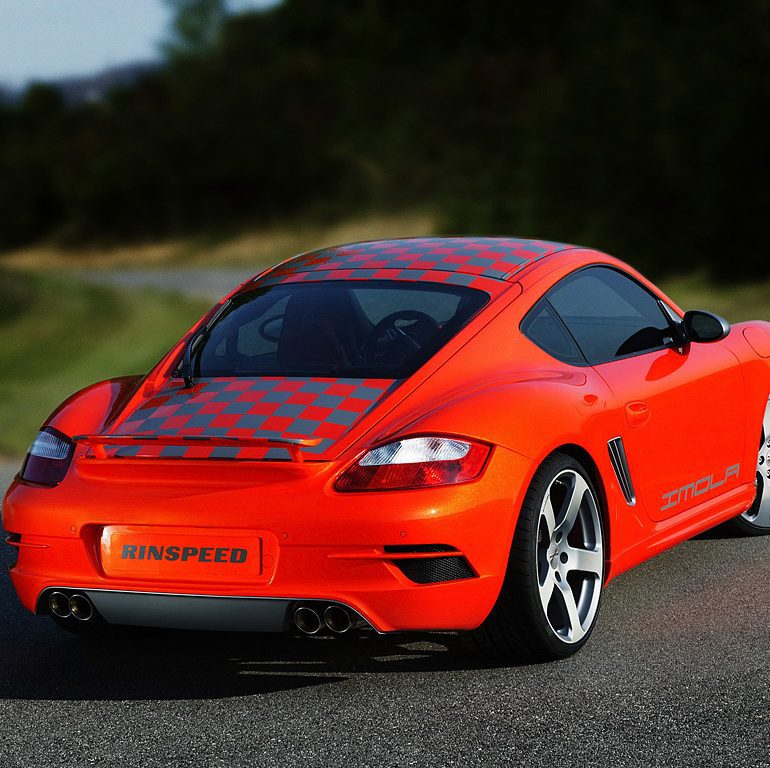

The already outstanding road performance is joined by a sophisticated aerodynamic package which doesn’t leave any wish unfulfilled. Rinspeed has modified the Cayman characteristics with a low front skirt which takes design clues from the Indy look which was introduces for the 997 model series. The big carbon air intakes with the integrated parking lights remind of the current 997 Turbo model. New side skirts let the power house from Stuttgart appear lowered and sleeker. The complete rear skirt features a carbon difusor insert. Special attention was given to the exchangeable rear skirt inserts which allow either center or a dual exhaust systems. Headers, metal catalytic converters and stainless steel exhaust systems round up the exciting program.

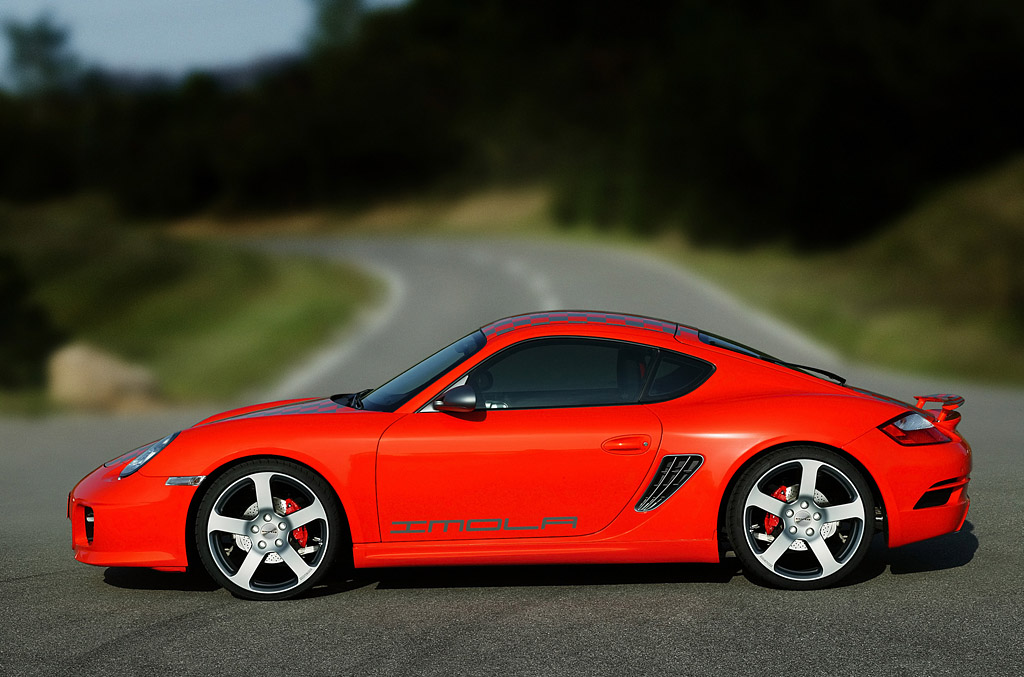

The contact to the road is taken care by the well established five spoke aluminum wheels C5/1 in the format of 8.5 x 20″ with tires of the dimension 235/30-20 at the front axle and 11 x 20″ with tires 305/25-20 at the rear. The suspension is lowered by 25mm by an especially laid out and engineered suspension kit which is adapted to the serial PASM system. Four way adjustable coil over suspension kits are also available.

The interior is enhanced by a sporty steering wheel in F1 look, aluminum shift knob, aluminum pedals sets, emergency brake lever as well as velour floor mats.

In Detail

submitted by Richard Owen
engine Flat-6
position Mid Engine
displacement 3400 cc / 207.5 in³
power 220.0 kw / 295 bhp
specific output 86.76 bhp per litre
bhp/weight 207.75 bhp per tonne
torque 345.73 nm / 255 ft lbs @ 4200-4600 rpm
body / frame Unit Steel
driven wheels RWD
wheel type C5/1
front tires 235/30-20
rear tires 305/25-20
f brake size mm / in
r brake size mm / in
front wheels F 50.8 x 21.6 cm / 20 x 8.5 in
rear wheels R 50.8 x 27.9 cm / 20 x 11 in
curb weight 1420 kg / 3130 lbs
transmission 6-Speed Manual
gear ratios :1
top speed ~275.2 kph / 171 mph
0 – 60 mph ~4.8 seconds
0 – 100 mph ~11.4 seconds
0 – 1/4 mile ~13.0 seconds
