2007 Caterham X330 Concept


2007 Caterham X330 Concept

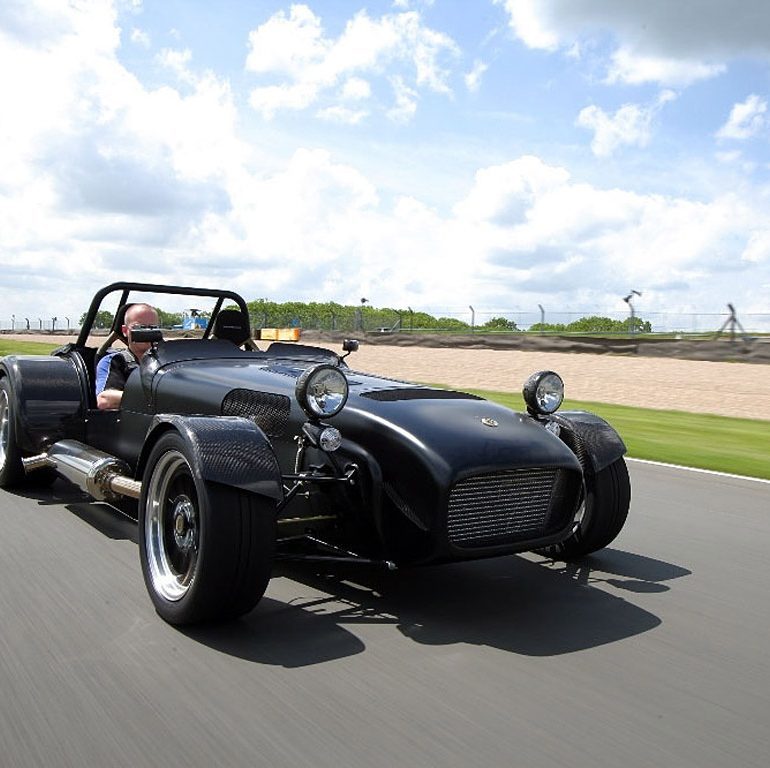

To celebrate its 50th anniversary, Caterham unveiled its most powerful Seven ever; the X330 – a one-off supercharged model boasting a mind-boggling power-to-weight ratio of 600 bhp per ton. The stealthy, matt black concept is based around the range-topping CSR Superlight, but the addition of a supercharger to the four-cylinder 2.3-liter Ford Duratec engine increases power massively from 260 to 330 bhp – as the name suggests. That means the X330’s equivalent power-to-weight ratio puts it ahead of the Bugatti Veyron (521 bhp per ton) and the McLaren F1 (559 bhp).

The near 35% power hike is achieved by a Rotrex C30-94 supercharger, which provides a boost characteristic that rises linearly with engine speed. In other words, although the X330’s punch is greater at higher revs and speed, low-speed driveability isn’t compromised thanks to an exceptional torque curve with over 221 lb-ft from 5500 to 7500rpm – 20 lb-ft more than the CSR260.

As the X330 is an engineering test bed, it is envisaged that some of the concepts will eventually find their way into production. To begin with the X330 will spearhead the British firm’s R&D into bioethanol power in the coming months as it seeks to assess the viability of alternative fuel sources in road and race applications and cement a further 50 years of history for the legendary Seven.

In keeping with the Seven ethos of ‘adding lightness’, the extremity of the X330 doesn’t stop at moving parts. Lighter gauge steel is used in the trellis-style chassis and the use of new lightweight wheels together with an abundant use of carbon fiber for the bodywork all adds to the stealth appearance of this perfect 50th birthday present.

2007 Caterham X330 Concept

In Detail

engine Cosworth Developed Ford Duratec Inline-4 w/Dry Sump Lubrication
position Front Longitudinal
aspiration Rotrex C30-94 Supercharger
valvetrain 4-Valves / Cyl
displacement 2261 cc / 138.0 in³
bore 87.5 mm / 3.44 in
stroke 94 mm / 3.7 in
power 246.1 kw / 330 bhp
specific output 145.95 bhp per litre
torque 299.64 nm / 221 ft lbs @ 5500 rpm
f brake size mm / in
r brake size mm / in
gear ratios :1
