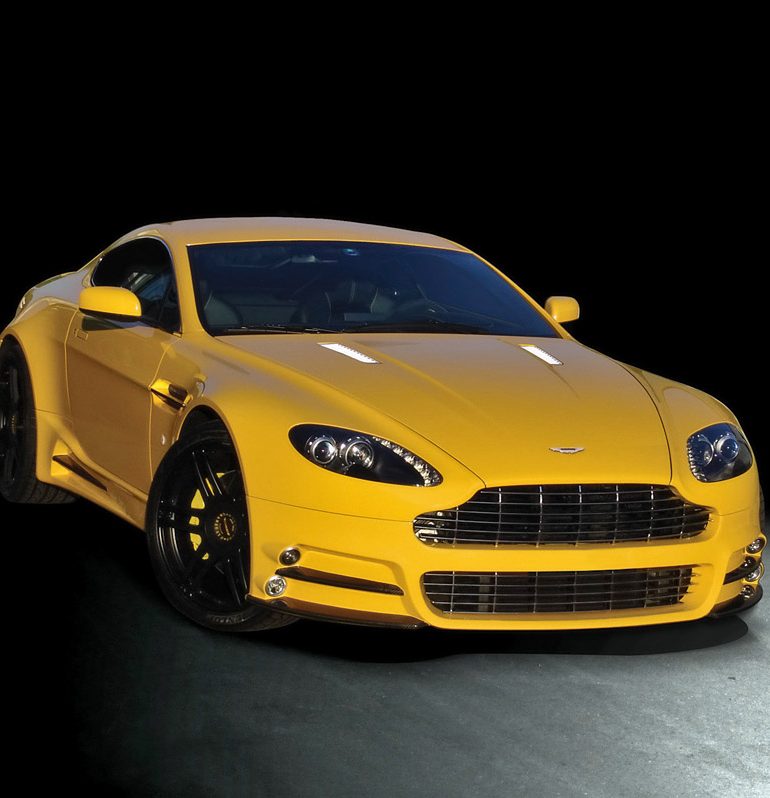

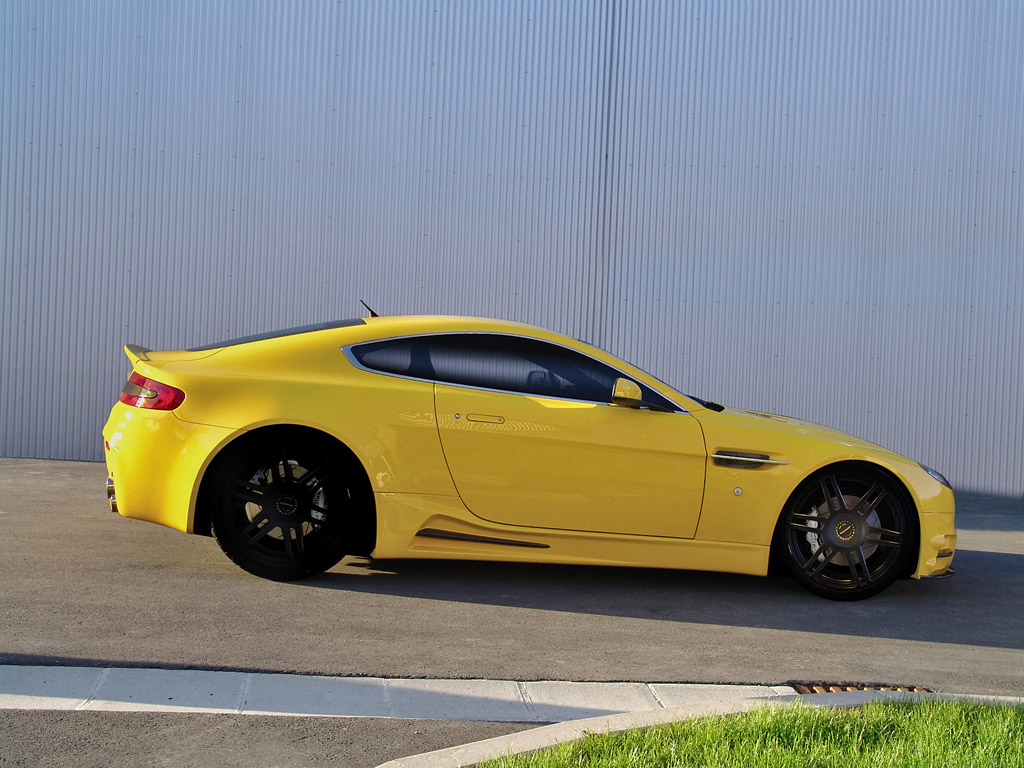

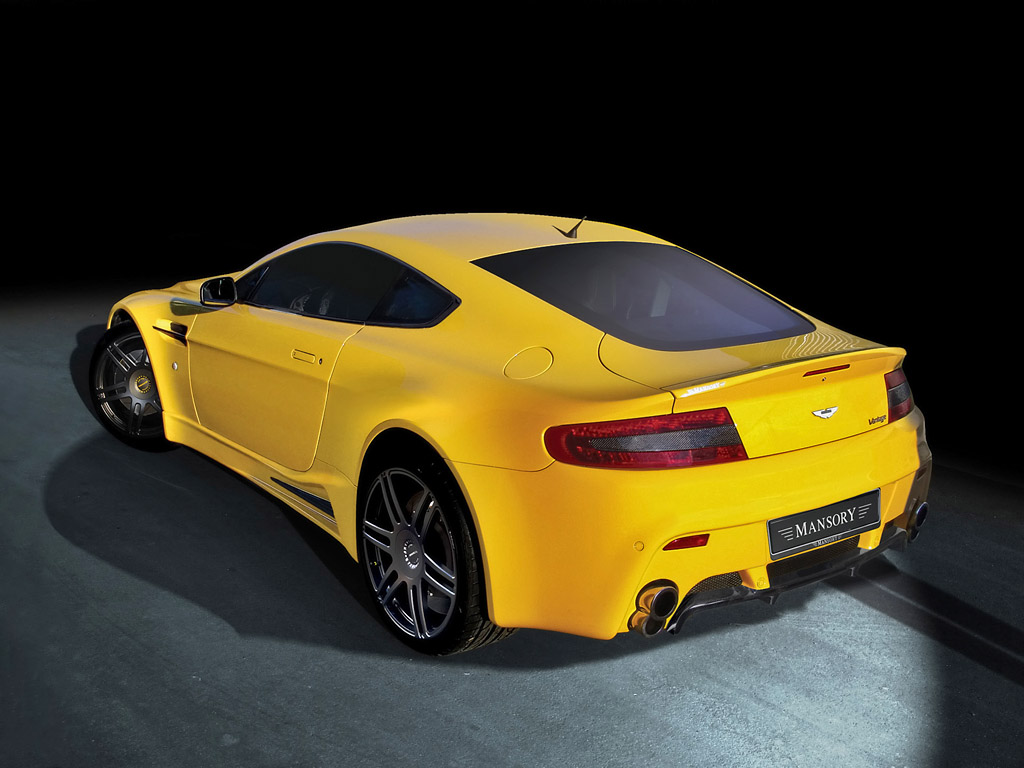

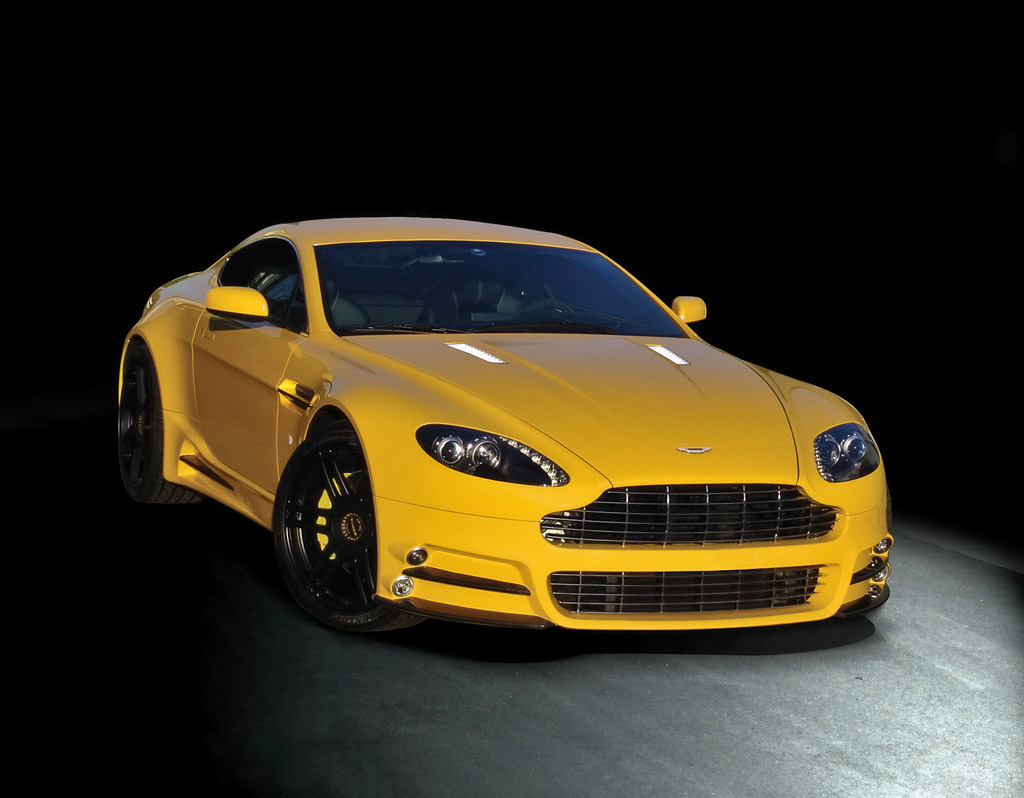

2007 Mansory V8 Vantage


2007 Mansory V8 Vantage

2007 Mansory V8 Vantage

’Small but nice’ to say would be more than understatement. The new series of the Aston Martin Vantage V8 for sure is a favourable bargain to own an Aston Martin, but latest with MANSORY customization there is born a one more superlative purebred sportscar. Like all customization ranges the frontspoiler comes with an adaptive 4-line grilleelement, similar to the new 6-line lightweight main radiator grille, afford by the way a better air supply and will give an elegant also a new snappy optical characteristic. Special developed BREMBO brakes with dimensions of 405/32 rotordiscs with 6 piston calibers for the front and add on for the rear dimensions of 405/28 with 4 piston calibers and a integrated handbrake system. There will be a complete new drivers feeling regarding the brakes and the brand new fully forged Aluminium leightweight performance wheels. Dimensions are in the front like 9x20J with accordant 255/35/20 high performance tyres and for the rear 10.5x20J by 285/30/20 tyres. Likewise the side skirts amend the aerodynamic and let the car looks much more deeper. Yet another typical detail are the integrated carbon flanks with air intakes behind of them, identic to all the modified range. The rear design shows the apron with an inte- grated carbon diffusor, carbon tail lamp covers and again a step more sportier the rear trunk lid spoiler which supporting the dynamic contact pressure, a total effect comes up to the backside look.

The chromed details are the integrated rounded double exhaust tips over and under. Totally new the anodized aluminium air outtakes on engine bonnet, together they are toping the exterior off, but don’t forget the racy carbonfibre wing mirrors. Also new the suspension lowering with sport performance springs, the complete vehicle comes down 20 mm ( approx.: 0,8 inch). If you want it more individual MANSORY will leave nothing to the interior imagination, you can choose from the finest materials. As a matter of course beside steering wheel, carbonfibre trim equipment up to the smallest details like the 3-part set of aluminium pedals or the aluminium brake handle.

MANSORY as a company is dedicated to perfection in the form of high end tuning and individualisation to match the lifestyle of the owners of British noble automobiles like Aston Martin, Bentley and Rolls Royce. The headquarter is situated in Brand, Fichtelgebirge near to Bayreuth, Germany. The MANSORY Cooperation GmbH only offers their own developed tuning-accessories exclusively, we don’t sell complete automobiles.

In Detail

submitted by Richard Owen
engine V8 w/Dry Sump Lubrication
position Front Longituidnal
valvetrain 4 Valves per Cyl w/Variable Inlet Camshaft Timing
displacement 4280 cc / 261.2 in³
bore 89 mm / 3.5 in
stroke 86 mm / 3.39 in
power 283.4 kw / 380 bhp @ 7000 rpm
specific output 88.79 bhp per litre
bhp/weight 242.04 bhp per tonne
torque 410 nm / 302.4 ft lbs @ 5000 rpm
body / frame Aluminium Alloy, Steel, Composite & Magnesium Alloy Body over Bonded Aluminium Structure w/Mansory Body Kit
driven wheels RWD w/Traction Control
wheel type Forged Aluminium
front tires 255/35/20
rear tires 285/30/20
front brakes Ventilated & Grooved Discs w/6-Piston Brembro Calipers
f brake size x 405 mm / x 15.9 in
rear brakes Ventilated & Grooved Discs w/4-Piston Brembro Calipers
r brake size x 405 mm / x 15.9 in
front wheels F 50.8 x 22.9 cm / 20 x 9 in
rear wheels R 50.8 x 26.7 cm / 20 x 10.5 in
steering Rack & Pinion w/Power Assist
f suspension Double Aluminium Wishbones w/Coil Over Monotube Dampers, Anti-Roll Bar
r suspension Double Aluminium Wishbones w/Coil Over Monotube Dampers, Anti-Roll Bar
curb weight 1570 kg / 3461 lbs
wheelbase 2600 mm / 102.4 in
front track 1568 mm / 61.7 in
rear track 1562 mm / 61.5 in
length 4683 mm / 184.4 in
width 1866 mm / 73.5 in
height 1235 mm / 48.6 in
transmission Mid-Mounted 6-Speed Graziano Manual Gearbox
gear ratios 3.154:1, 1.974:1, 1.435:1, 1.148:1, 0.935:1, 0.775:1, :1
final drive 3.909:1
top speed ~281.6 kph / 175 mph
0 – 60 mph ~4.9 seconds
0 – 100 mph ~11.6 seconds
0 – 1/4 mile ~13.2 seconds
