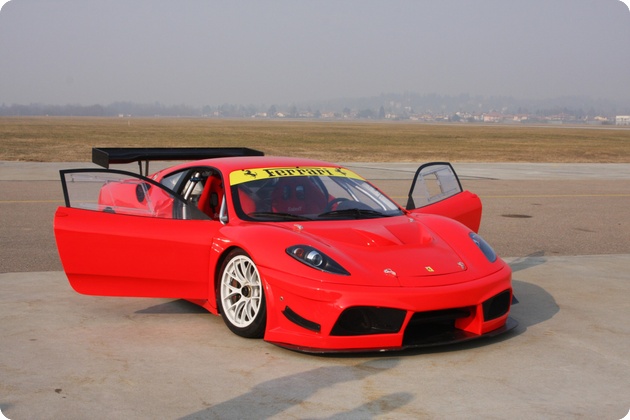

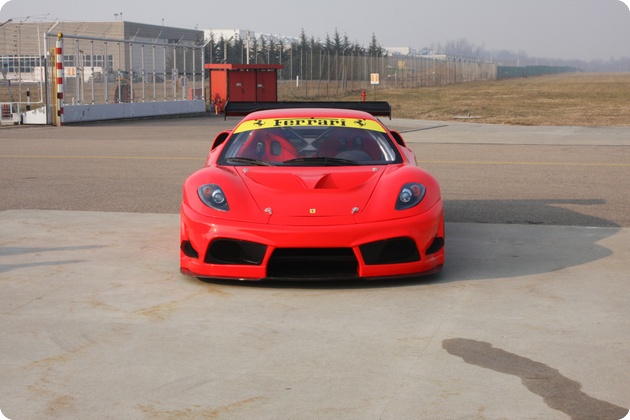

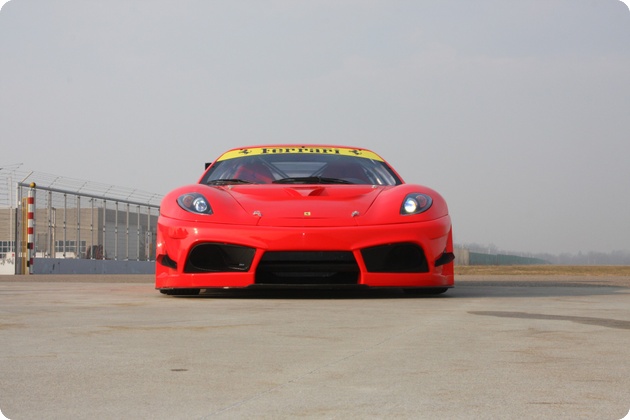

2009 Ferrari F430 Scuderia GT3


2009 Ferrari F430 Scuderia GT3

2009 Ferrari F430 Scuderia GT3

For the 2009 season Kessel Racing has developed a successor to the successful 430 GT3. Based on the Scuderia, the new car should be faster than the F430 GT which won the 2007 FIA GT3 European Championship.

The Scuderia is based on the potent road car and modified as much as the FIA GT3 rules will allow. Subject to FIA approval, the Scuderia GT3 will receive a new homologation form shortly.

Three Ferrari teams have expressed their intention to enter it in the FIA GT3: Championship regulars Kessel Racing and JMB Racing to be joined by CRS Racing who are extending their activity to FIA GT3 next to the confirmed two-car entry in the FIA GT Championship.

2009 Ferrari F430 Scuderia GT3 2009 Ferrari F430 Scuderia GT3 2009 Ferrari F430 Scuderia GT3

In Detail

submitted by admin
type Racing Car
built at Italy
engine Ferrari F136E 90° V8
position Mid, Longitudinal
aspiration Natural
block material Aluminum Alloy
valvetrain DOHC, 4 Valves per Cyl
displacement 4307 cc / 262.83 in³
bore 92 mm / 3.6 in
stroke 81 mm / 3.2 in
power 372.9 kw / 500 bhp @ 8500 rpm
specific output 116.09 bhp per litre
bhp/weight 410.17 bhp per tonne
torque 465 nm / 343.0 ft lbs @ 5250 rpm
body / frame Aluminum body over Aluminum Tub
driven wheels RWD
front tires 27/65 18 Michelin
rear tires 27/68 18 Michelin
front brakes Discs w/Brembo 6-Piston Calipers
rear brakes Discs w/Brembo 4-Piston Calipers
f suspension Double Wishbones w/Coil Springs, Sachs 4-way Adjustable Shock Absorbers
r suspension Double Wishbones w/Coil Springs, Sachs 4-way Adjustable Shock Absorbers
curb weight 1219 kg / 2688 lbs
wheelbase 2603 mm / 102.5 in
front track 1715 mm / 67.5 in
rear track 1622 mm / 63.9 in
length 4540 mm / 178.7 in
width 2005 mm / 78.9 in
height 1184 mm / 46.6 in
transmission 6-Speed Sequential
fuel capacity 110 litres or 29.04 gal.
