Jaguar XJR-7


Jaguar XJR-7

1983→1985 Jaguar XJR-7

For the 1985 season, Bob Tulius and Group 44 racing modified their XJR IMSA contender with a Kevlar-reinforced chassis and updated aero.

Two cars driven the teams of Redman / Haywood and Tullius / Robinson were always in contention but didn’t score a first overall until the season closer at the 3 Hour Daytona Finale.

Group 44 continued with the cars less aggressively in 1987, but scored first overalls at the 300km of Laguna Seca and 3 Hours West Palm Beach.

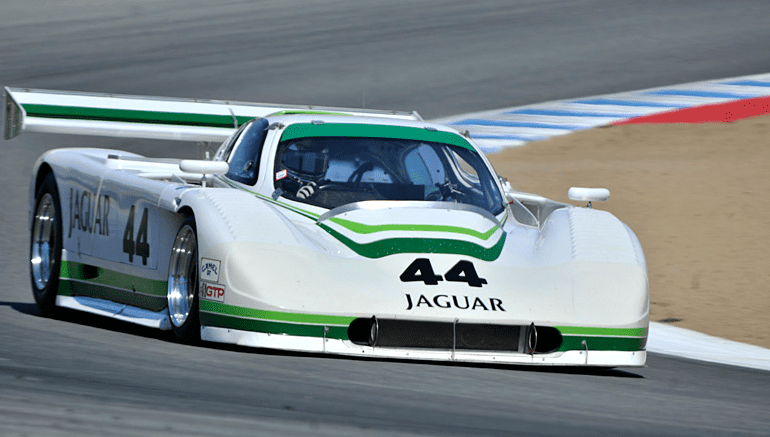

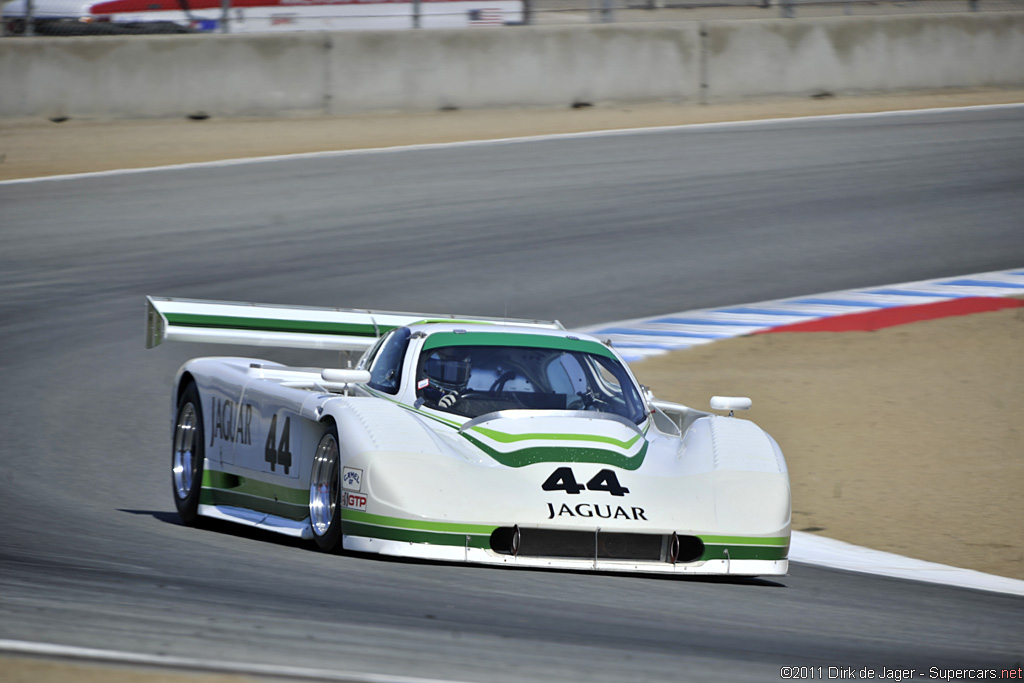

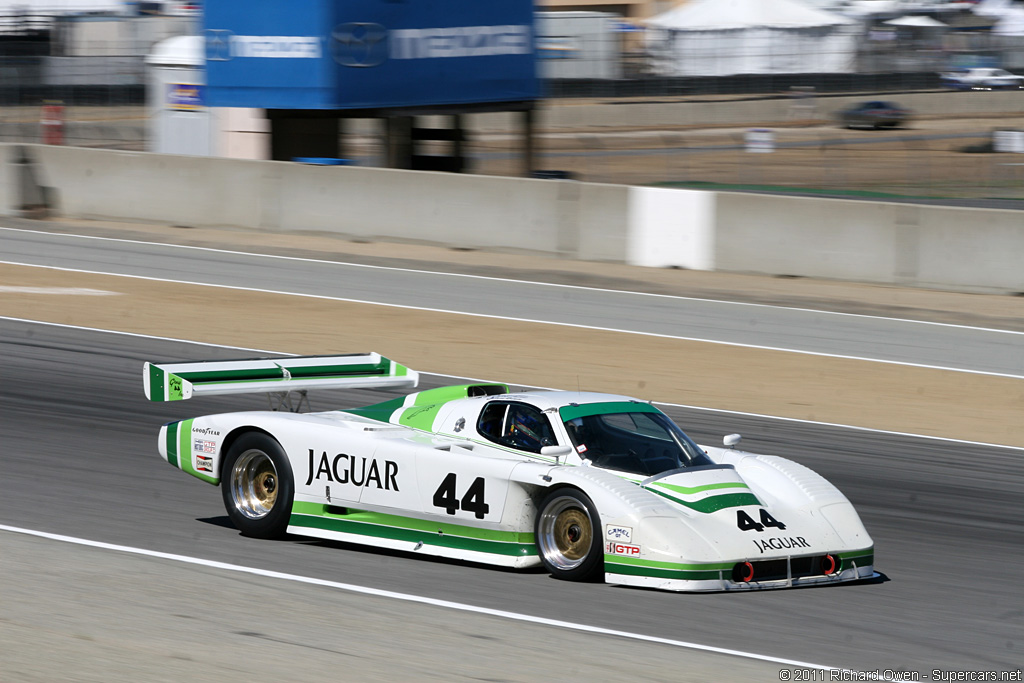

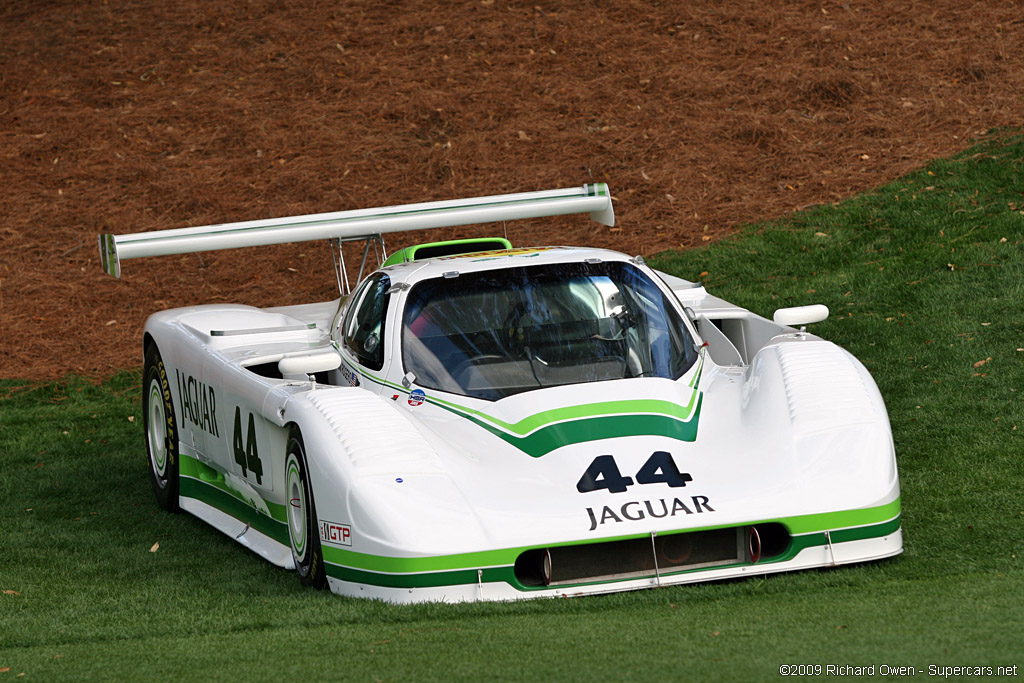

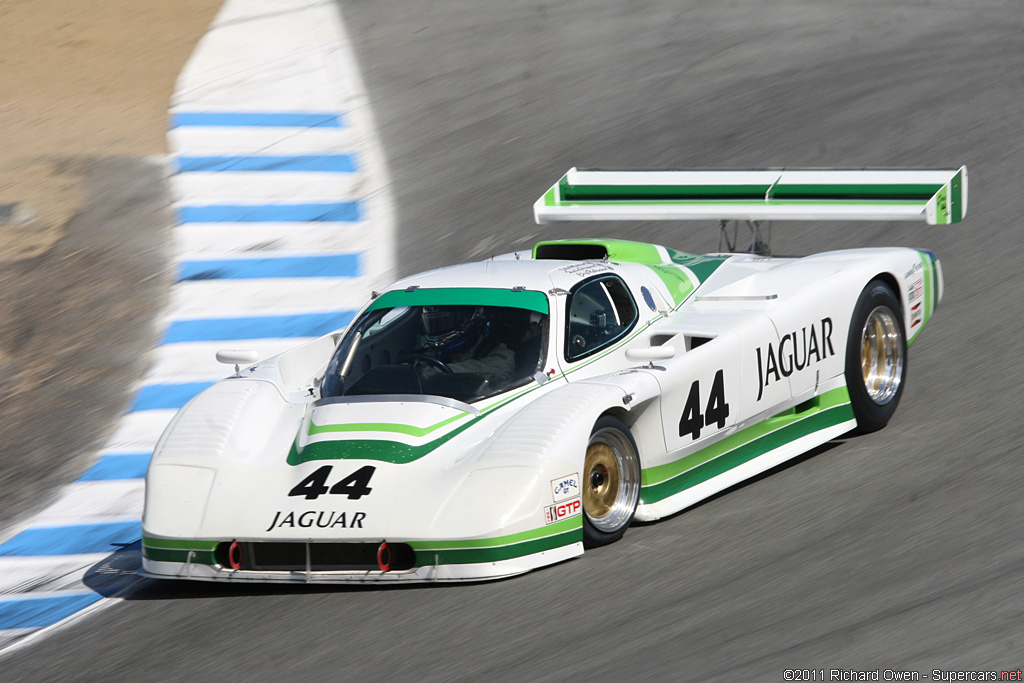

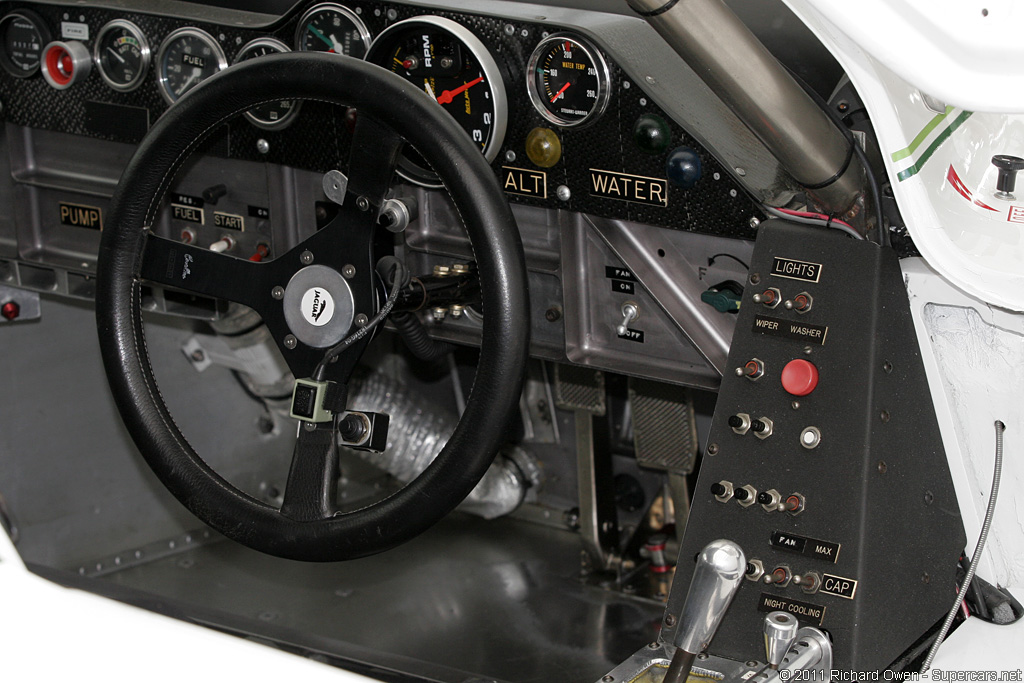

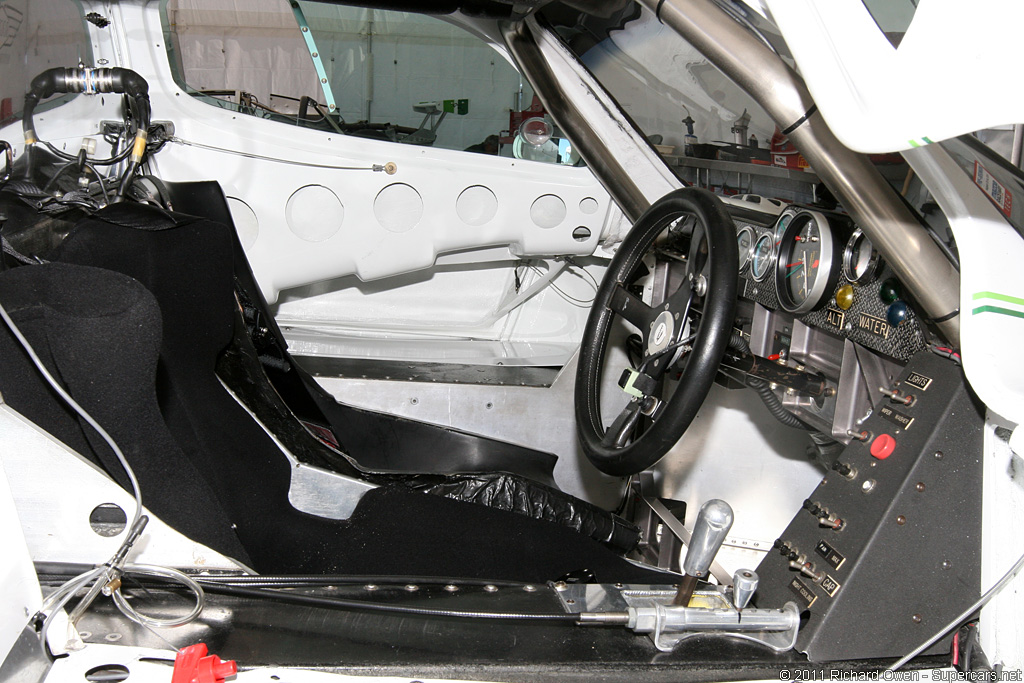

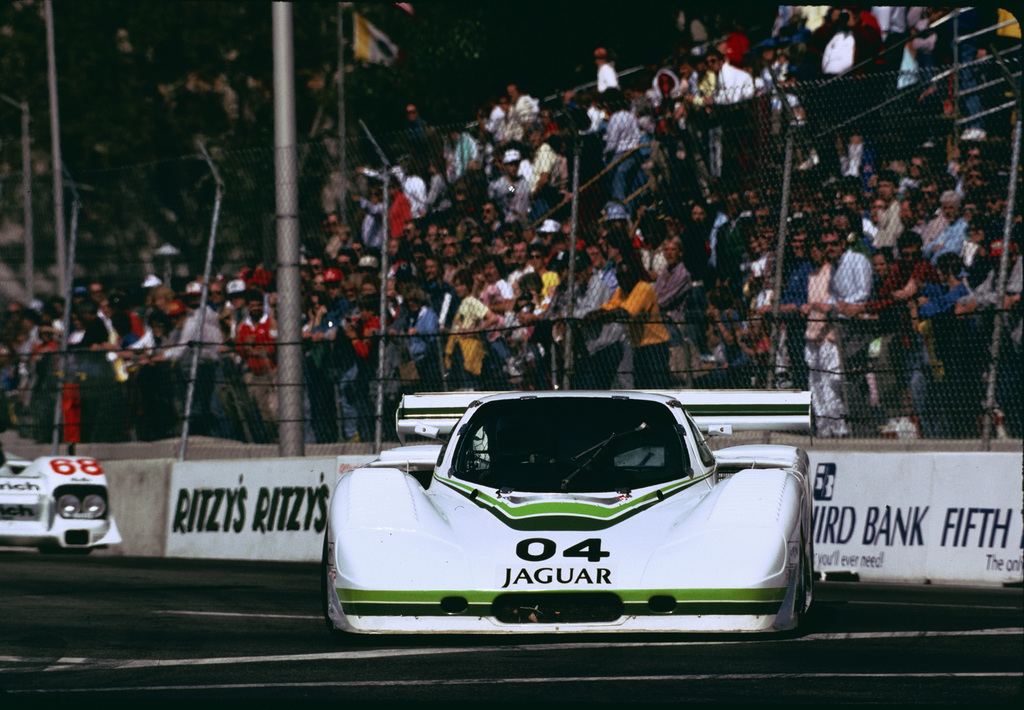

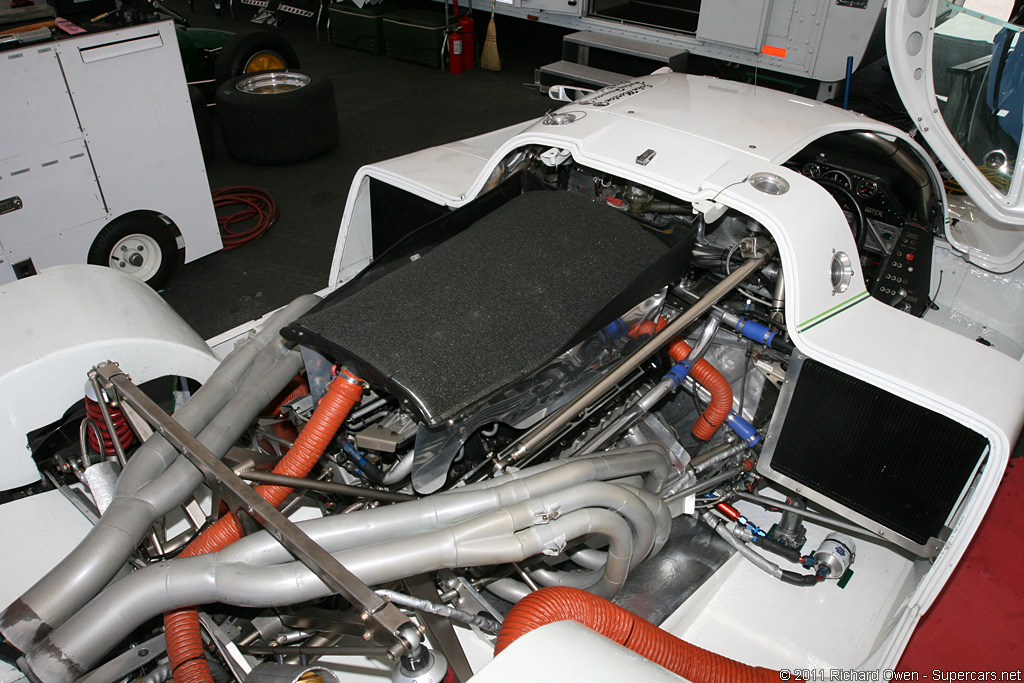

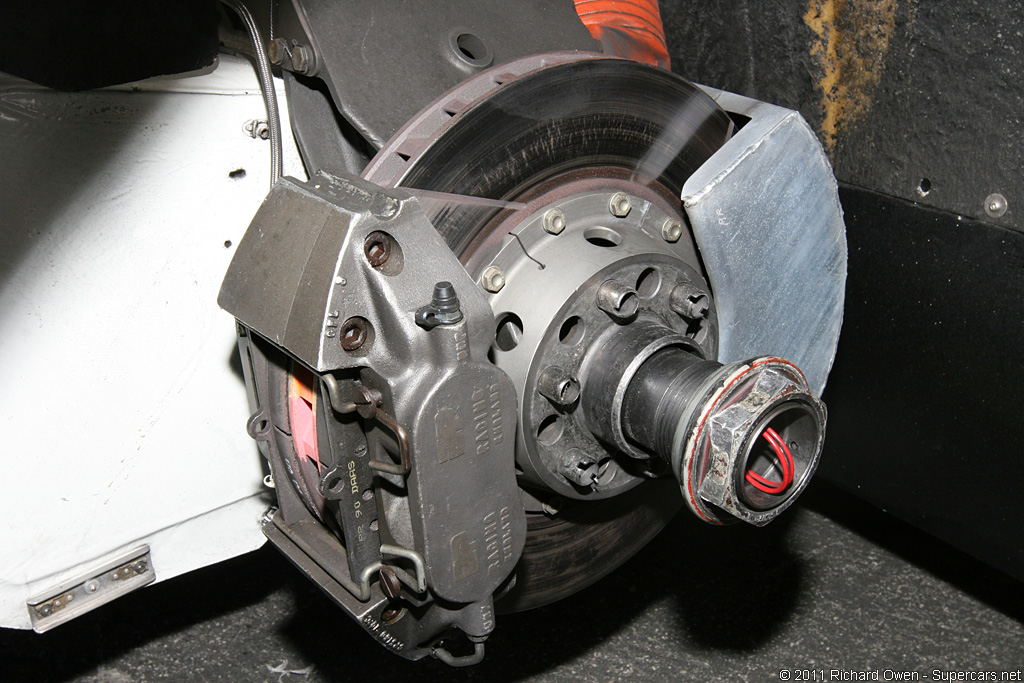

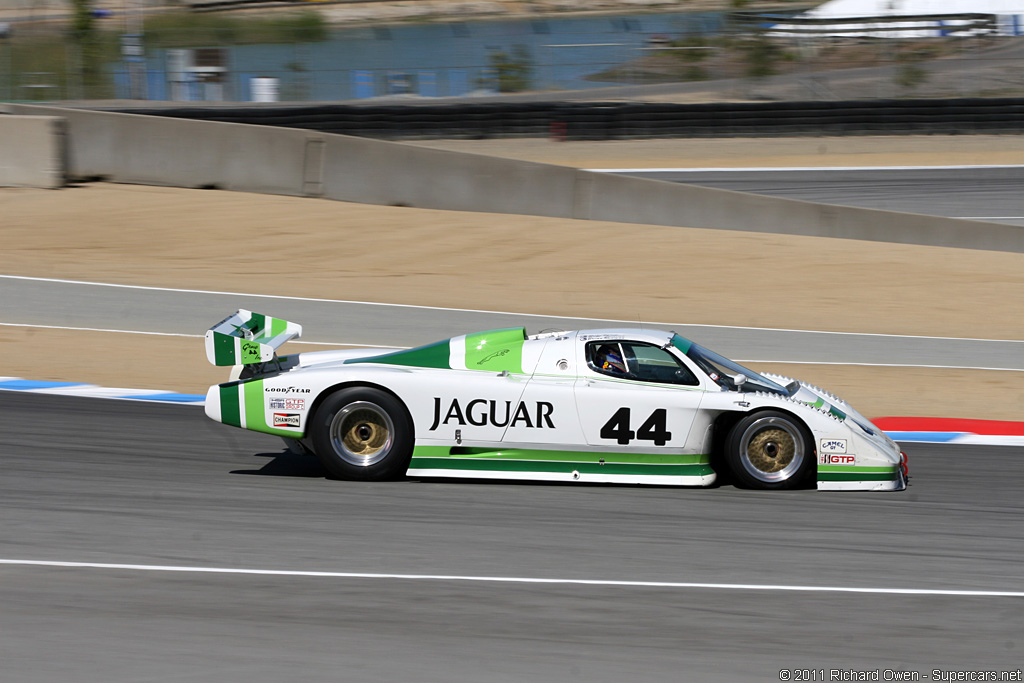

1985 Jaguar XJR-7 Gallery

In Detail

type Racing Car
production years 1983 – 1985
built at USA
body stylist Lee Dykstra
coachbuilder Group 44
production 5

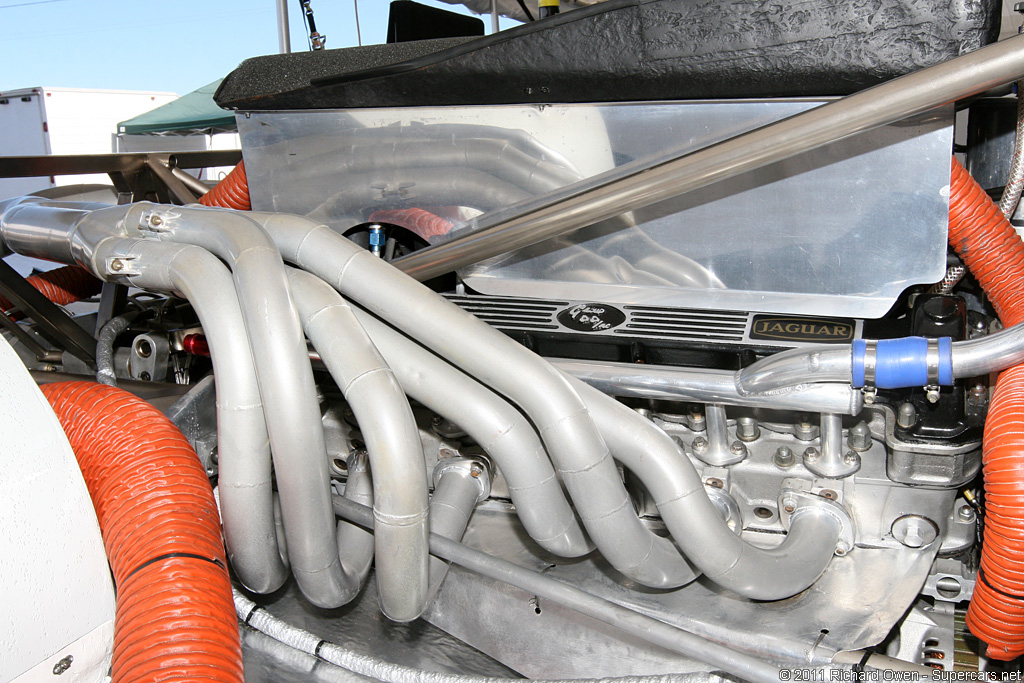

engine 60º V12
position Front Longitudinal
aspiration Natural
block material Aluminum Alloy
valvetrain SOHC, 2 Valves per cylinder
fuel feed 6 Weber Carburetors
displacement 5955 cc / 363.40 in³
bore 91.9 mm / 3.6 in
stroke 74.9 mm / 2.9 in
compression 12.2:1
power 484.7 kw / 650 bhp @ 7500 rpm
specific output 109.15 bhp per litre
bhp/weight 698.92 bhp per tonne
torque 650.8 nm / 480 ft lbs @ 6000 rpm
body / frame Aluminum Tub Chassis
driven wheels RWD
steering Rack & Pinion
f suspension Double Wishbones
r suspension Double Wishbones
curb weight 930 kg / 2051 lbs
wheelbase 2591 mm / 102.0 in
front track 1676 mm / 66.0 in
rear track 1600 mm / 63.0 in
length 4547 mm / 179.0 in
width 2007 mm / 79.0 in
height 1003 mm / 39.5 in
transmission 5-Speed Manual
top speed ~349.15 kph / 217 mph
