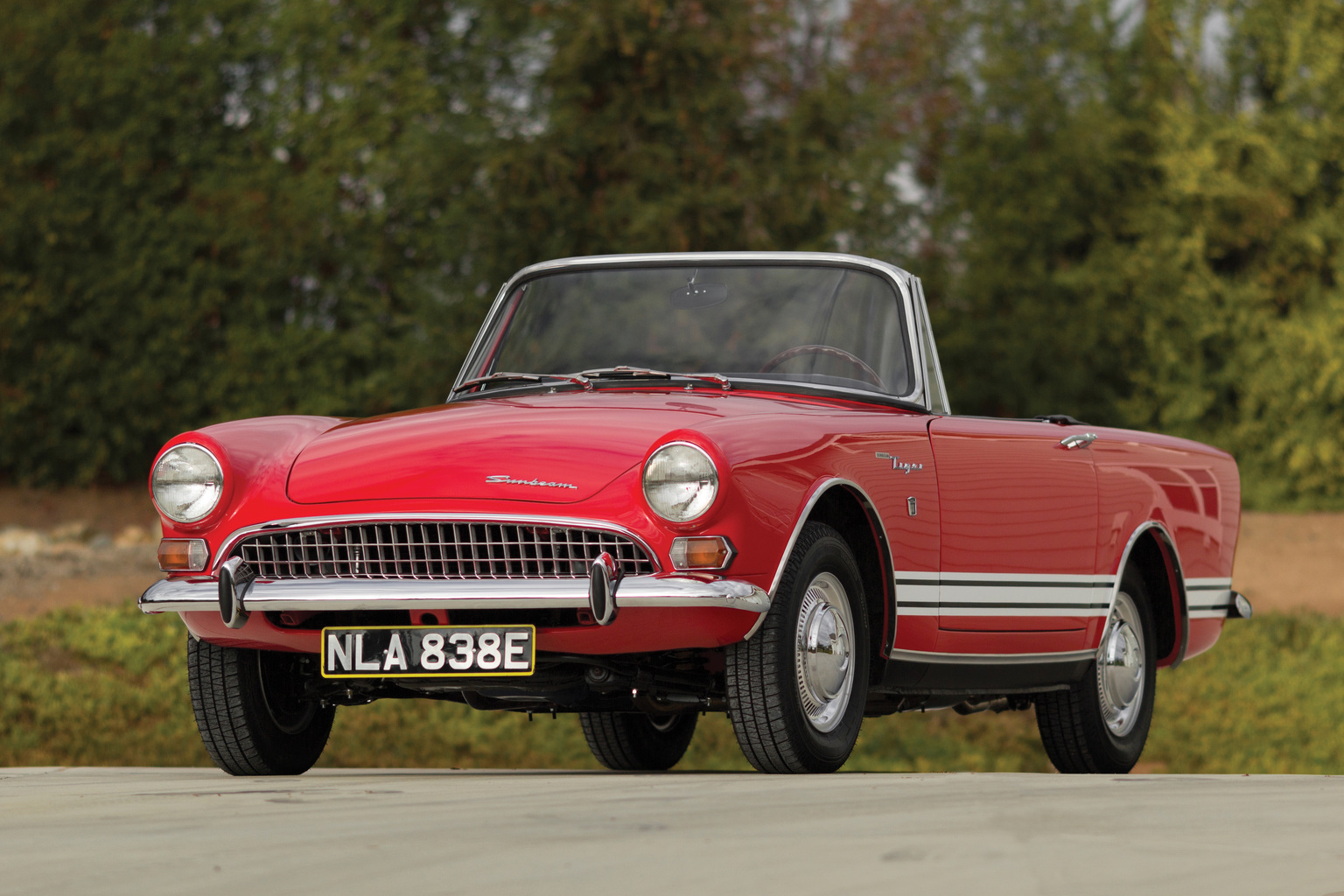

1964→1967 Sunbeam Tiger Mark II

Not long after Shelby stuck the 260 Ford V8 in the Ac Ace, Ian Garrad of Rootes American Motors had Shelby produce the first Sunbeam Tiger prototype. This became the first of over 7000 similar cars which used American power in an attractive British roadster.

After the Rootes group approved production, Jensen in West Bromwich, England was hired to manufacture the car.

Three separate series were produced and the final used Alpine Series IV panels.

In Detail

submitted by Richard Owen
production years 1964 – 1967
built at West Bromwich, England
engine Ford V8
valvetrain OHV
displacement 4261 cc / 260 in³
power -1.0 kw / -1.0 bhp @ 5500 rpm
driven wheels Front Engine / RWD
front tires 6.00-13
rear tires 6.00-13
front brakes F Discs / R Drums
steering Recirculating Ball
curb weight 1201 kg / 2646 lbs
wheelbase 2184 mm / 86.0 in
front track 1295 mm / 51.0 in
rear track 1232 mm / 48.5 in
length 3945 mm / 155.3 in
width 1537 mm / 60.5 in
height 1308 mm / 51.5 in
transmission 4-Speed Manual
