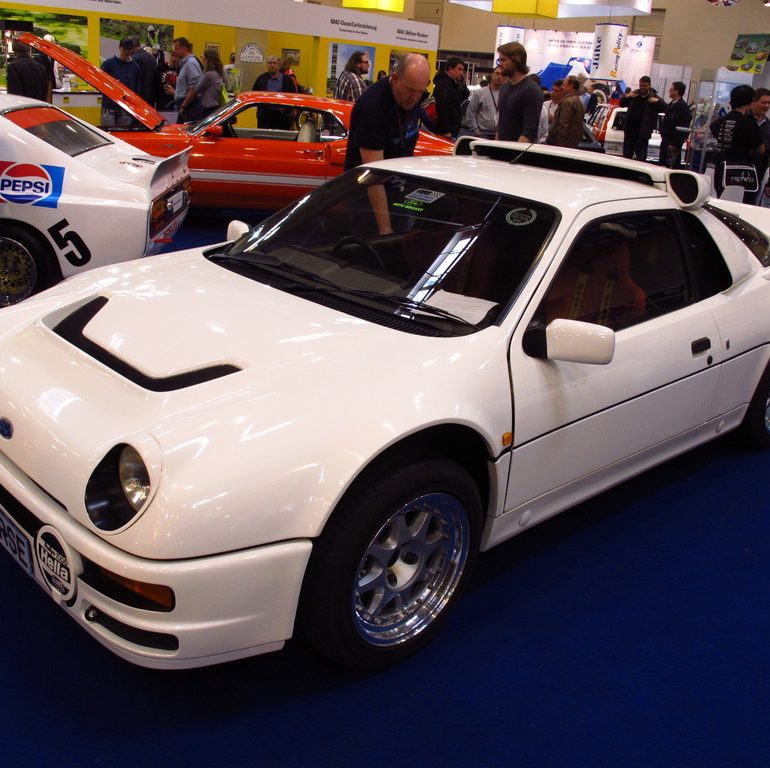

1985 Ford RS200


1985 Ford RS200

1985 Ford RS200

1985 Ford RS200 1985 Ford RS200 1985 Ford RS200 1985 Ford RS200

In Detail

submitted byRichard Owen
built atDetroit, Michigan, USA
engineFord BDT Inline-4
aspirationGarrett AiResearch T.04 Turbocharger
valvetrainDOHC, 4 Valves per Cylinder
displacement1804 cc / 110.1 in³
bore86.0 mm / 3.39 in
stroke77.6 mm / 3.06 in
compression8.2:1
power186.4 kw / 250.0 bhp @ 6500 rpm
specific output138.58 bhp per litre
bhp/weightbhp per tonne
torque292.0 nm / 215.4 ft lbs @ 4500 rpm
driven wheels4WD w/Tripple Fergusen LSDs
front tiresF 225/50VR-16
rear tiresR 225/50VR-16
front brakesVented Discs
f brake sizex 284 mm / x 11.2 in
rear brakesVented Discs
r brake sizex 284 mm / x 11.2 in
front wheelsF 40.6 x 20.3 cm / 16.0 x 8.0 in
rear wheelsR 40.6 x 20.3 cm / 16.0 x 8.0 in
steeringModified Siera Rack & Pinion
f suspensionDouble Wishbones w/Double Cocentric Coil-Damper Units, Blade-Type Adjustable Anti-Roll Bar
r suspensionDouble Wishbones w/Double Cocentric Coil-Damper Units
curb weight1180 kg / 2601 lbs
wheelbase2530 mm / 99.6 in
front track1501 mm / 59.1 in
rear track1496 mm / 58.9 in
length3998 mm / 157.4 in
width1763 mm / 69.4 in
height1321 mm / 52.0 in
transmission5-Speed Manual
gear ratios2.692:1, 1.824:1, 1.318:1, 1.043:1, 0.786:1, :1
top speed~228.5 kph / 142.0 mph
0 – 60 mph~6.1 seconds
0 – 100 mph~17.0 seconds
0 – 1/4 mile~15.0 seconds
