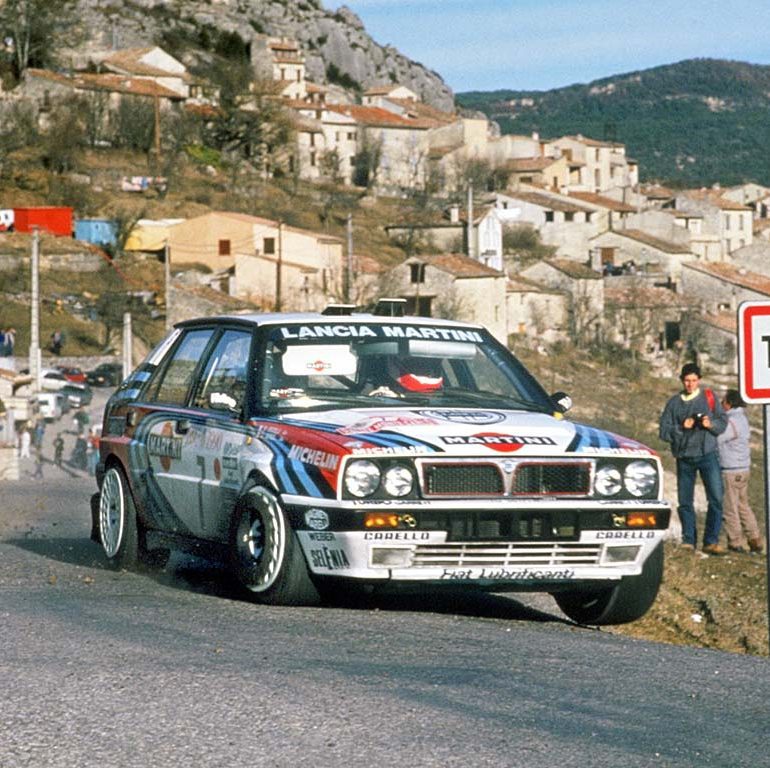

1989 Lancia Delta HF Integrale Group A


1989 Lancia Delta HF Integrale Group A

1989 Lancia Delta HF Integrale Group A

In Detail

submitted by Richard Owen
engine Inline-4 w/Garret AiResearch T03, Oil Lubricated, Water Cooled Turbocharger
position Front, Transverse
aspiration Garrett Turbocharger
valvetrain Belt Driven DOHC w/4 Valves per Cyl
displacement 1995 cc / 121.7 in³
bore 84 mm / 3.31 in
stroke 90 mm / 3.54 in
power 272.2 kw / 365 bhp @ 7000 rpm
specific output 182.96 bhp per litre
bhp/weight 317.67 bhp per tonne
torque 450 nm / 331.9 ft lbs @ 3500 rpm
body / frame Unit Steel
driven wheels Ferguson 4WD w/Rear Torsen Differential, Central Viscous Coupling
front tires 205/50ZR15 Pirelli P700Z
rear tires 205/50ZR15 Pirelli P700Z
front brakes Brembo Discs w/4-Piston Calipers
f brake size x 332 mm / x 13.1 in
rear brakes Brembo Discs w/Twin-Piston Calipers
r brake size x 282 mm / x 11.1 in
front wheels F 40.6 x 22.9 cm / 16.0 x 9 in
rear wheels R 43.2 x 22.9 cm / 17 x 9 in
f suspension MacPherson Struts w/Lower Wishbones, Coil Springs, Telescopic Dampers, Anti-Roll Bar
r suspension Double Transverse Arms w/Coil Springs, Telescopic Dampers, Anti-Roll Bar
curb weight 1149 kg / 2533 lbs
wheelbase 2480 mm / 97.6 in
front track 1453 mm / 57.2 in
rear track 1442 mm / 56.8 in
length 3858 mm / 151.9 in
width 1685 mm / 66.3 in
height 1365 mm / 53.7 in
transmission Abarth 6-Speed Manual
gear ratios :1
top speed ~245 kph / 152.2 mph
