1991→1994 Ferrari 512 TR

1991 – 1994 Ferrari 512 TR

Ferrari 512 TR

After a long production run of over 7000 cars, Ferrari updated their Testarossa design into the 512 TR. The body was slightly updated by Pininfarina, while much work was done by Ferrari under the hood to gain roughly 40 more bhp.

The 512 TR sports a 4.9-litre (4.943 L (4,943 cc)) longitudinally rear-mounted flat-12 engine.[25] Each cylinder of the engine has four valves, with forty-eight valves total. The engine is lubricated via a dry sump system, and has a compression ratio of 10.00:1.[27][29] These combine to provide a maximum of 491 N⋅m (362 lb⋅ft) at 5,500 rpm and a maximum power output of 315 kW (428 PS; 422 hp) at 6,750 rpm.[25][27][29]

The car can accelerate from 0–100 km/h (62 mph) in 4.8 seconds[26] and on to 161 km/h (100 mph) in 10.7 seconds. It can complete a standing (from stationary) quarter mile in 13.2 seconds or a standing kilometre in 23.4 seconds. The 512 TR has a top speed of 313.8 km/h (195.0 mph).

A recall was issued in 1995, regarding fuel hose fitting issues.[30] Over 400 cars had this defect which was caused by variances in temperature and environment. Another recall was issued in relation to the passive restraint system on seat belts not functioning properly, on over 2,000 cars.[30] If the restraint system suffered a mechanical or electrical failure only the lap belt would provide safety to the occupant.

The 512 TR’s engine was extensively reworked. Nikasil liners were added, along with a new air intake system, Bosch engine management system, larger intake valves, and a revised exhaust system. In addition to the higher peak power, the modifications delivered a more broad power band for better acceleration.

Gearshifting effort, a prolonged complaint about the Testarossa, was eased with a new single-plate clutch, sliding ball bearings, and better angle for the gearshift knob. The braking system included larger cross-drilled front rotors. Quicker steering, lower-profile tyres, and new shock settings improved handling. Most importantly, engine and gearbox position was rethought, which improved the centre of gravity, aiding the handling and making the car easier to drive.

The interior also received updates, with the centre console split from the dashboard, and the climate controls relocated. Pietro Camardella[31] at Pininfarina was tasked with redesigning the body of the car for better integration of the newly included spoilers and the new engine cover. The design was updated in line with the recently introduced 348.

The 512 TR has 18 in (457 mm) wheels with a width of 8 in (200 mm) at the front and 10.5 in (270 mm) at the rear. The tyre for the front wheels are 235/40 ZR 18 and 295/35 ZR 18 for the rear.[5][27][29] The front brakes have a diameter of 315 mm (12.40 in) and the rear brakes have a diameter of 310 mm (12.20 in).

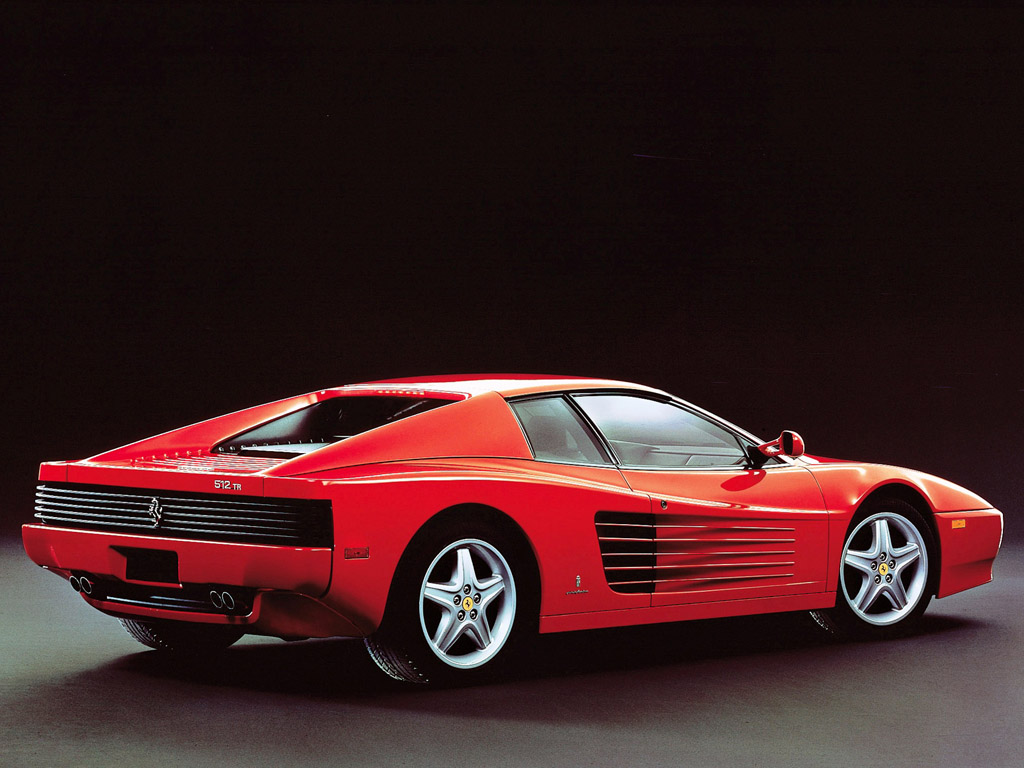

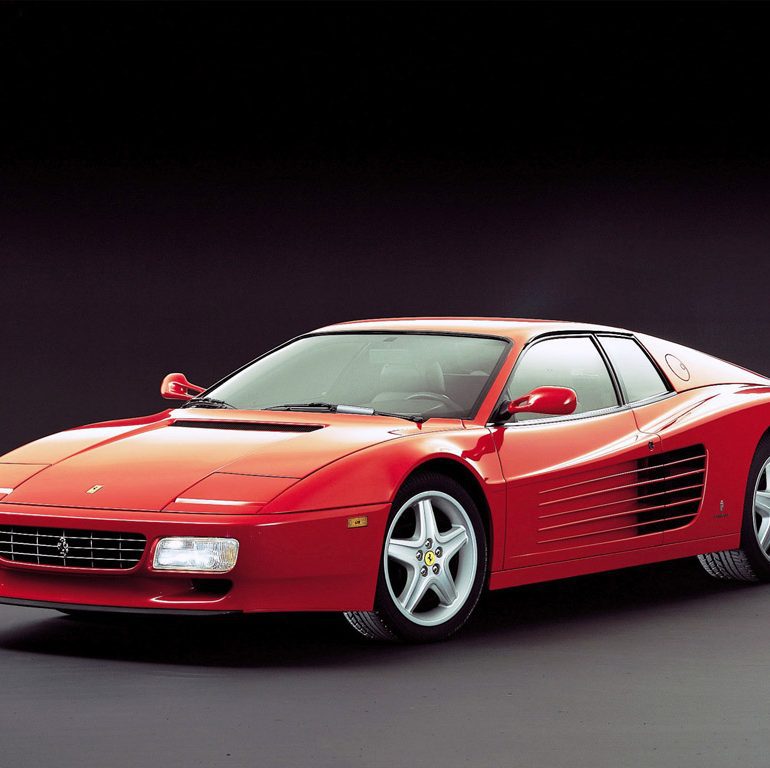

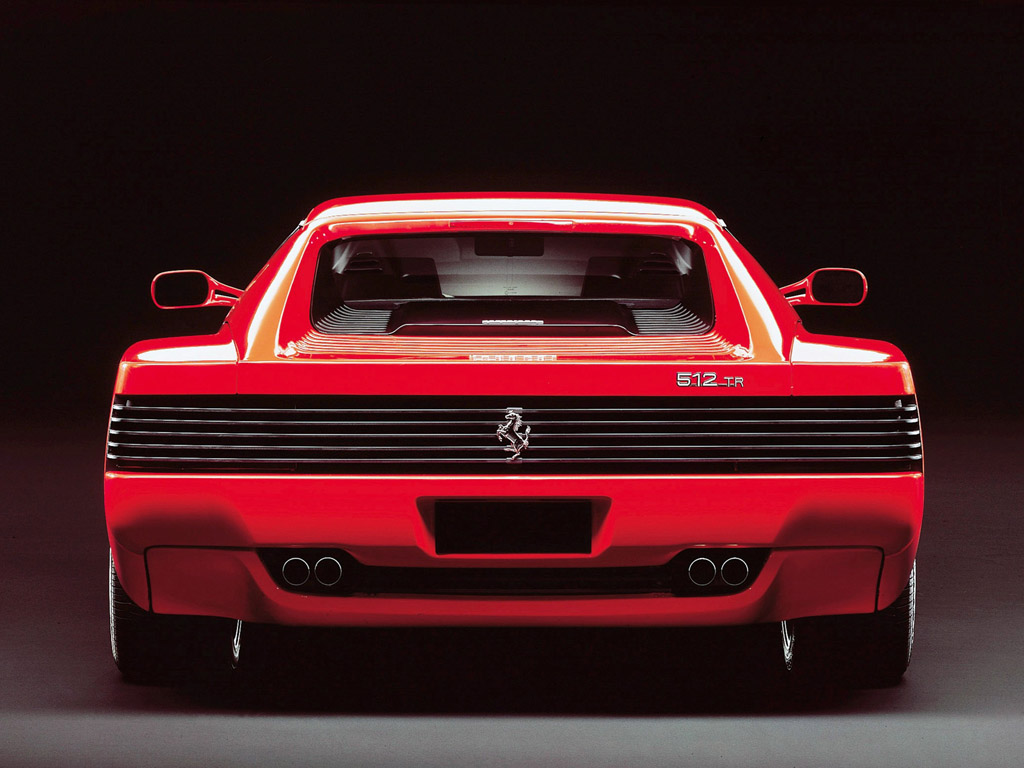

Pictures

See full 1992 Ferrari 512 TR Gallery here

Specs & Performance

type Series Production Car
production years 1991 – 1994
built at Maranello, Italy
production 2280
price $ $ 189,500
predeccesor 1985 Ferrari Testarossa
engine Flat-12 w/Dry Sump Lubrication
position Mid, Longitudinal
aspiration Natural
valvetrain DOHC, 4 Valves / Cyl
displacement 4943 cc / 301.6 in³
bore 82.0 mm / 3.23 in
stroke 78 mm / 3.07 in
compression 10.0:1
power 319.2 kw / 428.0 bhp @ 6750 rpm
specific output 86.59 bhp per litre
bhp/weight 290.56 bhp per tonne
torque 491 nm / 362.1 ft lbs @ 5500 rpm
redline 6800
body / frame Steel & Aluminum Panels over Tubular Steel
driven wheels RWD
front tires 235-40 ZR 18
rear tires 295-35 ZR 18
front brakes Vented Discs w/Vacuum Assist
rear brakes Vented Discs w/Vacuum Assist
steering Rack & Pinion
curb weight 1473 kg / 3247 lbs
wheelbase 2550 mm / 100.4 in
front track 1532 mm / 60.3 in
rear track 1644 mm / 64.7 in
length 4480 mm / 176.4 in
width 1976 mm / 77.8 in
height 1135 mm / 44.7 in
transmission 5-Speed Manual
gear ratios 2.916:1, 1.882:1, 1.421:1, 1.087:1, 0.815:1
final drive 3.45:1
top speed ~314 kph / 195.1 mph
0 – 60 mph ~4.8 seconds
0 – 1/4 mile ~12.9 seconds
fuel capacity 110 litres or 29.04 gal.

Auction Sales History

1991→1994 Ferrari 512 TR

1993 Ferrari 512 TR ZFFLG40A9P0096165 – sold for $187,000 Formerly of the Bob Pond Collection. Under 2,800 actual miles. Includes original books, tools, and window sticker. Auction Source: 2014 Monterey by RM Auctions

1991→1994 Ferrari 512 TR

1994 Ferrari 512 TR ZFFLG40A2R0098634 – sold for $143,000 Only three owners and under 13,000 miles from new. Recent full timing-belt service, with receipts on file. One of Ferrari’s most iconic mid-engined supercars. Auction Source: Amelia Island 2014 by RM Auctions

1991→1994 Ferrari 512 TR

1993 Ferrari 512TR ZFFLG40A8P0096223 – sold for $105,000 1993 512TR V-12 with 428 HP. Believed to be 9,800 original miles. Engine and performance cam belts, water pump, seals and belts just done under 100 miles ago. Engine out service included timing belt, water pump replacement under 100 miles July 2013 with $9,100 service receipt provided. Clean CarFax no accidents. One of the last years for rear engine. Original paint, interior and tires. Owners manual and books included. Auction Source: Kissimmee 2014, #WhereTheCarsAre by Mecum

1991→1994 Ferrari 512 TR

1993 Ferrari 512 TR – sold for $85,250 Part of a noted private collection until acquisition by the current owner in August 2010, this 512 TR clearly benefits from scrupulous maintenance and a recent major service, including a set of new tires. Finished in red with a black leather interior, it is one of just 2,280 512 TRs produced between 1991 and 1994. Immaculate in every respect, it currently shows fewer than 10,000 miles and needs nothing but a new owner. Auction Source: 2011 Automobiles of Arizona by RM Auctions

1991→1994 Ferrari 512 TR

1993 Ferrari 512 TR – sold for $88,000. These are great cars to drive, and high-mileage examples are starting to appear, but maintenance costs can be bothersome, with five-year or 30,000-mile engine-out services costing between $6,000 and $10,000. However, this car comes from the collection of a noted collector and has been scrupulously maintained with a major recent service that also included new tires. It is one of only 2,280 512 TRs built between 1991 and 1994. Finished in red, it has a black leather interior. Immaculate in every respect, it has only 9,112 indicated miles and needs nothing but a new owner. Auction Source: RM Auctions’ 2010 Sports & Classics of Monterey
