Maserati 222 4v

1991→1994 Maserati 222 4v

Maserati 222 4v

The Maserati 222 4v was very similar to the Maserati 222 SR, but benefited from the use of four valve per cylinder heads with four overhead camshafts, boosting the power output by more than 50bhp.

Wider tyres on 16″ alloy wheels transferred that extra power to the ground accordingly, whilst active electronic suspensions were included in the standard spec. 130 cars were built over nearly three years.

Maserati 222 4v Video

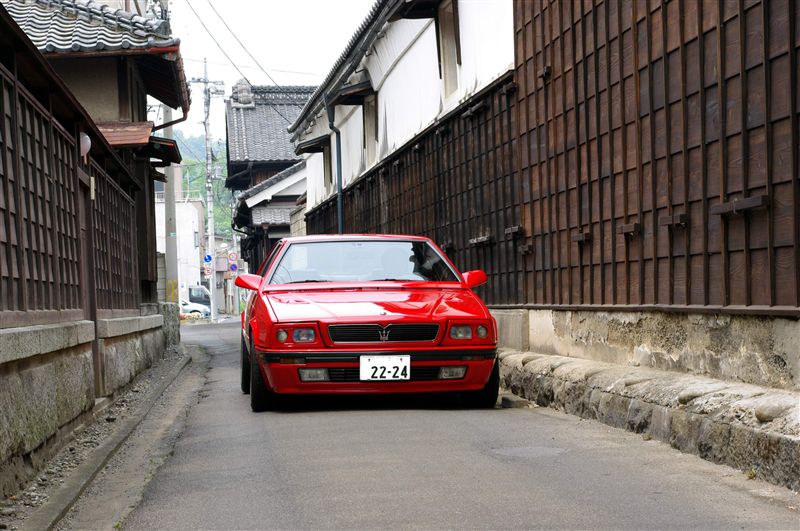

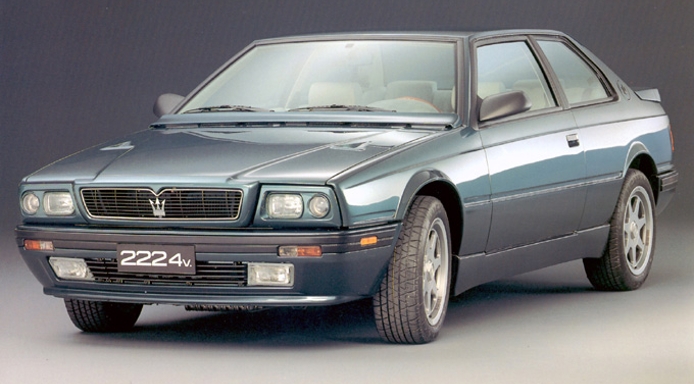

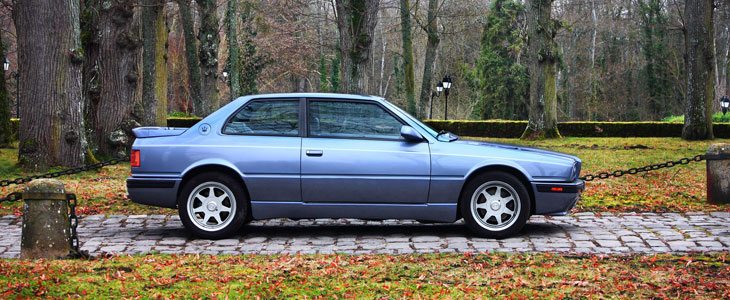

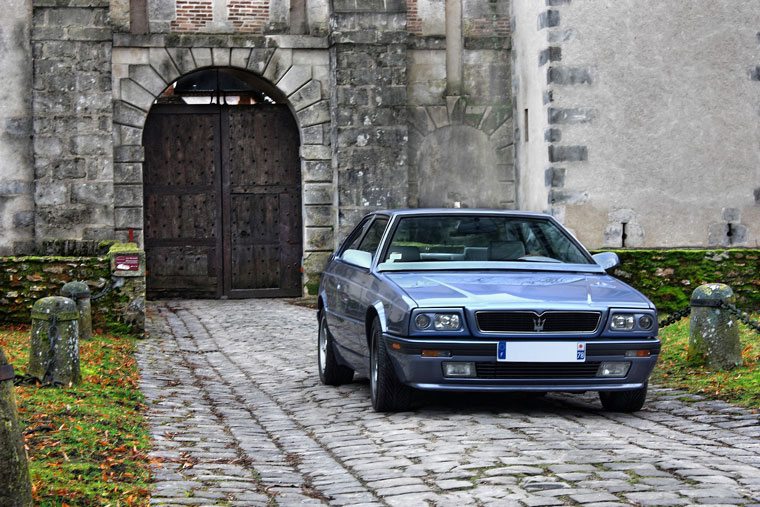

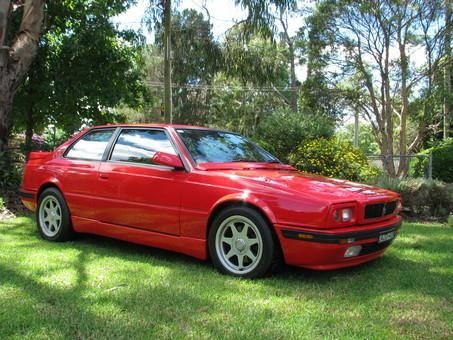

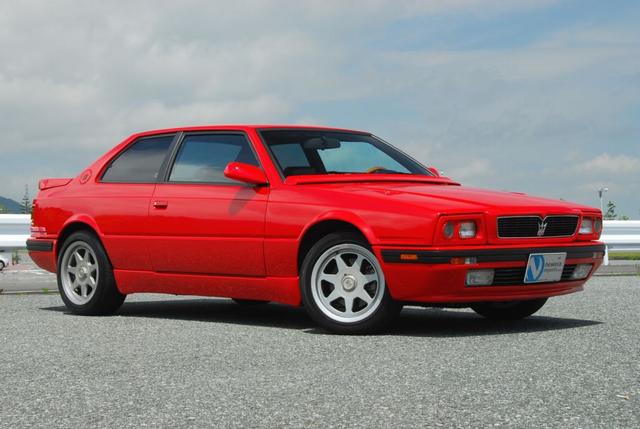

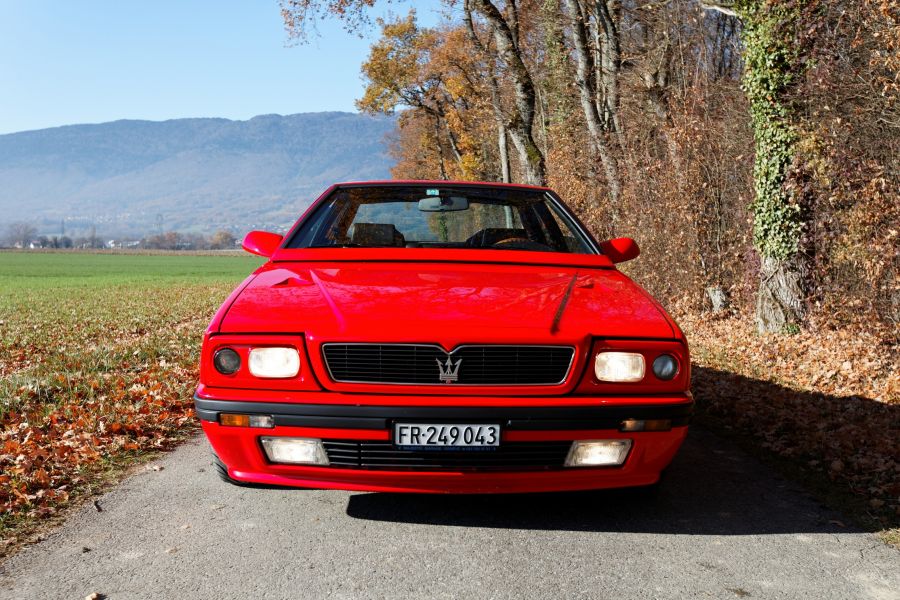

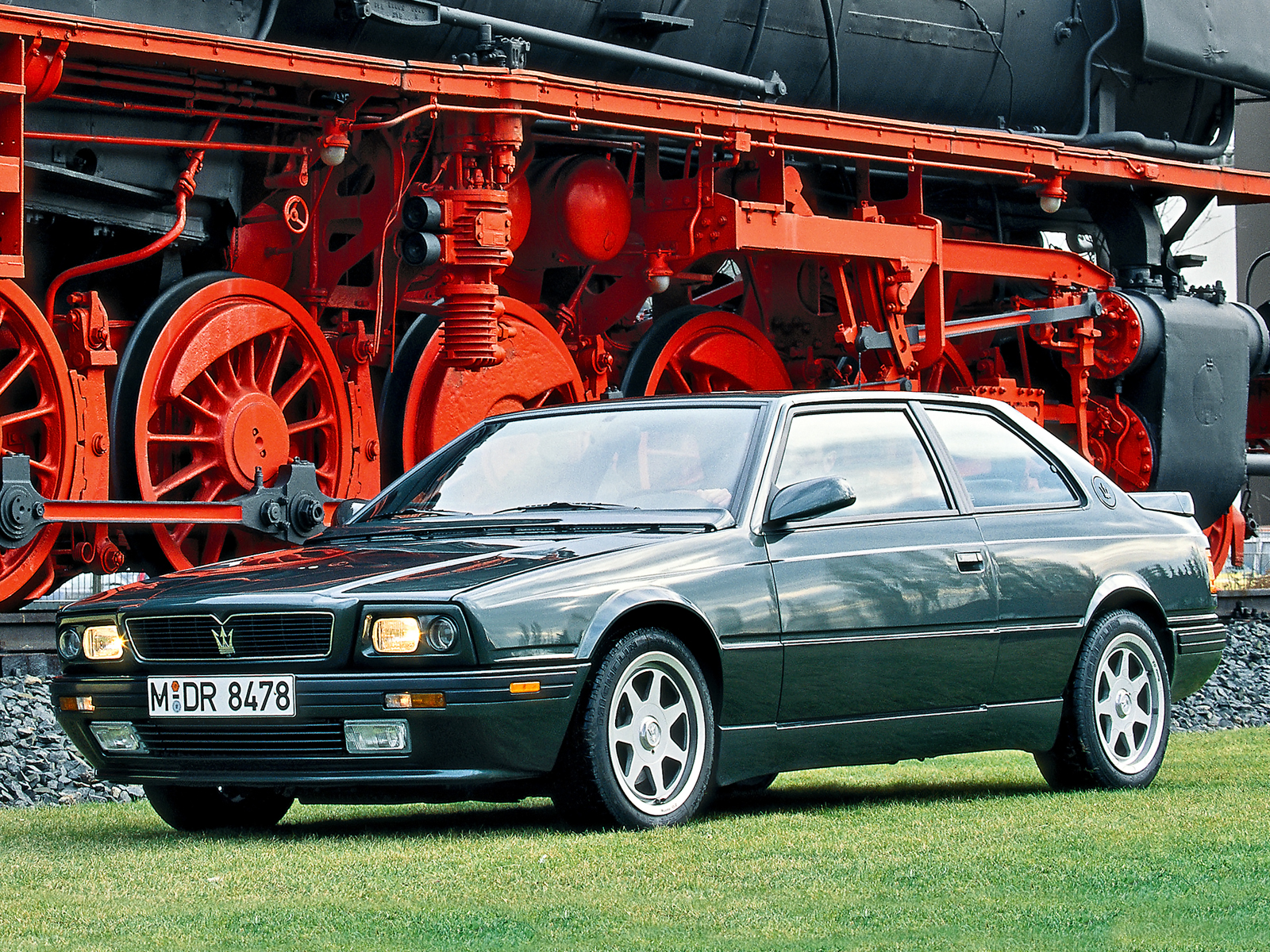

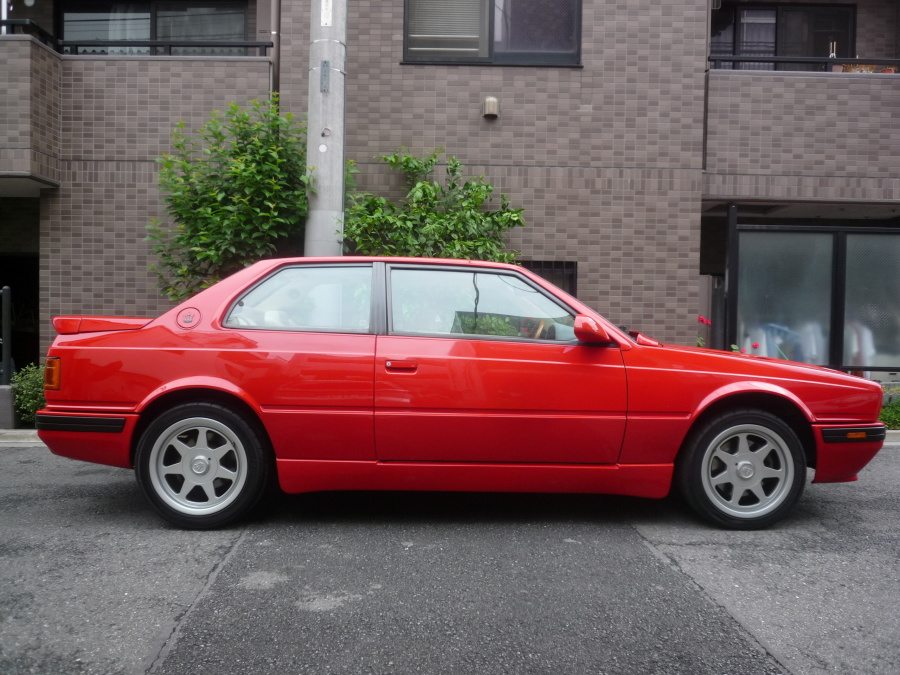

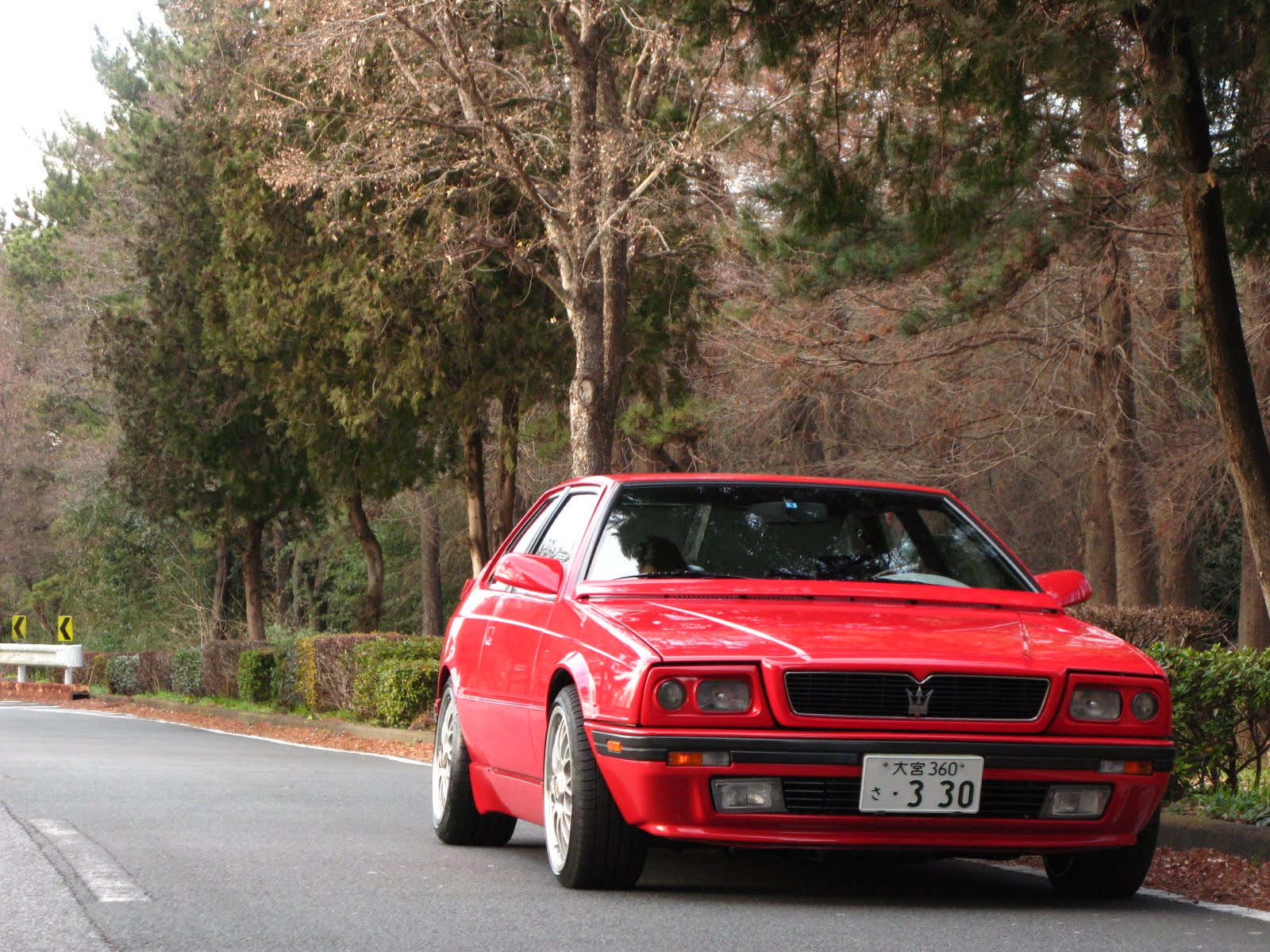

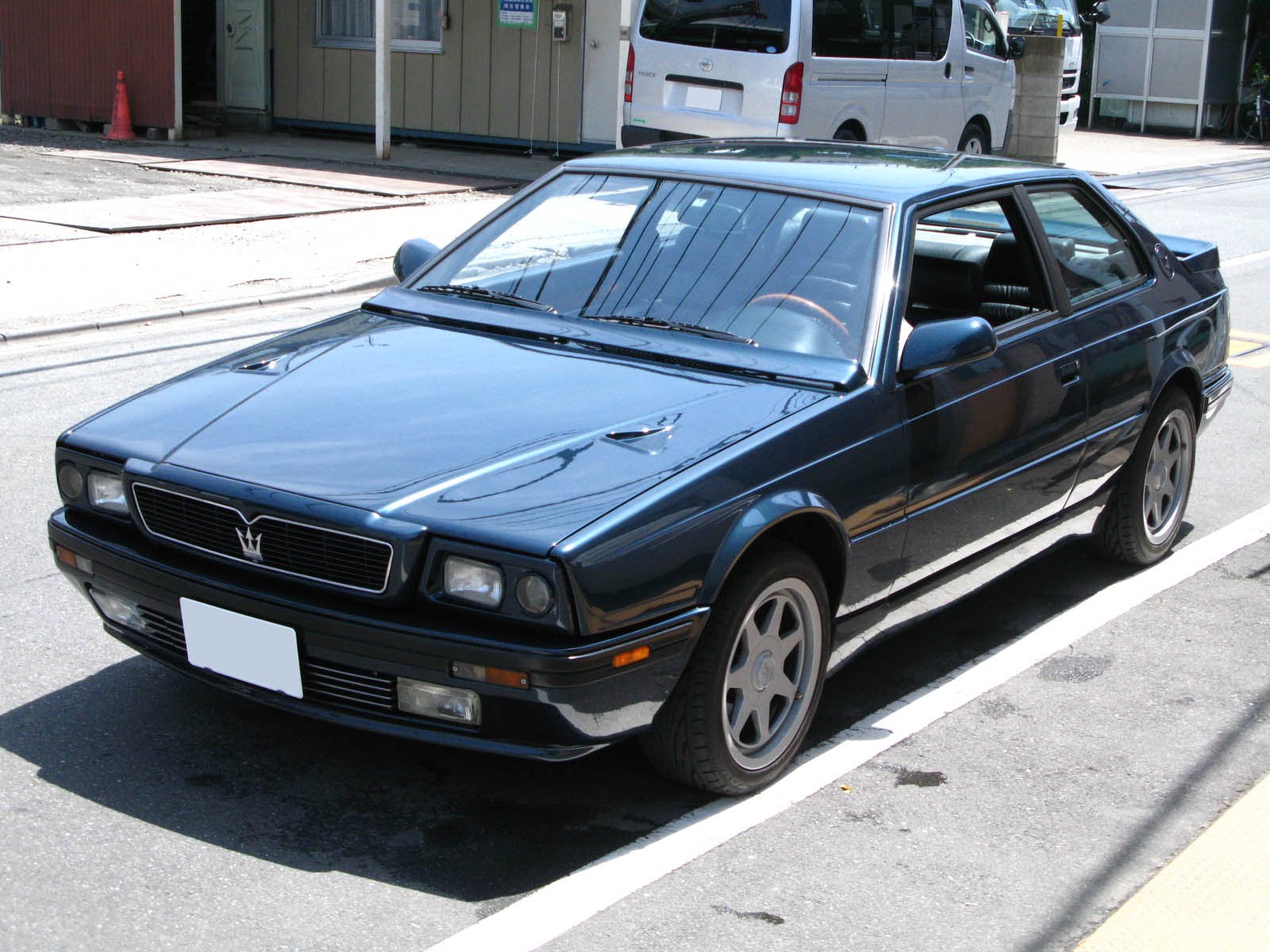

Maserati 222 4v Gallery

1991→1994 Maserati 222 4v

In Detail

submitted by Richard Owen
type Series Production Car
production years 1991 – 1994
built at Italy
engine 90° V6
position Front Longitudinal
aspiration Twin IHI Water-Cooled Turbos
ignition Electronic Ignition
valvetrain DOHC 3 Valves / Cyl
displacement 2790 cc / 170.3 in³
bore 94 mm / 3.7 in
stroke 67 mm / 2.64 in
compression 7.4:1
power 207.3 kw / 278 bhp @ 5500 rpm
specific output 99.64 bhp per litre
bhp/weight 207.62 bhp per tonne
torque 431.2 nm / 318 ft lbs @ 3750 rpm
body / frame Unitary Steel Monocoque
driven wheels RWD
front tires 205/45 ZR 16
rear tires 225/45 ZR 16
front wheels F 40.6 x 17.8 cm / 16 x 7.0 in
rear wheels R 40.6 x 20.3 cm / 16 x 8 in
steering Rack & Pinion w/Power Assist
f suspension MacPherson Struts w/Telescopic Dampers, Coil Springs, Anti-Roll Bar
r suspension Semi-Trailing Arms w/Telescopic Dampers, Coil Springs, Anti-Roll Bar
curb weight 1339 kg / 2950 lbs
wheelbase 2514 mm / 99.0 in
front track 1450 mm / 57.1 in
rear track 1460 mm / 57.5 in
length 4195 mm / 165.2 in
width 1714 mm / 67.5 in
height 1300 mm / 51.2 in
transmission ZF 5-Speed Manual or 4-Speed Auto
top speed ~220 kph / 136.7 mph
0 – 60 mph ~6.0 seconds
fuel capacity 80 litres or 21.12 gal.
