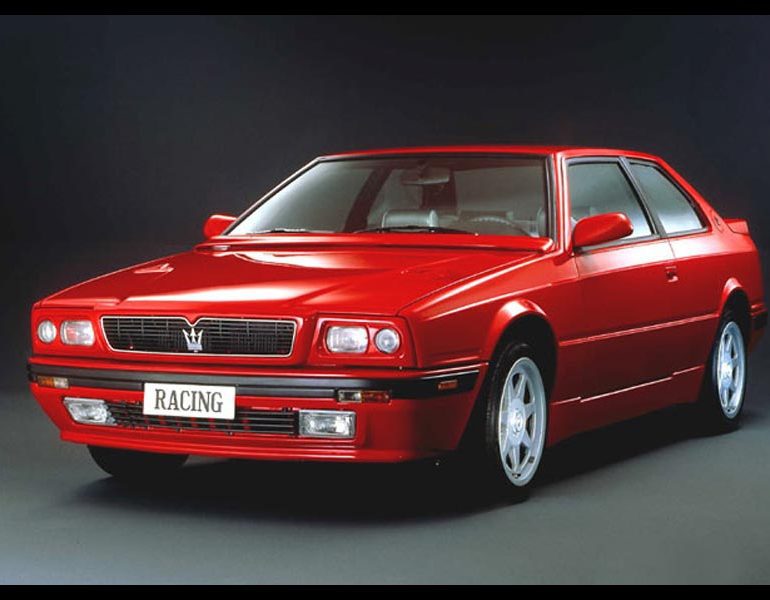

1991 Maserati 2.24v Series II


1991 Maserati 2.24v Series II

1991 Maserati 2.24v Series II

This model range was also known as the Maserati ‘Racing’.

1991 Maserati 2.24v Series II

In Detail

submitted by Richard Owen
engine BiTurbo V6
valvetrain DOHC 4 Valves / Cyl
displacement 1996 cc / 121.8 in³
bore 82 mm / 3.23 in
stroke 63 mm / 2.48 in
compression 7.6:1
power 211.0 kw / 283.0 bhp @ 6500 rpm
specific output 141.78 bhp per litre
bhp/weight bhp per tonne
torque 374.21 nm / 276.0 ft lbs @ 4250 rpm
body / frame Unit Steel
driven wheels Front Engine / RWD
front tires 205/45ZR16
rear tires 225/45ZR16
front brakes Discs
f brake size mm / in
r brake size mm / in
front wheels F 40.6 x 17.8 cm / 16.0 x 7.0 in
rear wheels R 40.6 x 17.8 cm / 16.0 x 7.0 in
curb weight 1323 kg / 2917 lbs
wheelbase 2514 mm / 99.0 in
front track 1458 mm / 57.4 in
rear track 1454 mm / 57.2 in
length 4195 mm / 165.2 in
width 1714 mm / 67.5 in
height 1305 mm / 51.4 in
transmission 5-Speed Manual
gear ratios :1
top speed ~256 kph / 159.1 mph
0 – 60 mph ~5.8 seconds
