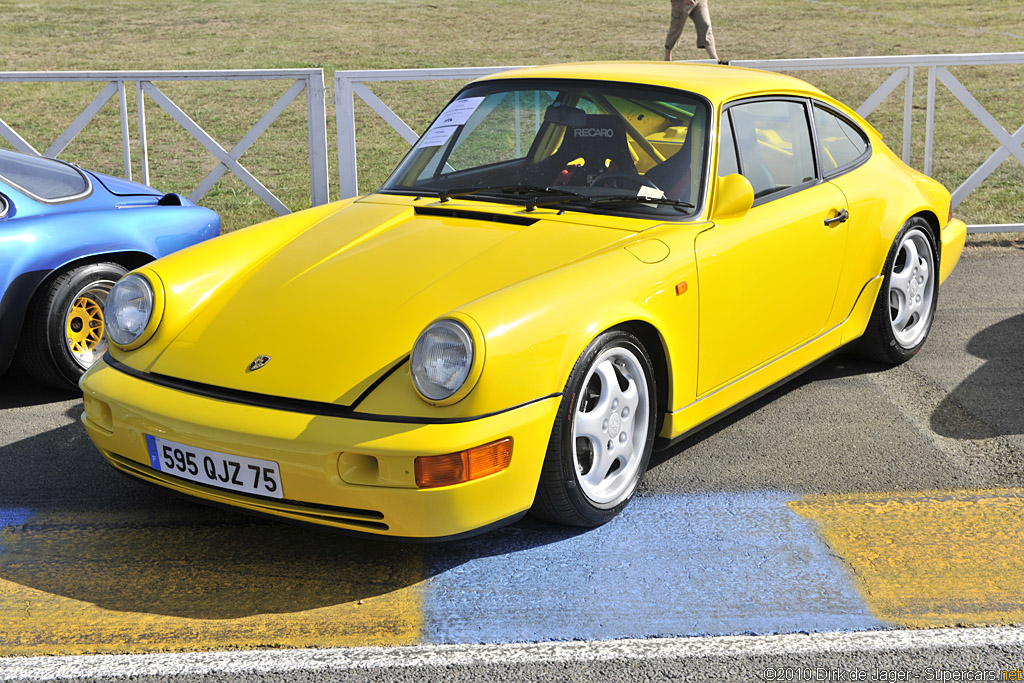

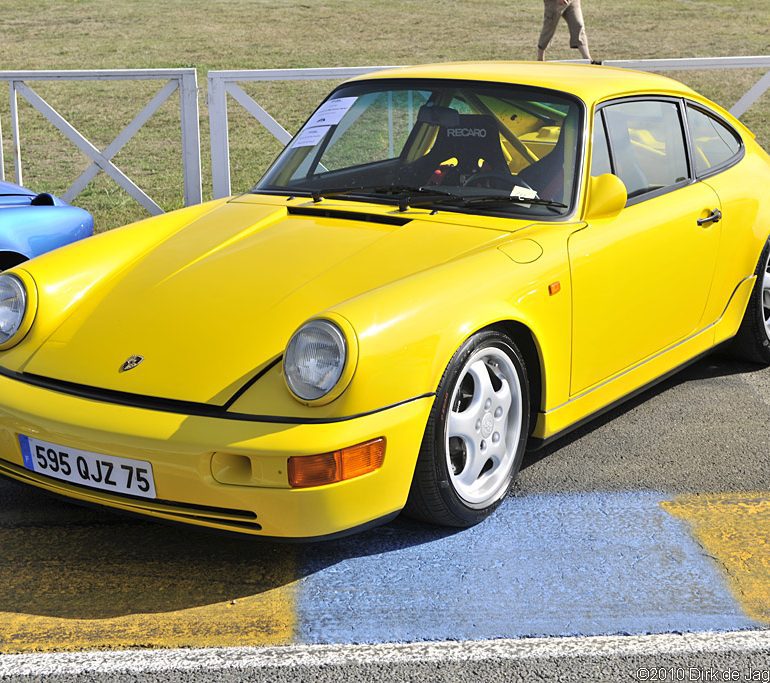

1992 Porsche 911 Carrera RS Competition

For race teams and track day customers Porsche prepared a small number of the 964 Cup cars according to the FIA NG-T regulations. Officially called the Competition model, these custom-ordered cars were an intermediary step between the Carrera Cup option (M001) and the standard tourer (M002). This M0003 option was available directly from Porsche as a road-going model.

These cars had almost all the Carrera Cup modifications including the new suspension. This lowered the car by 40mm in the rear and 50mm in the front. It also included fitting of the larger 930 Turbo disc brakes and adjustable anti-roll bars. The same weight reducing measures included thinner windows, stripped interior, aluminum panels and Recaro racing seats which helped lower the bulk by 200kg.

Mechanical preparation included a specially-built engine with a new intake manifold, lighter fly-wheel and larger air filter. In the suspension all the rubber elements were replaced with rigid ball-joints. Similarly, uprated Bilstein shock-absorbers were fitted.

Accoring to 964 expert Bob Gagnon, the M0003 competition car included the following modifications:

*Deletion of interior carpeting, headliner and A/B pillar covering.
*Painting of interior to match exterior colour.
* Shortened knee padding on lower dashboard to clear roll bar installation if ordered.
*Driver’s side sun visor only.
*Provision to unlock trunk and fuel door from drivers seat
*Engine compartment insulation deleted
*Six point seat belt for driver and passenger.
*DME Brain box moved behind drivers seat (standard location under seats in way of crotch belts mounts).
*Hand held fire extinguisher mounted on passenger floor.
*Cable activated master switch from inside of car
*Recaro SPG bucket seats for passenger and driver.

1992 Porsche 911 Carrera RS Competition



In Detail

type Series Production Car
built at Stuttgart, Germany
engine M64/03 Flat-6
position Rear, Longitudinal
aspiration Natural
displacement 3600 cc / 219.69 in³
compression 11.3:1
power 193.9 kw / 260 bhp @ 6100 rpm
specific output 72.22 bhp per litre
bhp/weight 236.36 bhp per tonne
torque 325 nm / 239.7 ft lbs @ 4800 rpm
body / frame Unitary Steel Monocoque w/Aluminum Doors & Hood.
driven wheels RWD
wheel type Magnesium
front tires 205/50-17
rear tires 255/40-17
front brakes Ventilated & Cross Drilled Discs
f brake size 32 x 322 mm / 1.3 x 12.7 in
rear brakes Ventilated & Cross Drilled Discs
r brake size 24 x 299 mm / 0.9 x 11.8 in
front wheels F 43.2 x 19.1 cm / 17 x 7.5 in
rear wheels R 43.2 x 22.9 cm / 17 x 9 in
steering Unassisted
f suspension 24mm 5-Way Adjustable Sway Bar, Bilstein Shock Absorbers
r suspension 18mm 3-Way Adjustable Sway Bar, Bilstein Shock Absorbers
curb weight 1100 kg / 2425.5 lbs
transmission G50/10 5-Speed Manual
gear ratios 3.154:1, 1.695:1, 1.407:1, 1.806:1, 0.868:1
final drive 3.444:1
