1993 Porsche 911 Turbo S 3.3


1993 Porsche 911 Turbo S 3.3

In 1986 Porsche made a lightweight version of the Turbo simply known as the Tuubo S. This used the spartan appointments of the Carrera RS with an upgraded version of the Turbo engine. Some cars received graphics on the side celebrating IMSA Supercar Championship.

Roland Kussamaulat Porsche was responsible for the Turbo S and he used many lessons learnt with the IMSA Supercar Championship cars to improve the Turbo. This included uprated suspension and larger wheels which allowed for bigger brakes.

Moreover the driving lights were relocated into the headlights for the Turbo S which allowed that space to be used for brake ducts.

Similar to the Carrera RS, the Turbo S had no power steering, air conditioning, airbags, central locking, alarm system, rear window wiper, smaller window washer reservoir, smaller horn, and had thin-gauge glass.1

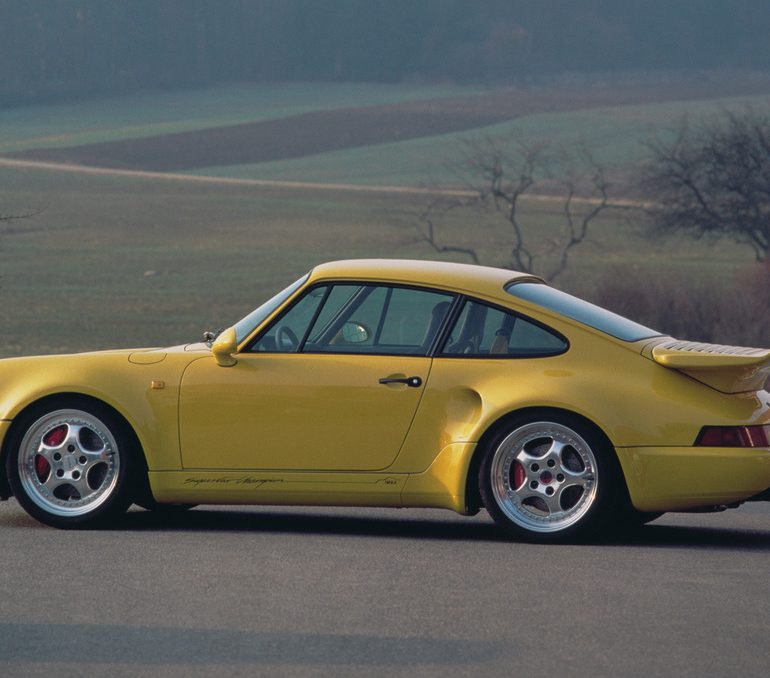

1993_Porsche_911TurboS33-0-1024

The engine used a second oil cooler and slightly higher boost to improve overall performance. Further modifications included revised camshafts, injection valves, single fan motor and a red air filter housing. This was hooked up to a 5-Speed manual through a lightweight flywheel and special thrust plate.1
Just over 80 of the Turbo S models were produced in Grand Prix White, Maritime Blue, Black or Midnight Blue Metallic with custom-optioned interior colors.1

Just over 80 of the Turbo S models were produced in Grand Prix White, Maritime Blue, Black or Midnight Blue Metallic with custom-optioned interior colors.1

1993 Porsche 911 Turbo S 3.3

Sources & References

1. Connel, Michael. Porsche 911 Turbo Reference Handbook. Jovid Publications: 2000.

In Detail

type Limited Production Car
built at Germany
production 86
engine M30/69SL Flat-6
aspiration Twin Turbo
displacement 3299 cc / 201.3 in³
bore 97 mm / 3.82 in
stroke 74.4 mm / 2.93 in
compression 7.0:1
power 280 kw / 375.5 bhp @ 6000 rpm
specific output 113.82 bhp per litre
bhp/weight 291.09 bhp per tonne
torque 490 nm / 361.4 ft lbs @ 4800 rpm
redline 6800
body / frame Unitary Steel Monocoque
driven wheels Rear Engine
wheel type 3-Part Aluminum Alloy
front tires 235/40ZR-18
rear tires 265/40ZR-18
front brakes Vented Discs
front wheels F 45.7 x 20.3 cm / 18.0 x 8.0 in
rear wheels R 45.7 x 25.4 cm / 18.0 x 10.0 in
curb weight 1290 kg / 2844 lbs
length 4250 mm / 167.3 in
width 1780 mm / 70.1 in
height 1290 mm / 50.8 in
transmission G50/52 5-Speed Manual
top speed ~290 kph / 180.09 mph
0 – 60 mph ~4.6 seconds
0 – 100 kph ~4.7 seconds
0 – 200 kph ~14.2 seconds
fuel capacity 91 litres or 24.02 gal.
