2002 Honda Civic Si Concept

2002 Honda Civic Si Concept

2002 Honda Civic Si Concept

Modified with a prototype GReddy turbocharger for street use, the Civic Si Concept produces 230-horsepower. Underneath, the Civic Si Concept employs a Honda-developed racing suspension with a widened track and high-performance springs, shock absorbers, Brembo brakes, 18-inch wheels and more.

Parts of the body that channel air for cooling and heat exhaustion are constructed of nickel carbon fiber. The interior houses carbon fiber race seats and a Mugen digital display replaces the traditional gauges with a multi-program LCD screen that can convey extensive engine information. An additional Mugen information center with an LCD screen mounted on the center of the instrument panel provides additional on-board diagnostics.

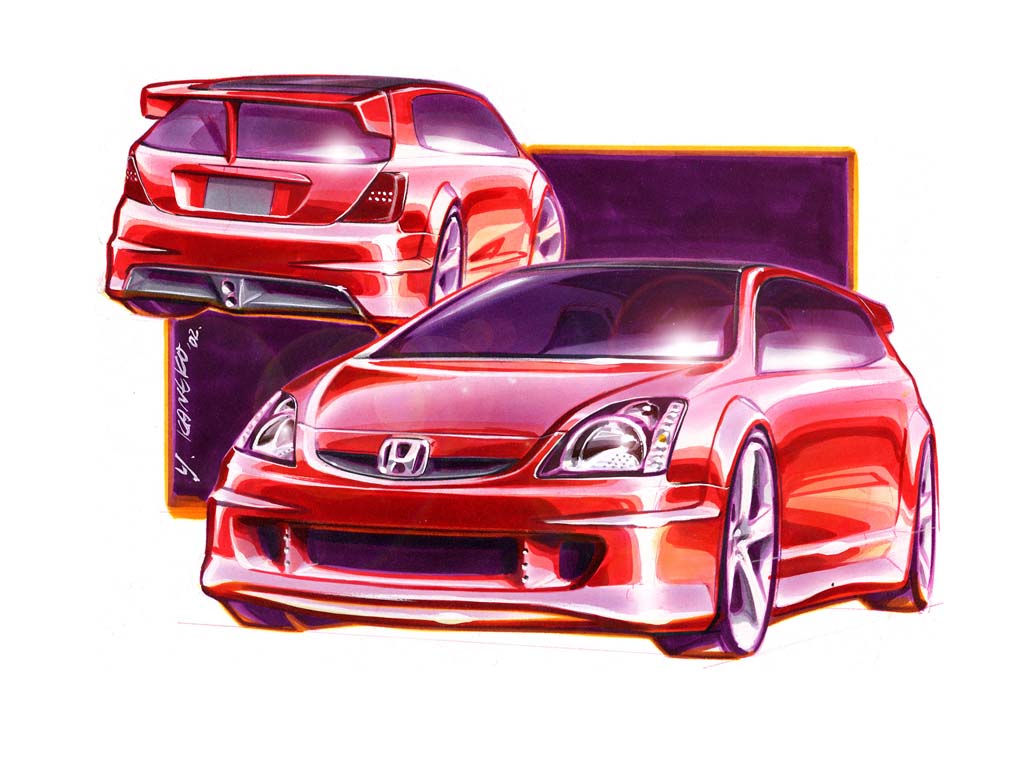

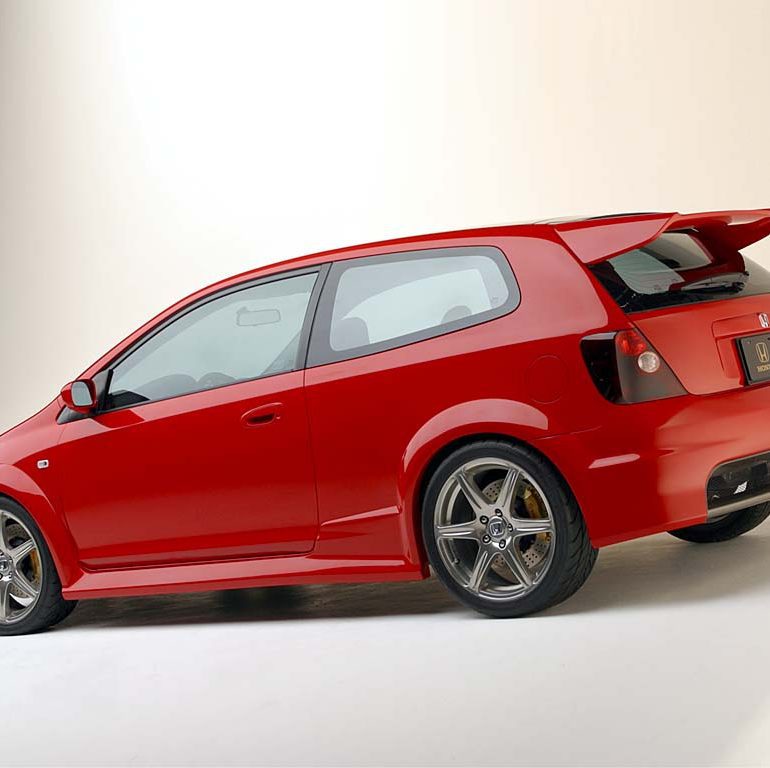

Exterior Modifications: Rally-inspired body kit, 18-inch polished titanium-finish wheels, carbon fiber grill, front intake and rear bumper diffuser, black chrome finish headlights and smoked taillights, high-mounted 2-stage rear wing.

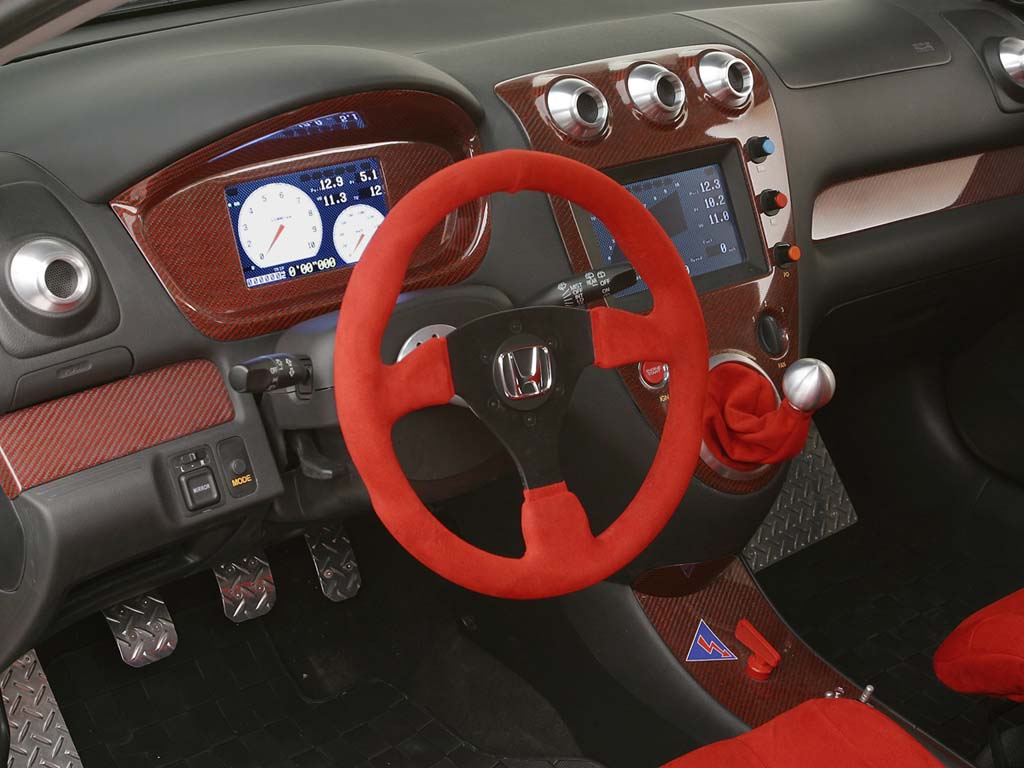

Interior Modifications: Mugen carbon fiber and Kevlar race seats covered in red Alcantera suede with 6-point racing harness, sport 3-spoke steering wheel, aluminum pedals and shift knob, Mugen high performance LCD screen gauge package, center mounted information display.

Story by Toyota

In Detail

submitted by Richard Owen
engine All Alumunum, Inline-4
position Front Transverse
aspiration GReddy T518Z Turbocharger w/Wastegate & Intercooler
valvetrain DOHC, 4 Valves per Cyl w/i-VTEC
fuel feed Programmed Fuel Injection
displacement 1998 cc / 121.9 in³
bore 86 mm / 3.39 in
stroke 86 mm / 3.39 in
power 171.5 kw / 230.0 bhp
specific output 115.12 bhp per litre
body / frame Unit Steel
driven wheels FWD
front brakes Brembro Vented Discs
f brake size mm / in
rear brakes Brembro Vented Discs
r brake size mm / in
steering Rack & Pinion w/Variable Assist
f suspension MacPherson Struts
r suspension Double Wishbones
transmission 5-Speed Manual
gear ratios 3.062:1, 1.769:1, 1.212:1, 0.921:1, 0.738:1, :1
final drive 4.764:1
