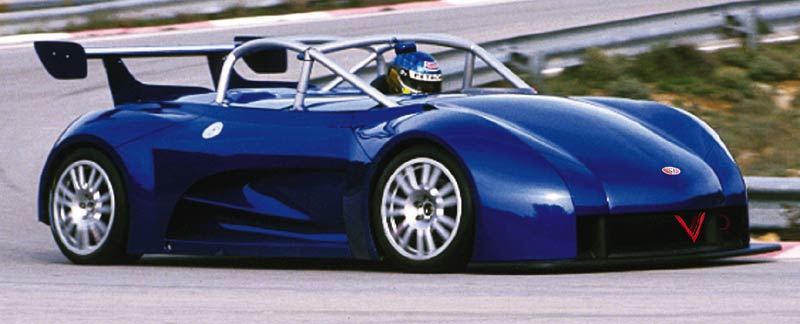

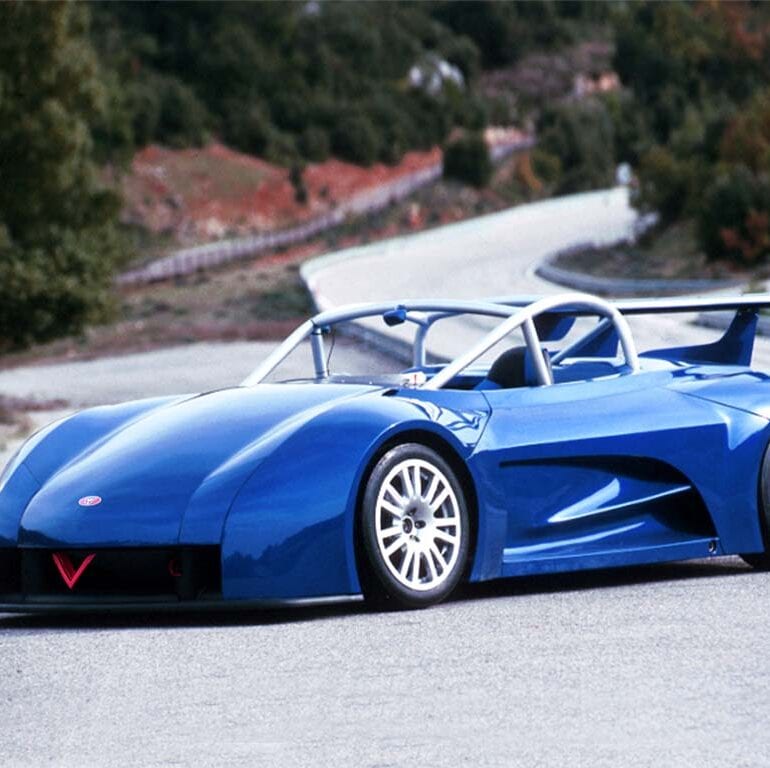

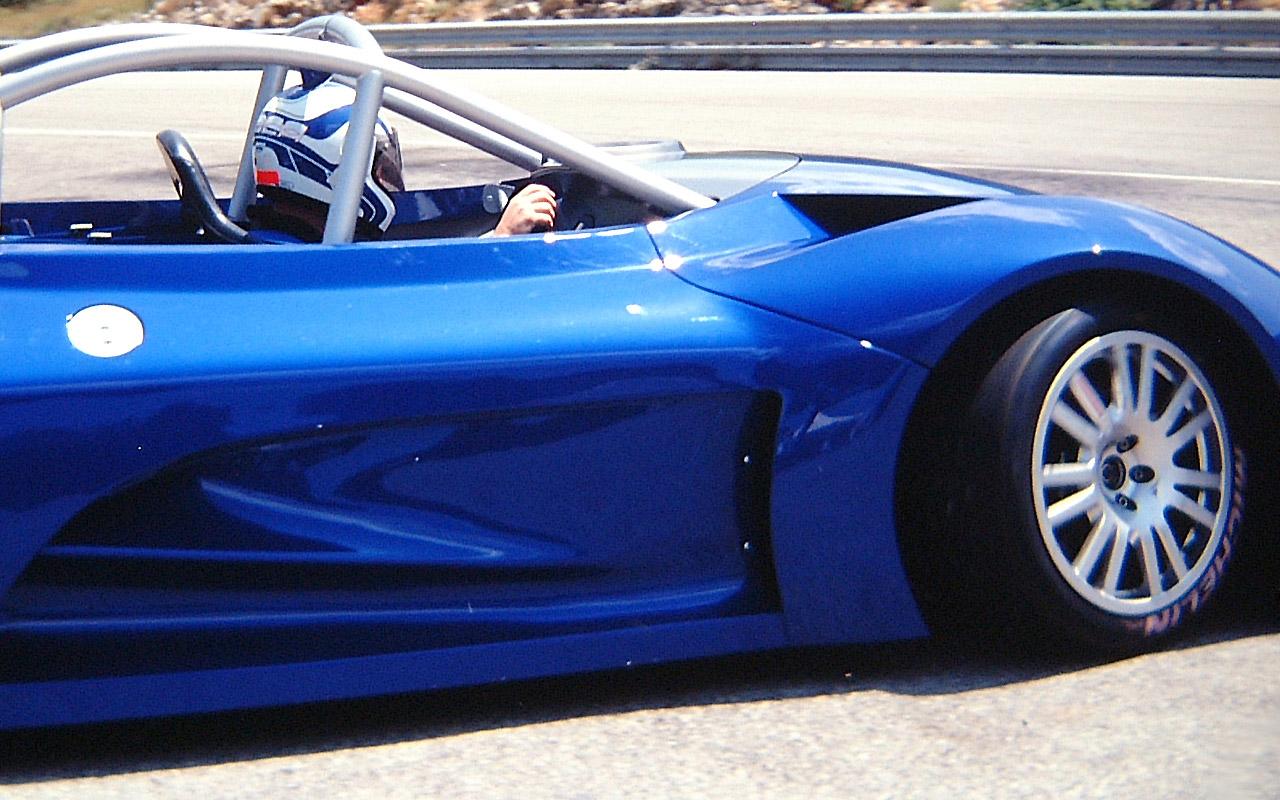

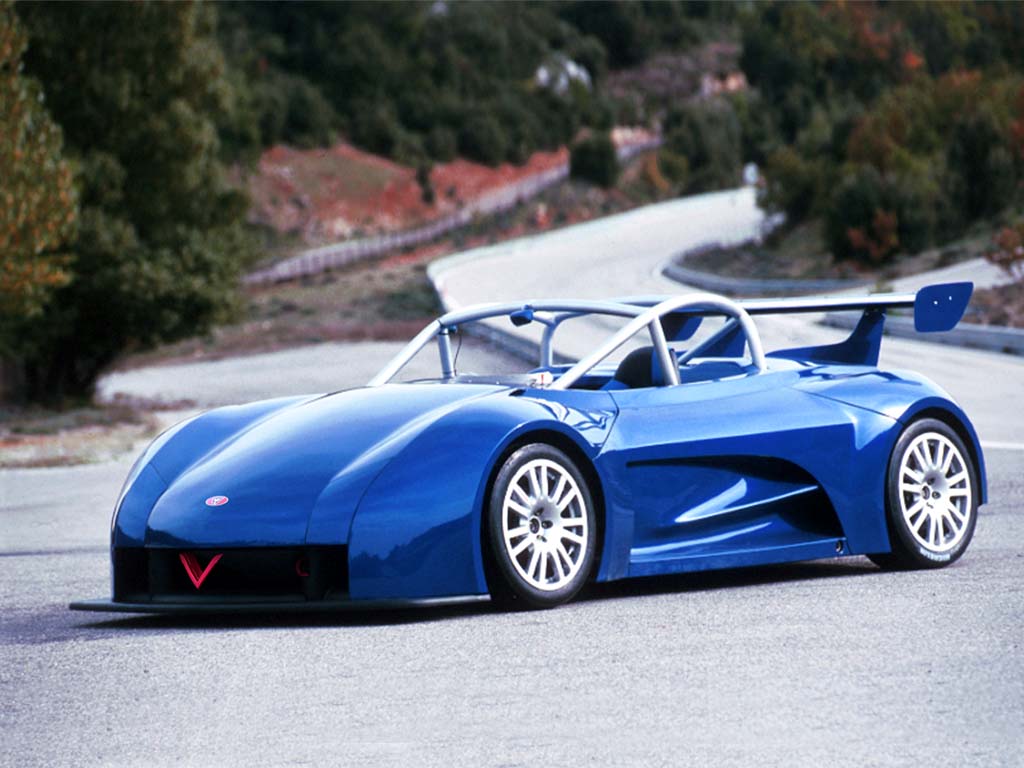

2002 Venturi Grand Prix Concept


2002 Venturi Grand Prix Concept

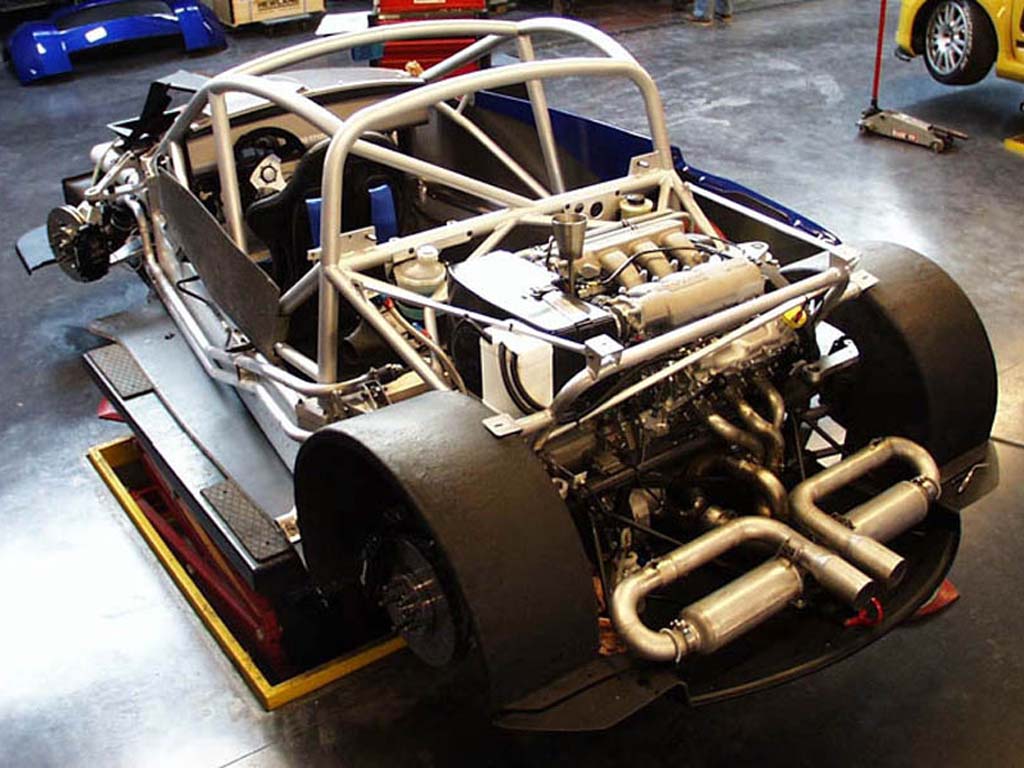

Venturi have taken new steps to establish themselves in the motorsport industry. The Grand Prix is a race-ready car that relies on Renualt mechanicals. It uses a modified version of the Renault Sport V6 found in the new Clio V6 II. The chassis is supplied from the Venturi Fetish.

With a weight of 850kg, an FIA approved roolbar, a hydropneumatic syspension, carbon brakes and a ground-effect floor pan the Grand Prix is a genuine race car. A production version of the Grand Prix will be available in 2004. Links are already being created with Renault Sport to help maintain a supply of competition-based parts.

2002 Venturi Grand Prix Concept 2002 Venturi Grand Prix Concept 2002 Venturi Grand Prix Concept 2002 Venturi Grand Prix Concept

In Detail

position Rear, Transverse
displacement 2944 cc / 179.7 in³
bore 87 mm / 3.43 in
stroke 82.6 mm / 3.25 in
compression 11.2:1
power 231.2 kw / 310 bhp @ 7200 rpm
specific output 105.3 bhp per litre
bhp/weight 364.71 bhp per tonne
body / frame Firbeglass over Steel and Aluminum Chassis
front tires 21/65/18
rear tires 24/65/18
front brakes Carbon Discs w/4-Pot Calipers
f brake size x 310 mm / x 12.2 in
rear brakes Carbon Discs w/4-Pot Calipers
r brake size x 310 mm / x 12.2 in
f suspension Double Wishbones w/Adjustable Dampers, Anti-Roll Bar
r suspension Double Wishbones w/Adjustable Dampers, Anti-Roll Bar
curb weight 850 kg / 1874 lbs
wheelbase 2575 mm / 101.4 in
transmission 6-Speed Sequential
gear ratios :1
top speed ~255 kph / 158.4 mph
0 – 60 mph ~4.2 seconds
