2003 Lotus Elise 99T


2003 Lotus Elise 99T

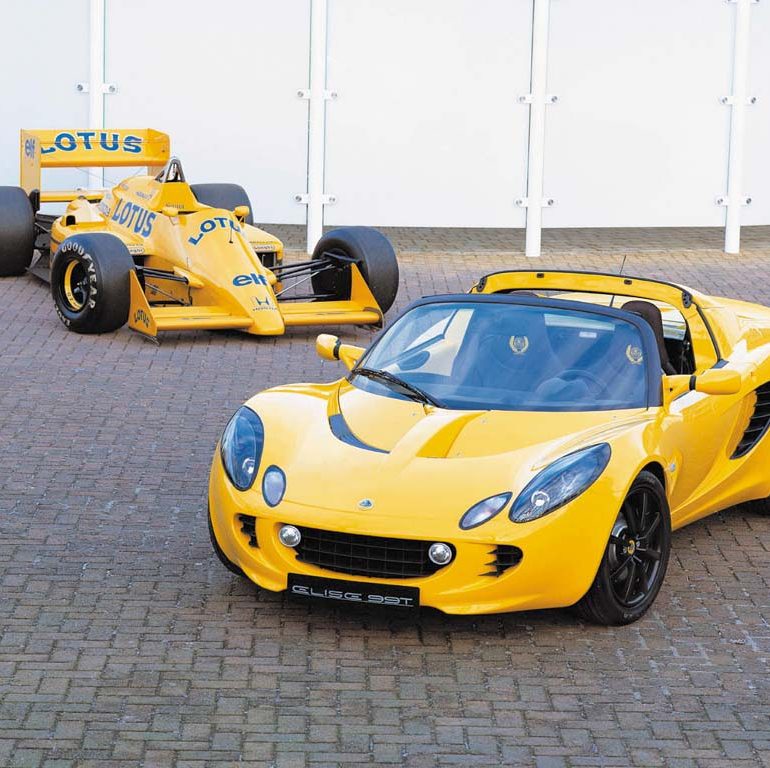

The Lotus 99T F1 car was the last Lotus to ever win a Grand Prix. Driven by Ayrton Senna and Satoru Nakajima in 1987, the car ended up finishing 3rd overall in the season.

Painted in unique ‘Saffron Yellow’ with subtle blue detailing to mirror that of the original race car, the Elise Type 99T commemorates one of the most recognisable cars in the history of Formula One.

Unique black Lotus styled eight spoke wheels complete the racing look from the exterior. The interior is furnished in perforated black leather sports seats and door panels, complemented by a black alcantara dash panel. Cross-drilled brakes, CD player, black soft-top and black carpets complete the look.

2003 Lotus Elise 99T 2003 Lotus Elise 99T 2003 Lotus Elise 99T



In Detail

submitted by Richard Owen
engine Rover K-Series Inline-4
position Mid Transverse
aspiration Natural
valvetrain DOHC 4 Valves per Cyl
fuel feed Multiport Sequential Fuel Injection
displacement 1796 cc / 109.6 in³
power 119.3 kw / 160 bhp @ 7500 rpm
specific output 89.09 bhp per litre
bhp/weight 211.64 bhp per tonne
torque 175 nm / 129.1 ft lbs @ 3500-4650 rpm
body / frame Composite Body Panels Over Aluminum Spaceframe Structure
front tires 175/55 R16
rear tires 225/45 R166
front brakes Vented Discs
f brake size x 282 mm / x 11.1 in
rear brakes Vented Discs
r brake size x 282 mm / x 11.1 in
front wheels F 40.6 x 14.0 cm / 16.0 x 5.5 in
rear wheels R 43.2 x 19.0 cm / 17.0 x 7.5 in
steering Unassisted Rack & Pinion
f suspension Double Wishbones w/Coil Springs over monotube Bilstein Dampers
r suspension Double Wishbones w/Coil Springs over monotube Bilstein Dampers
curb weight 756 kg / 1667 lbs
wheelbase 2300 mm / 90.6 in
front track 1457 mm / 57.4 in
rear track 1503 mm / 59.2 in
length 3785 mm / 149.0 in
width 1719 mm / 67.7 in
height 1143 mm / 45.0 in
transmission 5-Speed Manual
gear ratios 2.923:1, 1.750:1, 1.307:1, 1.033:1, 0.848:1, :1
final drive 4.20:1
top speed ~212 kph / 131.7 mph
0 – 60 mph ~5.10 seconds
