2003 Mazda Washu Concept

The Mazda Washu is an innovative six-seat concept that presents a new genre of vehicles. It is well proportioned and features Mazda’s product DNA in every aspect of the vehicle. Low and sleek, the six-seat concept also works to tear down the barriers that traditionally separate sports cars and family cars. Just as the all-new 2003 Mazda RX-8 is a unique approach to the four-seat performance car, the new Washu concept is an innovative approach to a six-seat configuration.

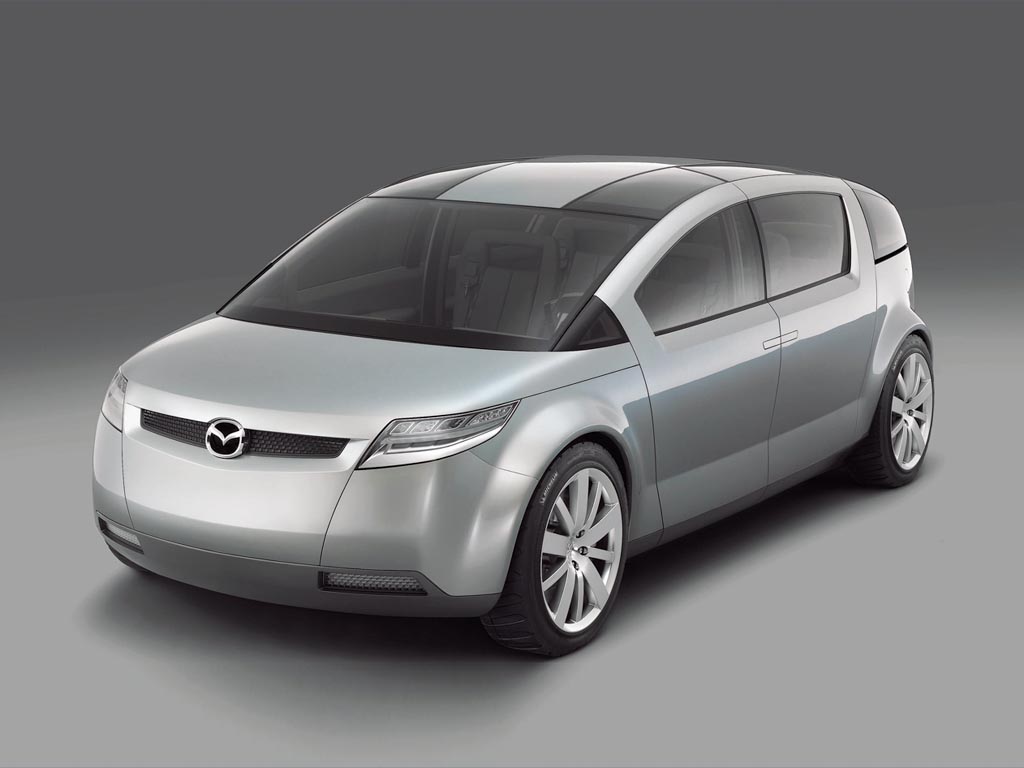

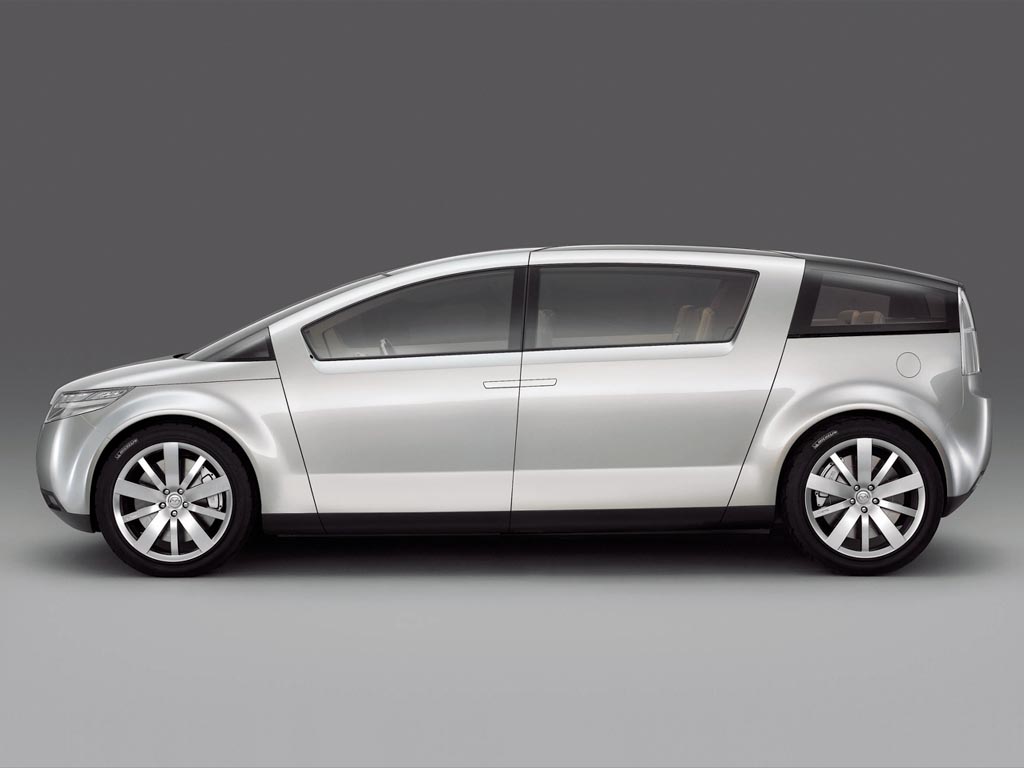

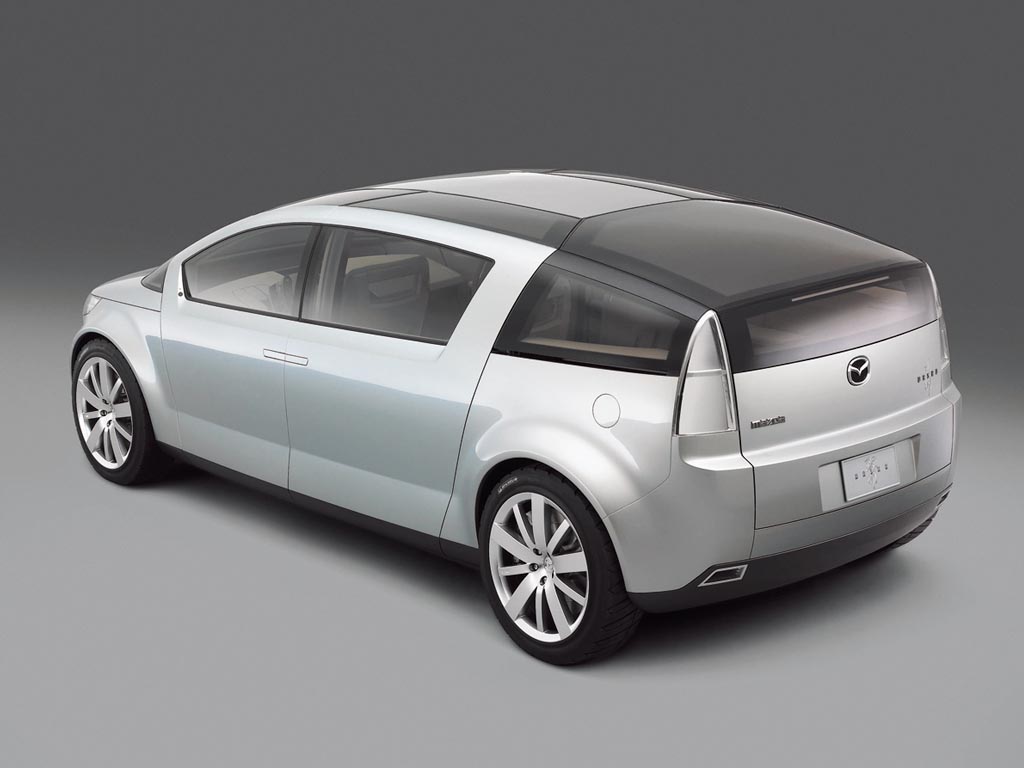

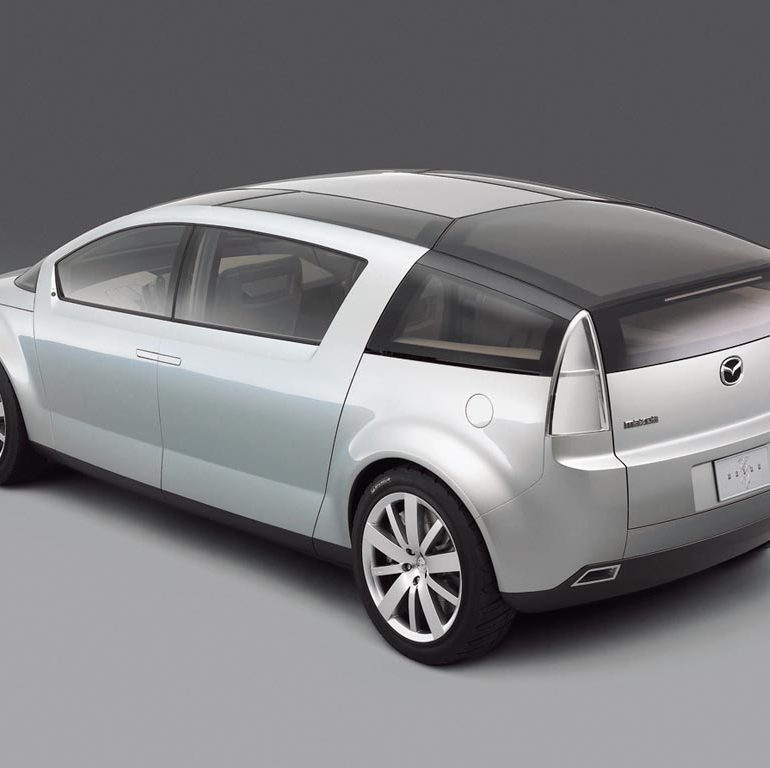

Modern proportions combined with the wide, low-slung layout are applied to the exterior. The beltline extends slightly outward to provide a sense of enhanced interior spaciousness, while the glass area is maximized by reaching upward to the roof to provide an open, airy feeling in the cabin. The roof also incorporates extensive glass area to further enhance the spacious feeling. The exterior design has been evolved through an elimination of side mirrors and the use of sleek LED headlamps. In addition, the LED headlamps are equipped with an Automatic Focusing System (AFS) linked to the vehicle’s steering mechanism. This system enhances visibility while cornering at night by adjusting the direction of the light as the vehicles steers through a corner.

The airplane doors first open outward and then slide rearward. With the sliding door fully extended, the doors provide an opening that measures 1,100mm across, with an additional 400-mm opening in the roof section. This allows passengers to enter the vehicle in an almost upright position, making it dramatically easier.

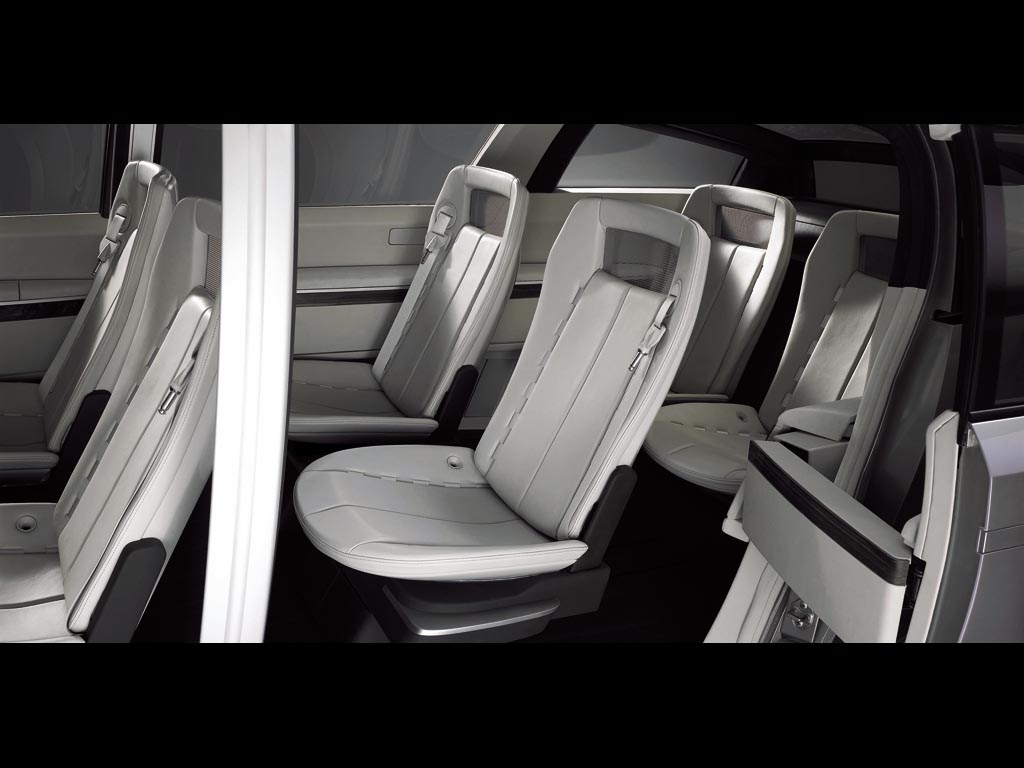

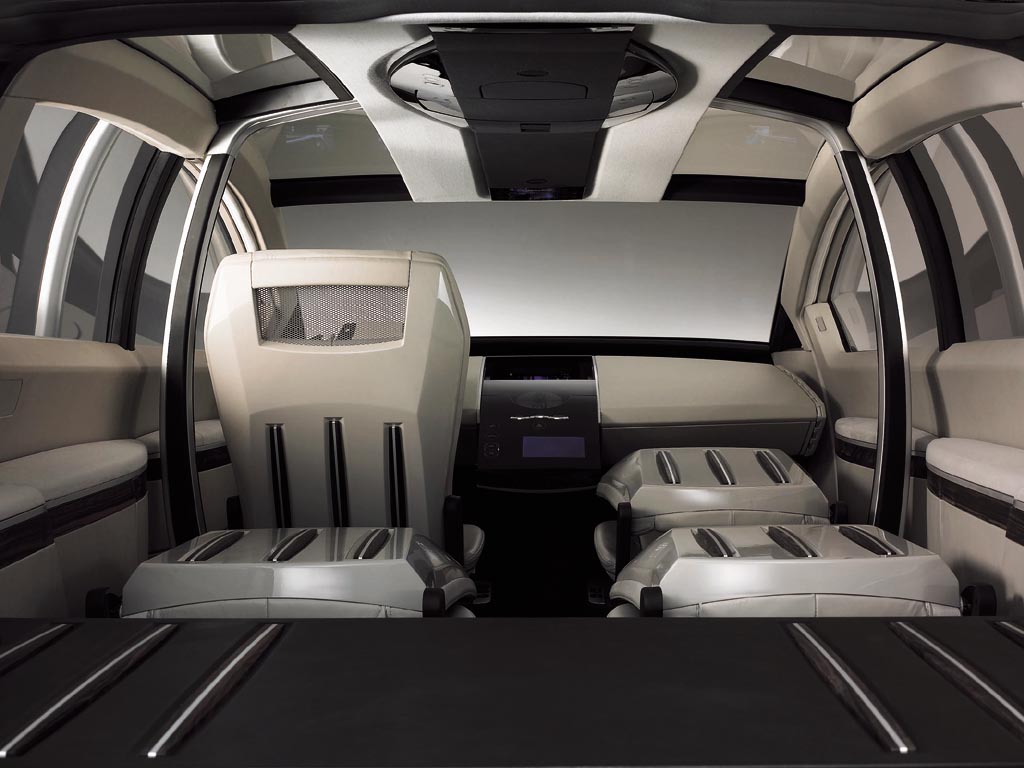

The Washu concept benefits from a low, flat floor and long wheelbase, both of which help to maximize interior space. The seats in the Washu are captain’s chairs and can be arranged in a flexible manner to accommodate a variety of passenger and cargo-carrying chores. The middle pair of seats is electrically powered and can be independently moved fore-and-aft a full 645mm. The seats can also slide to the side to allow easier access to the rearmost seats.

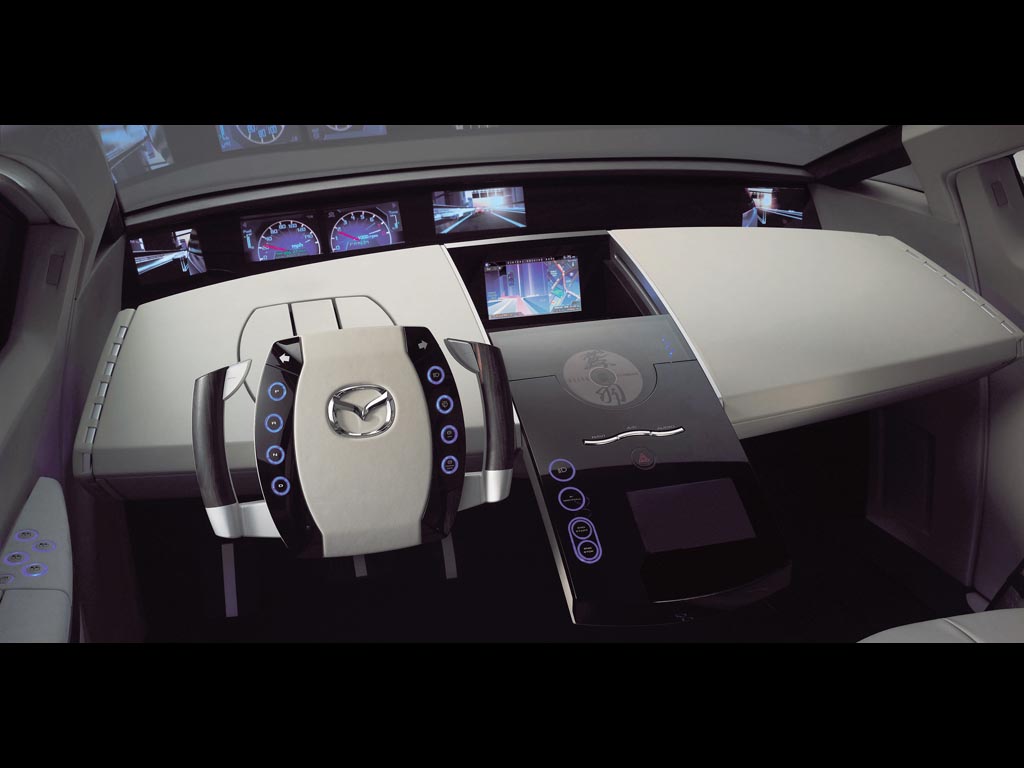

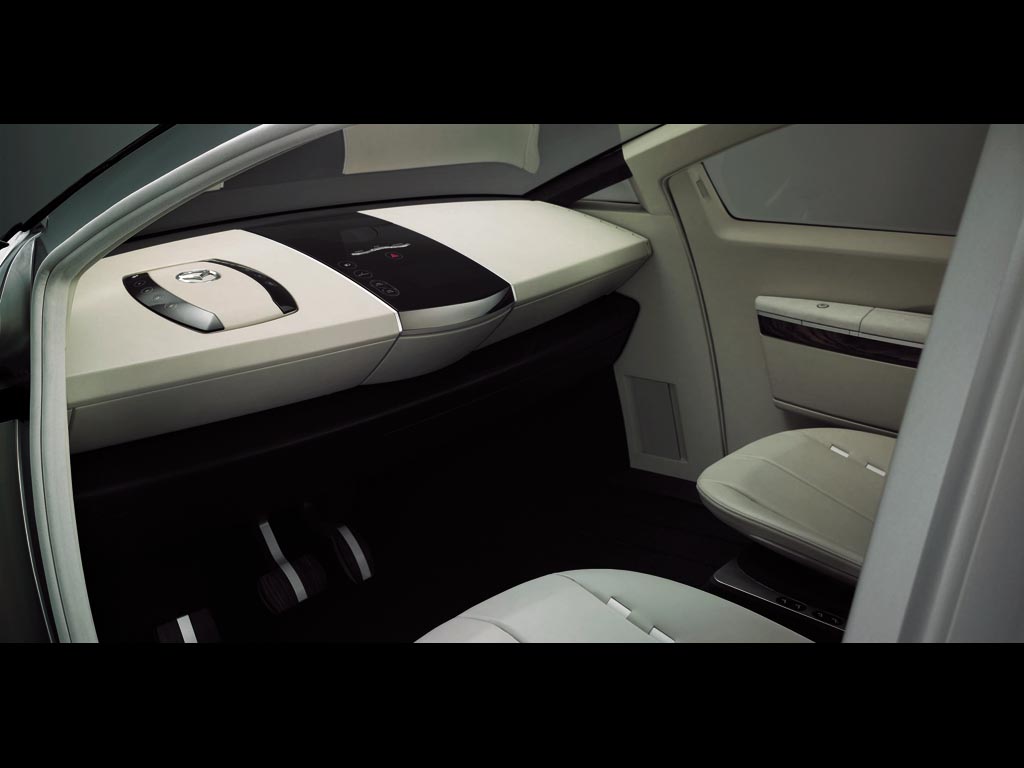

Eliminating the need for a traditional steering shaft, steer-by-wire technology also makes it possible to neatly store the steering wheel inside the instrument panel when the vehicle is parked. Further, the adjustable instrument panel makes access to the front of the car more convenient, as it can be moved upward a full 300mm – and steering wheel stowed – making getting in or out of the front seats particularly easy. In addition to this, from the stowed position, an ID card is used to automatically deploy the instrument panel and steering wheel into the driving position.

Features at a glance:

-Roof with LCD*3 dimmer glass that can be switched electrically between transparent and non-transparent states. -LCD Multi-Information display that controls driving information services. -Video monitors mounted on the sides of the front doors (in place of traditional side mirrors) and on the rear gate, allowing the driver to monitor all angles of the vehicle. -Climate control system without traditional air conditioning and heating nozzles. -Large, 15-inch DVD screen mounted in the ceiling of the rear seat to enable video playback of DVD movies. -The Mazda Washu is equipped with an electrical parking brake system. Pressing the brake pedal when the car is stopped automatically engages the parking brake, and pressing the accelerator automatically disengages it.

Story by Mazda Motor Corp

In Detail

submitted by	Richard Owen
engine	V6
displacement	3500 cc / 213.6 in³
power	182.7 kw / 245 bhp @ 6500 rpm
specific output	70.0 bhp per litre
torque	278 nm / 205.0 ft lbs @ 3500 rpm
front tires	225-750R540A MICHELIN PAX System
rear tires	225-750R540A MICHELIN PAX System
front brakes	Vented Discs
f brake size	mm / in
rear brakes	Vented Discs
r brake size	mm / in
f suspension	Double Wishbones
r suspension	Multilink
wheelbase	3200 mm / 126.0 in
front track	1560 mm / 61.4 in
rear track	1600 mm / 63.0 in
length	4830 mm / 190.2 in
width	1850 mm / 72.8 in
height	1570 mm / 61.8 in
transmission	6-Speed Auto
gear ratios	:1
