Concurrent with the market introduction of the new Mercedes CL-Class Brabus already presents an extensive and exclusive tuning program.

Engine tuning with up to 730 hp / 537 kW of power, light-alloy wheels up to 21 inches in diameter and sporty yet elegant aerodynamic-enhancement parts are on the available- options list as are a sport suspension, a high-performance brake system and exclusive interior appointments. Just as unique is the Brabus Tuning Warranty – of three years up to 100,000 kilometers.

With the T13 kit the Brabus engine specialists have developed an option for the CL 600 that offers a power increase of 113 hp / 83 kW. The kit consists of special turbochargers, a more efficient intercooling system and low-back-pressure metal catalysts. In addition the engine electronics also are reprogrammed to ensure the optimal interaction of all Brabus performance components. The result: The engine with T13 kit not only delivers excellent performance but also exemplary low emissions that meet current EURO IV limits. The stock speed limit of 250 km/h is also eliminated.

With the power increase from normally 517 hp / 380 kW to 630 hp / 463 kW and the jump in peak torque from 830 auf 1,000 Nm a Mercedes CL 600 with Brabus T13 tuning reaches a top speed of 327 km/h and accelerates in just 4.3 seconds from rest to 100 km/h.

The top performance level from Brabus for the CL 600 is the Brabus SV12 S Biturbo engine. To increase swept volume from standard 5.5 to 6.3 liters the engine block is reworked and fitted with a special crankshaft with longer stroke, and with larger, forged pistons. The inlet and outlet ports of both cylinder heads are machined for optimal gas flow further aided by four special camshafts.

The Brabus engine specialists further equip the motor with larger turbochargers, a more efficient intercooling system and a stainless-steel high-performance quad exhaust with low-back-pressure metal catalysts. Newly programmed engine electronics ensure perfect interaction of all new components, and contribute not only to maximizing power yield but also to meeting strict current emission limits.

The maximum power output of 730 hp / 537 kW at 5,100 rpm represents a superlative for the Brabus SV12 S Biturbo engine as does the peak torque of 1,320 Nm at 2,100 rpm. In the vehicle peak torque is limited electronically to 1,100 Nm.

These extraordinary performance figures make the Brabus SV12 S coupe not just one of the most powerful but also one of the fastest GT’s in the world. 0 – 100 km/h in 4.0 seconds, 200 km/h after just 11.9 seconds and an electronically limited top speed of 340 km/h speak volumes.

Power is transferred to the rear wheels via a modified five-speed automatic transmission. An optional Brabus rear locking differential optimizes traction. All Brabus powertrain components are operated with ARAL high-performance lubricants.

To add more sporty emphasis to the elegant lines of the new C 216-series Mercedes coupe the Brabus designers have developed an aerodynamic-enhancement kit, manufactured from high-quality PUR-R-RIM in OEM quality.

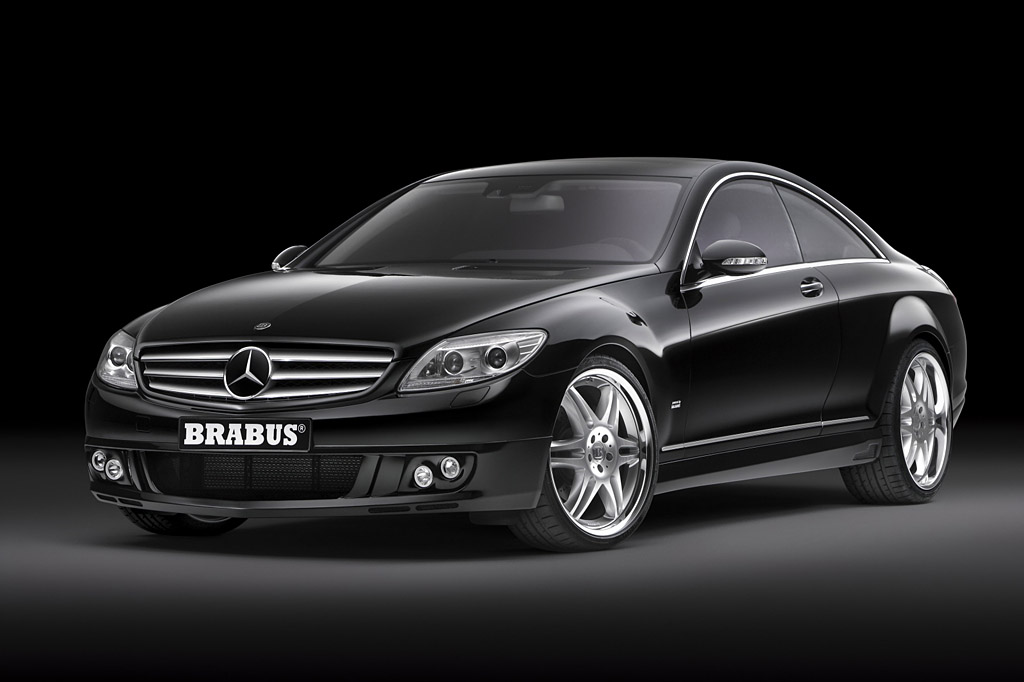

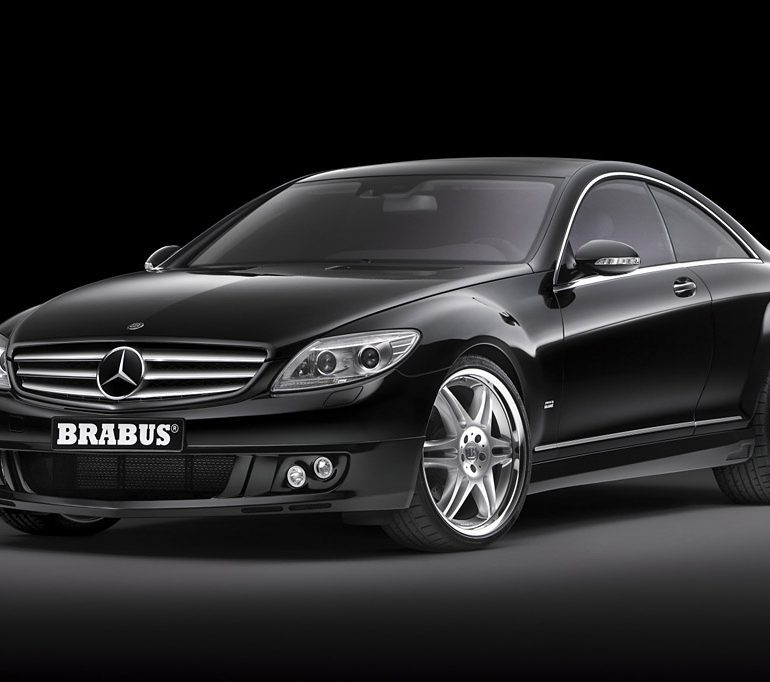

The Brabus front bumper was shaped in the wind tunnel. Its sophisticated shape reduces lift on the front axle. The large central air dam optimizes cooling of engine and front brakes. Integrated fog lamps and high beams give the car a more charismatic appearance and
improve active safety through better illumination of the roadway.

The Brabus rocker panels were designed to optimize airflow along the vehicle’s sides. As a useful additional feature these panels come with integrated entrance lights.

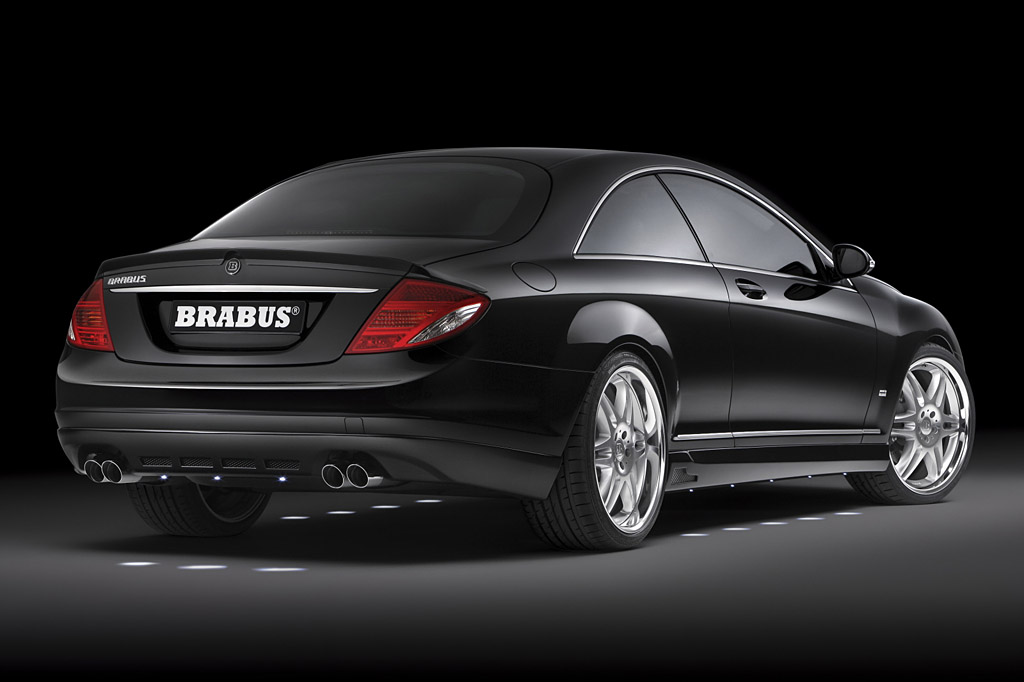

The bolt-on rear fascia is designed to perfectly integrate the fully stainless-steel Brabus quad sports exhaust into the rear appearance. The sport exhaust is also available without engine tuning. The rear fascia also features three LED lights recessed in the underside of the fascia. They are activated when the trunk lid is opened and facilitate loading and unloading the trunk in the dark. An understated rear spoiler rounds out the sophisticated Brabus aerodynamics concept.

Just as important for a customized appearance and for sporty handling are custom-tailored wheels. The new CL can be fitted with Brabus Monoblock light-alloy wheels in various widths and designs with 18-, 19-, 20- and 21-inch diameters. The largest tire/wheel combination for the C 216 series are Brabus Monoblock VI and E wheels in sizes 9Jx21 in front and 10.5Jx21 on the rear axle. For optimal tires Brabus selected Pirelli and
Yokohama high-performance tires in sizes 255/30 ZR 21 in front and 285/30 ZR 21 in the
rear.

Specifically matched to this tire/wheel combination is the Brabus lowering module for the standard ABC suspension. It lowers the ride height of the two-door by some 25 millimeters.

To keep the exceptional performance safely in check at all times the Mercedes can be fitted with a Brabus high-performance brake system. The top-of-the-line version features 12-piston fixed aluminum calipers and 380 x 36-millimeter vented and cross-drilled discs on the front axle. The rear axle decelerates with 355 x 28-millimeter discs and six-piston fixed aluminum calipers.

The interior of the new Mercedes coupe offers numerous opportunities for exclusive Brabus treatments. The list of products ranges from door sills with Brabus logo to ergonomically shaped sport steering wheels to an exclusive Brabus fully leather interior crafted from especially soft yet durable Brabus Mastik leather and the finest Alcantara.

In Detail

type Professionally Tuned Car
built at Bottrop, Germany
engine SC12S V12
position Front Longitudinal
aspiration Twin Turbo
valvetrain SOHC 3 Valves per Cylinder
displacement 6233 cc / 380.4 in³
power 544.4 kw / 730 bhp @ 5100 rpm
specific output 117.12 bhp per litre
torque 1320 nm / 973.6 ft lbs @ 2100 rpm
body / frame Unit Steel
wheel type Brabus Monoblock VI
front tires 255/30 ZR 21
rear tires 285/30 ZR 21
front brakes Discs w/12 Piston Calipers
rear brakes Discs w/6Piston Calipers
front wheels F 53.3 x 22.9 cm / 21 x 9 in
rear wheels R 53.3 x 26.7 cm / 21 x 10.5 in
f suspension Four-Linkl
r suspension Multi-Link
length 5065 mm / 199.4 in
width 1871 mm / 73.7 in
height 1607 mm / 63.3 in
transmission Modified 5-Speed Auto
top speed ~340 kph / 211.3 mph
0 – 60 mph ~3.9 seconds
