2008 MTM S5 GT Supercharged

2008 MTM S5 GT Supercharged

2008 MTM S5 GT Supercharged

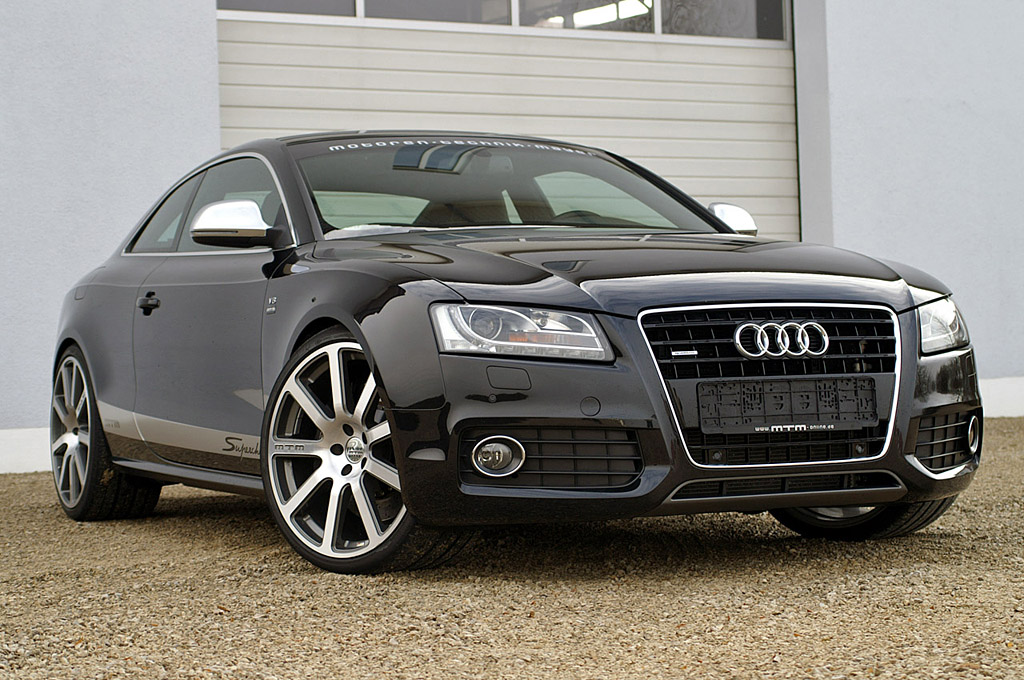

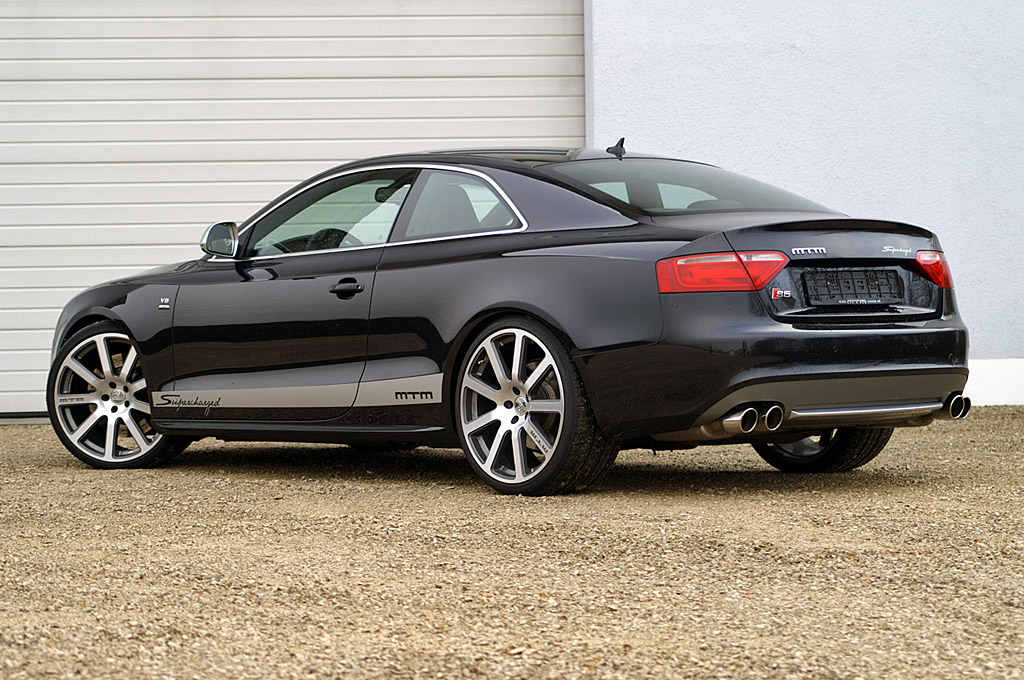

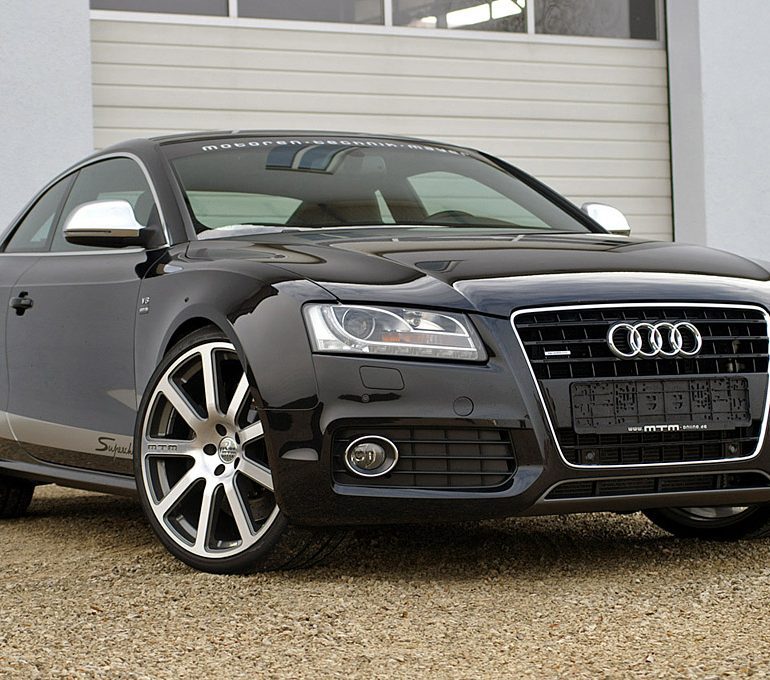

Motoren Technik Mayer from Wettstetten, Germany, puts the Audi S5 under pressure. As “MTM GT Supercharged” the sporty coupe’s supercharged engine demonstrates impressive performance data. Together with bigger brakes, a coilover suspension and other minor changes, the result is an overall package which can take on the race track.

Pressurized

Watch out, when it gets loose! At the slightest pressure on the accelerator the MTM S5 GT Supercharged rockets forward with brute force. The compressor added to the Audi 4.2 liter V8 by MTM is what makes this possible. An MTM intercooler housing with integrated water cooling ensures that the engine can always generate maximum performance. Overall, instead of the stock 354 hp, there is now all of 505 horsepower at 7190 rpm available. This makes an engine output of 120 hp per liter! The torque boost by 106 to 546 Nm emerges in vehement intermediate bursts, to which the driver can get addicted. The sprint from 0-100 km/h takes 4.3 seconds, turning many super sports cars green with envy. And up to its top speed of 300 km/h it can hold its own with any of them.

The evenly powerful, dynamic power display is underscored by a flow-optimized stainless steel sports exhaust system. The goose pimple-raising sound is released by four tailpipes, each 90 mm in diameter.

Curve-hugging and agile

MTM equipped its GT Supercharged with a perfectly tuned coilover suspension and in addition amended the axle geometry with higher camber angles. After the change, its driving dynamism and curve-hugging characteristics are so pronounced you never want to drive straight-ahead again. The steering characteristics are more precise and the agility enhanced, while road handling remains quite neutral.

Braking

Since a performance-enhanced vehicle also has to be reined in quickly, MTM improved the brake performance, too. Consequently MTM always provides the appropriate brake system for cars of all performance classes. In the case of MTM GT Supercharged, the Bavarian specialists upgraded the deceleration with a new brake system on the front axle. This is a brake system with 8-piston fixed calipers and 380×34 mm pitted brake discs. The package includes the flexible steel lines and attachments. With the system the driver can decelerate the MTM GT Supercharged from 100-0 km/h within about 35 m. The “pitted” brake discs incidentally represent a special design, manufactured especially for MTM. Typical of “pitted” brake discs are the holes which do not completely penetrate the disc. They look like and share the characteristics of a perforated disc, but hinder the crack formation which normally occurs after lengthy use.

The small difference

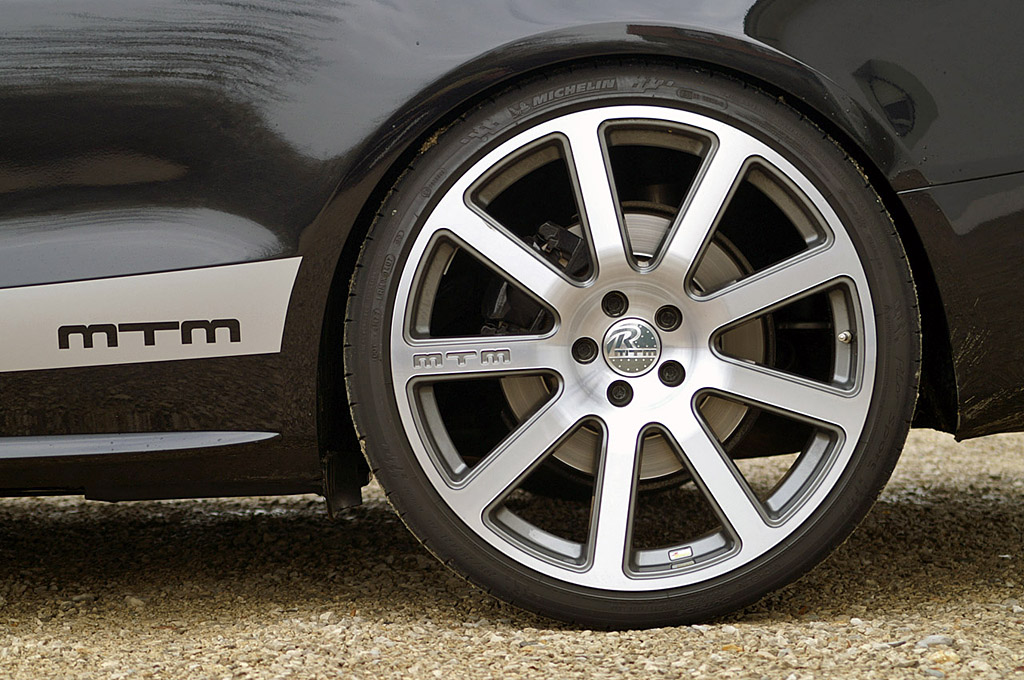

Optically the GT Supercharged does not look very different from the series model. Here MTM has gone in for understatement. Nevertheless ? apart from the MTM exhaust system’s pipes ? the “bimoto” MTM rims take care of a look clearly distinguished from the series. The eye-catching wheels are available in “shiny silver”, “titanium” and “diamond cut” finishes. MTM provides the “bimoto” rim for the S5 ? as for other A5 models too ? in 10.5×21″ as a complete rim set together with 295/25/ZR21 tires.

At MTM the general rule is: special wishes are met. Customization is also carried out on an individual basis!

Story by Motoren Technik Mayer

In Detail

submitted by Richard Owen
engine V8
position Front, Longitudinal
aspiration Supercharger
valvetrain Chain-Driven DOHC, 4 Valves per Cyl w/VVT
fuel feed FSI Direct Injection
displacement 4163 cc / 254.04 in³
bore 84.5 mm / 3.3 in
stroke 92.8 mm / 3.7 in
power 376.6 kw / 505 bhp @ 7190 rpm
specific output 121.31 bhp per litre
torque 546 nm / 402.7 ft lbs
body / frame Aluminum Spaceframe
driven wheels Quattro 4WD w/TCS
wheel type MTM bimoto
front tires 295/25/ZR21
rear tires 295/25/ZR21
front brakes Discs w/8-Piston Calipers
f brake size 34 x 380 mm / 1.3 x 15 in
rear brakes Ventilated Discs w/Single-Piston Sliding Caliper
front wheels F 53.3 x 26.7 cm / 21 x 10.5 in
rear wheels R 53.3 x 26.7 cm / 21 x 10.5 in
f suspension Double Wishbones w/Tuned coilovers
r suspension Multi-link w/Tuned coilovers
transmission 6-Speed Manual
0 – 60 mph ~4.2 seconds
