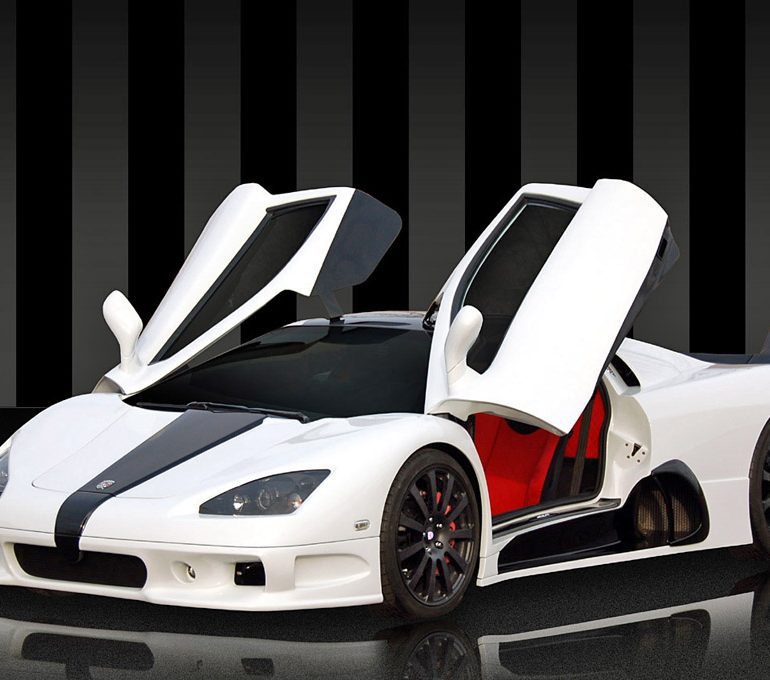

2009 SSC Ultimate Aero

2009 SSC Ultimate Aero

2009 SSC Ultimate Aero

WEST RICHLAND, WA (12/10/2008) – After holding the “World’s Fastest Production Car” title for the past year, the Shelby SuperCars’ Ultimate Aero is receiving several refinements for the 2009 model year. The SSC engineering team equipped the 2009 Ultimate Aero with a 15% increase in horsepower, a revamped front fascia design, and an array of important interior upgrades. The most substantial change is an SSC-designed, 1-piece billet aluminum engine block. A milestone for the limited-production automobile manufacturer, the new block improves structural integrity and oiling capabilities allowing SSC to boost the power output to 1287 horsepower while improving durability.

2009 SSC Ultimate Aero

Armed with the more powerful new engine, the ’09 Ultimate Aero will be able to reach world-record speeds of 270 MPH, raising the benchmark for supercars and pushing the limits of current production car technology. In order to accommodate the ’09 Ultimate Aero’s unique fuel system requirements, SSC turned to American company Aeromotive to develop a flawless system. The aggressive nose is redesigned with enhanced aerodynamics to accommodate the 2009 Ultimate Aero’s higher top speed, and carbon fiber louvers on the side intakes draw in an additional 20% of air into the radiators for improved cooling. The improvement in overall performance will widen the already sizeable gap between the Ultimate Aero and its competitors. The ’09 Ultimate Aero also introduces the AeroBrakeTM a rear spoiler system that deploys under braking situations. Finished in carbon fiber, the rear spoilers actuate up an additional 8″ when the brake pedal is depressed. The speed of the spoiler actuation is set by the amount of brake pedal pressure. The complete AeroBrakeTM system can be disabled by the push of a button, for town driving or situations where braking and downforce assistance are not necessary.

Rounding out the ’09 Ultimate Aero’s improvements is a revamped interior. A redesigned dash prominently displays sleek, exposed carbon fiber dash halves and inset air vents. Carbon fiber accents run along the doorsills, surround the new gauge cluster, and continue onto a revised steering column, which includes an analog speedometer and tachometer with a sequential shift light integrated into the tachometer needle. The new center console incorporates a digital temperature control unit and tire pressure monitor along with an Azentek PC base Infotainment unit. The revolutionary Azentek unit offers all the capabilities of a PC and processes SSC’s onboard diagnostic software.

In Detail

type Series Production Car
built at West Richland, WA, USA
price $ $ 740,000
engine SSC Designed V8
position Mid, Longitudinal
aspiration Twin Turbo
block material Billet Aluminum
fuel feed Sequential, Multi-Port Fuel Injection
displacement 6345 cc / 387.2 in³
bore 104.8 mm / 4.125 in
stroke 91.9 mm / 3.620 in
compression 8.975:1
power 959.7 kw / 1287 bhp @ 6075 rpm
specific output 202.84 bhp per litre
bhp/weight 1030.42 bhp per tonne
torque 1507.7 nm / 1112 ft lbs @ 6150 rpm
redline 7200
body / frame Carbon Fiber & Composite over Steel Space Frame
driven wheels RWD
wheel type Forged 3-Piece Alloy
front tires 235 35 (YR)19 Michelin Pilot Sport PS2
rear tires 335 30 (YR)20 Michelin Pilot Sport PS2
front brakes Slotted & Ventilated Discs w/8-Piston Calipers
rear brakes Slotted & Ventilated Discs w.6-Piston Calipers
front wheels F 48.3 x 24.1 cm / 19 x 9.5 in
rear wheels R 50.8 x 33.0 cm / 20 x 13 in
steering Rack & Pinion w/Power Assist
f suspension Unequal A-Arms w/Reservoir-Adjustable Penske Coil-Over Shocks, Cab Controlled Air Lift, Anti-Roll Bar
r suspension Unequal A-Arms w/Reservoir-Adjustable Penske Coil-Over Shocks, Cab Controlled Air Lift, Anti-Roll Bar
curb weight 1249 kg / 2750 lbs
weight distro 42 % / 58 %
wheelbase 2672.1 mm / 105.2 in
length 4470.4 mm / 176.2 in
width 2100.6 mm / 82.7 in
height 1092.2 mm / 43 in
transmission 6-Speed
gear ratios 3.00:1, 2.15:1, 1.5:1, 1.1304:1, 0.8667:1, 0.6452:1
final drive 3.4444:1
top speed ~434.43 kph / 270 mph
0 – 60 mph ~2.78 seconds
0 – 1/4 mile ~9.9 seconds
drag 0.357 Cd
