2011 NISMO GT-R RC


2011 NISMO GT-R RC

2011 NISMO GT-R RC

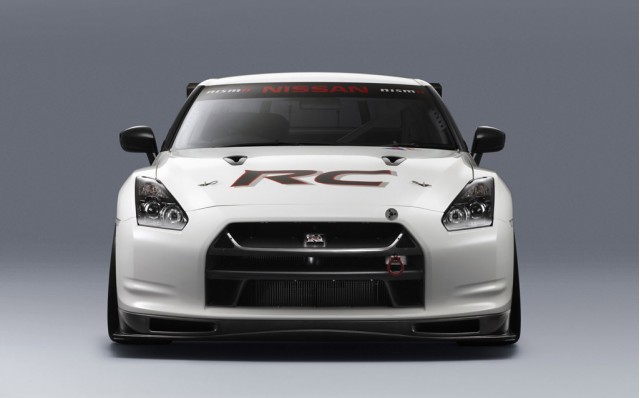

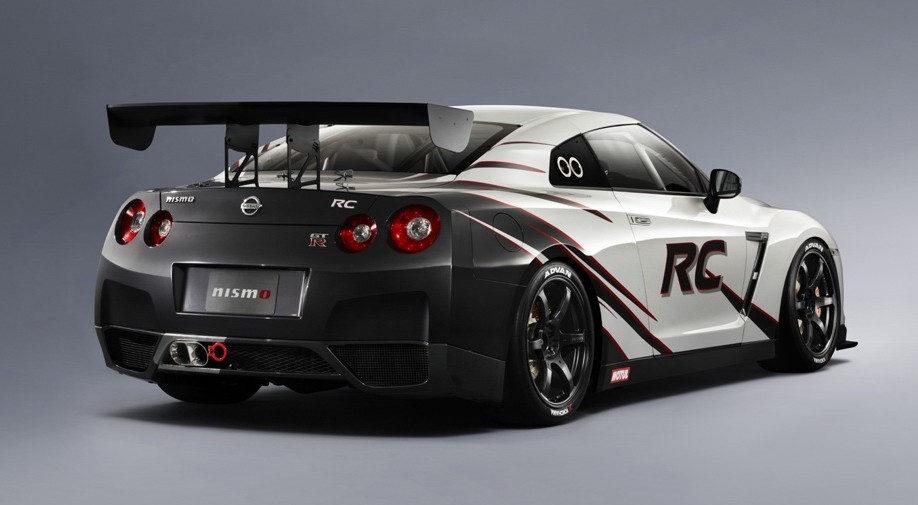

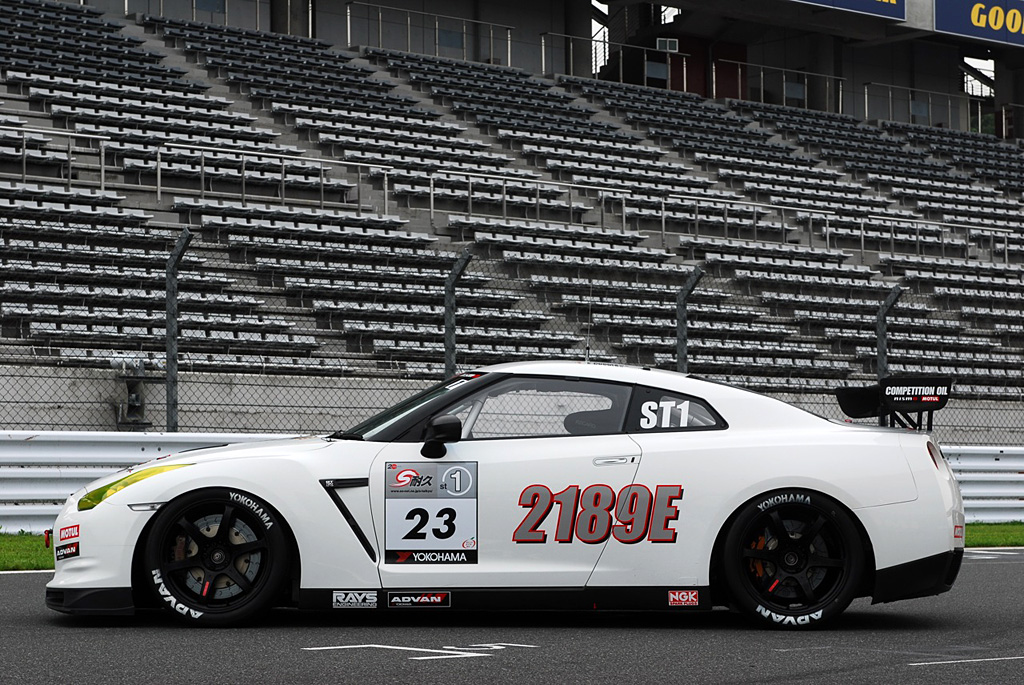

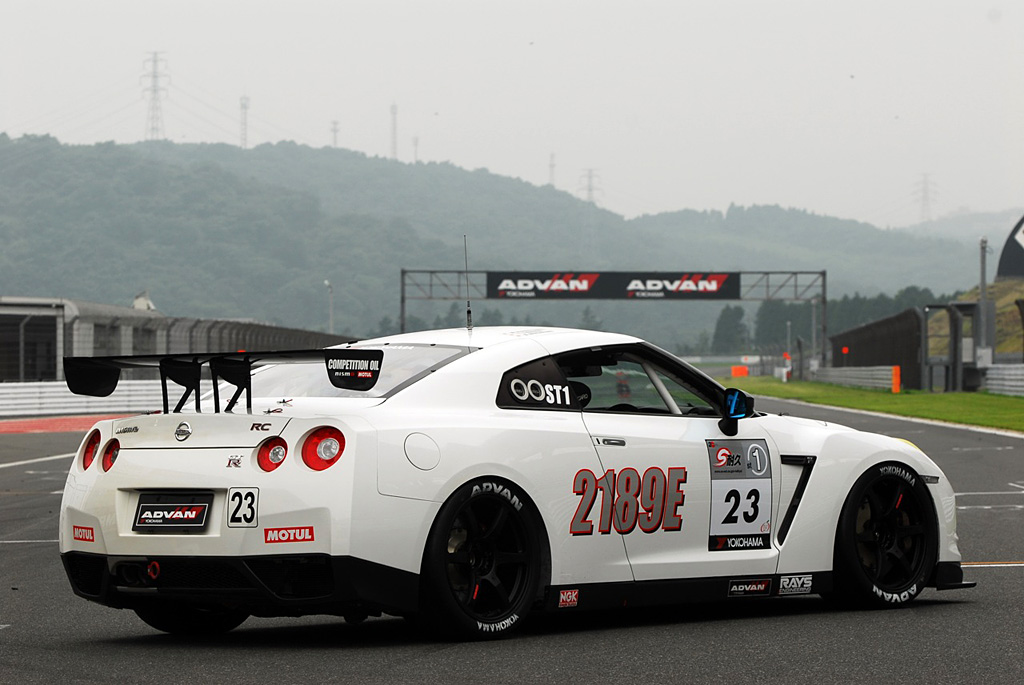

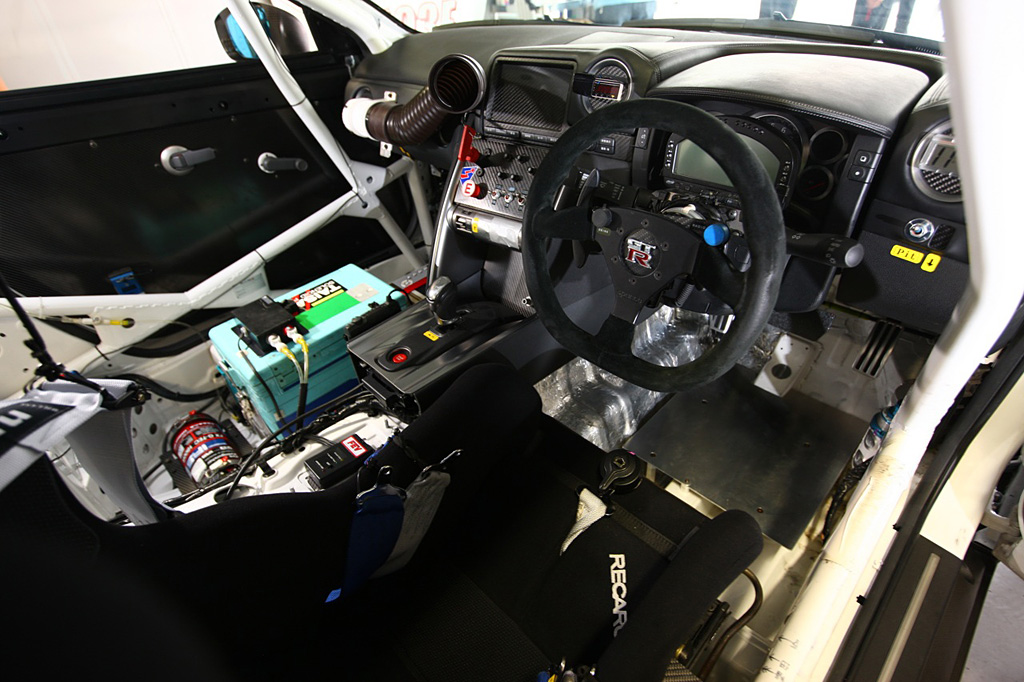

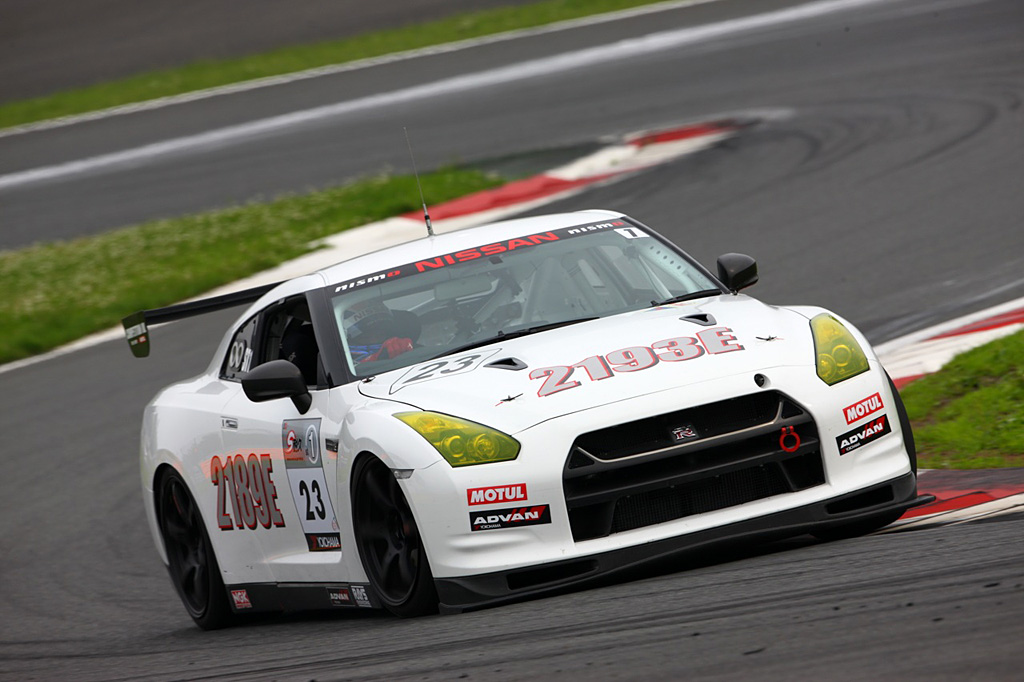

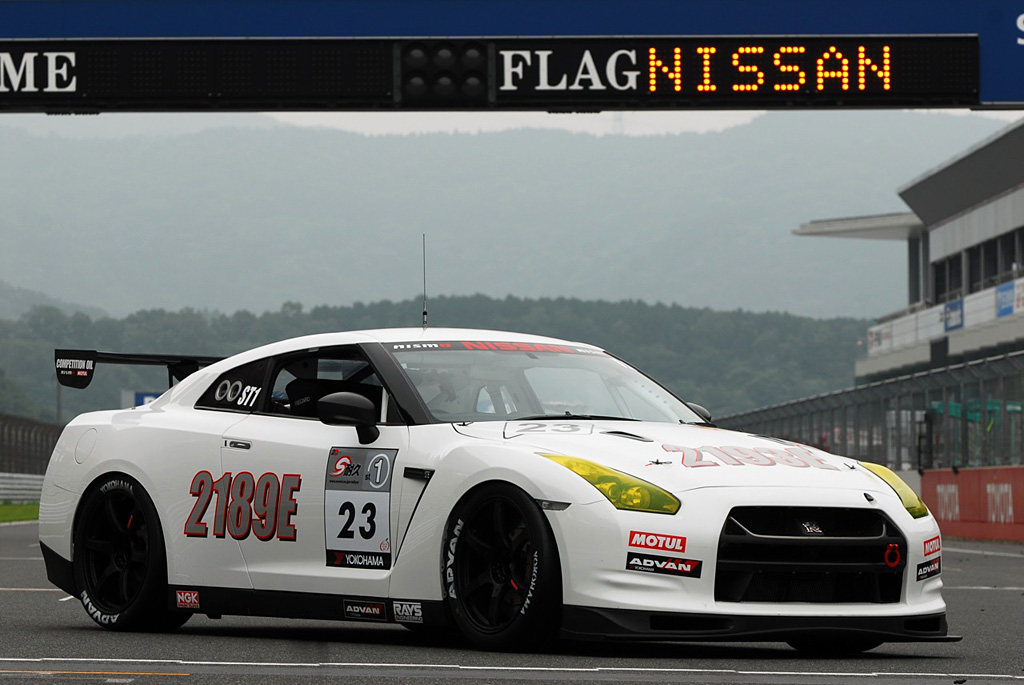

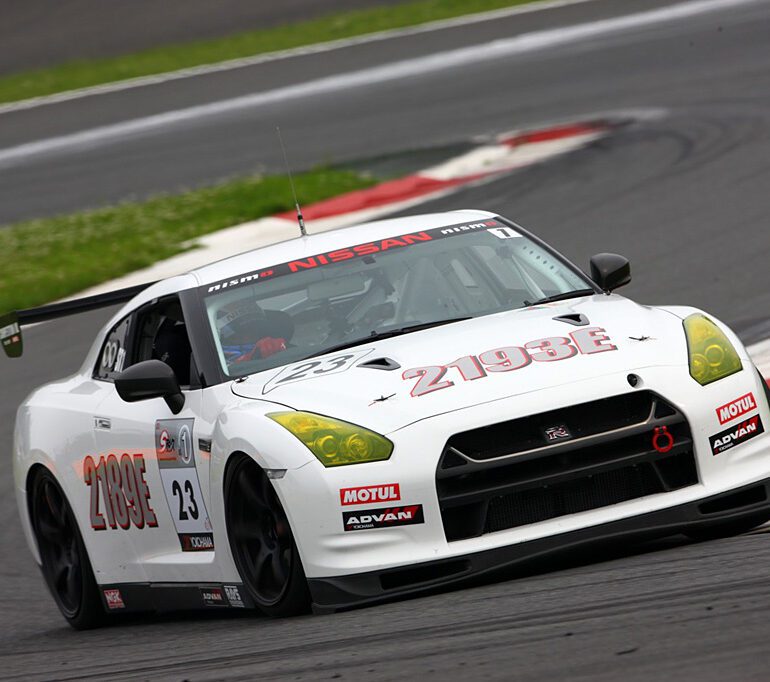

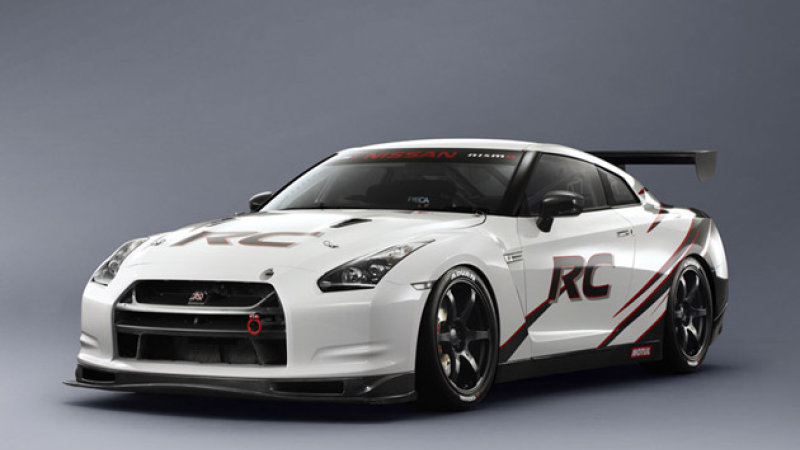

For the ST1 class of Japan’s Super Taikyu series, NISMO prepared the GT-R RC. Much of the upgrades included suspension and brake work to make the car compatible with racing slicks. As a result the track is increased by 40mm on the front and rear. Safety upgrades include an FIA-spec roll cage, 120-litre fuel tank and air jacks.

In Detail

type Racing Car

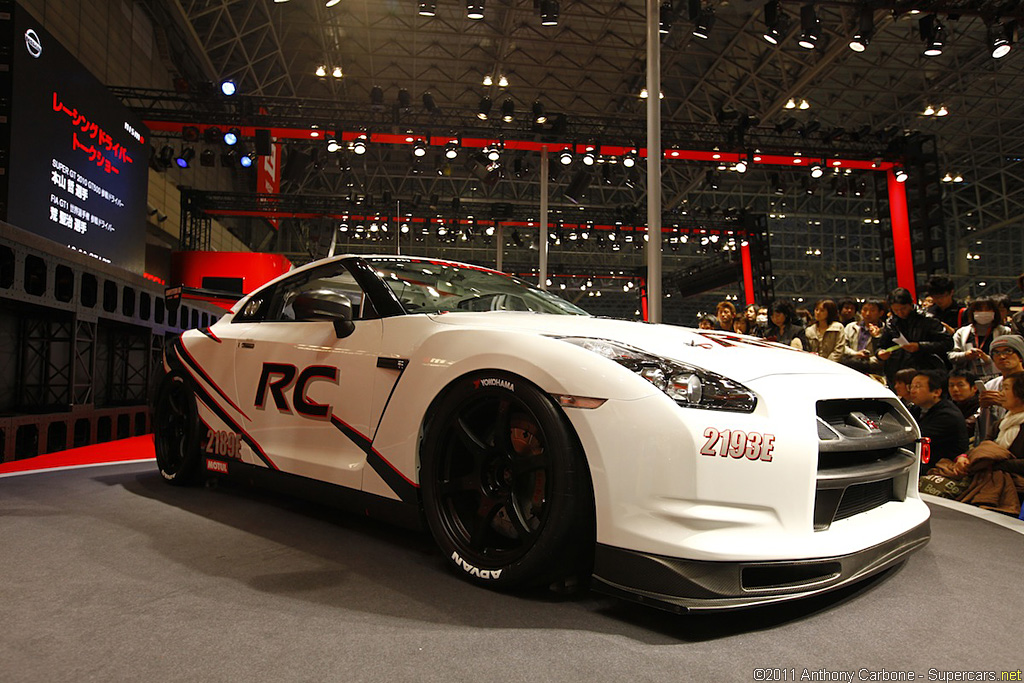

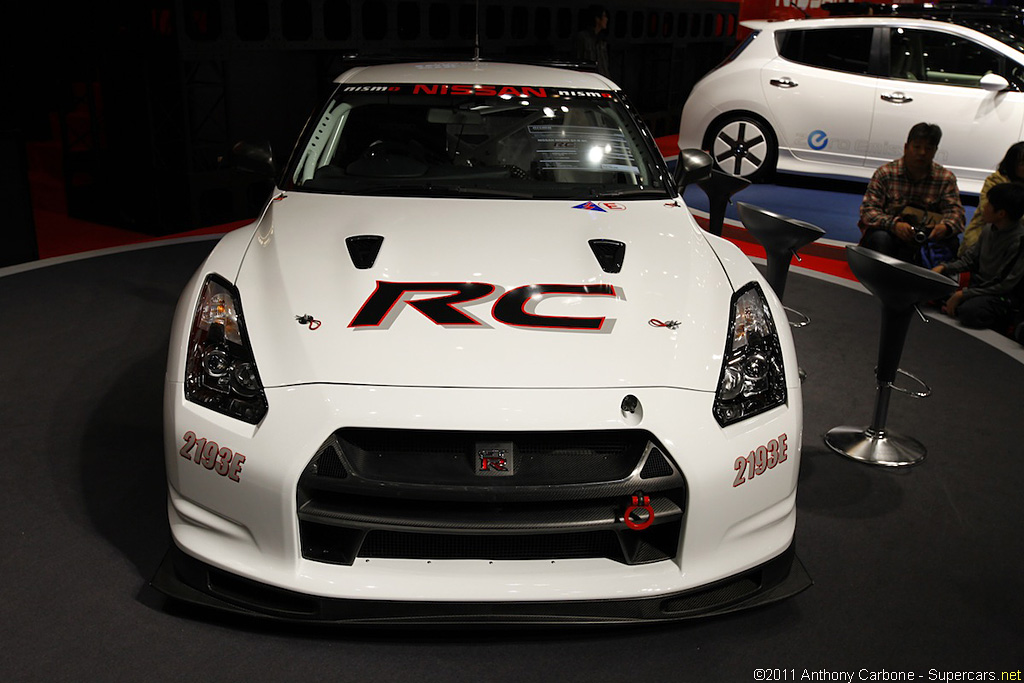

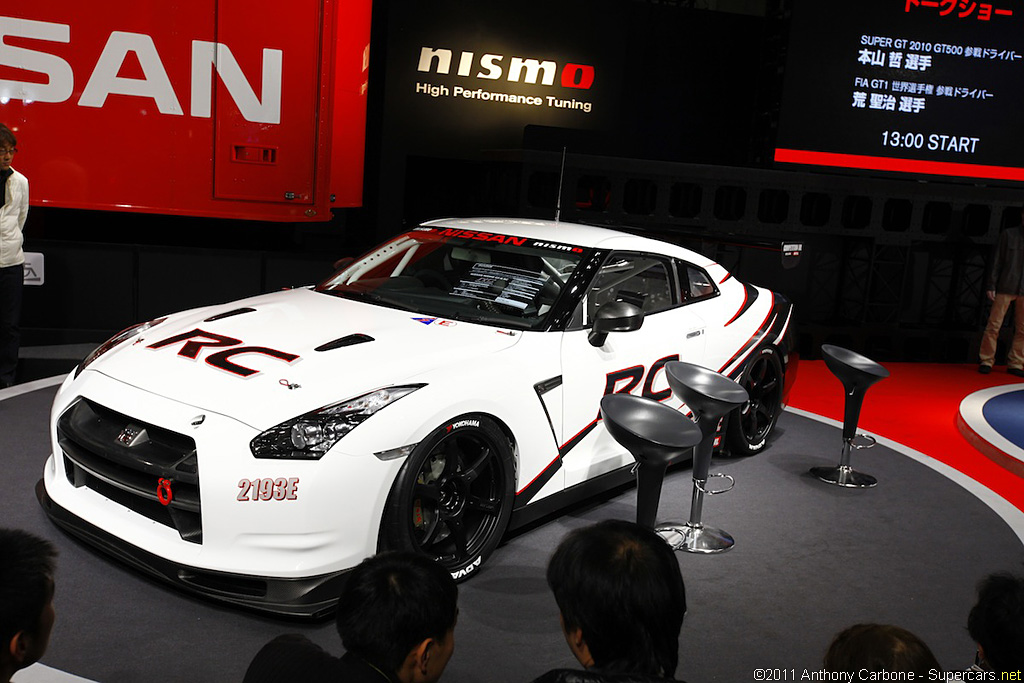

released at 2011 Tokyo Auto Saloon
built at Tochigi, Tochigi, Japan
body stylist Shirō Nakamura
engineers Kazutoshi Mizuno

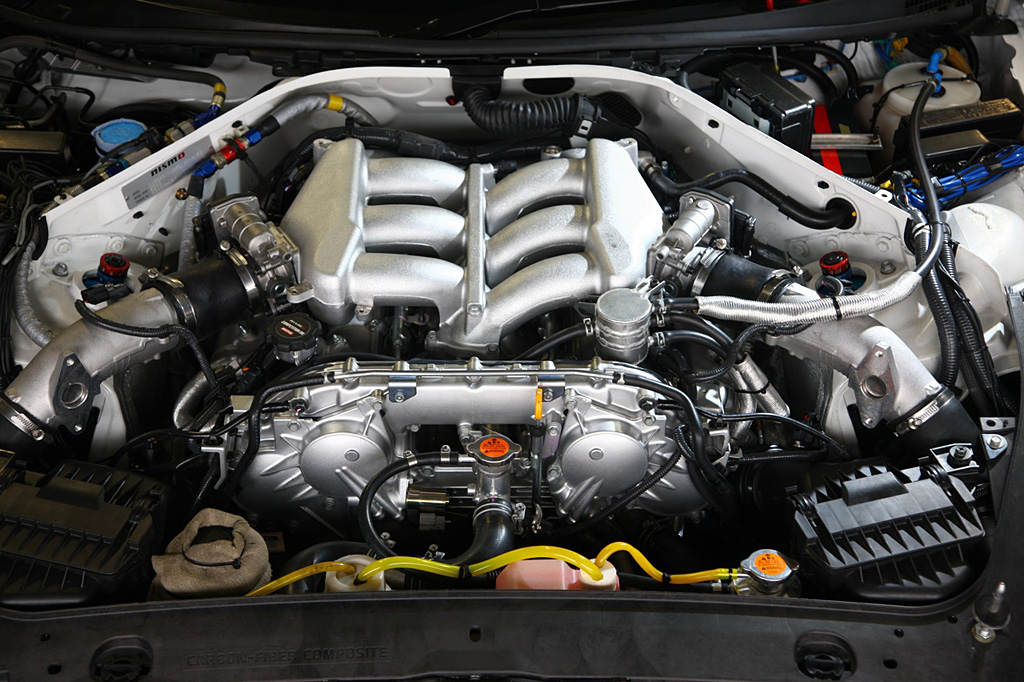

engine VR38DETT6 Alloy 60 Degree V6
position Front, Longitudinal
aspiration IHI Twin Turbochargers in Manifold System
block material Aluminum
valvetrain DOHC, 4 Valves per Cyl
fuel feed Electronic Multipoint Fuel Injection
displacement 3799 cc / 231.8 in³
bore 95.5 mm / 3.76 in
stroke 88.4 mm / 3.48 in
compression 9.0:1
power 357 kw / 478.7 bhp @ 6400 rpm
specific output 126.01 bhp per litre
bhp/weight 273.54 bhp per tonne
torque 588 nm / 433.7 ft lbs @ 5200 rpm
redline 7000
body / frame CBA-R35 Unit Steel
driven wheels ATTESA ET-S All-Wheel Drive (AWD) w/Carbon-Composite Driveshaft to Rear Transaxle, Transfer Case

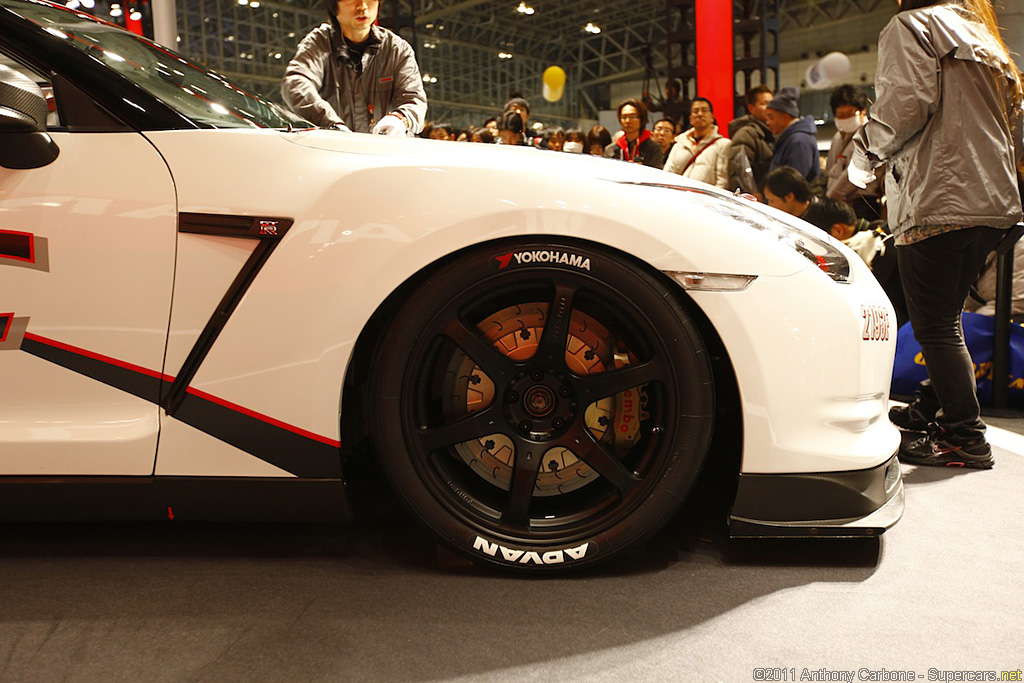

wheel type Rays Forged Wheels in Hyper Blue Black Chrome
front tires 290/710R20 ADVAN
rear tires 290/710R20 ADVAN

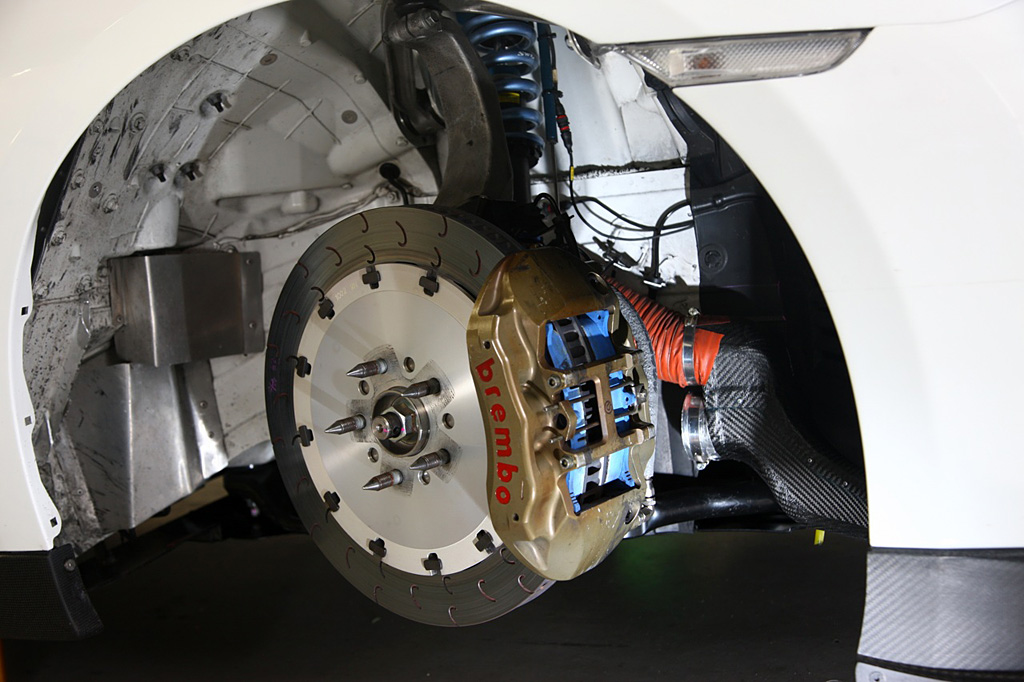

front brakes Vented Brembro Discs w/6-Piston Calipers, ABS, EBD, BA
rear brakes Vented Brembro Discs w/4-Piston Calipers, ABS, EBD, BA
front wheels F 50.8 x 24.13 cm / 20 x 10.5 in
rear wheels R 50.8 x 26.7 cm / 20 x 10.5 in
steering Rack & Pinion w/Speed Sensitive Variable Assist
f suspension A-Arms w/Bilstein Damptronic Shock Absorbers, Coil Springs, Anti-Roll Bar
r suspension A-Arms w/Bilstein Damptronic Shock Absorbers, Coil Springs, Anti-Roll Bar
curb weight 1750 kg / 3859 lbs
wheelbase 2780 mm / 109.4 in
front track 1640 mm / 64.6 in
rear track 1640 mm / 64.6 in
length 4650 mm / 183.1 in
width 1895 mm / 74.6 in
height 1370 mm / 53.9 in
transmission 6-Speed Dual Clutch Automatic Transmission
gear ratios 4.06:1, 2.30:1, 1.60:1, 1.25:1, 1.00:1, 0.80:1
final drive 3.70:1
fuel capacity 120 litres or 31.68 gal.
