2011 RENNtech CLK 63 Black Carbon


2011 RENNtech CLK 63 Black Carbon

2011 RENNtech CLK 63 Black Carbon

Until only recently, RENNtech has offered a line of proprietary, one-of-a-kind carbon fiber aerodynamic upgrades for the CLK Black Series to a small number of exclusive clientele; one of the first being Indy Car driver Tony Kanaan. We recently finished yet another complete package installation and are proud to announce them to market due to the increased interest and popularity of these products.

Our CLK 63 Black Series carbon aero upgrades include our proprietary full carbon fiber front splitter, rear diffuser, DTM rear wing, Carbon air box with vacuum chamber and front carbon brake air ducts. All of our components are manufactured in high quality, full carbon fiber available in either matte or gloss finish to suit individual desires.

These components are the result of countless hours of design and testing by our in house design and engineering staff to integrate seamlessly within the original body work and offer significant improvements in vehicle performance and handling.

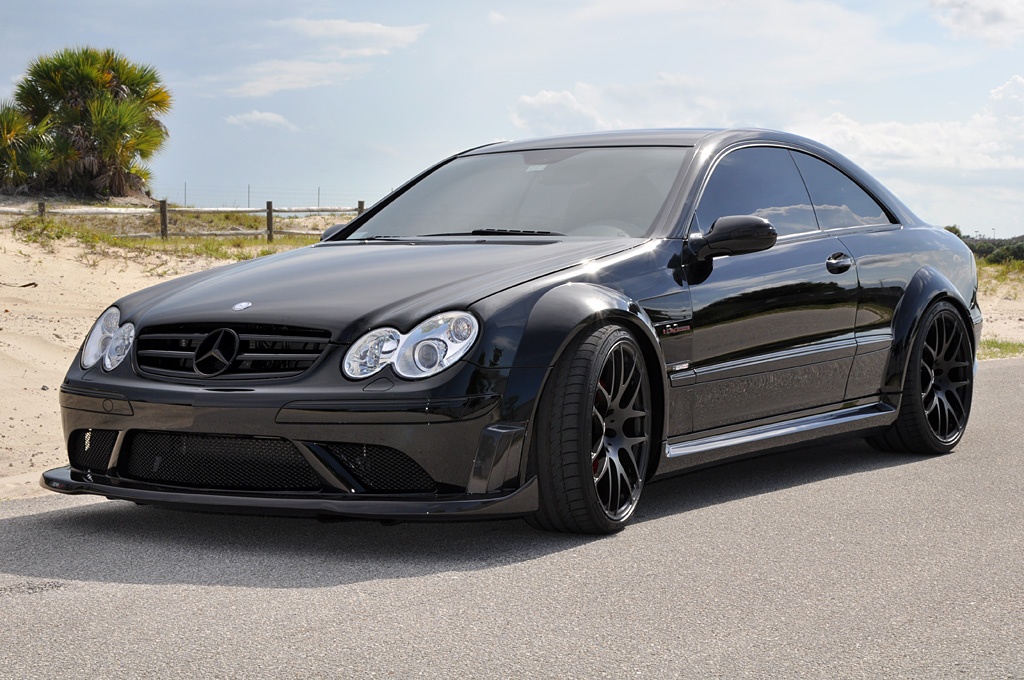

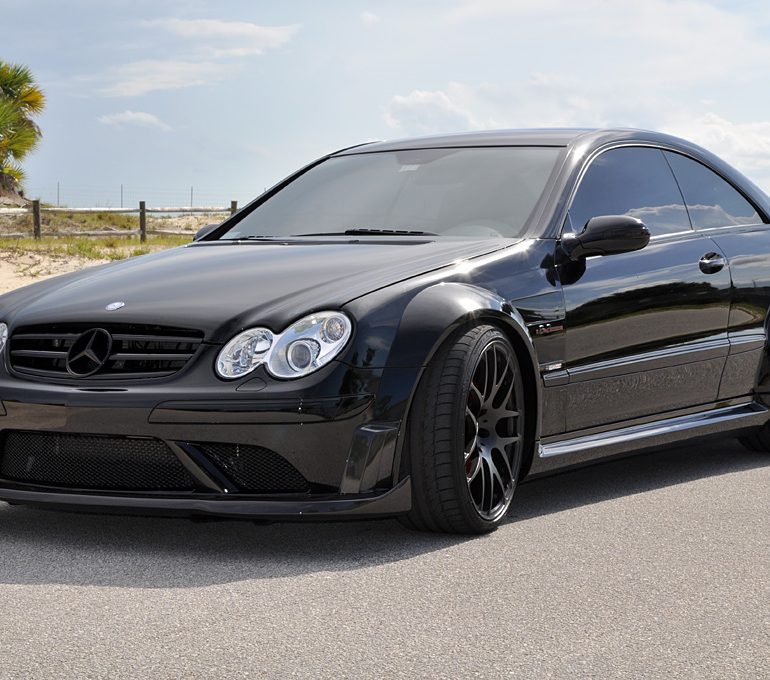

Carbon Front Splitter: Our front lip spoiler offers aggressive front end styling and increased down force for improved handling. Integrated into the flat panel underbody tray are functional channels which allow cooling air to be directed to the front brakes to significantly increase brake cooling and reduce heat fade and pad wear.

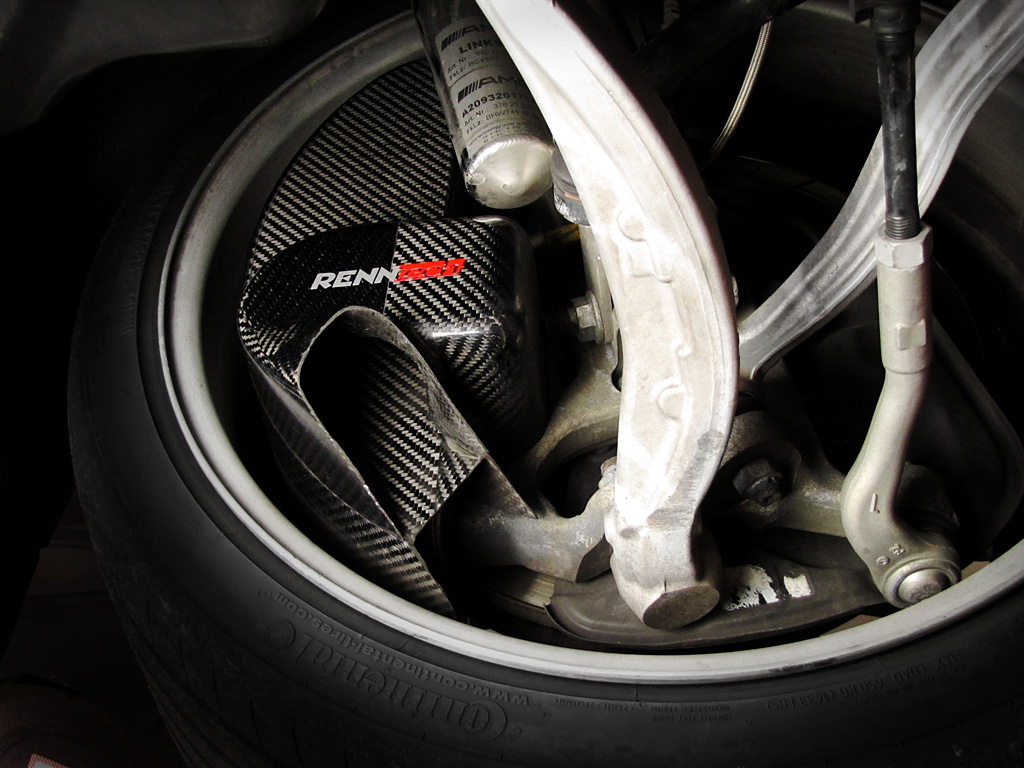

Carbon Front Brake Air Ducts:

Our front brake air ducts were designed in conjunction with our front splitter to dramatically increase cooling air flow to the front brakes reducing brake fade and pad wear under the most extreme driving conditions. These bolt on components require no modification to the brake heat shield and are crafted in full carbon fiber.

63 Carbon Air box

Our redesigned full carbon air box incorporates a restyled carbon vacuum chamber box. By optimizing the path and increasing the volume of incoming airflow, our carbon air box is able to offer gains up to 10 hp, in addition to serving as an attractive under hood showpiece.

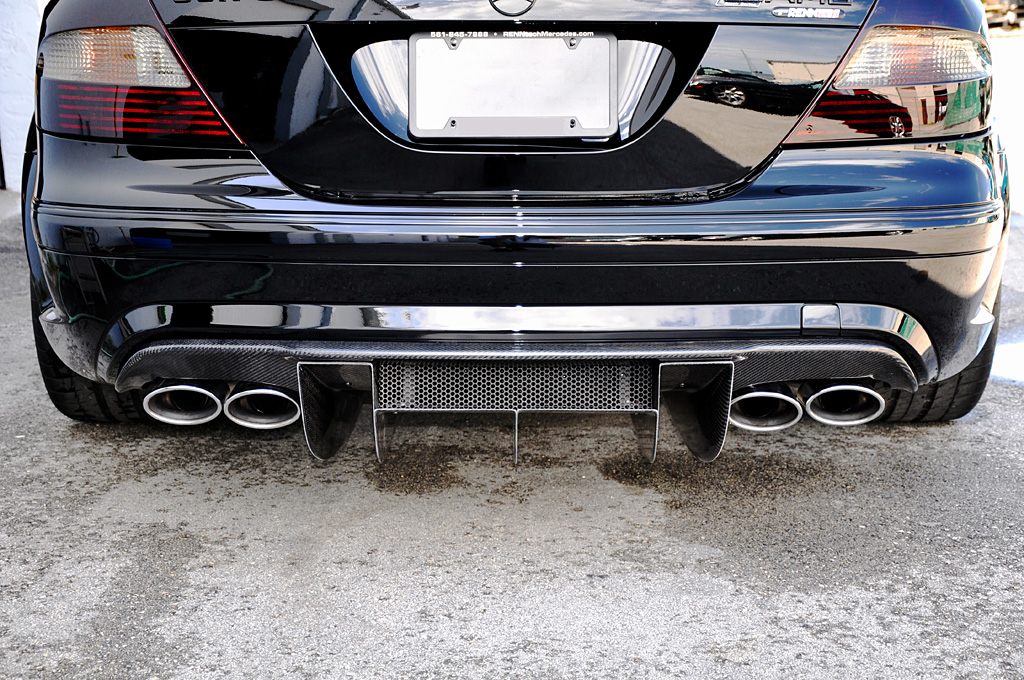

Carbon Rear diffuser

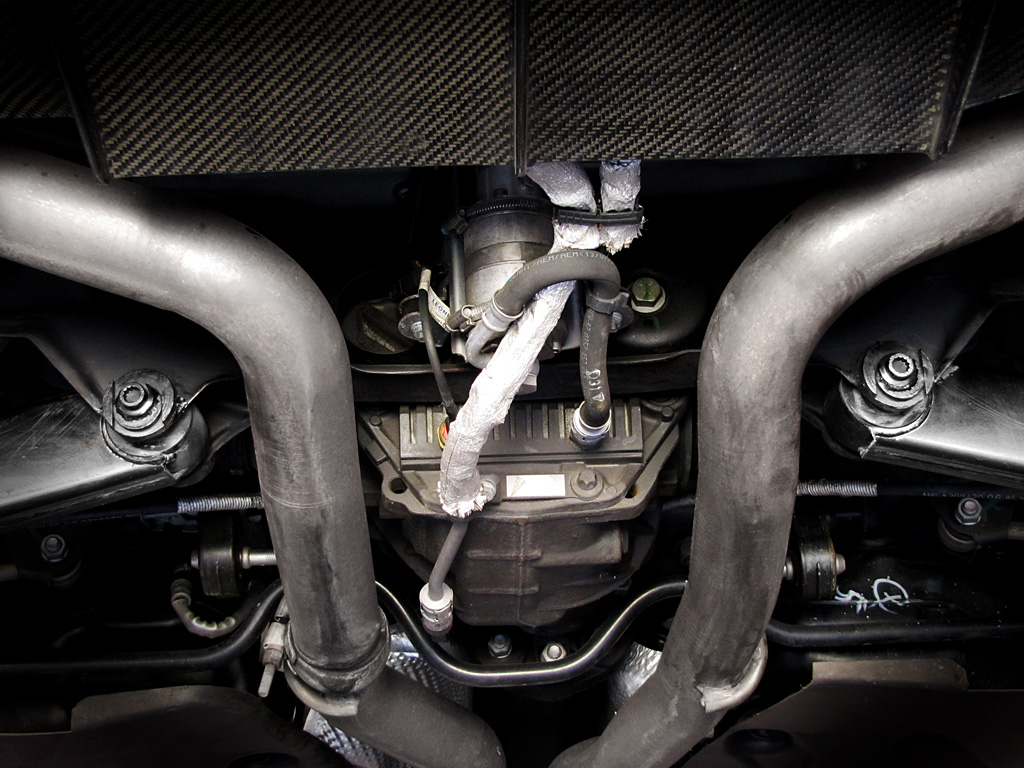

Our rear diffuser is the companion component to the front splitter and functions to decrease drag and increase down force by improving the underbody airflow and its transition to ambient air. As with the front splitter, our diffuser is the result of countless hours of design and testing, but isn’t just for looks. Integrated into the true double decker rear diffuser are air channels to dramatically reduce turbulent underbody air as well as a dedicated channel to direct air to the rear differential oil cooler, thus decreasing thermal stress on drive line components and allow for significantly cooler operating temperatures

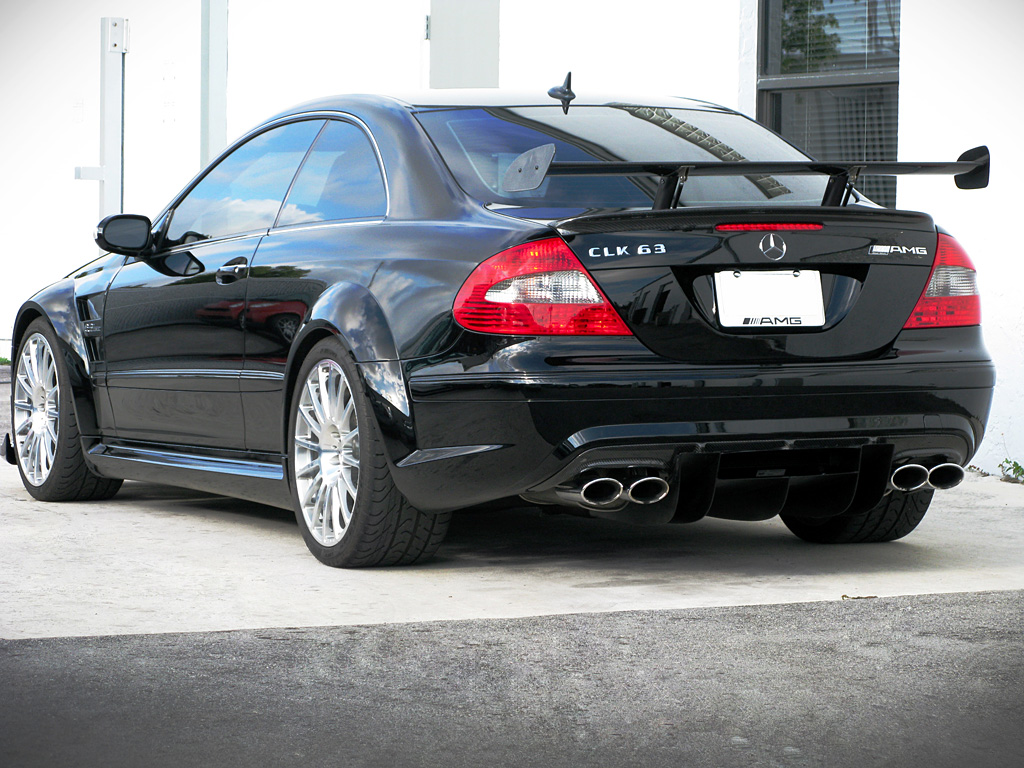

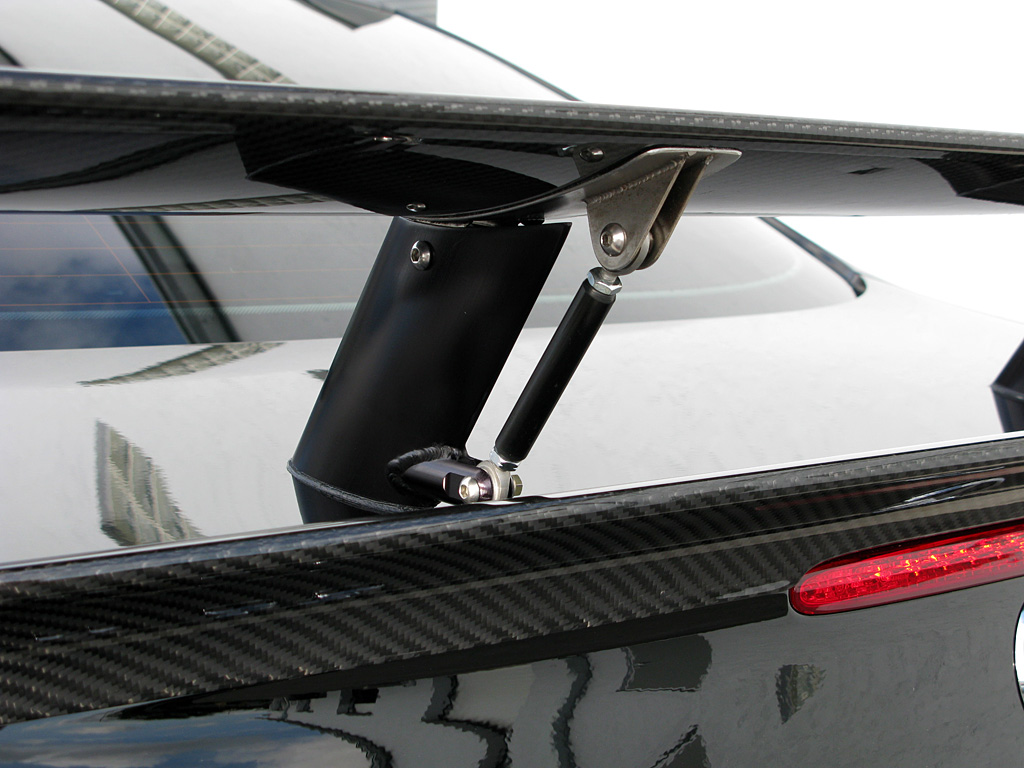

Carbon DTM Adjustable Rear Wing

Offering aggressive styling and functional performance; our fully adjustable DTM style rear wing is designed to work in conjunction with the OEM lip spoiler and improves rear down force and stability at higher speeds.

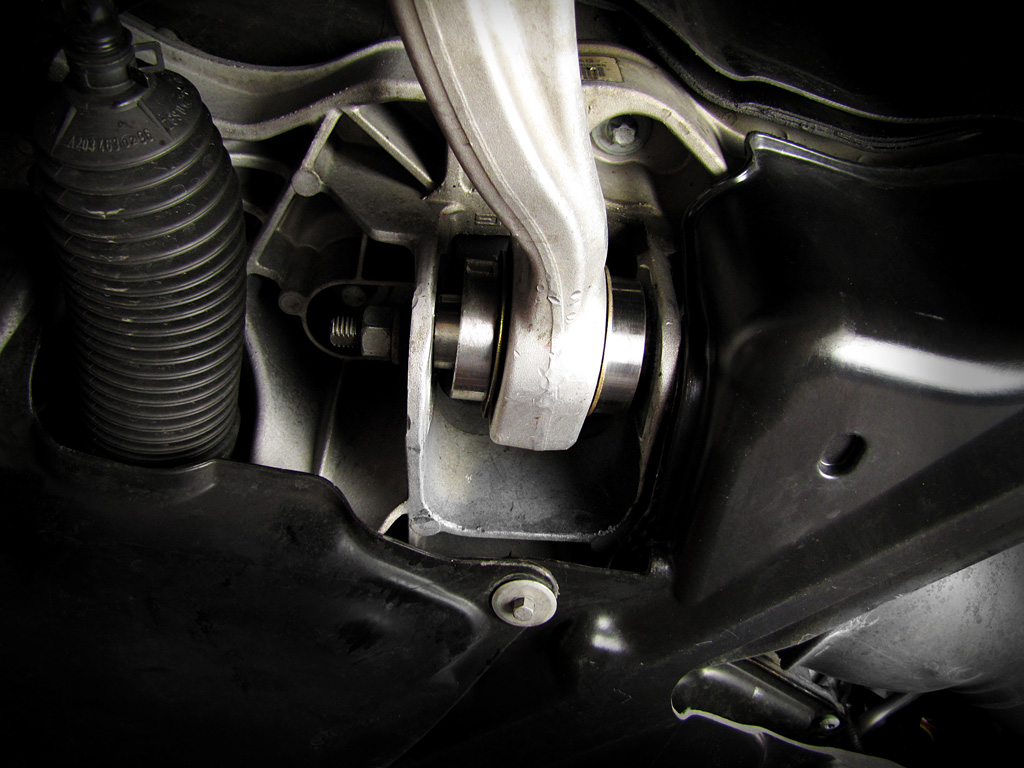

Front & Rear Adjustable Camber Bushings

Our proprietary rear suspension bushings
allow drivers to adjust their car’s handling for different tracks and styles of driving, ensuring that the car’s tires maintain maximum grip for proper alignment, better braking, and improved cornering

Story by RENNtech, Inc.

In Detail

submitted by Richard Owen
type Professionally Tuned Car
built at Lake Park, Florida, USA
engine V8
position Front Longitudinal
aspiration Naturally Aspirated
valvetrain DOHC, 4 Valves per Cylinder
fuel feed Fuel Injection
displacement 6208 cc / 378.8 in³
bore 102.2 mm / 4.02 in
stroke 94.6 mm / 3.72 in
compression 11.3:1
power 378.1 kw / 507 bhp @ 6800 rpm
specific output 81.67 bhp per litre
bhp/weight 288.4 bhp per tonne
torque 630 nm / 464.7 ft lbs @ 5250 rpm
redline 7200
body / frame Unit Steel w/Aluminum Panels
driven wheels RWD
wheel type Forged Alloy
front tires 265/30 R 19 Pirelli P Zero Corsa
rear tires 285/30 R 19 Pirelli P Zero Corsa
front brakes Compostie Discs w/6-Piston Calipers, ABS, ESP
rear brakes Compostie Discs w/4-Piston Calipers, ABS, ESP
front wheels F 48.3 x 22.9 cm / 19 x 9 in
rear wheels R 48.3 x 24.1 cm / 19 x 9.5 in
steering Rack & Pinion w/Power Assist
f suspension MacPherson Struts w/Coil Springs, Gas Shocks, Anti-Roll Bar
r suspension Mulit-Link w/Coil Springs, Gas Shocks, Anti-Roll Bar
curb weight 1758 kg / 3875 lbs
wheelbase 2715 mm / 106.9 in
front track 1572 mm / 61.9 in
rear track 1539 mm / 60.6 in
length 4638 mm / 182.6 in
width 1740 mm / 68.5 in
height 1414 mm / 55.7 in
transmission 7G-TRONIC 7-Speed Manual
gear ratios 3.59:1, 2.19:1, 1.41:1, 1.00:1, 0.83:1
top speed ~300 kph / 186.4 mph
0 – 60 mph ~4.2 seconds
0 – 100 mph ~11.6 seconds
0 – 1/4 mile ~12.7 seconds
