1990 Ferrari 348 Zagato Elaborazione

Between 1991 and 1992, a number of adventurous owners let Zagato extensively modify their 348 TBs into Zagato Elaboraziones. While the cars certainly looked faster then there stock counterparts, the engine and running gear remained identical to the 348 TB. This makes sense, as Zagato wasn’t in the tuning business, and each owner could upgrade his/her car elsewhere as they wanted.

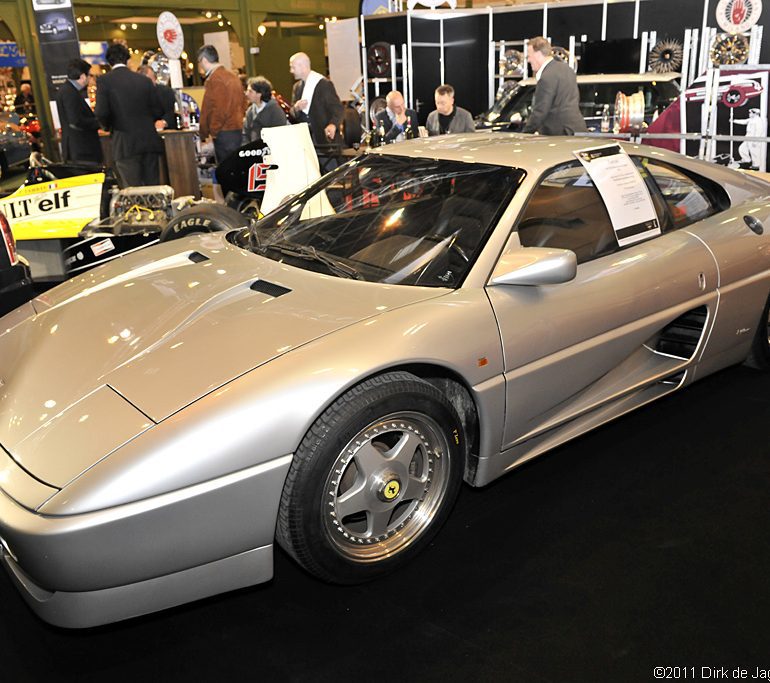

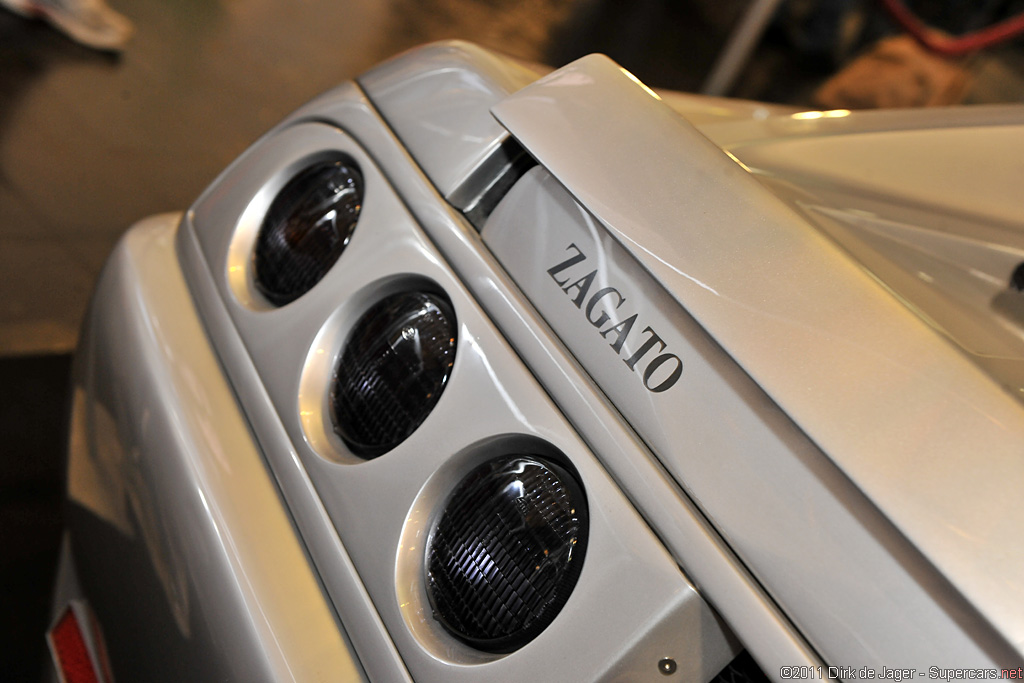

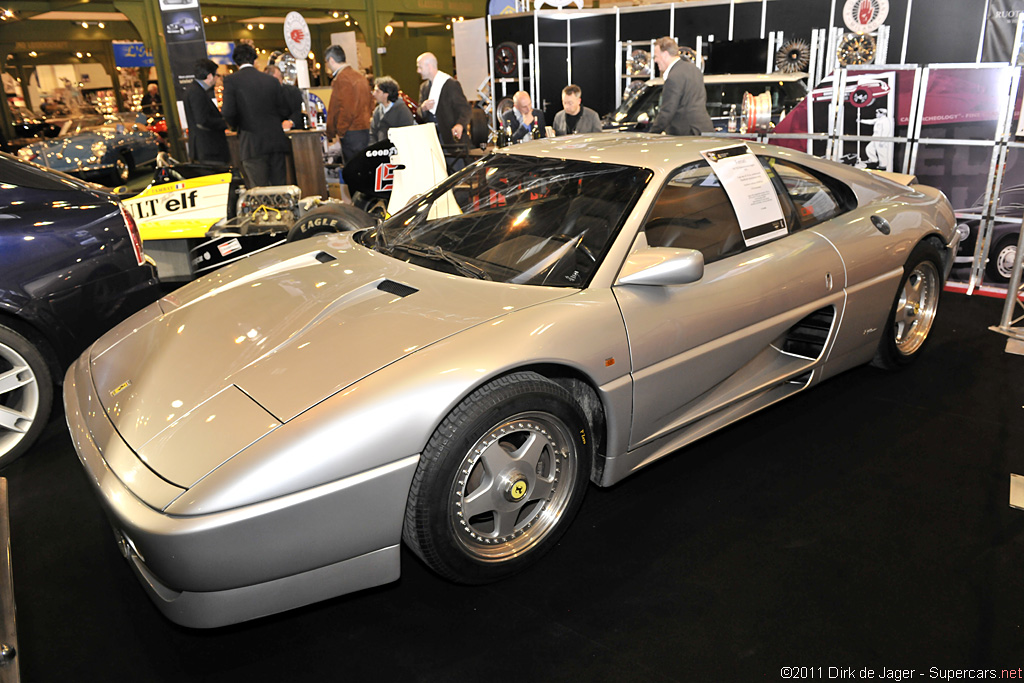

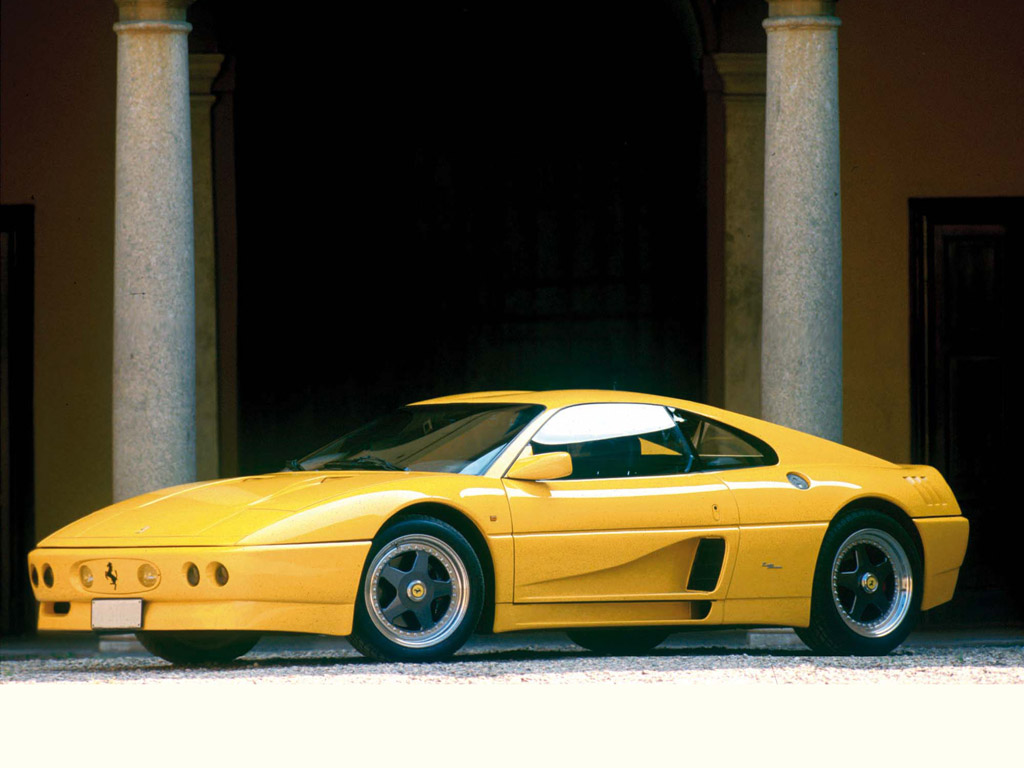

Zagato nearly rebodies the entire car with hand-made aluminum panels that flirted with Pininfarina’s original shape: At the front the car a new bumper removed the original’s fake central grille and replaced it the prancing horse. Each side was flanked with enlarged NACA ducts for engine, and these sat above matching side skirts. At the rear Zagato fabricated a new engine cover with a clear glass section to reveal the V8 below. Not until 2000 did Ferrari copy this idea with the 360 Modena Spider. At the rear, a new triple light arrangement and an electronically-operated spoiler were added.

Probably the only subtle modification made was the Double Bubble roof which was a signature Zagato touch dating back to the 1960s. The idea was that Zagato could lower the roofline of a car, but retain enough headroom for each occupant. It was an elegantly simple idea which no other design house has since picked up.

Other Elaborazione modifications included custom OZ Racing alloy wheels, external fuel filler caps and a completely reworked interior including a three-inch rear view screen and suede upholstery.

Zagato initially announced a production run of 22 examples, but only 10 cars were made. Each shares a distinctive look, that has aged in a curious manner.

In Detail

submitted by Richard Owen
type Limited Production Car
built at Italy
production 10
engine V8
valvetrain DOHC 4 Valves / Cyl
displacement 3405 cc / 207.8 in³
bore 85.0 mm / 3.35 in
stroke 75.0 mm / 2.95 in
compression 10.4:1
power 223.7 kw / 300.0 bhp @ 7000 rpm
specific output 88.11 bhp per litre
torque 310.5 nm / 229.0 ft lbs @ 4000 rpm
redline 7500
body / frame Steel & Aluminum w/Zagato Modifications
driven wheels Mid Engine / RWD
wheel type Custom OZ Racing Wheels
front tires F 255/45ZR-17
rear tires R 255/45ZR-17
front brakes Vented Discs w/Vacuum Assist & ABS
rear brakes Vented Discs w/Vacuum Assist & ABS
steering Rack & Pinion
wheelbase 2450 mm / 96.5 in
front track 1502 mm / 59.1 in
rear track 1578 mm / 62.1 in
length 4230 mm / 166.5 in
width 1894 mm / 74.6 in
transmission 5-Speed Manual
gear ratios 3.21:1, 2.11:1, 1.46:1, 1.09:1, 0.86:1
final drive 3.56:1
