2004 Maserati GranSport


2004 Maserati GranSport

2004 Maserati GranSport

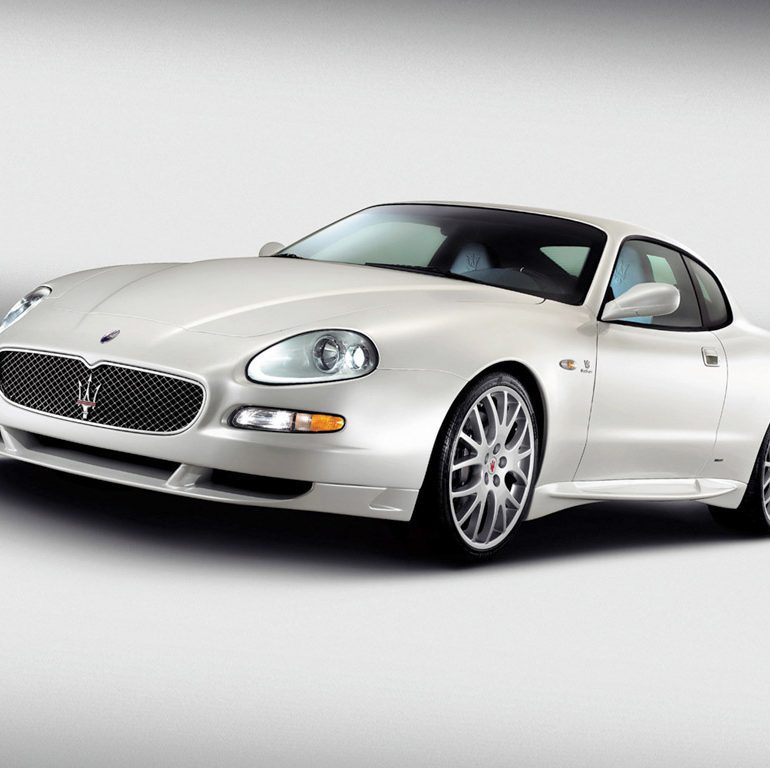

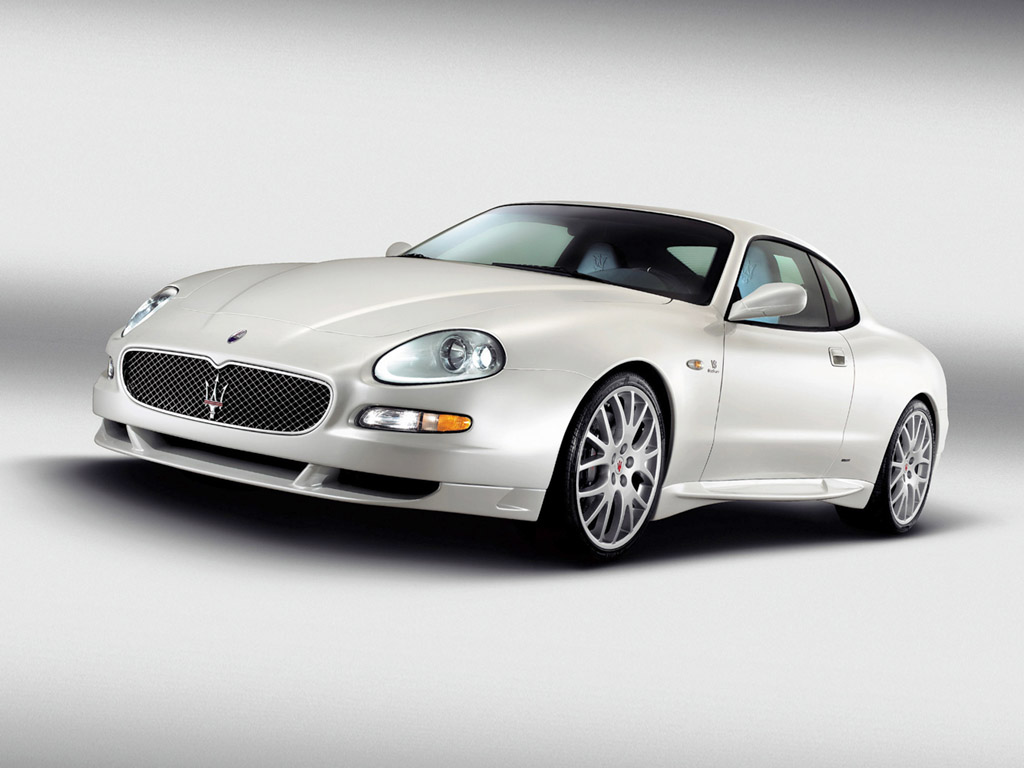

The latest addition to the Maserati range is the Maserati GranSport, a new model celebrating the concept of sportiness at the heart of all of the Trident’s Grand Tourers, due to be unveiled to the world for the first time at Geneva’s International Motor Show. The new car, which joins the Coupe and Spyder in the Maserati range, goes on sale next summer.

The GranSport’s name alone suggests its eager thoroughbred GT spirit, the kind of spirit that can provide plenty of fun on demand for the driver. The GranSport name also has a special symbolic significance for the Trident as it was first used in the 1950s for an elegant two-litre coupe designed by the Carozzeria Frua on the base of the famous A6 G.

The new GranSport, however, is designed to offer an exciting alternative to the current Coupe, and as such, has been treated to series of new enhancements that give it a very powerful temperament indeed.

Aerodynamics

The Maserati GranSport’s volumes are combined with more muscular, aerodynamic forms, the fruit of much testing in the wind tunnel aimed at improving the Cx value and achieving a balanced division of the vertical loads between the front and rear axles. The result is that the Maserati GranSport has a Cx of 0.33. An almost total absence of oversteer and improved front-wheel drivability and precision make it very easy to handle too and ensure that drivers will be able to really put it and themselves through their paces in safety.

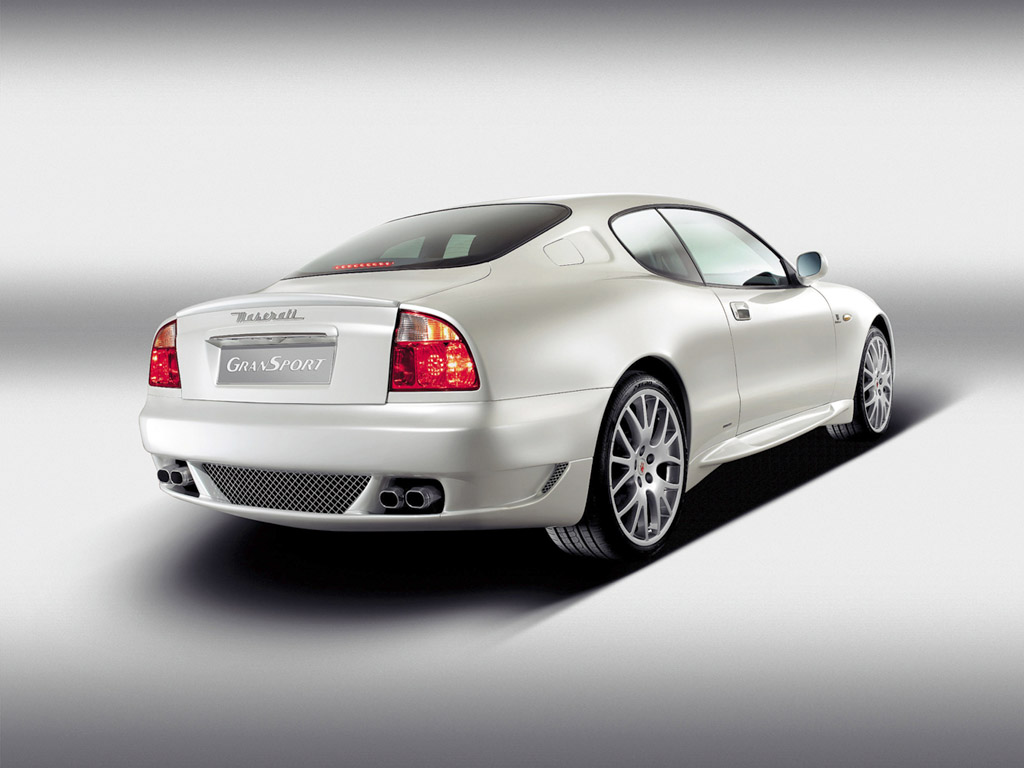

Work on the new model’s aerodynamics has led to the addition of newbumpers. The front one, in fact, has a very pronounced lower spoiler with side bars elegantly integrated into the body itself, while the luggage compartment deck has been given a discreet yet equally efficientspoiler lip. The new aerodynamic features associated with the fact that the set-up is now 10 mm lower, result in a two point improvement in the Cx value and translate into clear benefits for the driver. In fact, the Maserati GranSport offers a truly blistering drive, thanks to its direct, precise steering and excellent stability at high speeds.

The traditional Trident elegance is there too in the classic chrome grille reminiscent of the Quattroporte’s. The grilles over the air vents on the rear bumper are chrome too. The Maserati GranSport’s sporty look is completed by new 19 inch wheels inspired by the ones sported by the cars in the Maserati Trofeo Championship, with spokes forming a very attractive Trident.

400 Horsepower V8 Engine

The Maserati GranSport’s normally aspirated 4,244 cm3 V8 has all the structure of the most advanced racing engines with dry sump lubrication and twin overhead camshafts per cylinder bank with four valves per cylinder hydraulic tappets. The intake cams also feature variable phase timing.

Its maximum power delivery has been upped from the original 390 hp to 400 hp too, thanks to special development work to reduce internal attrition and careful work on the intake manifolds and valve seats. The engine has been combined with a sports exhaust system that is instantly recognisable, thanks to the unusual design of its twin chrome exhausts and was designed to give enthusiasts that instantly recognisable deep, full-bodied rumble. Thanks to an electronically controlled pneumatic valve system, even more can be made of the exhaust by pressing the Sport button on the central console too.

Cambiocorsa Transmission

The Maserati GranSport is available only with the six-speed electro-hydraulic transmission in which the gears are changed using paddles mounted behind the steering wheel. The Cambiocorsa systems allows drivers to choose between various gear shifting modes (Normal, Sport, Automatic and Low Grip), and in the case of the Maserati GranSport , is controlled by specific software. The Sport mode in the GranSport offers 35% faster gear changing on average and also boasts automatic heeling and toeing to make dropping down a gear even faster.

The gear shift ratios are specific too, with the adoption of a sixth gear that is 5% longer, which, in combination with its more powerful engine and improved aerodynamics, allows the Maserati GranSport to have a top speed of 290 Km/h.

Suspension

The car has the same sophisticated set-up as the Cambiocorsa: a Transaxle layout with the gearbox rear-mounted in unit with the differential, stability and traction control (MSP) integrating ABS, ASR, MSR and EBD functions, which the driver can deactivate if desired, independent front and rear suspension with double wishbone geometry, which can be integrated with the Skyhook system on request. The optional Skyhook suspension system, which offers continuous damping control, is also affected by the driver’s choice of Normal or Sport modes.

The fact that the set-up has been lowered by 10 mm and the adoption of the 19 wheels and tyres with a specific profile, characterised by a smaller slip angle, have lowered the centre of gravity and hardened the set-up of Maserati GranSport, making it even more agile and responsive to the steering wheel.

The Brembo brakes with alloy titanium-coloured four-piston callipers with differentiated diameters and large ventilated cross-drilled discs, also further enhance the dynamic characteristics of the car.

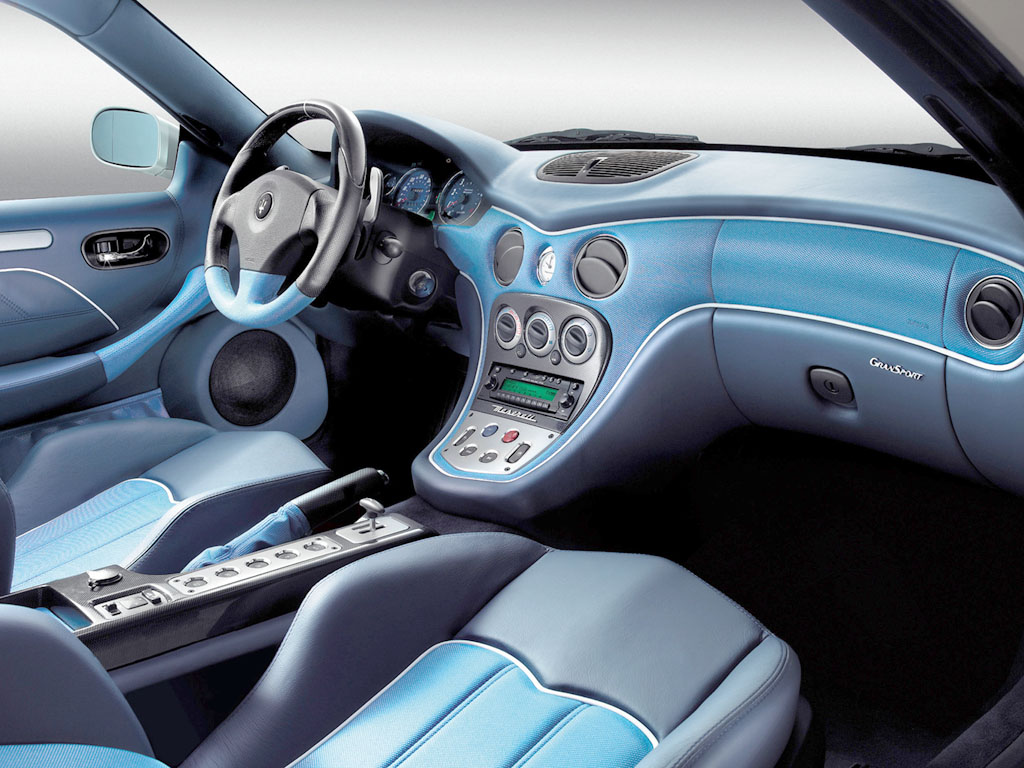

Interior

The GranSport’s interior reflects its brilliant personality both in terms of aesthetics and functionality, yet also exudes the elegant good taste and luxurious comfort of a Trident Grand Tourer. The materials including leather, carbon fibre, alloy and high tech fabric combine to create an attractively sporty ambience.

The Maserati GranSport’s dashboard boasts specialist trim and central console options. The upper part of the dash is trimmed in leather, while the central area, framed by the car-coloured piping strip, is trimmed in ahigh tech fabric originally developed for nautical use and available in Nero (Black), Grigio Nickel (Nickel Grey) or Blu Metal (Metal Blue). This is a double layered material which is not only attractive but also non-slip and extremely hard-wearing, making it ideal for trimming the central area of sports seats and the lower rim of the steering wheel.

The front seats are designed for high lateral containment. They were developed with the help of the Maserati test drivers in line with the strictest ergonomic principles with the aim of combining sporty characteristics and excellent seat comfort for perfect, long distance driving. This is why the seats are also fully power adjustable and can, on request, be supplied with a heating option and memorised settings on the driver’s side.

The carbon, leather-trimmed tunnel separates the two front seats. It contains the Cambiocorsa control selector and the secondary commands, each one of which is set into an chrome surround.

Interior

The Maserati GranSport is available in six colours from the Maserati range, each one of which can be combined with various interior options. Owners can choose from the classic Giallo Granturismo (Grand Tourer Yellow) and Rosso Mondiale (World Championship Red) or, alternatively between the metallic Nero Carbonio (Carbon Black), Blu Mediterraneo (Mediterranean Blue) and Grigio Touring (Touring Grey). The sixth colour choice recently added to the range is Bianco Fuji (Fuji White), an original pearl white with the unusual depth typical of three-coat pearlescent paints.

This is the starting point from which the Officine Alfieri Maserati programme can be used to include a vast array of other personalisation options regarding the colours of the interior trim leather, fabric as well as technical or comfort-oriented features, such as: Xenon headlights, Skyhook suspension, Mercury Grey and Ball-Polished options for the wheels, carbon interior and exterior components, GPS and GSM telephone module controlled from the radio unit, and a six-disc CD Changer, to mention but a few.

Story by Maserati S.p.A., edited by Supercars.net

In Detail

submitted by Richard Owen
engine V8 w/Dry Sump Lubrication
position Front Longitudinal
fuel feed DOHC, 4 Valves per Cyl w/Varible Phase Timing
displacement 4244 cc / 259.0 in³
bore 92 mm / 3.62 in
stroke 79.8 mm / 3.14 in
compression 11.1:1
power 295 kw / 395.6 bhp @ 7000 rpm
specific output 93.21 bhp per litre
bhp/weight 235.48 bhp per tonne
torque 451 nm / 332.6 ft lbs @ 4500 rpm
redline 7600
body / frame Unit Steel Monocoque w/Front & Rear Steel Subframes
driven wheels RWD w/Limited-Slip Differential
front tires 235/35 ZR19
rear tires 265/30 ZR19
front brakes Brembro Cross-Drilled Discs w/4-Piston Calipers
f brake size x 330 mm / x 13.0 in
rear brakes Brembro Cross-Drilled Discs w/4-Piston Calipers
r brake size x 310 mm / x 12.2 in
front wheels F 48.3 x 20.3 cm / 19 x 8 in
rear wheels R 48.3 x 22.9 cm / 19 x 9.5 in
f suspension Double Wishbones wVariable Gas Dampers, Coil Springs
r suspension Double Wishbones wVariable Gas Dampers, Coil Springs
curb weight 1680 kg / 3704 lbs
wheelbase 2660 mm / 104.7 in
front track 1525 mm / 60.0 in
rear track 1538 mm / 60.6 in
length 4523 mm / 178.1 in
width 1822 mm / 71.7 in
height 1295 mm / 51.0 in
transmission Paddle Operated Cambiocorsa 6-Speed Transaxle w/Electro-Hydraulic Operation
gear ratios 3.286:1, 2.158:1, 1.609:1, 1.269:1, 1.034:1, 0.816:1, :1
top speed ~290 kph / 180.2 mph
0 – 60 mph ~4.8 seconds
