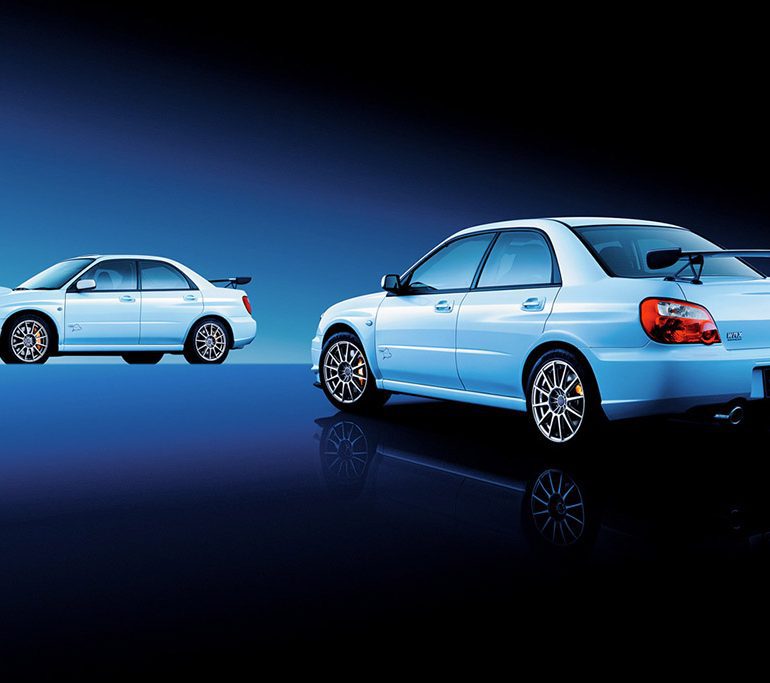

2004 Subaru Impreza WRX STi spec C Type RA


2004 Subaru Impreza WRX STi spec C Type RA

2004 Subaru Impreza WRX STi spec C Type RA

The RA was a special package available through Suburu’s Technical International (STi) that was only produced in limited quantities for the Japanese market.

It was a fully equipped version of the 2.0 liter WRX STi spec C and took advantage of the stripped out spec C car, but with luxuries like Auto AC and electric folding mirrors. Their EJ20 enignes were finely tuned to produce to 280 bhp thanks to a larger FHI Turchager, exhaust and other engine tuning.

A large array of STi accessories came with the Type RA including a carbon-fiber wing, carbon fiber front splitter, new suspension, new pedals, BBS wheels and a sports shifter. Other small details included Sports ABS, Strut Bars, 17 inch brake package, intercooler water splay with 12 liter tank, transmission oil cooler, engine oil cooler, 21mm stabilizer bars a quick ratio steering rack.

Inside the RA had sports seats, SRS steering wheel with STi cherry red stitch, leather wrapped shift knob, sports pedals with aluminum pads, full auto air conditioning, STi bucket type front sport seats.

Outside the RA had an aluminum hood and trunk, STi front skirt, corner spoilers, Fog lamp covers with STi stickers, a roof ventilator, large rear spoiler, rear diffuser and exclusive decals.

Only 400 RAs were produced and all were sold in the Japanese market.

In Detail

submitted by Richard Owen
engine EJ20 Boxer-4
position Front
aspiration Ball Bearing FHI Turbocharger
valvetrain DOHC, 4 Valves per Cyl w/AVCS Variable Valve Timing
fuel feed Electronic Injection
displacement 1994 cc / 121.7 in³
bore 92 mm / 3.62 in
stroke 75 mm / 2.95 in
power 205.8 kw / 276 bhp @ 6400 rpm
specific output 138.42 bhp per litre
bhp/weight 198.56 bhp per tonne
torque 412 nm / 303.9 ft lbs @ 4400 rpm
body / frame Unit Steel w/Aluminum Hood
driven wheels 4WD w/Driver Controlled Center Differential, Helical Front LSD, Rear Mechanical LSD
front tires 235/45ZR17 POTENZA RE070
rear tires 235/45ZR17 POTENZA RE070
front brakes Ventilated Discs w/Super Sports ABS, EBD
f brake size mm / in
rear brakes Ventilated Discs w/Super Sports ABS, EBD
r brake size mm / in
front wheels F 43.2 x 20.3 cm / 17 x 8 in
rear wheels R 43.2 x 20.3 cm / 17 x 8 in
steering Rack & Pinion w/Variable Assist
f suspension MacPherson Struts w/Aluminum Lateral Link, Low Coil Springs, 4 Step Dampers, 21mm Anti-Roll Bar
r suspension MacPherson Struts w/Aluminum Lateral Link, Tailing Link, Low Coil Springs, 4 Step Dampers, 21mm Anti-Roll Bar
curb weight 1390 kg / 3064 lbs
wheelbase 2540 mm / 100 in
front track 1495 mm / 58.9 in
rear track 1505 mm / 59.3 in
length 4425 mm / 174.2 in
width 1740 mm / 68.5 in
height 1410 mm / 55.5 in
transmission 6-Speed Manual
gear ratios 3.636:1, 2.375:1, 1.761:1, 1.346:1, 0.971:1, 0.756:1, :1
