2007 Galpin Mustang Boss 302


2007 Galpin Mustang Boss 302

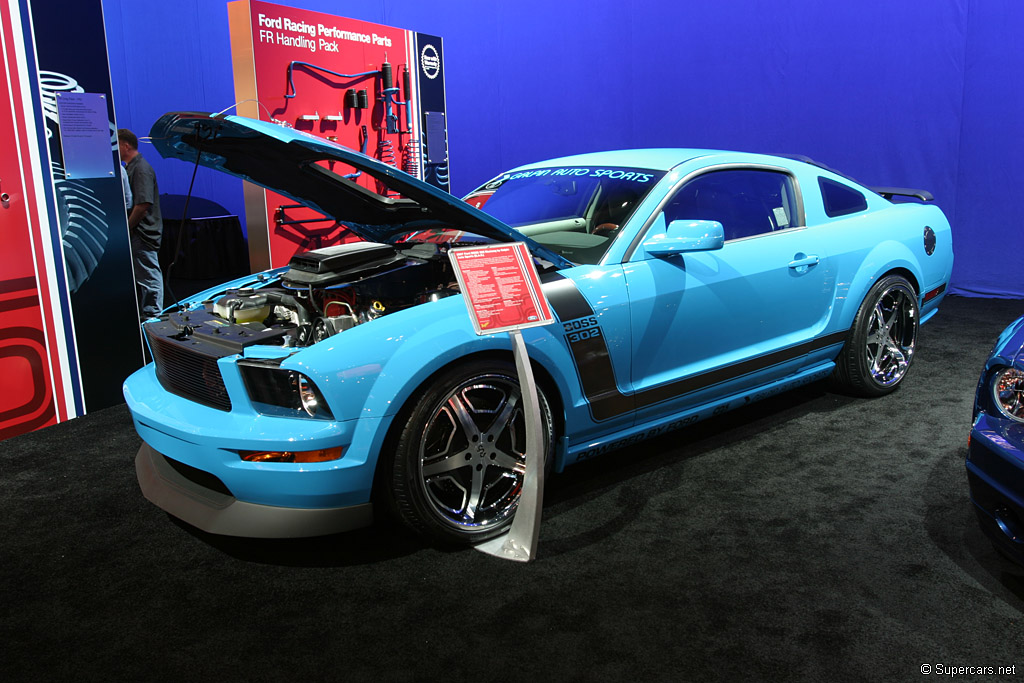

The BOSS 302 Mustang has been missing since 1970 and the Galpin Auto Sports (GAS) team brought it back with this SEMA show car. It’s the first to use Ford’s new 302 crate engine, but with a host of radical upgrades from GAS.

Ford Racing Performance Parts BOSS 302 line was conceived because there was an unmet need for engines built from a block stronger than original regular production 302 blocks but more affordable than full race-prepped blocks. The new BOSS 302 engine block features greater strength than most race blocks and offers a street-capable cooling system design, something that race specific blocks tend to sacrifice.

Depending on configuration, the BOSS engine series is capped by a 500 hp 331 cubic inch engine that showcases its capability. In the case of the showcar it gets 390-hp and a vintage 1970 Holley carburetor.

2007 Galpin Mustang Boss 302

Other unique features include a Tremec TKO 600 transmission with Hurst T-handle shifter, 456 rear end gear, custom GAS stainless steel long tube headers and merge collectors, Bassani stainless steel muffler and X-pipe, Baer brakes with 14” calipers, Ford Racing Handling pack, custom black blasketweave interior and classic Grabber Blue paint.

2007 Galpin Mustang Boss 302

In Detail

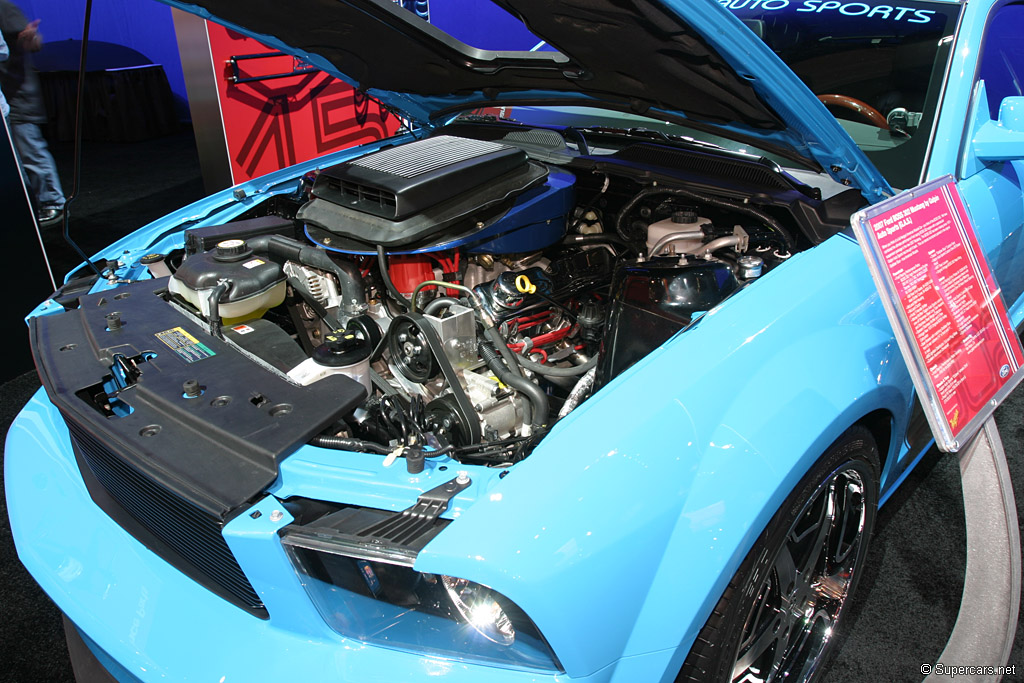

engineBOSS 302 V8 w/GAS Headers
positionFront Longitudinal
valvetrainOHV, 2 Valves per CYl
fuel feedVintage Holley Carburettor
displacement4949 cc / 302 in³
power290.8 kw / 390 bhp
specific output78.8 bhp per litre
torque433.86 nm / 320 ft lbs @ 4500 rpm
redline6250
body / frameUnit Steel w/Aluminum Hood
driven wheelsRWD
wheel typeGalpin Auto Sports Octane Wheels
front tires255/35-20
rear tires275/35-20
front brakesBaer Discs
f brake sizex 356 mm / x 14 in
rear brakesBaer Discs
r brake sizex 279 mm / x 11 in
front wheelsF 25.4 x 22.9 cm / 20 x 9 in
rear wheelsR 50.8 x 25.4 cm / 20 x 10 in
steeringRack & Pinion w/Power Assist
f suspensionFord FR3 Struts w/Tower Brace
r suspensionLive Axle w/Ford FR3 Suspension
wheelbase2720 mm / 107.1 in
length4775 mm / 188.0 in
width1877 mm / 73.9 in
height1407 mm / 55.4 in
transmissionTremec 3650 5-Speed Manual or Automatic
gear ratios3.34:1, 2.00:1, 1.32:1, 1.00:1, .067:1, :1
final drive3.55:1
