2009 MINI Cooper S Convertible

2009 MINI Cooper S Convertible

2009 MINI Cooper S Convertible

New edition of the highly successful open four-seater accounting for worldwide sales of some 164,000 units, continuation of the third body version within the MINI model family. The new MINI Convertible symbolises the thrill of motoring in the open air and bears out the unmistakable style of the MINI brand. Moving up to an even higher standard than on the former model, the unique features of the MINI Convertible in its segment in terms of design, premium quality, handling, performance, efficiency, and functionality have been appropriately enhanced and improved to perfection.

Evolutionary enhancement of the car’s design: The body with two doors and a soft roof including a separate sliding roof function ensures unique, unmatched proportions, sleek, horizontal lines, and truly individual style. Design language typical of the brand, design features and proportions clearly making the new model a genuine, fully-fledged member of the MINI product family.

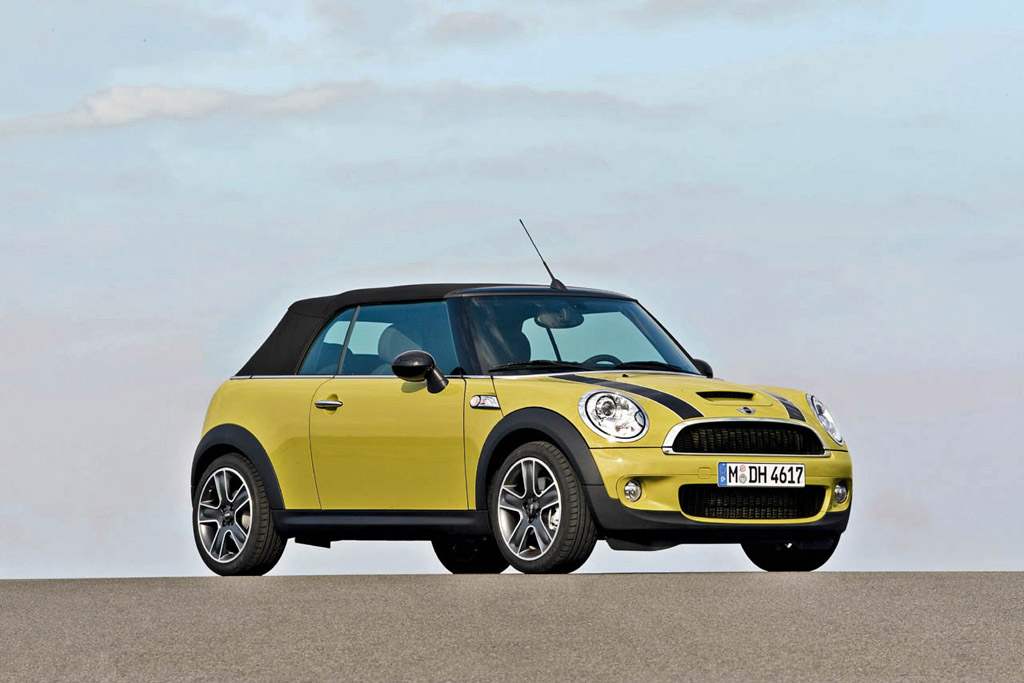

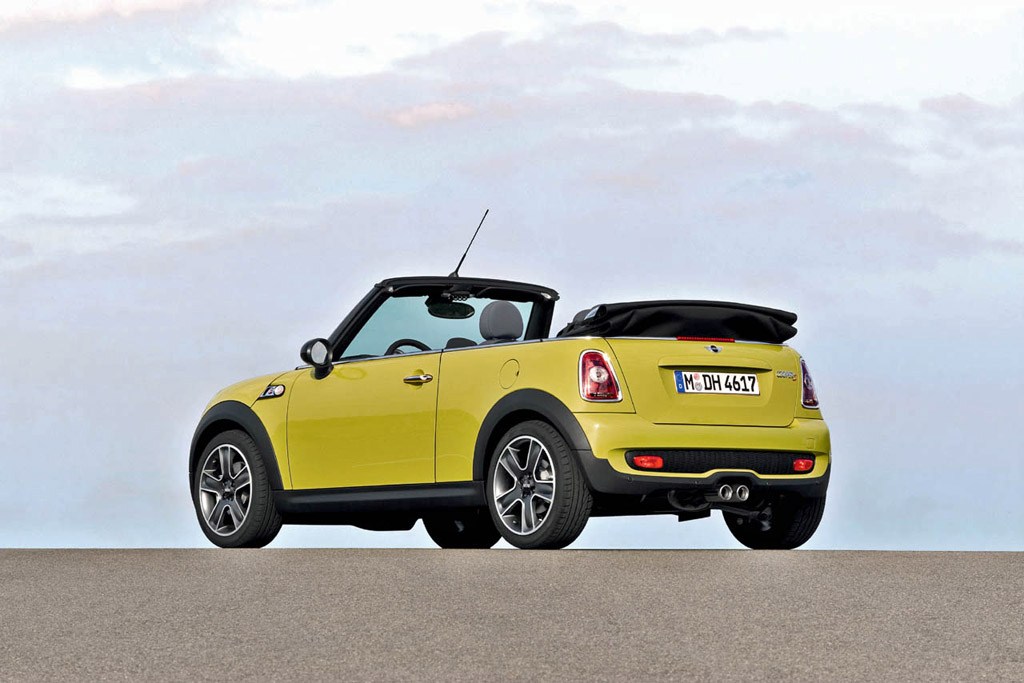

Refined, sophisticated overall appearance highlighting the stretched silhouette and ensuring enhanced presence from both front and rear. Sophisticated, beautifully modelled body surfaces, roadster-like flair ensured by the low roofline, rollover safety bar hidden away out of sight. Front and rear light design as on the current MINI models. Inner-mounted four-pivot joints for the luggage compartment lid ensure a harmonious and smooth look with even greater emphasis on the wide rear end.

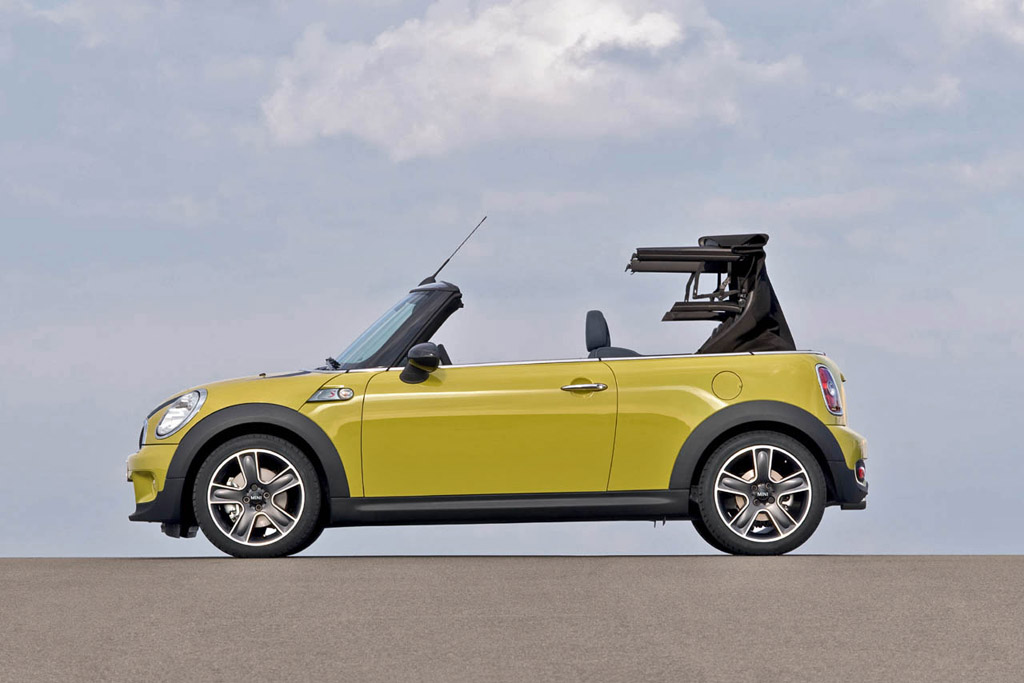

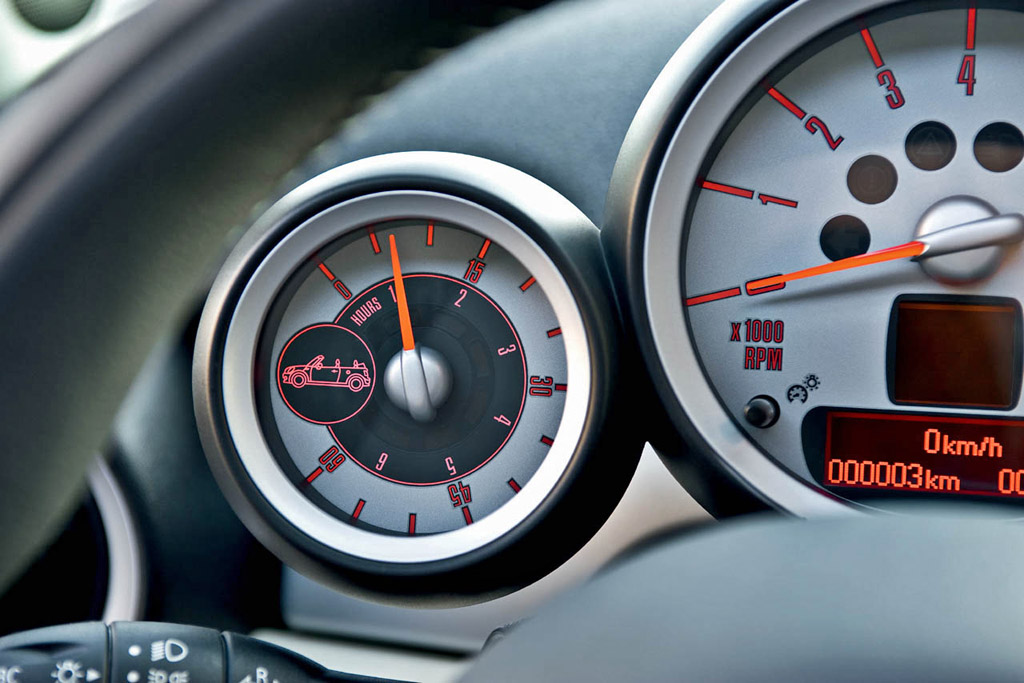

Electrohydraulic operation of the roof including sliding roof function featured as standard. Option to open and close the soft top while driving at a speed of up to 30 km/h or 20 mph. Optional Always-Open Timer as a special feature determining the time spent travelling with the roof down. Even wider range of paintwork colours, roof colours, wheel rims, upholstery and interior trim providing even greater freedom in customising the car. Model-specific range of optional extras and special equipment.

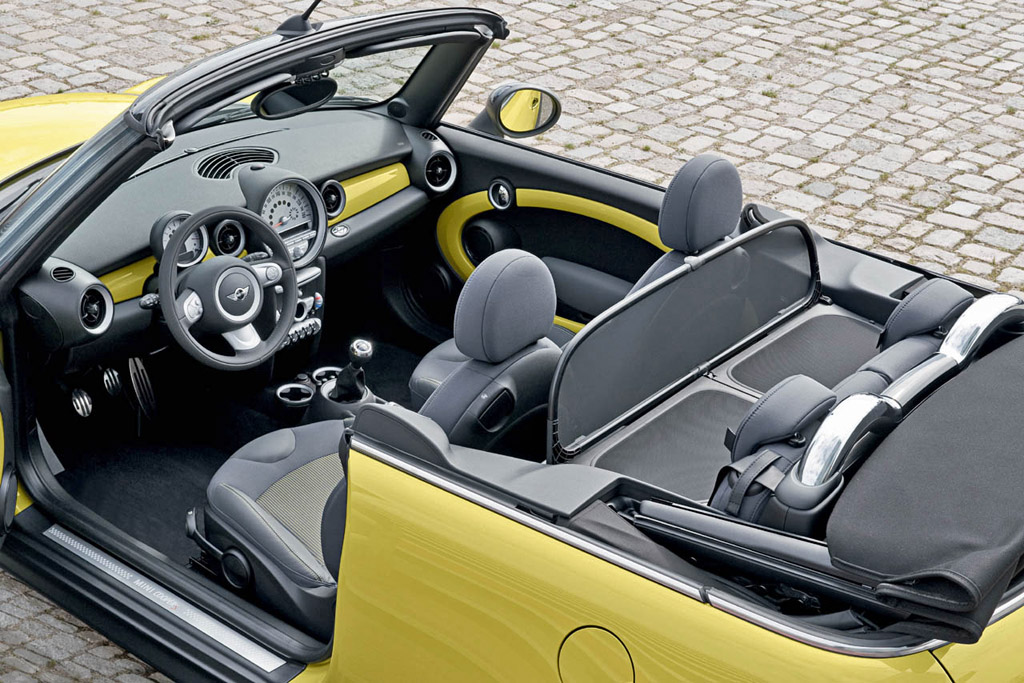

Newly developed, electromechanically operated rollover bar behind the rear seats, activated by the car’s central safety electronics in the event of a possible rollover. The innovative, absolutely unique principle of a single-piece safety bar allows optimum visibility to the rear and facilitates visibility to the side. A further advantage is the option to integrate an exceptionally large through-loading storage option between the luggage and passenger compartments.

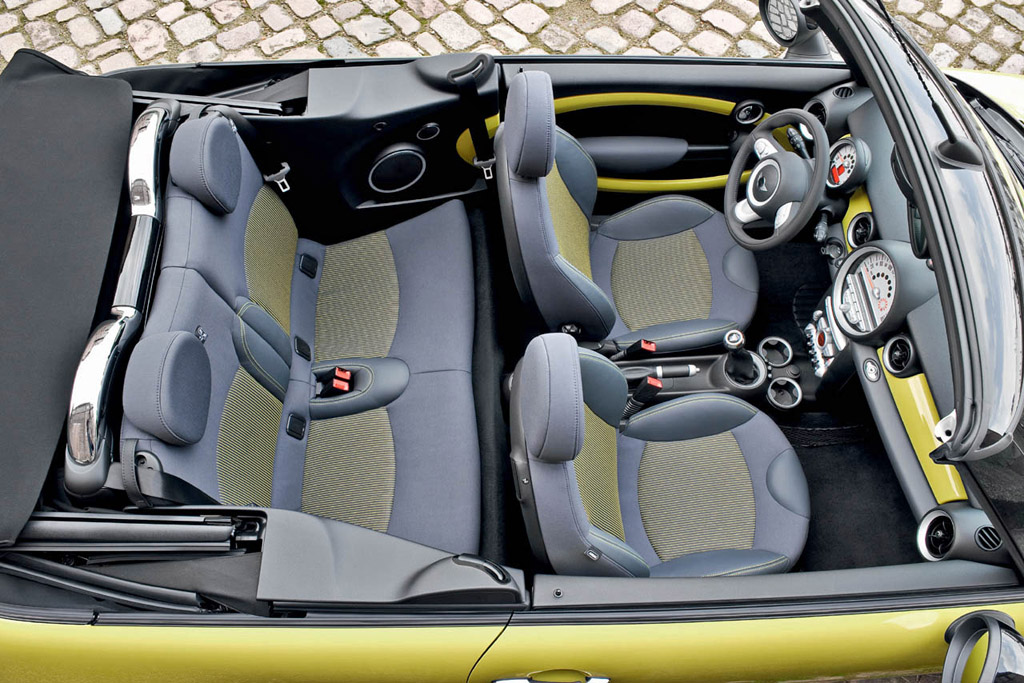

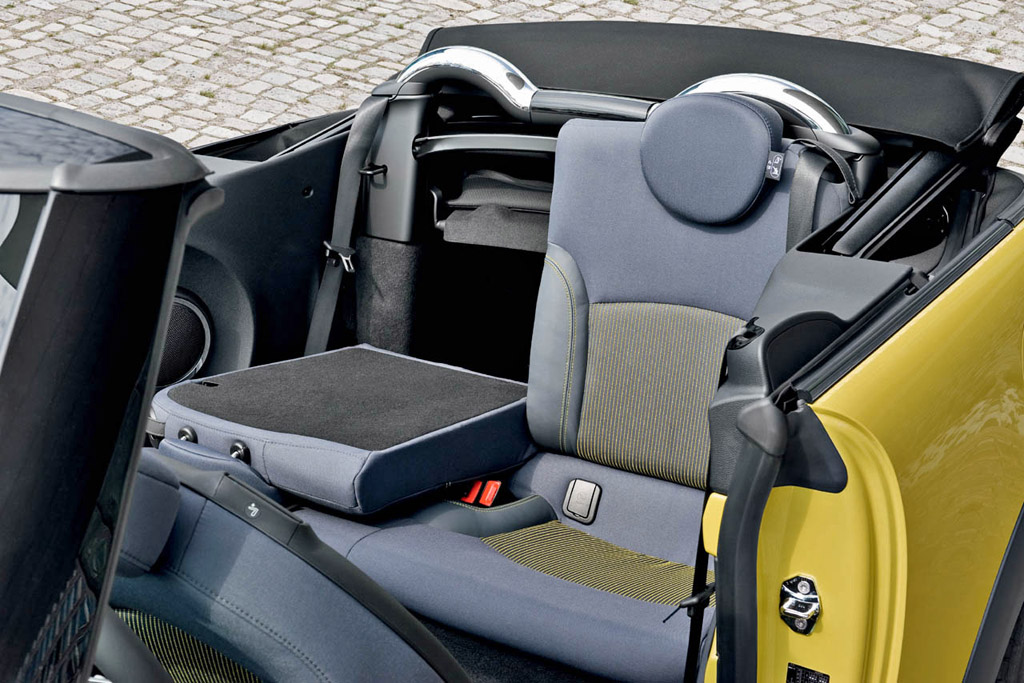

Outstanding functionality ensured by the flexible storage concept. Easy-load system providing an even larger opening into the luggage compartment, rear seat backrests folding down individually and lockable in position, luggage compartment cover fastening in two positions, as required. Luggage compartment capacity increased to 125 litres (+5) (4.38 cu ft) with the roof open, 170 litres (+5) (5.95 cu ft) with the roof closed, and 660 litres (+55) (23.10 cu ft) with the rear-seat backrest folded down.

New generation of four-cylinder petrol engines with twin-scroll turbo¬chargers or, respectively, fully variable valve management. Engine capacity 1,598 cc, max output 88 kW/120 hp (MINI Cooper Convertible) and 128 kW/175 hp (MINI Cooper S Convertible). Both engine variants with a wide range of technical features serving to optimise both fuel economy and emissions: Auto Start Stop, Brake Energy Regeneration, gearshift point indicator.

Front-wheel drive, go-kart feeling typical of the brand with refined suspension technology tailored specifically to the MINI Convertible. Electric Power Steering (EPS). Brake system with anti-lock brakes (ABS), Electronic Brake Force Distribution (EBD), Cornering Brake Control (CBC), and Brake Assistant as well as Dynamic Stability Control (DSC) including Start-Off Assistant all featured as standard. Dynamic Traction Control (DTC) including electronically controlled limited-slip differential function on the drive wheels available as an option.

Crash-optimised body structure with newly conceived floorpan and A-pillars and side-sills appropriately reinforced for a convertible. Body stiffness further improved over the former model, with a reduction in vehicle weight by 10 kg or 22 lb. Three-point inertia-reel seat belts on all seats, with belt latch tensioners and belt force limiters at the front, frontal airbags, head/thorax airbags at the side integrated in the seat backrest, rollover sensor masterminding the rollover safety system, airbags and belt letch tensioners optimised in their function. Runflat tyres and Tyre Defect Indicator.

In Detail

tags r57, cabriolet
submitted by admin
type Series Production Car
built at Cowley, Oxfordshire, Belgium
engine Inline-4
position Front, Transverse
aspiration Turbocharger
displacement 1598 cc / 97.52 in³
bore 77 mm / 3.0 in
stroke 85.8 mm / 3.4 in
power 128 kw / 171.6 bhp @ 5500 rpm
specific output 107.38 bhp per litre
bhp/weight 139.51 bhp per tonne
torque 240 nm / 177.0 ft lbs @ 1600 rpm
body / frame Unitary Steel Monocoque
driven wheels FWD
front tires 195/55 R16 87V RSC
rear tires 195/55 R16 87V RSC
front brakes Ventilated Discs
f brake size 22 x 294 mm / 0.9 x 11.6 in
rear brakes Solid Discs
r brake size 10 x 259 mm / 0.4 x 10.2 in
front wheels F 40.6 x 16.5 cm / 16 x 6.5 in
rear wheels R 40.6 x 16.5 cm / 16 x 6.5 in
f suspension MacPherson Struts
r suspension Longitudinal Arm
curb weight 1230 kg / 2712 lbs
wheelbase 2467 mm / 97.1 in
front track 1453 mm / 57.2 in
rear track 1461 mm / 57.5 in
length 3714 mm / 146.2 in
width 1683 mm / 66.3 in
height 1414 mm / 55.7 in
top speed ~222 kph / 137.86 mph
0 – 100 kph ~7.4 seconds
urban fuel econ eu 8.4 L/100 km or 28.00 mpg-us
extra urban fuel econ eu 5.4 L/100 km or 43.56 mpg-us
combined fuel econ eu 6.4 L/100 km or 36.75 mpg-us
emission 153 g/km
