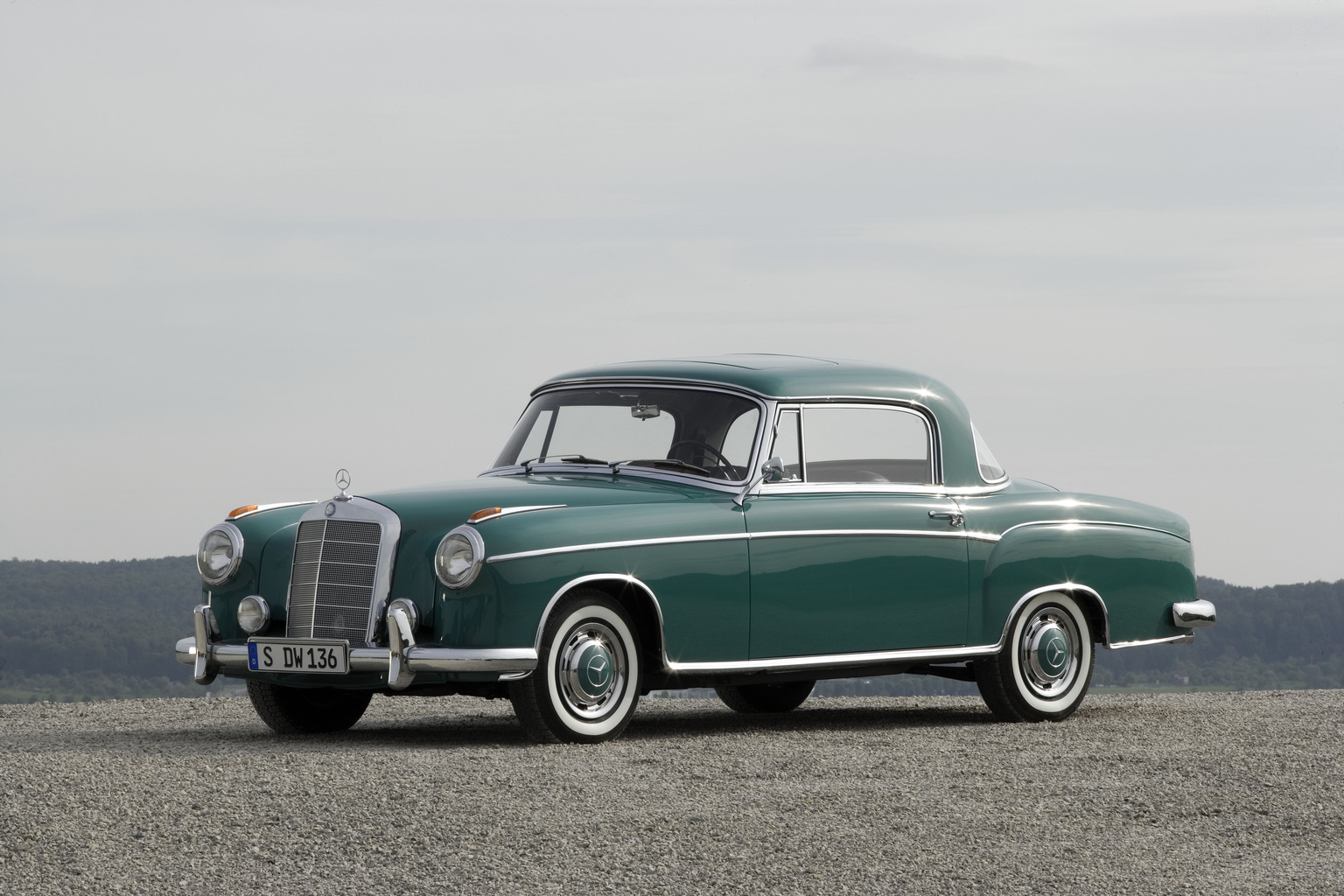

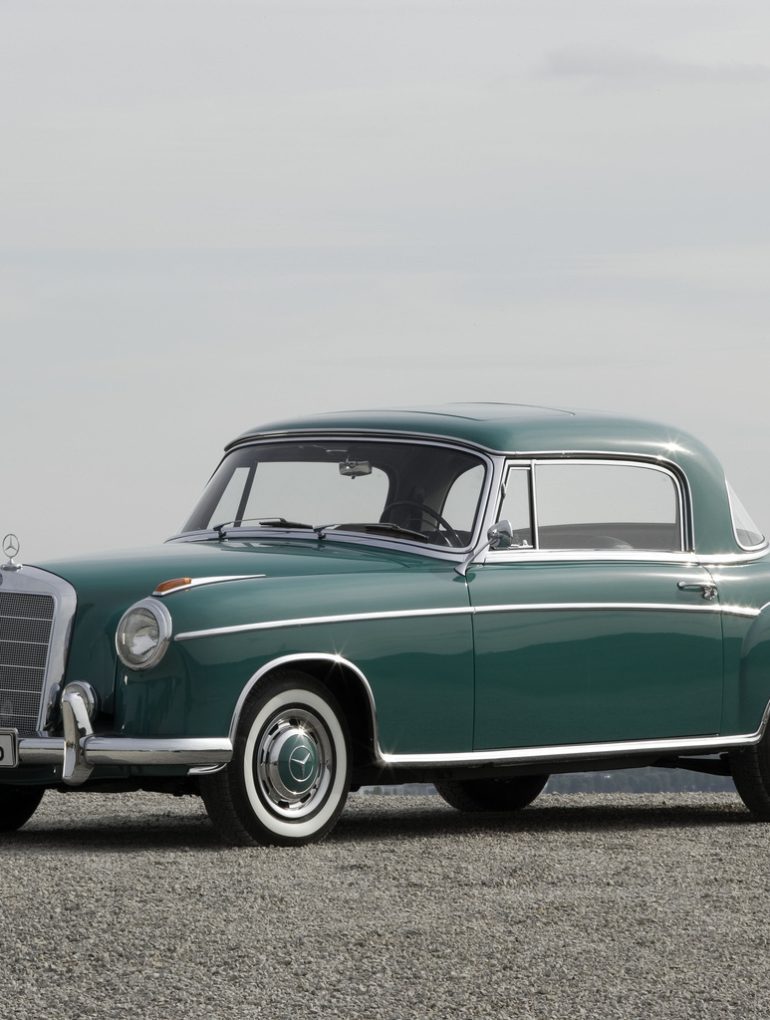

1959→1960 Mercedes-Benz 220 SE Coupé


1959→1960 Mercedes-Benz 220 SE Coupé

1959→1960 Mercedes-Benz 220 SE Coupé

In 1958, Mercedes-Benz updated their 220 S with the inclusion of mechanical fuel injection. Thus the new 220 SE benefited from increased power to 137 bhp.

Internally, the injection coupes were known by bodycode W128 with the engine code M127.983. From October 1958 to November 1960 the 830 coupes were produced alongside the cabriolet and sedan.

Unlike the sedan, the 220 cabriolet and sedan 220s were produced by the Sindelfingen factory.

In Detail

tagsw128, 220se
submitted byadmin
typeSeries Production Car
production years1959 – 1960
built atGermany
production830
price $$ 7,200
engineInline-6
positionFront, Longitudinal
aspirationNatural
valvetrainChain-Driven SOHC
fuel feedMechanical Fuel Injection
displacement2195 cc / 133.95 in³
bore80 mm / 3.15 in
stroke72.8 mm / 2.87 in
power99.9 kw / 134 bhp
specific output61.05 bhp per litre
body / frameUnitary Steel Monocoque
driven wheelsRWD
steeringRecirculating Ball
f suspensionDouble Wishbones
r suspensionSwing Axle w/Radius Arms
dry weight1453 kg / 3100 lbs
wheelbase2700 mm / 106.3 in
front track1430 mm / 56.3 in
rear track1470 mm / 57.9 in
length4760 mm / 187.4 in
width1765 mm / 69.5 in
height1530 mm / 60.2 in
transmission4-Speed Manual
top speed~160 kph / 99.36 mph
fuel capacity64 litres or 16.90 gal.
