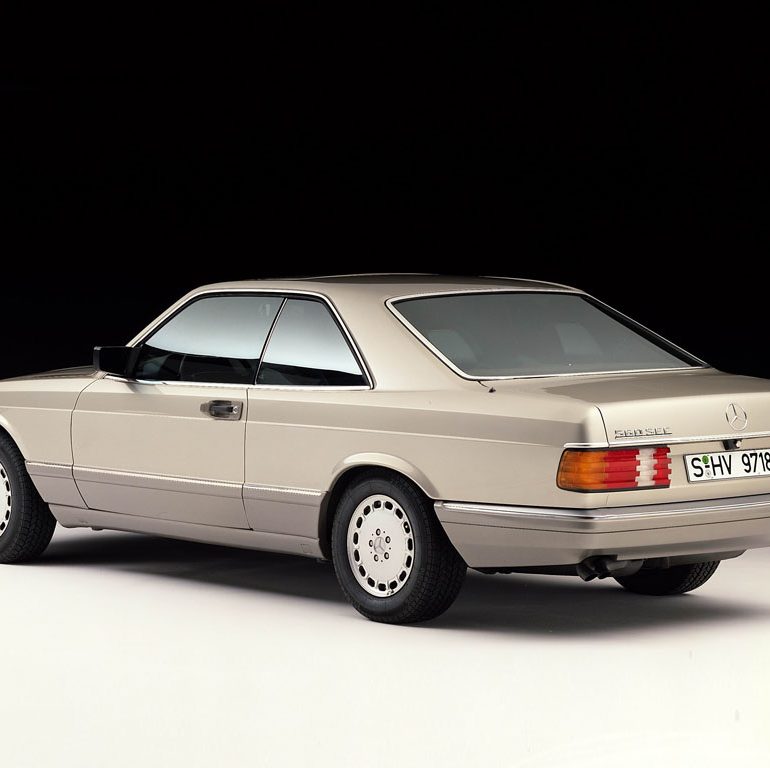

1985 Mercedes-Benz 560 SEC

1985 Mercedes-Benz 560 SEC

1985 Mercedes-Benz 560 SEC

At the time of their launch, the 560 SEC and 560 SEL with this engine were the most powerful Mercedes-Benz production cars built until then.

The most spectacular novelty in the engine range was a 5.6-liter eight-cylinder which had been developed from the five-liter V8 whose stroke had been lengthened to give the car an output of 200 kW (272 hp). A version with an even higher compression ratio was optionally available and generated a proud 221 kW (300 hp), but could not be combined with a closed-loop emission control system. However, even without a catalytic converter, this so-called ECE version complied with the emission limits specified by the European Economic Commission (ECE).

In Detail

submitted by Richard Owen
engine M117 V8
position Front Longitudinal
aspiration Natural
valvetrain SOHC, 2 Valves per Cyl
fuel feed Bosch KE-Jetronic Fuel injection
displacement 5547 cc / 338.5 in³
bore 96.5 mm / 3.8 in
stroke 94.8 mm / 3.73 in
compression 10.0:1
power 220.0 kw / 295 bhp @ 5000 rpm
specific output 53.18 bhp per litre
bhp/weight 168.76 bhp per tonne
torque 454 nm / 334.9 ft lbs @ 3750 rpm
redline Not Availableble
body / frame Unit Steel
driven wheels Front Engine / RWD
f brake size mm / in
r brake size mm / in
curb weight 1748 kg / 3854 lbs
wheelbase 2845 mm / 112.0 in
front track 1554 mm / 61.2 in
rear track 1549 mm / 61.0 in
length 5060 mm / 199.2 in
width 1829 mm / 72.0 in
height 1412 mm / 55.6 in
gear ratios :1
top speed ~249.4 kph / 155 mph
0 – 60 mph ~6.8 seconds
