1997 Mitsubishi Lancer Evolution IV


1997 Mitsubishi Lancer Evolution IV

1997 Mitsubishi Lancer Evolution IV

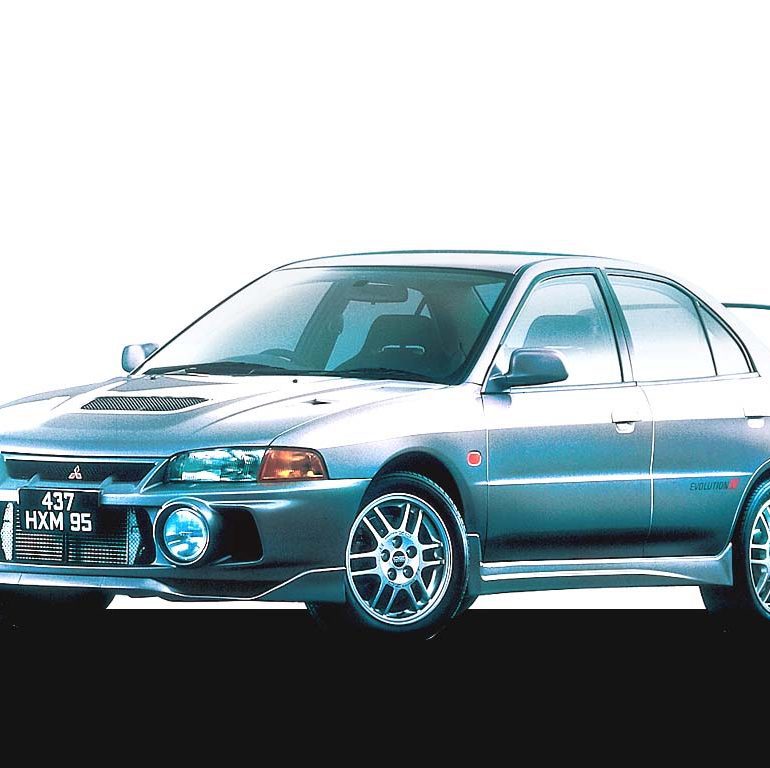

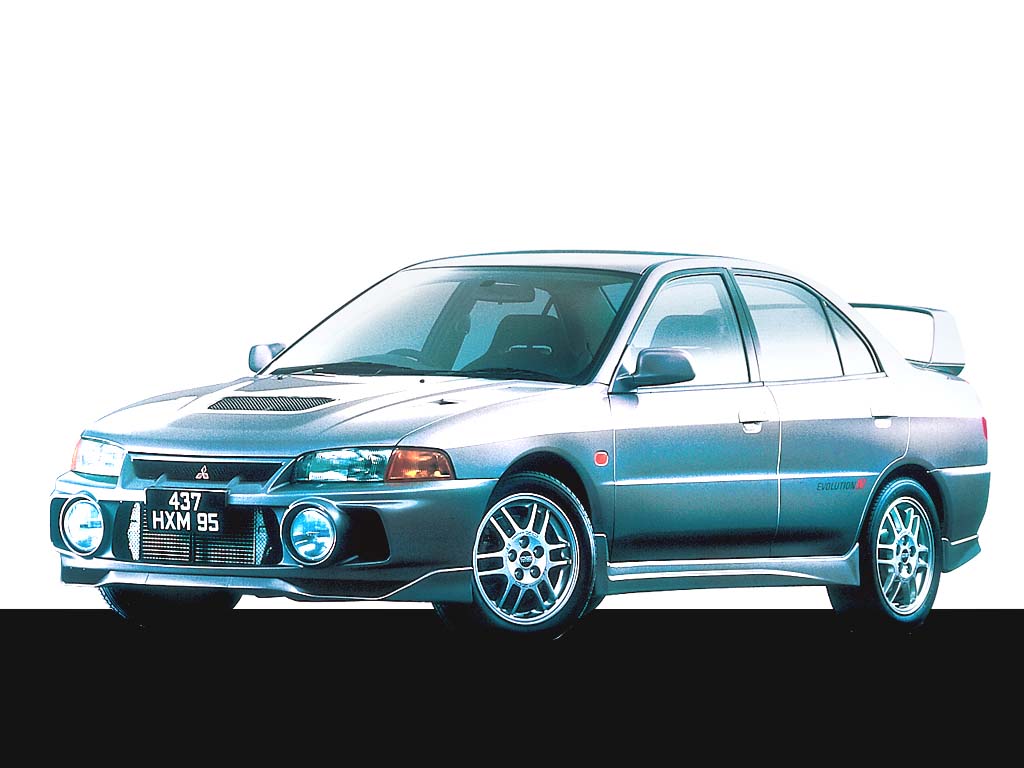

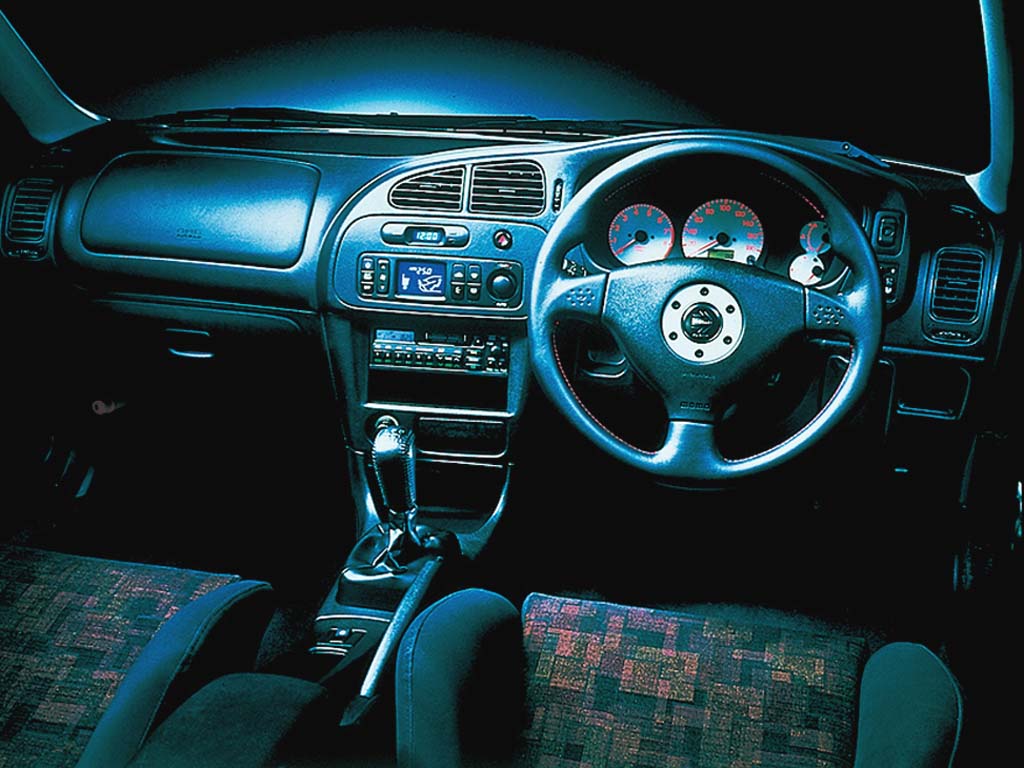

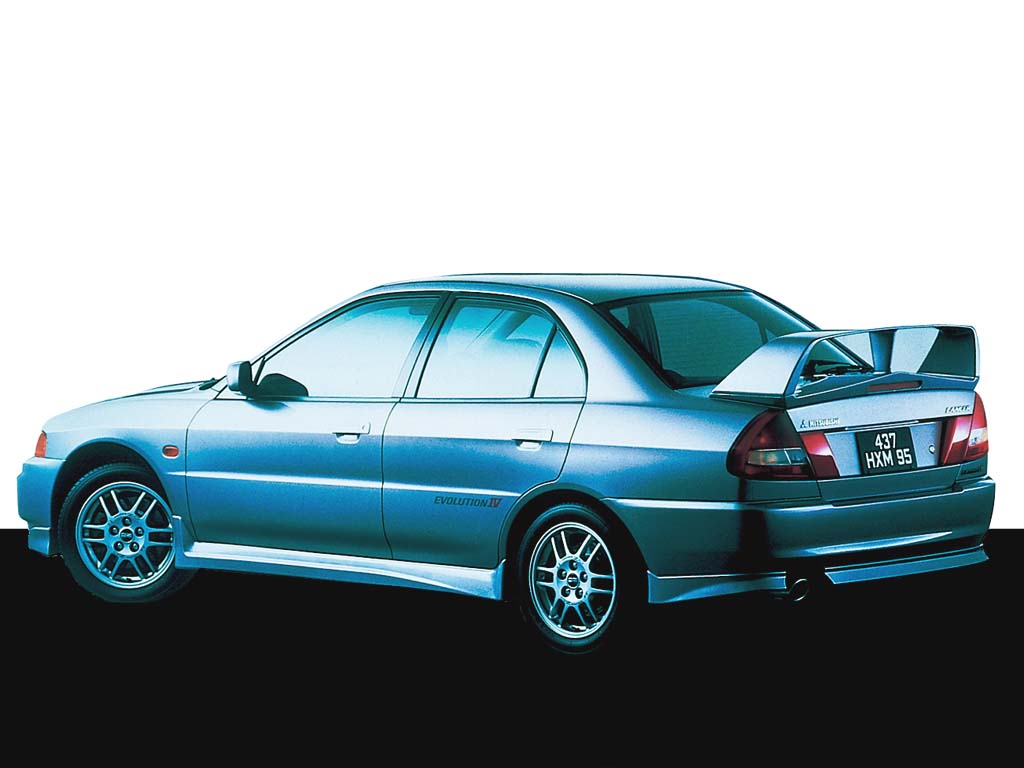

This is the road-going adaptation of the Lancer rally car, formally known as the GSR. It features airbags and a full interior which are not available on the Rally counterpart formally known as the RS. To add 15% more torsional rigidity, front-strut tower bars and a front-end crossmember were added to the RS model. Additionally a faster steering ratio and short tranmission ratios add to sporting nature of the RS.

In Detail

submitted by Richard Owen
production 12000
engine 4G63 Inline 4
position Front Transverse
aspiration Turbocharger
valvetrain DOHC 4-Valves / Cyl
fuel feed Electronic Fuel Injection
displacement 1997 cc / 121.9 in³
bore 85.0 mm / 3.35 in
stroke 88.0 mm / 3.46 in
compression 8.8:1
power 208.8 kw / 280.0 bhp @ 6500 rpm
specific output 140.21 bhp per litre
bhp/weight 207.41 bhp per tonne
torque 353.87 nm / 261 ft lbs @ 3000 rpm
driven wheels 4WD
front tires 205/55R16
rear tires 205/55R16
front brakes Vented Discs w/4-Pot Calipers, ABS
f brake size mm / in
rear brakes Vented Discs w/Twin-Pot Calipers, ABS
r brake size mm / in
steering Rack & Pinion w/Power Assist
f suspension MacPherson Struts w/Coil Springs
r suspension Multi-Link w/Coil Springs
curb weight 1350 kg / 2976 lbs
wheelbase 2510 mm / 98.8 in
front track 1470 mm / 57.9 in
rear track 1470 mm / 57.9 in
length 4330 mm / 170.5 in
width 1690 mm / 66.5 in
height 1415 mm / 55.7 in
transmission 5-Speed Manual
gear ratios 2.785:1, 1.950:1, 1.407:1, 1.031:1, 0.761:1, :1
final drive 4.529:1
top speed ~180.2 kph / 112.0 mph
0 – 60 mph ~5.5 seconds
