Released at the 2002 North American Auto Show, Henry Ford II was proud to show off a modern-day version of Ford’s most successfull endurance racer. A month after the release, Ford anounced the Ford GT would be put into production and with a price ‘around six figures’. The waiting is now over, Ford have released official details of the production version.

The Ford GT supercar’s design instantly stirs up images of the glorious Ford GT race cars from the 1960s. Yet a new presentation features all-new dimensions and a contemporary, striking interior – as well as epic engineering stories of how high-tech methods helped preserve a classic form.

Indeed, the first design proposal was a completely revolutionary design that interpreted cues from the past in a modern shape. The car used harder edges, abbreviated surfaces and short overhangs like a contemporary vehicle.

The second design, penned by Ford GT Chief Designer Camilo Pardo, paid more homage to the Ford GT Mark II race car. ‘Freeing ourselves of the fear of creating a car that looked too much like the original was a liberating experience for the team,’ says Pardo. ‘But staying true to the original themes in a clean, modern design made it the most difficult project I’ve ever been involved with.’

That is, until the concept car was approved for production. Then, Pardo’s role changed from designer to protector. As the engineering team transformed the concept, which was only 5 percent production-feasible, into a production car, Pardo was tasked with preserving the essence of the concept’s design.

Since official program approval in May 2002, the 2005 Ford GT has been on the fast track for product-development timing. The build process of the first three production cars kicked off March 10, 2003. Internally, these vehicles are referred to as jobs one, two and three, referring to Ford’s term for the beginning of vehicle production, job one. Regular production of the Ford GT will begin in spring 2004.

Aluminum Space Frame

Usually a new vehicle is designed from the inside out, meaning that the chassis and suspension points are set before the exterior body is designed around those dimensions. The exact opposite is true of the Ford GT. To preserve the design of the Ford GT40 concept car shown at the 2002 North American International Auto Show, the Ford GT engineering team is doing most of its work ‘under the skin.’

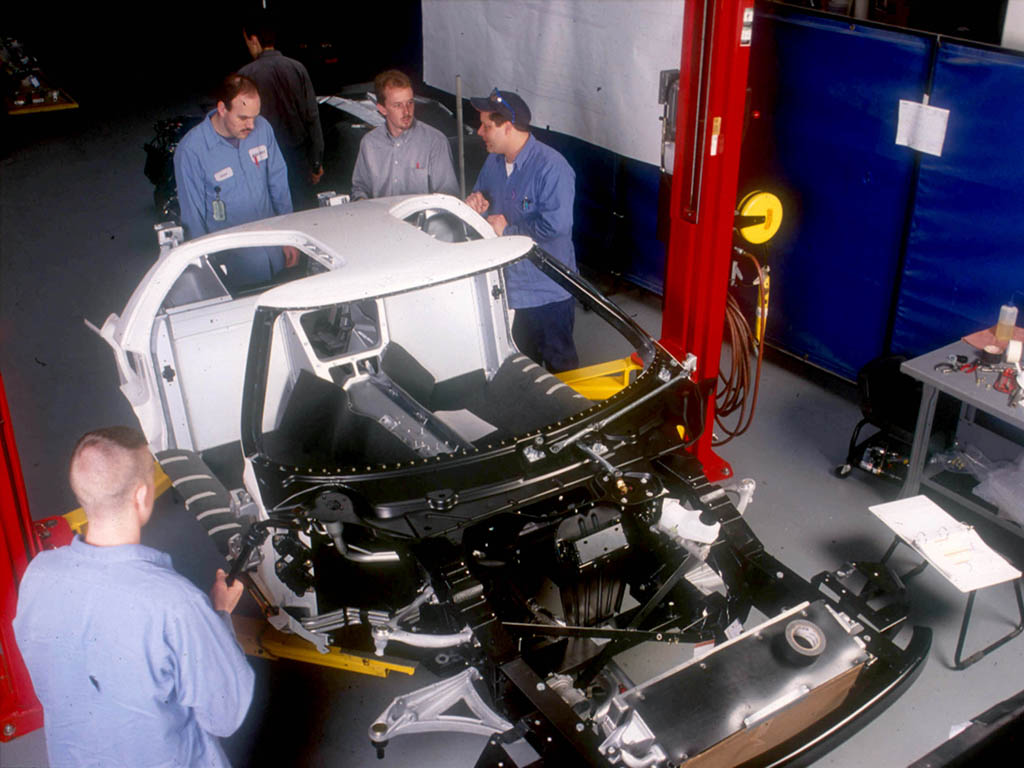

The team developed an all-aluminum space frame, comprising 35 extrusions, seven complex castings, two semi-solid formed castings, and various stamped aluminum panels. The structure has two unique features: A large center tunnel to house the mid-mounted fuel tank and cut-out roof sections for the cantilevered doors.

Once the structure of the hybrid-aluminum design was approved, the team addressed each component to maximize strength and minimize weight. As a result, larger extrusions such as the primary frame rails have a different thickness on each wall. Portholes or windows in the complex castings – which support the suspension and powertrain – decrease unnecessary mass. Even the small castings that join the A-pillars to the roof have been fine-tuned for utmost rigidity and lightness.

Fuel System

Crash modeling verified that the center tunnel is the preferred location for the Ford GT fuel tank because it helps reduce risks, most notably in collisions. As an added benefit, the location keeps overall weight distribution and the center of gravity relatively consistent at differing fuel levels. The ship-in-a-bottle design of the fuel tank is an industry first. The mechanical components, including the fuel pumps, level sensors and vapor control valves are first mounted on a steel rail. Then, the single-piece tank is blow-molded around the rail. This method maximizes fuel volume and reduces the number of connections to the fuel system.

As another industry first, the Ford GT features a capless fuel filler neck under an aluminum cover. The aperture automatically opens as the fuel nozzle is inserted and seals the fuel system when the nozzle is removed.

Aerodynamic Development

Like the concept car, every air intake and heat extractor on the production Ford GT is functional. According to Kent Harrison, Ford GT performance development supervisor, preliminary wind-tunnel testing showed the concept car had remarkably good internal air flow.

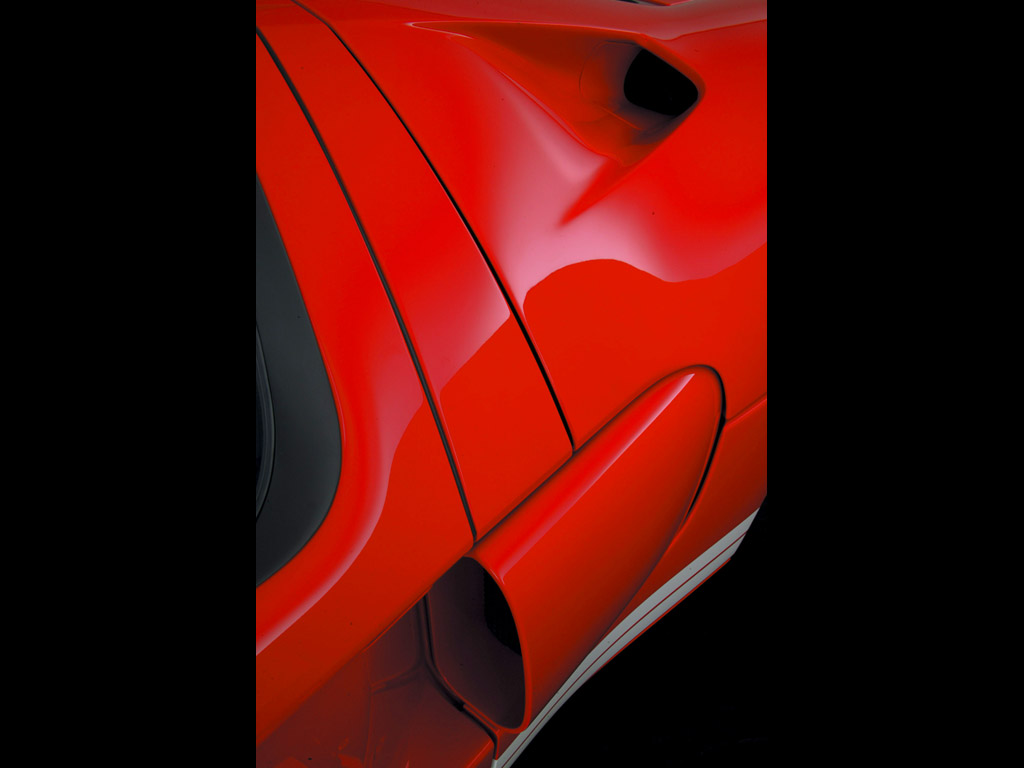

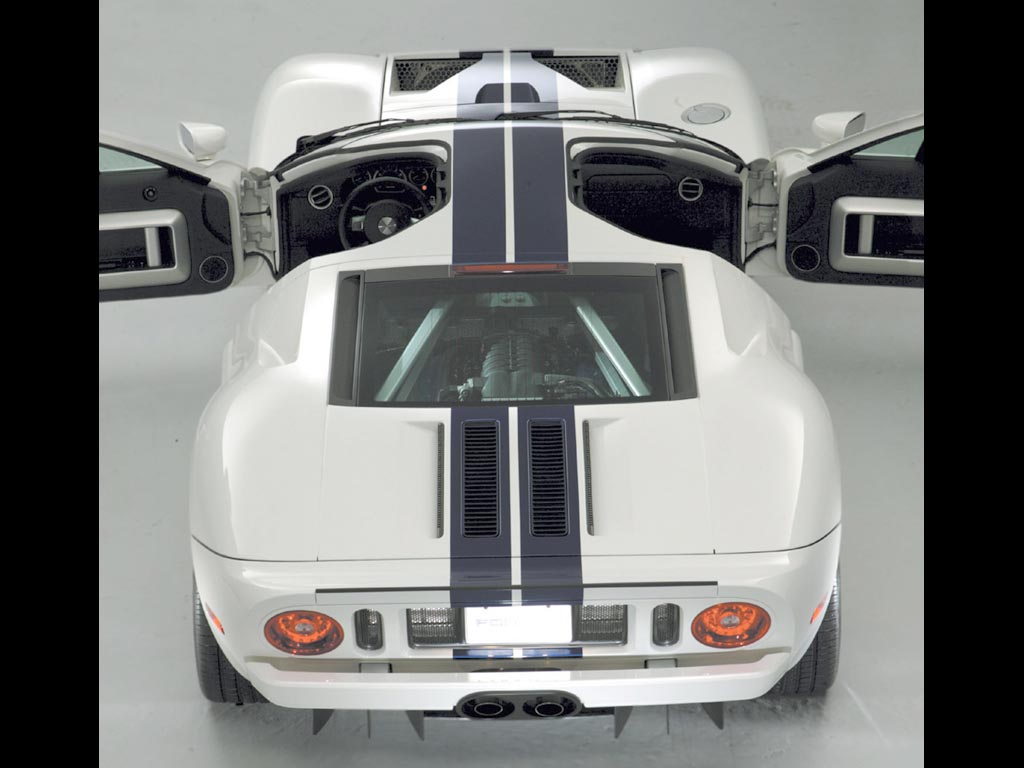

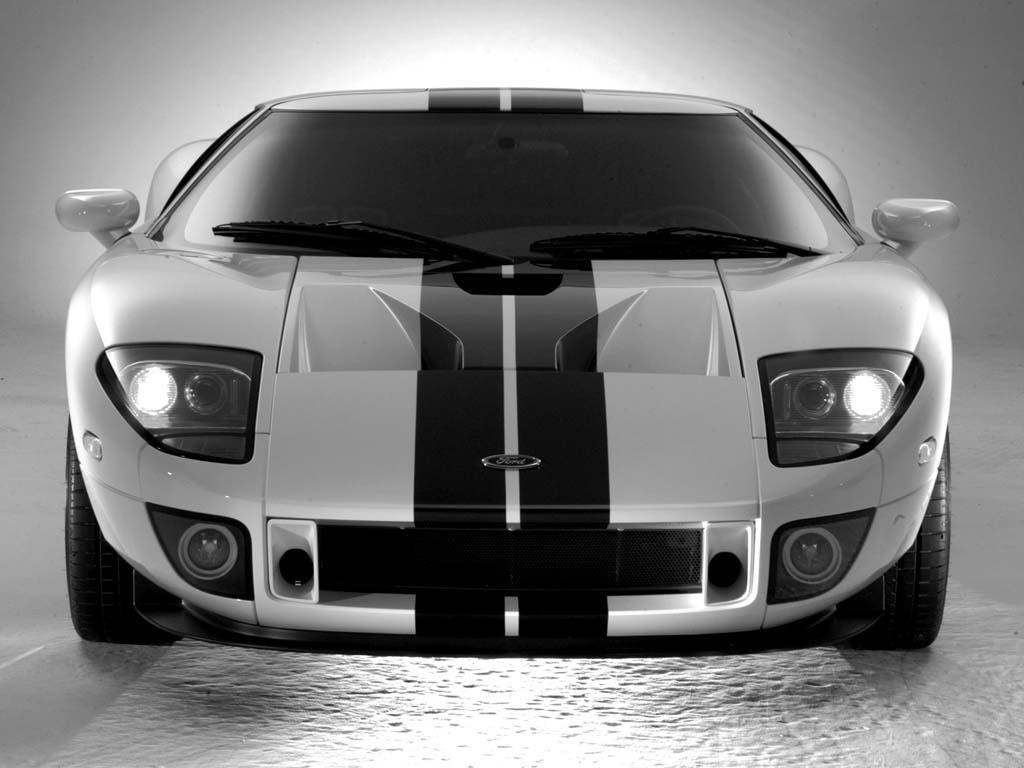

The heat extractors in the front cowl were modified to pull more heat from the front-mounted radiators. The side intakes under the B-pillar were slightly enlarged, driving more cooling air into the engine bay and transmission cooler. Finally, an additional set of vents on either side of the rear glass help diffuse heat from the engine compartment.

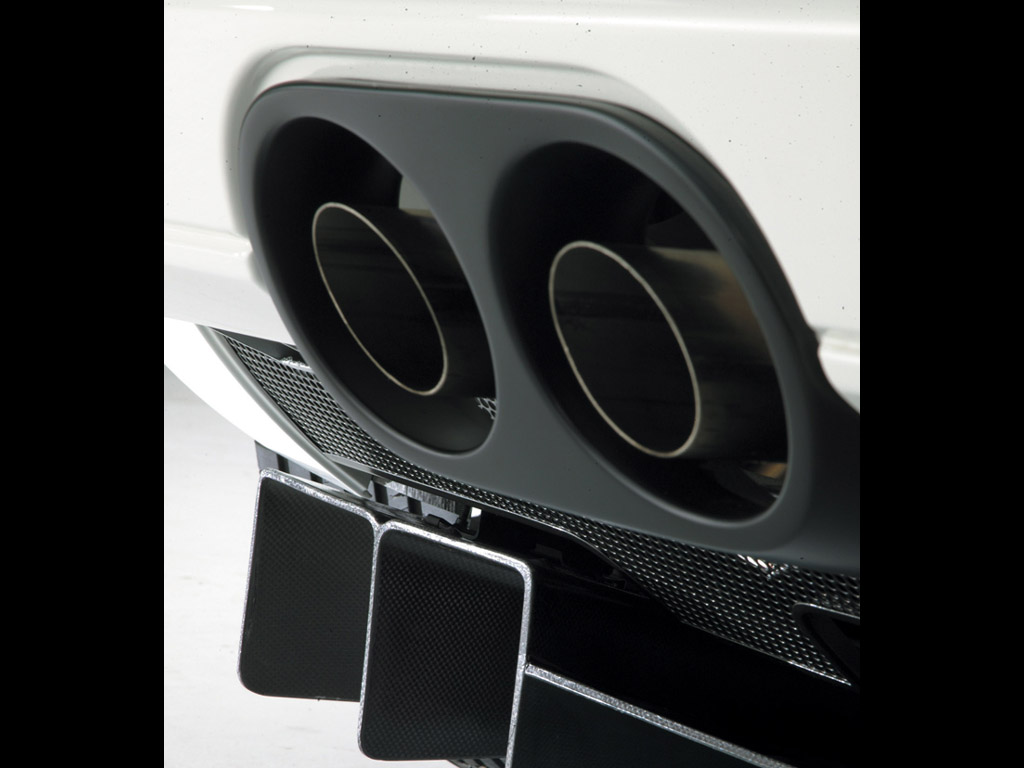

To preserve the design of the concept car, Harrison had to concentrate on the underside of the vehicle. Harrison’s team added a front splitter, which creates a high-pressure area for front downforce, and limits the volume of air traveling under the vehicle. They also added side splitters to prevent air from sliding under the rocker panels. A smooth, enclosed belly pan reduces underbody turbulence. Finally, venturi tunnels accelerate exiting air, creating a vacuum that literally sucks the car to the pavement. The cumulative result is significant downforce at speed and one of the most efficient lift/drag values on a production car.

Double-wishbone Suspension

double-wishbone suspension design with unequal-length aluminum control arms, coil-over monotube shocks and stabilizer bars is used front and rear. The upper control arms are the same at each corner. They are made with an advanced rheo-cast process that allows the complexity of form associated with casting while retaining the strength of forging. The metal, heated to just below its melting point, is the consistency of butter when it is injected into a mold at high pressure. Pressure is maintained as the part cures, preventing porosity in the final product for exceptional strength.

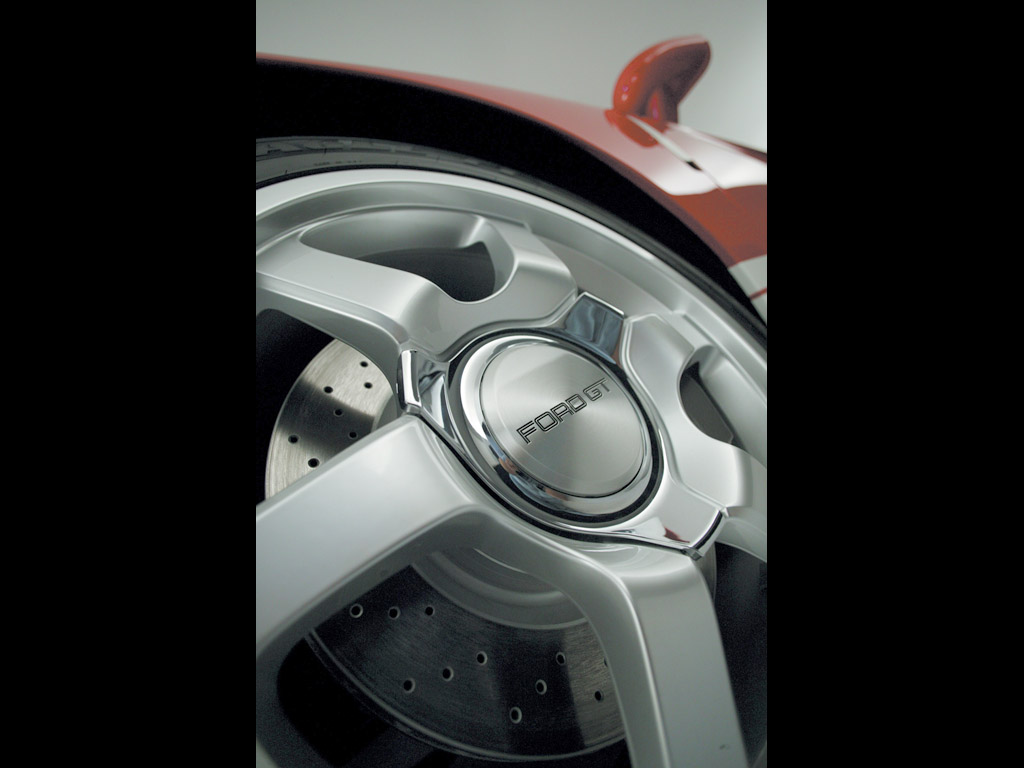

Brembo one-piece brake calipers with four pistons each grab cross-drilled, vented discs at all four wheels. The discs are a massive 14 inches in front and 13.2 inches in the rear, for fade-free stopping power. Anti-lock control and electronic brake force distribution help provide consistent, straight braking even from very high speeds.

One-piece BBS wheels are wrapped by Goodyear Eagle F1 Supercar tires, size 235/45ZR-18 in front and 315/40ZR-19 in the rear.

Supercharged 5.4-liter V-8

The Ford GT is driven by an all-new, mid-engined powertrain producing 500 horsepower and 500 foot-pounds of torque. The engine architecture comes from Ford’s MOD engine family, which includes performance powertrains like the 390-horsepower 4.6-liter DOHC supercharged V-8 in the SVT Mustang Cobra and the 380-horsepower 5.4-liter SOHC supercharged V-8 in the SVT F-150 Lightning.

‘We’re just starting to tap the performance potential of Ford’s modular engine architecture,’ says Curt Hill, Ford GT powertrain engineering supervisor. ‘This application really demonstrates its awesome potential. The 5.4-liter engine easily produces 500 horsepower and 500 foot-pounds of torque, while meeting all the current emissions and durability standards. Those numbers are comparable to the race-prepared, blue-printed 427 (7.0-liter) big-blocks in the Ford GT race cars.’

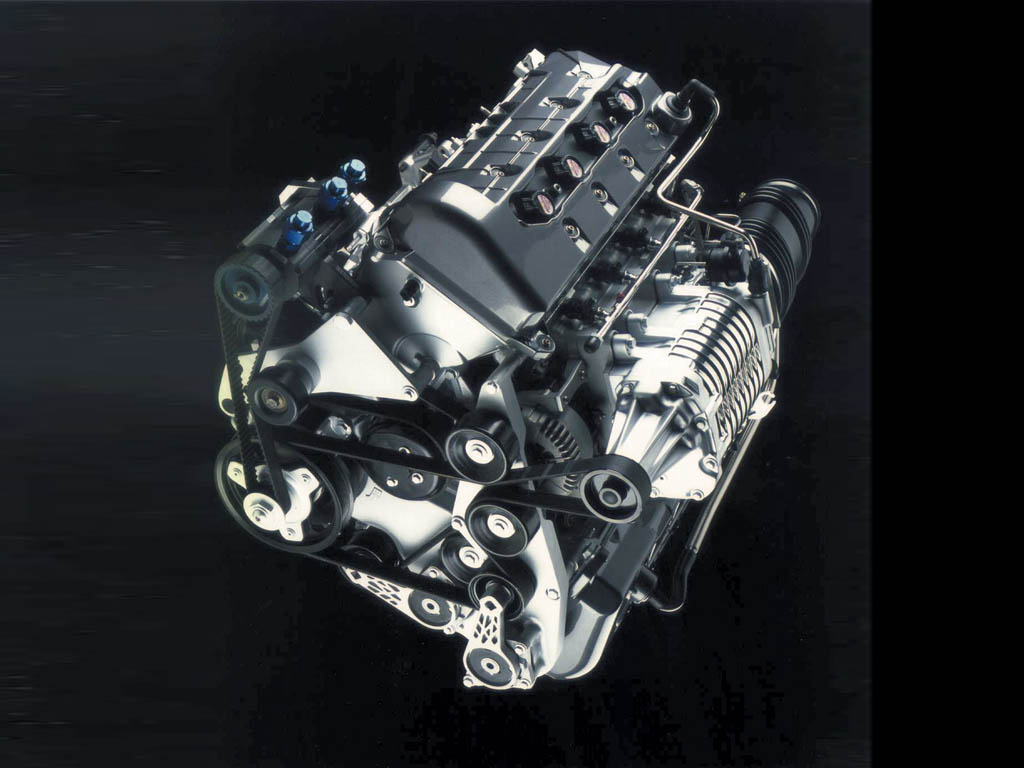

The Ford GT engine features an all-new, aluminum block fitted with high-flow, four-valve cylinder heads and dual overhead camshafts. To bear the stresses necessary to produce 500 horsepower, a forged-steel crankshaft, shot-peened H-beam connecting rods and forged aluminum pistons are used. ‘In total, 85 percent of the reciprocating parts are unique to the Ford GT,’ says Hill.

Fuel is delivered via dual fuel injectors per cylinder. A modified screw-type supercharger blowing through a water-to-air intercooler supplies sufficient airflow for engine output.

Hill’s team specified two race-inspired powertrain components, a dry-sump oil system and a twin-plate clutch. The high-capacity, dry-sump oil system provides consistent lubrication, even during maximum handling. The twin-plate clutch delivers low pedal efforts while still providing the clamp loads necessary to handle 500 foot-pounds of torque. More significantly, these two features allow the powertrain to sit more than 4 inches lower in the frame as compared with the front-engined SVT Mustang Cobra. This helped maintain the low design profile and keep the car’s center of gravity low for better handling. Backing the clutch is an all-new, six-speed transaxle from Ricardo. The clean-sheet design enabled Ford engineers to tailor the individual ratios to their specifications, without being forced to select from an existing assortment. The transmission is fully synchronized and features an integral, torque-sensing, limited-slip differential.

Interior

‘As a race car, the original Ford GT didn’t have an interior design to speak of,’ says Pardo, Ford GT Chief Designer. ‘They featured two seats, a steering wheel, a few toggle switches and lot of bare metal. That’s it.’ As such, the interior of the Ford GT is the biggest deviation from the vintage cars.

‘The passenger cabin of most modern cars is isolated from the engine,’ says Pardo. ‘But, in the Ford GT, the supercharger is right there, inches behind your ear. It creates an intimate relationship with the engine, more like a motorcycle than a car.’

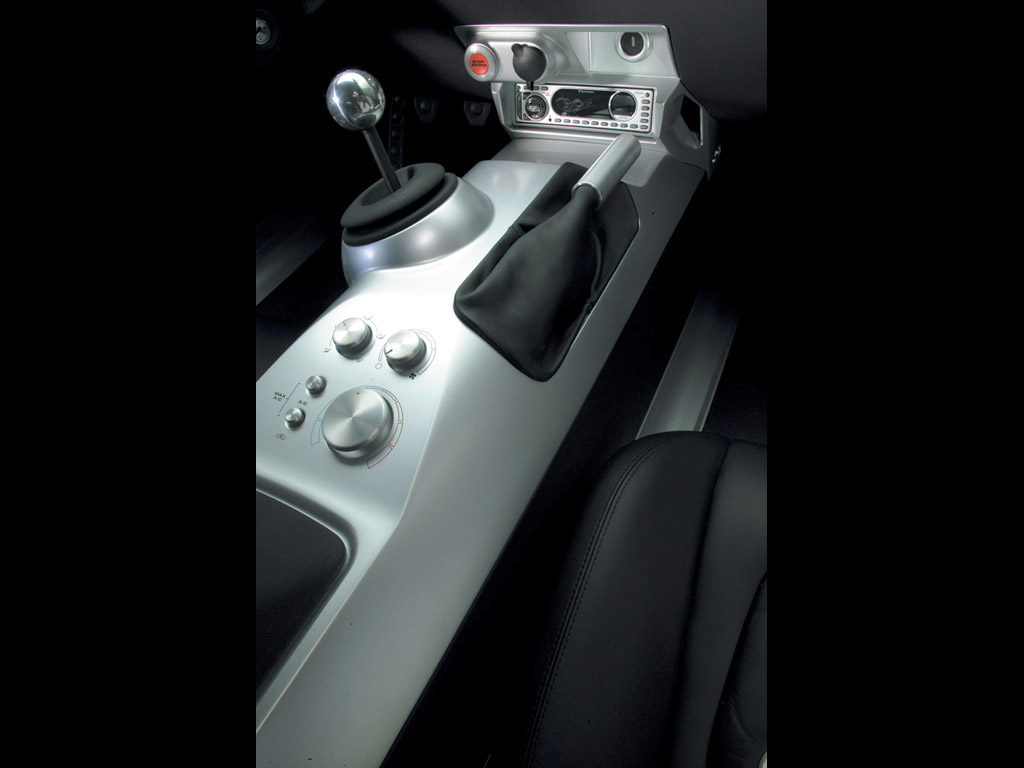

The centerpiece of the interior is a brushed-magnesium tunnel, which contains the center-mounted fuel tank. The tunnel is flanked by a pair of deep bucket seats featuring carbon-fiber shells and leather seating surfaces. To provide ventilation, the leather seat cushions are dotted with aluminum grommets similar to those used in the vintage endurance racers.

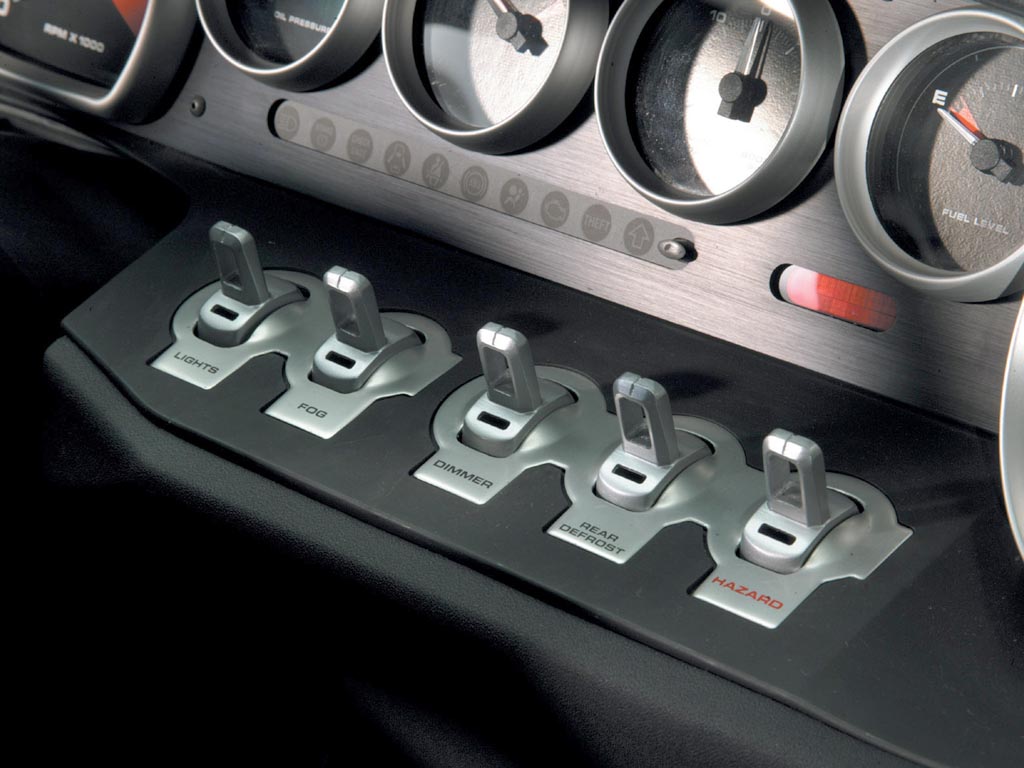

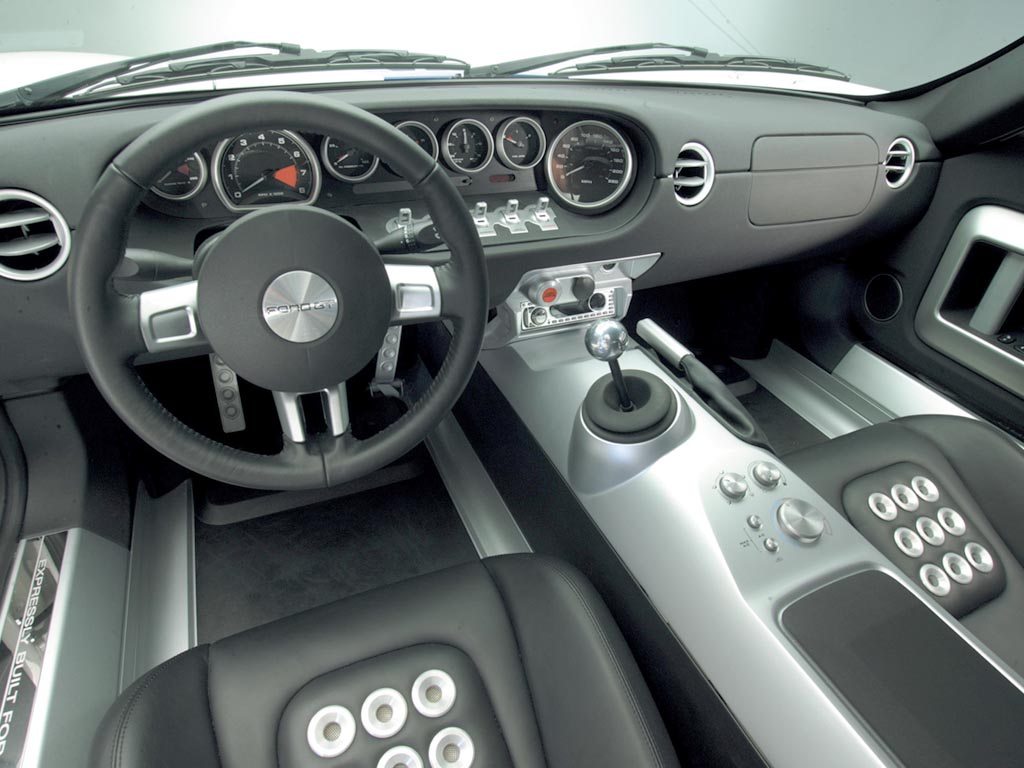

The instrument panel features a comprehensive array of analog gauges, including a center-mounted, oversized tachometer wrapped in aluminum bezels. In homage to vintage Ford GT race cars, stylized toggle switches line the panel, controlling the headlights, foglights, dimmer switch, windshield wipers and rear defroster.

The matte-black instrument panel, door panels and lower portions of the tunnel are crafted in Azdel SuperLite Composite. This is the industry’s first application of Azdel throughout the interior. Azdel is roughly 30 percent lighter than standard injection-molded substrates, offers better wear resistance and is recyclable.

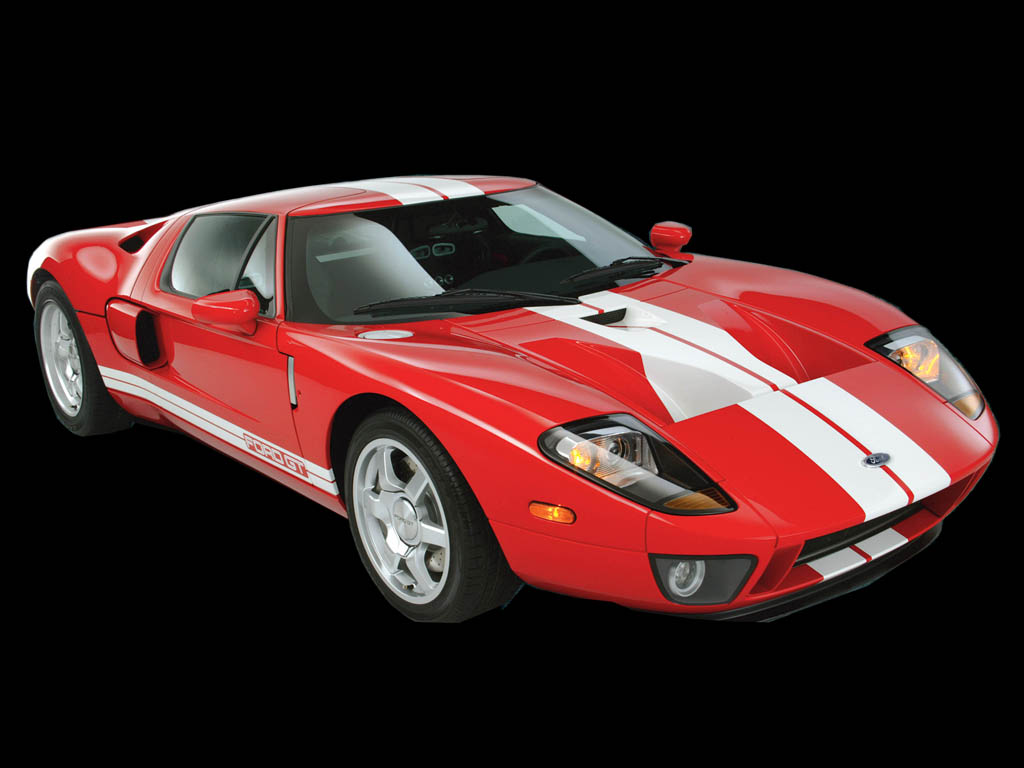

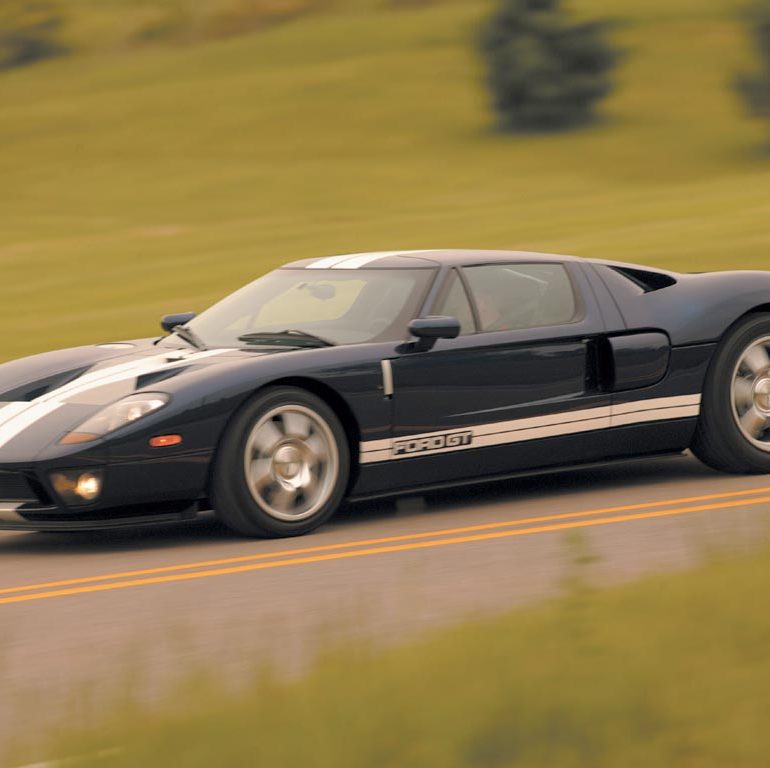

Exterior

Interior comfort considerations had two effects on the exterior styling of the Ford GT. To increase passenger headroom, the engineering team wanted to raise the roof height. However, the design team felt the low profile was an essential aspect of the Ford GT design. The engineers and design team fought for each millimeter, finally agreeing to raise the roof 17 millimeters above that of the concept. To compensate for the added height, Pardo returned to the studio and scaled up the entire profile, preserving the overall proportions of the design.

Second, Pardo designed the concept car with flush-mounted windows to recreate the smooth, fuselage shape of the original Ford GT. The execution of this design proved difficult since fixed windows would not be acceptable in a modern supercar, and drop-down windows created a packaging nightmare. A series of elaborate apertures were considered and rejected, until the team sectioned the window, and Pardo pushed the bottom edge of the window inboard. The solution preserves the continuity of design and allows the window glass to drop completely into the door, snaking between the hidden side-impact beam and the concave exterior door panel.

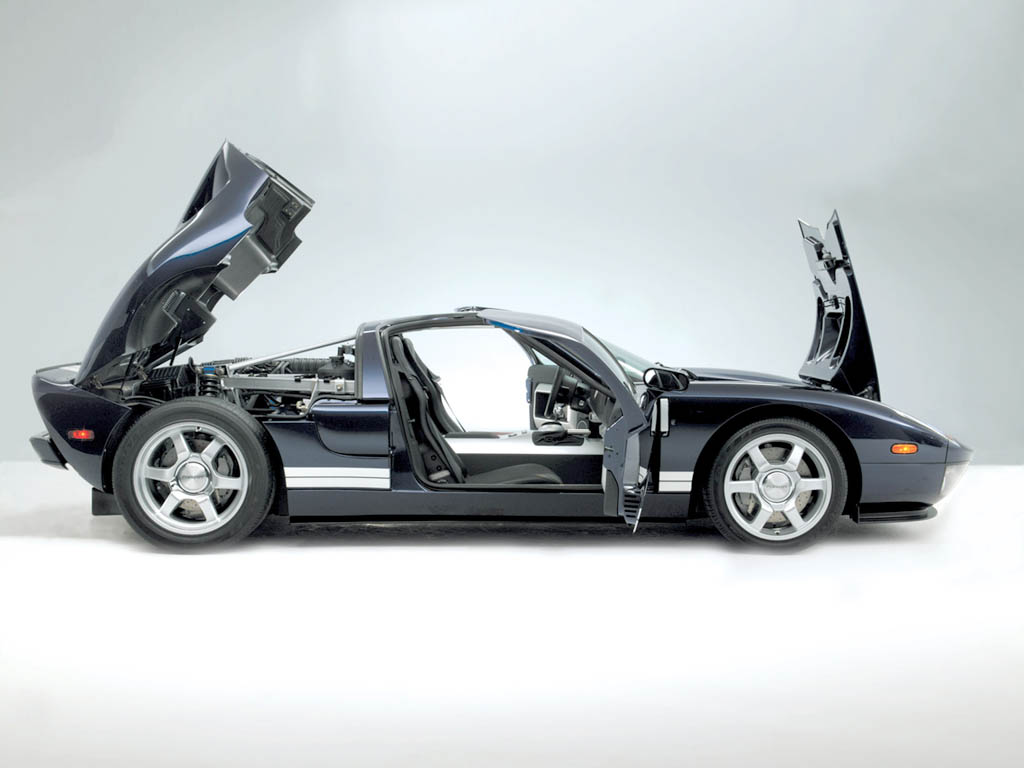

The cantilevered doors created yet another production challenge. Due to their size and shape, the exterior panels were too complex for traditional stamping. Thus, the team shaped the panels using super-plastic forming that uses air pressure to force heated aluminum panels into a one-sided die. This process also enabled the team to reproduce the sweeping curves and intersecting shapes throughout the rest of the exterior. Pardo calls the design, from the dramatic sweep of the front fenders into the nose to the transition from the C-pillars into the rear deck, ‘organic and geometric.’

Story by Ford Motor Co, edited by Supercars.net

In Detail

tags gt40
submitted by Richard Owen
type Series Production Car
production years 2003 – 2006
built at Wixom, Michigan, USA
production 4038
price $ $ 150,000
engine All Aluminum, MOD V8 w/Dry Sump Lubrication
position Mid Longitudinal
aspiration Eaton Model 2300 Screw-Type Supercherger
valvetrain DOHC, 4 Valves per Cyl w/Variable Inlet Geometry
fuel feed Sequential Multi-Port Electronic Fuel Injection (SEFI) with Dual
displacement 5409 cc / 330.1 in³
bore 90.2 mm / 3.55 in
stroke 105.8 mm / 4.17 in
compression 8.4:1
power 410.1 kw / 550 bhp @ 6500 rpm
specific output 101.68 bhp per litre
bhp/weight 346.35 bhp per tonne
torque 677.91 nm / 500 ft lbs @ 3750 rpm
redline 6500
body / frame Aluminum Panels over Aluminum Spaceframe
driven wheels RWD w/Helical LSD
front tires Goodyear Eagle F1 Supercar 235/45ZR18
rear tires Goodyear Eagle F1 Supercar 315/40ZR19
front brakes Cross-Drilled & Vented Discs w/Brembro 4-Piston Monoblock Calipers, ABS
rear brakes Cross-Drilled & Vented Discs w/Brembro 4-Piston Monoblock Calipers, ABS
front wheels F 45.7 x 22.9 cm / 18 x 9 in
rear wheels R 48.3 x 29.2 cm / 19.0 x 11.5 in
steering Rack & pinion
f suspension Upper A Arm & Lower L Arm w/Springs, Monotube Aluminum Dampers, Tubular Anti-Roll Bar
r suspension Upper A Arm & Lower L Arm w/Springs, Monotube Aluminum Dampers, Tubular Anti-Roll Bar
curb weight 1588 kg / 3500 lbs
wheelbase 2710 mm / 106.7 in
front track 1599 mm / 63.0 in
rear track 1618 mm / 63.7 in
length 4643 mm / 182.8 in
width 1953 mm / 76.9 in
height 1125 mm / 44.3 in
transmission Ricardo Six-Speed Manual
gear ratios 2.61:1, 1.71:1, 1.23:1, 0.94:1, 0.77:1, 0.63:1
final drive 3.36:1
top speed ~329.9 kph / 205 mph
0 – 60 mph ~3.6 seconds
0 – 100 mph ~8.0 seconds
0 – 1/4 mile ~11.7 seconds
fuel econ epa 16.80 L/100 km or 14 mpg-us
city fuel econ epa 19.60 L/100 km or 12 mpg-us
hwy fuel econ epa 12.38 L/100 km or 19 mpg-us
