2006 BMW Z4 M Coupe

2006 BMW Z4 M Coupe

2006 BMW Z4 M Coupe

The new high-performance BMW Z4 M Coupe generates 343hp and 365Nm of torque from its 3.2-litre straight-six cylinder engine. Maximum power is generated at 7,900rpm while 80 per cent of the maximum torque is available from 2,000rpm.

The renowned power and flexibility of the ‘M’ engine contributes to a zero to 62mph time of 5.0 seconds and propels the car to an electronically limited top speed of 155mph. Power is transferred to the road via a six-speed short-shift manual transmission.

Key to the purity of driving dynamics and handling characteristics of the Z4 Coupe is its exceptionally stiff body structure of 32,000Nm/degree. The suspension of the new Z4 M Coupe is largely the same as the recently announced BMW Z4 M Roadster, apart from the spring and damper settings that take account of the different weight distribution of the fixed head car. The chassis and suspension also share many common features from the benchmark BMW M3 Coupe, such as the M variable differential and compound brake system taken directly from the M3 CSL. Also in common with the forthcoming Roadster, the new Z4 M Coupe rides on unique, lightweight Z4 M alloy wheels shod with 225/45 ZR18 tyres on the front and 255/40 ZR18 tyres on the rear.

From the outside, there is no mistaking the new BMW Z4 M Coupe with its purposeful stance. The roof of the two seater is contoured for added headroom. From the sides, the long bonnet accentuates the dramatic styling with occupants set back in true sports car style. Owners can personalise their new BMW Z4 M Coupe with a choice of three exclusive M colours and five ‘standard’ colours.

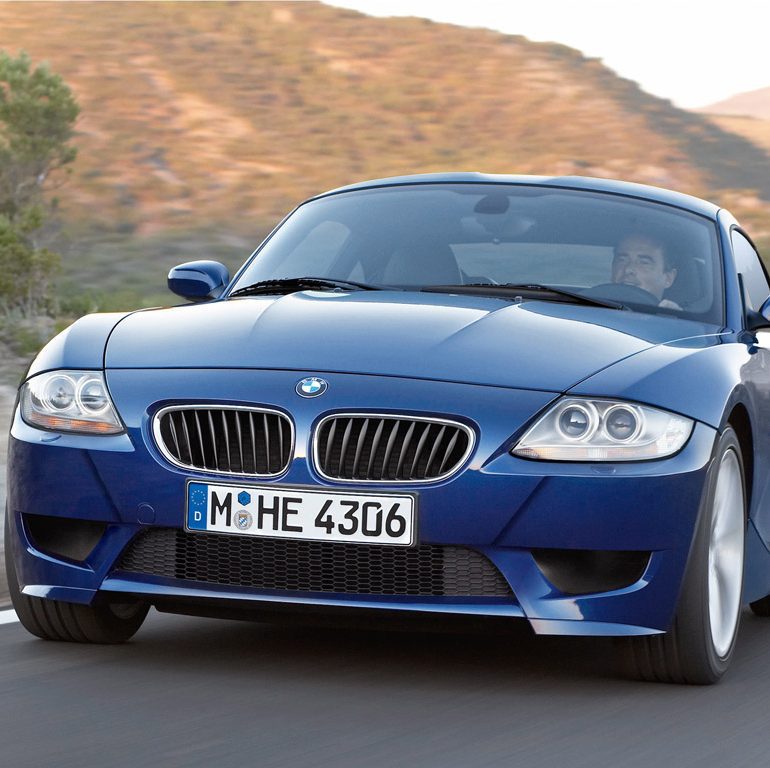

From the front, a deep front air-dam with distinct x-shaped lines differentiates the ‘M’ car from the 3.0si. Large air scoops in the valance and two precision lines running along the bonnet signal the car’s performance credentials. Xenon headlamps and BMW’s unique corona light rings also accentuate the dynamism of the front view.

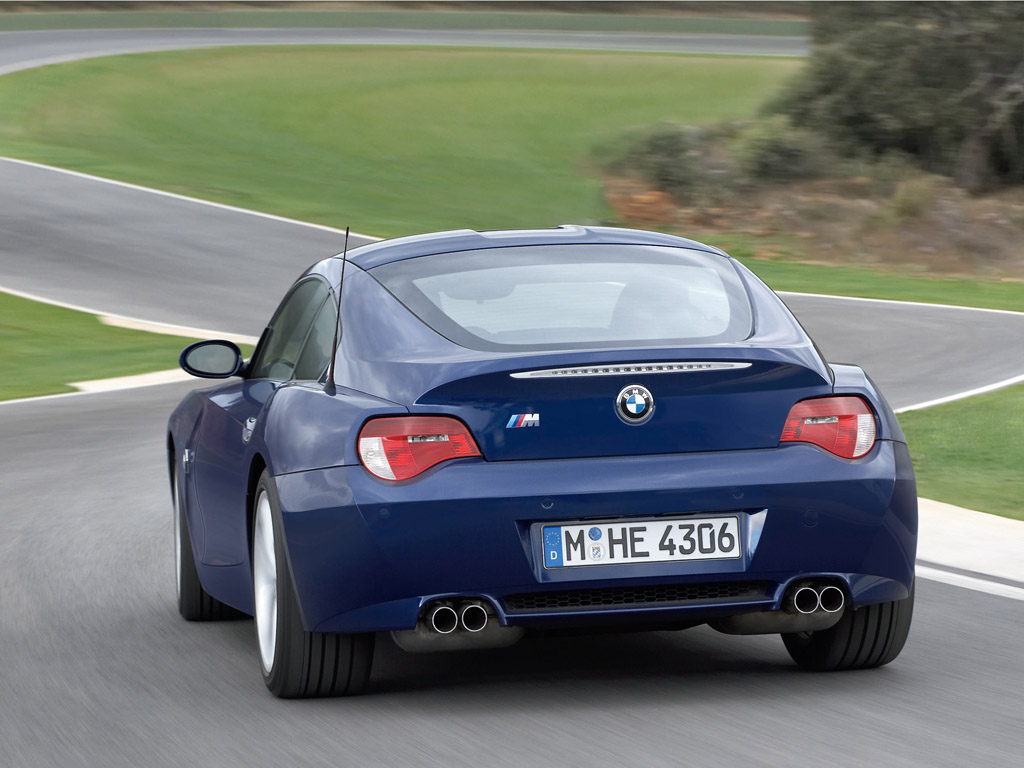

From the rear, the car’s wide rear wheel arches combined with horizontal diffusers and BMW M’s trademark double-twin tailpipes creates a powerful, resolved stance. BMW’s traditional ‘Hofmeister kink’ is integrated into the large clamshell boot lid and shallow-sloping hatchback that hides a practical 300 litres boot capacity.

Internally, the new BMW Z4 M Coupe features BMW’s M Sports seats covered in a choice of four nappa leather colours that provide the highest levels of lateral support.

2006 BMW Z4 M Coupe Gallery

See full 2006 BMW Z4 M Coupe Gallery here

In Detail

submitted by Richard Owen
engine Cast Iron Block, Water Cooled, S54 Inline-6
position Front Longitudinal
aspiration Natural
valvetrain DOHC 4 Valves per Cyl w/Stepless VANOS 2
fuel feed Not Availablee
displacement 3246 cc / 198.1 in³
bore 87 mm / 3.43 in
stroke 91 mm / 3.58 in
compression 11.5:1
power 255.8 kw / 343 bhp @ 7900 rpm
specific output 105.67 bhp per litre
torque 494.87 nm / 365 ft lbs @ 4900 rpm
redline 7900
driven wheels RWD w/Variable M Differential
front tires 225/45ZR18
rear tires 255/40ZR18
front brakes Vented Discs w/ABS
f brake size x 300 mm / x 11.8 in
rear brakes Vented Discs w/ABS
r brake size x 294 mm / x 11.6 in
f suspension Strut Axle
transmission 6-Speed Manual
gear ratios :1
top speed ~249.4 kph / 155 mph
0 – 60 mph ~5.0 seconds
