The new 2008 Dodge Viper SRT10 boasts more of what performance aficionados crave: kick-in-the-pants, throw-back-in-the-seat power, combined with benchmark braking, world-class ride and handling, a race-inspired interior and bold exterior styling. While every SRT vehicle offers balanced, overall performance, the heart and soul of the new 2008 Dodge Viper SRT10 is its standout powertrain. For 2008, SRT ups the ante with a new, 8.4-liter aluminum V-10 engine that produces an astounding 600 horsepower and 560 lb.-ft. of torque. The new 2008 Dodge Viper SRT10 will arrive in Dodge showrooms in North America this summer with a new level of customization options, including five new exterior colors, four new interior color combinations and a new wheel design.

When SRT powertrain engineers set out to get more venom from the 2008 Dodge Viper SRT10’s powerplant, their objectives included not only increasing performance, but also complying with stringent regulatory requirements, such as federal Tier 2, Bin 5 and California’s Low Emissions Vehicle (LEV) 2 mandates. Working with specialists from McLaren Performance Technologies and Ricardo, Inc., SRT engineers began by following the racer’s basic formula for more power: bigger displacement, more efficient breathing and higher engine speed. The new Dodge Viper SRT10’s deep-skirted V-10 aluminum engine block was revised for a 1-millimeter larger bore, raising the displacement to 8.4 liters from 8.3 liters. With strengthened bulkheads and improved water jackets for better cooling, the block includes pressed-in iron cylinder liners and cross-bolted main bearing caps for strength and durability.

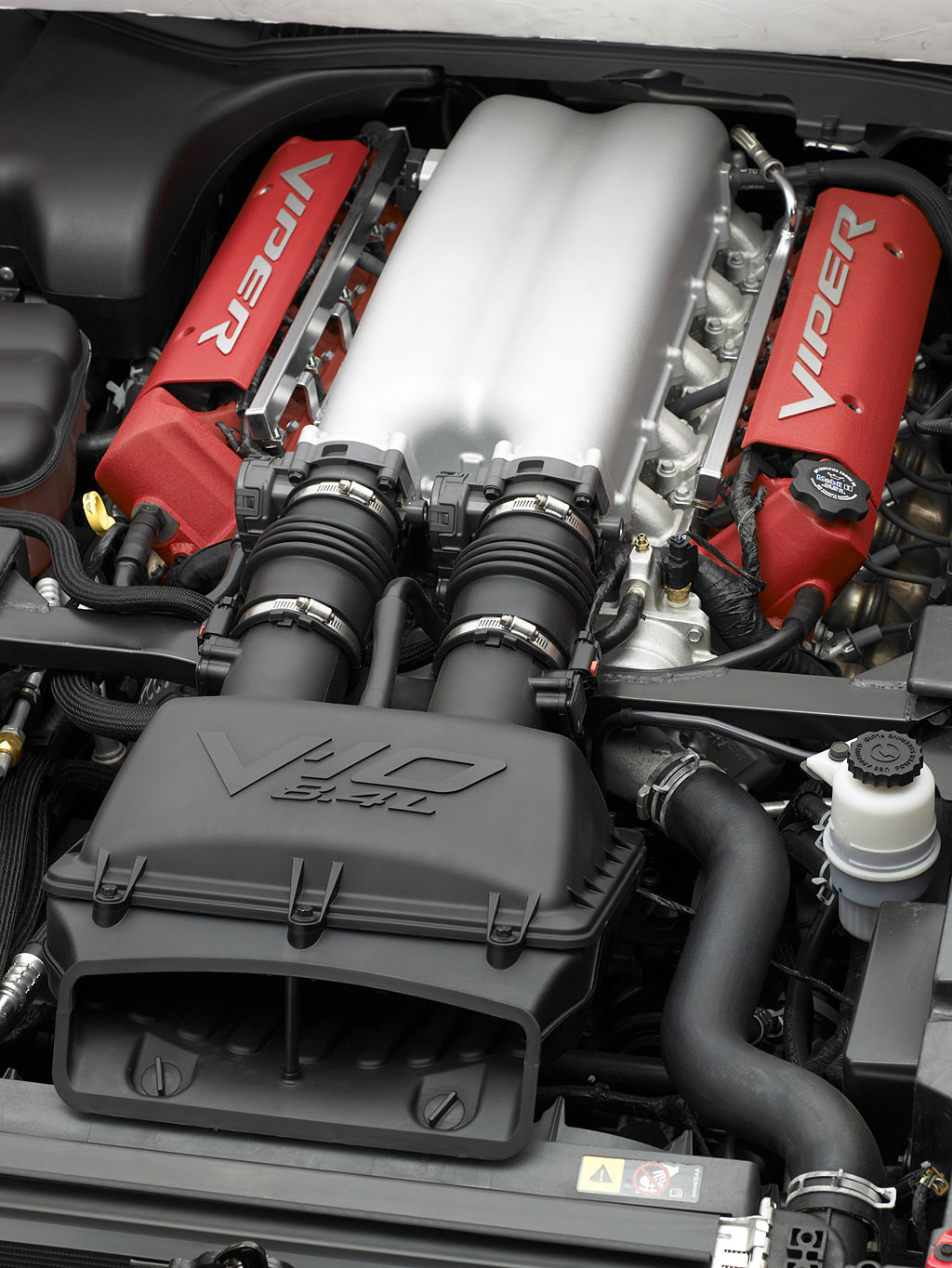

The Viper SRT10’s 8.4-liter engine breathes through new cylinder heads equipped with Computer Numerically Controlled (CNC)-shaped combustion chambers, larger valves and Variable Valve Timing (VVT). VVT electronically adjusts when the exhaust valves are open and closed according to engine speed and load, allowing the engine to ”breathe” cleaner and more efficiently. The 2008 Dodge Viper SRT10 V-10’s two-piece intake manifold combines a cast aluminum lower with smooth runners for better air flow, bolted to a die-cast aluminum upper plenum. A revised air-cleaner box with a low-restriction filter sends air through a dual electronic throttle control into the intake module. The air-fuel mixture in the cylinders is ignited by platinum-tip spark plugs fired by new individual plug coils mounted on the cylinder-head covers.

Within the cylinders, pistons are equipped with larger-diameter floating pins with bronze bushings for high-load capability. Forged powder-metal connecting rods are secured with aircraft-quality fasteners for increased fatigue strength. Engine lubrication is managed by a larger oil pump and a swinging oil pickup adapted from Viper competition engines, to improve oil pressure in high-rpm and hard-cornering conditions. Spent gases exit through tubular air-gap headers, which not only improve exhaust flow, but also ensure quick catalyst light-off for improved emission control. The headers’ stamped stainless-steel outer shell acts as a thermal heat shield for the individual stainless-steel runners that contribute to better flow separation and exhaust tuning. SRT engineers didn’t stop there. Upgrades were developed to handle the 8.4-liter V-10’s increased horsepower and torque levels, while improving traction, driveability – and durability.

The 2008 Dodge Viper SRT10’s V-10 channels its power through a new, smaller-diameter, twin-disc clutch (a change from the previous larger-diameter, single-disc setup). The new clutch reduces rotating inertia by 18 percent, resulting in reduced clutch-pedal effort and improved engagement feel. The transmission is the latest evolution of the Tremec T56 six-speed manual, known as the TR6060. It features 10 percent wider gears for higher torque capacity and a new synchronizer package. A new shifter system results in reduced shifter travel. Club racers will applaud a new provision for adding an external transmission cooler.

Stopping power is another key attribute of the Dodge Viper SRT10 formula, with 14-inch brake rotors gripped by Brembo 44/40 dual opposing piston calipers in the front and Brembo 42/38 dual opposing calipers in the rear. An anti-lock braking system (ABS) prevents lockup during hard braking. This system results in a benchmark braking performance of 60-to-0 mph in less than 100 feet.

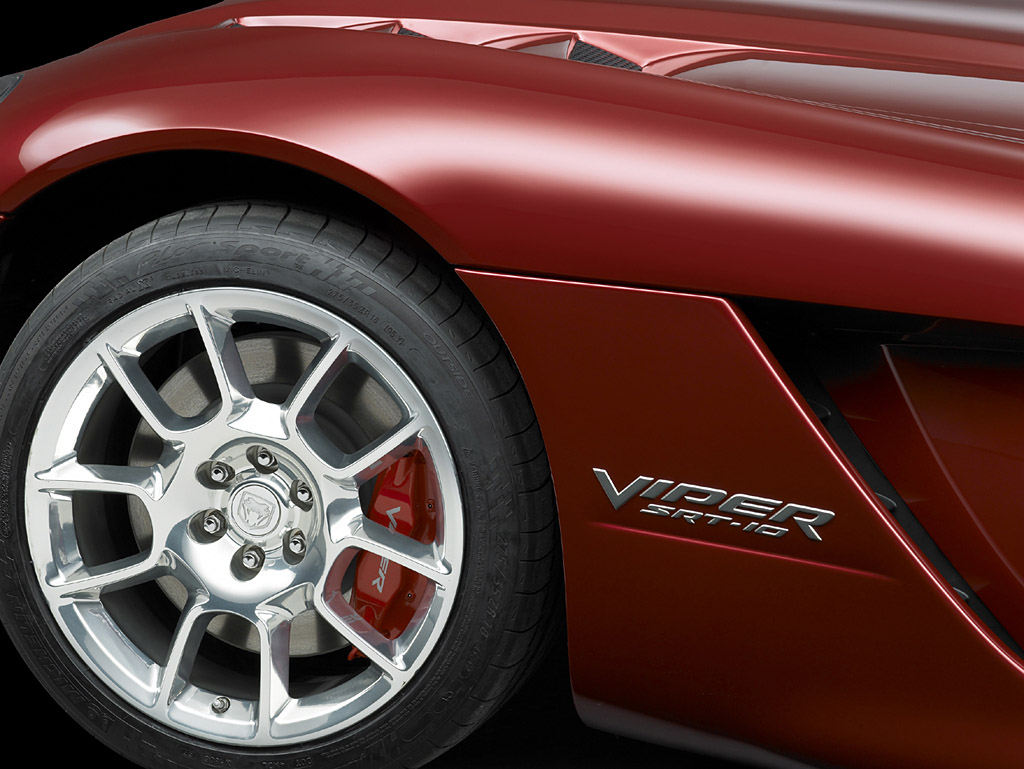

The ride and handling of the 2008 Dodge Viper SRT10 is defined by a race-bred, fully independent, four-wheel suspension featuring lightweight, high-performance aluminum control arms and knuckles, damped by lightweight coil-over shock absorbers. Where the power goes right to the road, SRT engineers retained the tried-and-true Dana M44-4 rear axle and outfitted it with a new GKN Visco-Lok speed-sensing limited-slip differential for improved traction. The Dodge Viper SRT10 rides on polished, forged aluminum, 18 x 10-inch front and 19 x 13-inch rear wheels now available in three styles: the five-spoke, the H-spoke and the all-new Razor wheel with five U-shaped spokes. The wheels are clad in Michelin Pilot Sport PS2 tires. The four-groove tread-design tires provide maximum grip, reduced road noise and superior handling in both wet and dry conditions.

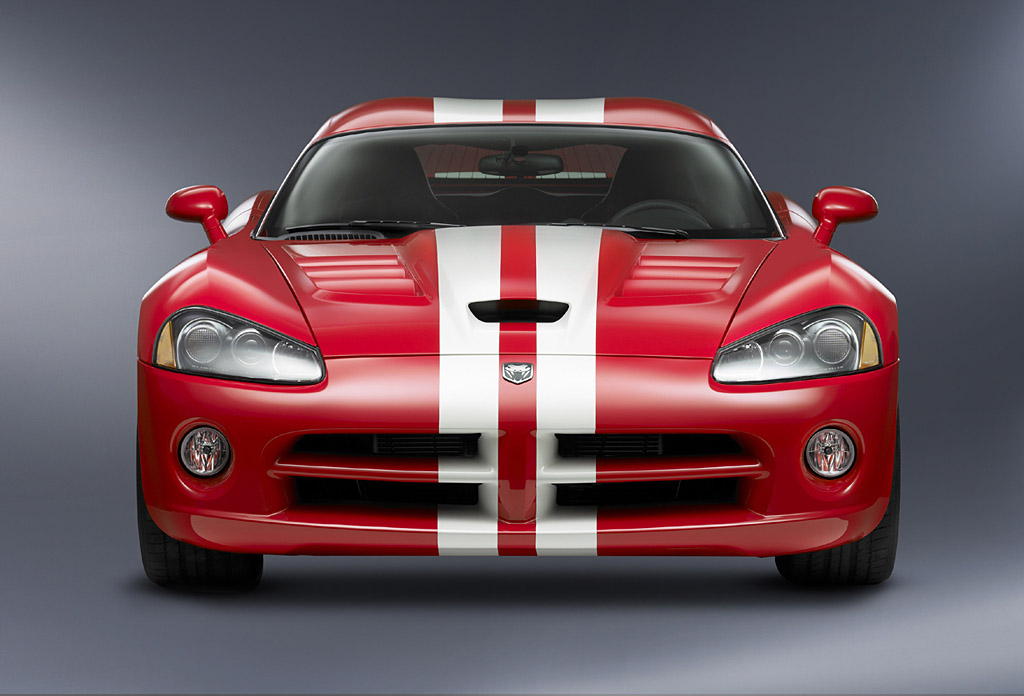

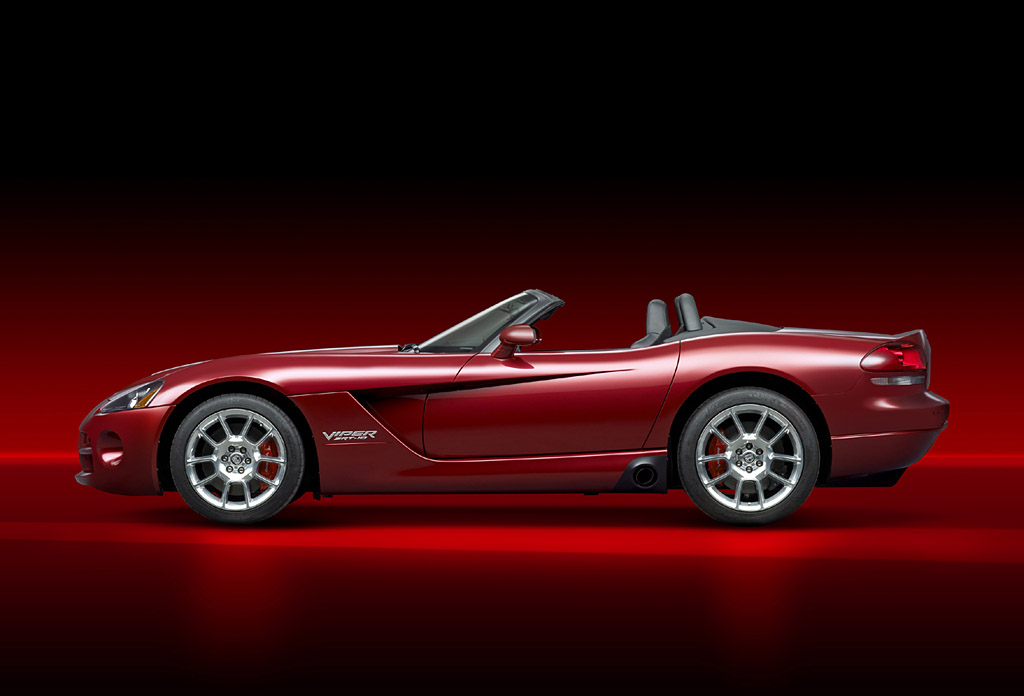

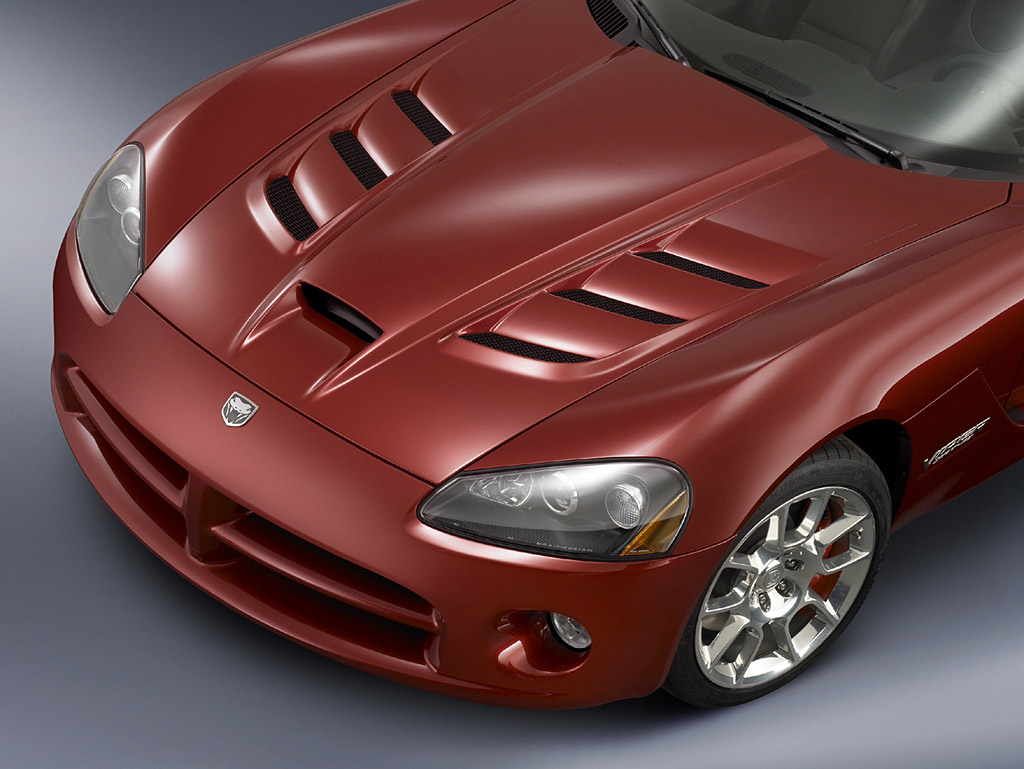

The 2008 Dodge Viper SRT10 remains available in two body styles – Roadster and Coupe. Both feature a dramatic new hood with a larger, more efficient hood scoop for air induction and larger, functional hood louvers to facilitate a greater cooling effect for the more powerful 8.4-liter, 600-horsepower V-10 engine underneath. Eight exterior colors will be introduced throughout the model year – five of which are all-new including Venom Red, Snakeskin Green, Viper Violet, Viper Orange and Bright Blue. Racing stripes continue to be an option with six dual painted stripe colors available: white, black, silver, graphite, blue and red. Several exterior differences exist between the 2008 Dodge Viper SRT10 Roadster and Coupe. In fact, the only body panels they share are front fascia and fenders, hood and doors. However, all of the iconic Viper SRT10 design cues have been maintained including the signature crosshair grille, deep-cut side scallops, swept-back fenders and lowered hood lines.

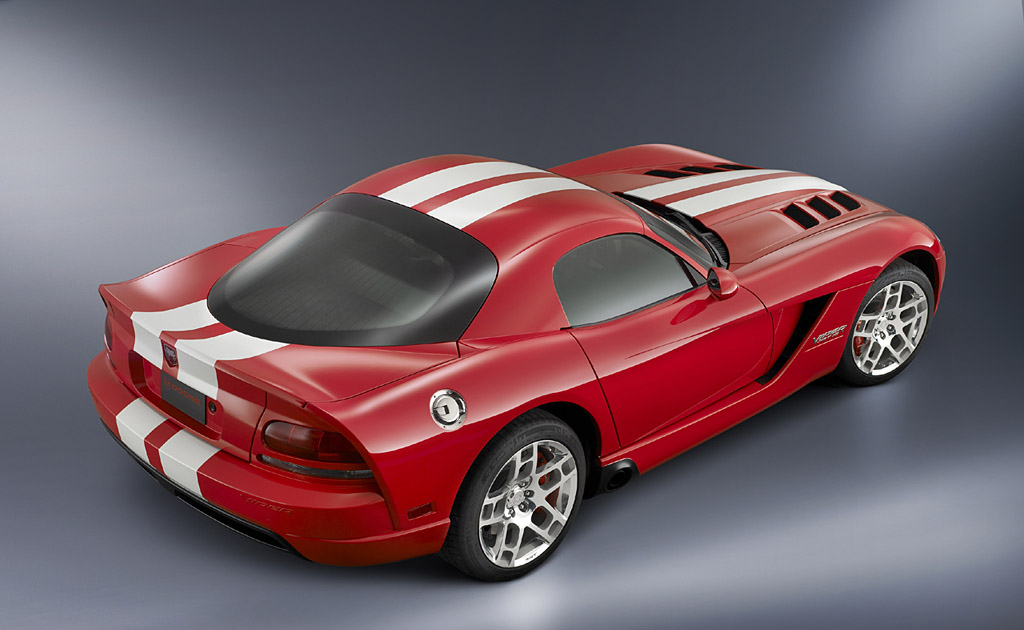

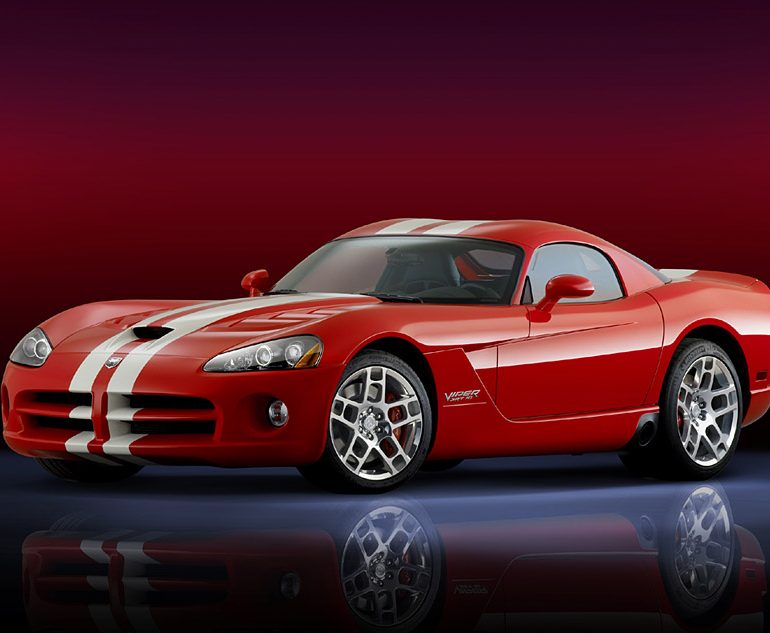

The Dodge Viper SRT10 Coupe’s hard top with its ”double bubble” styling makes it even more torsionally stiff than the Roadster. The 2008 Dodge Viper SRT10 Coupe offers increased downforce and high-speed stability with its sloping roofline and deck-lid spoiler. Plus, the Dodge Viper SRT10 Coupe has an additional 6.25 cubic feet of trunk space than the Viper SRT10 Roadster, for a total of 14.65 cubic feet. The roof and headliner structure offer more room to accommodate a safety cage, while maintaining as much headroom as possible.

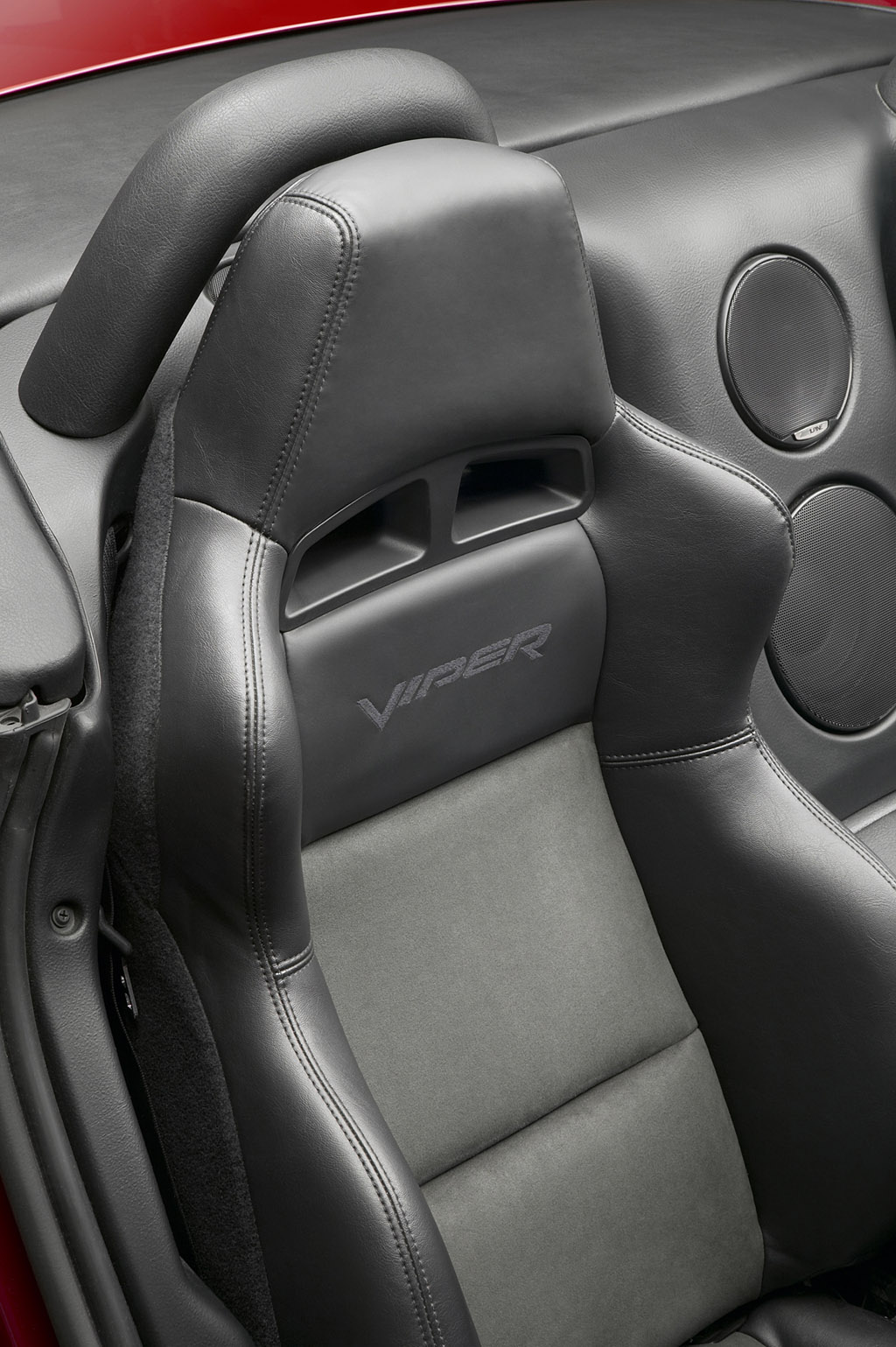

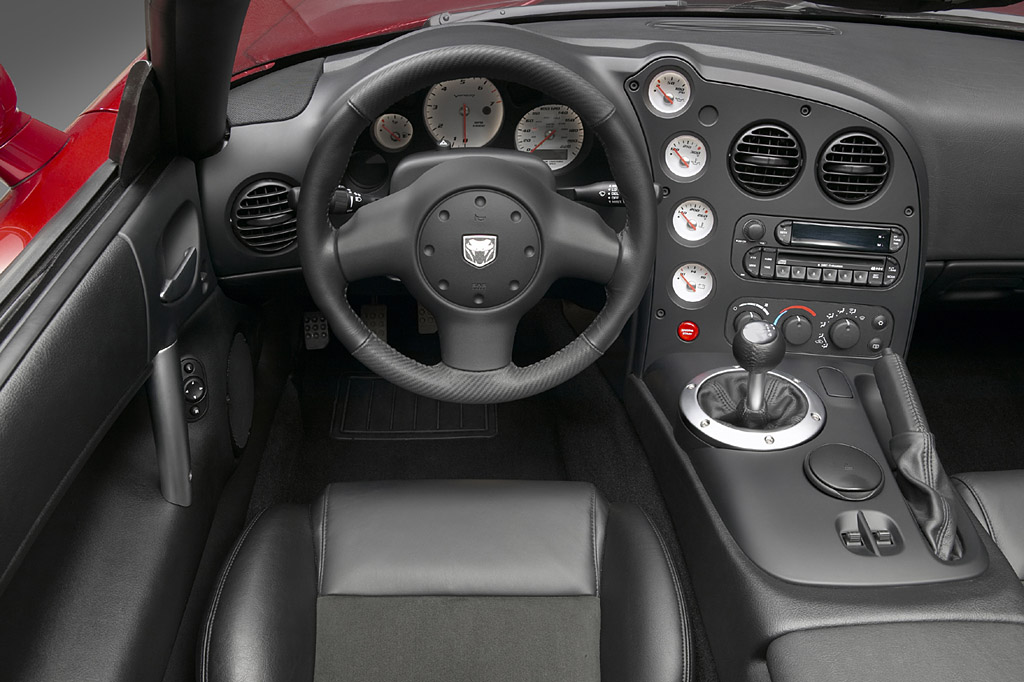

The 2008 Dodge Viper SRT10 Roadster and Coupe cockpit retains its characteristic red push-button starter and performance-oriented, highly functional instrument panel with center-mounted tachometer and 220-mph speedometer. Five interior colors will be available in 2008: black, and four new color combinations in black/red, black/blue, black/slate or black/natural tan. A choice of bezel finishes on the center instrument panel and console adds to the increased level of customization.

Story by DaimlerChrysler

2008 Dodge Viper SRT-10 Image Gallery

See full 2008 Dodge Viper SRT-10 Gallery

In Detail

typeSeries Production Car
released at2007 NAIAS
built atDetroit, Michgan, USA
price $$91,000 USD
engine90º V10
positionFront Longitudinal
aspirationNatural
block materialAluminum
valvetrainChain-Driven Pushrod OHV, 2 Valves per Cyl
fuel feedElectronic Injection
displacement8382 cc / 511.5 in³
bore103 mm / 4.06 in
stroke100.6 mm / 4.0 in
compression10.2:1
power447.4 kw / 600 bhp @ 6100 rpm
specific output71.58 bhp per litre
bhp/weight384.62 bhp per tonne
torque759.26 nm / 560 ft lbs @ 5000 rpm
redline6250
body / frameZB SMC & RIm Panels over Tubular Steel Spaceframe
driven wheelsRWD w/GKN ViscoLok Differential
wheel typeForged Aluminum Alloy
front tiresP275/35ZR-18 95Y Michelin Pilot Sport 2
rear tiresP345/30ZR19 105Y Michelin Pilot Sport 2
front brakesVentilated Discs w/Brembro 4-Piston Fixed Calipers, Vacuum Power Assist, ABS
rear brakesVentilated Discs w/Brembro 4-Piston Fixed Calipers, Vacuum Power Assist, ABS
front wheelsF 45.7 x 25.4 cm / 19.0 x 13.0 in
rear wheelsR 48.3 x 33.0 cm / 19.0 x 13.0 in
steeringRack & Pinion w/Power Assist
f suspensionDouble Wishbones w/Coil Springs over Telescopic Shock Absorbers, Stabalizer Bar
r suspensionDouble Wishbones w/Coil Springs over Telescopic Shock Absorbers, Stabalizer Bar
curb weight1560 kg / 3440 lbs
weight distro48 % / 52 %
wheelbase2510 mm / 98.8 in
front track1469 mm / 57.8 in
rear track1547 mm / 60.9 in
length4459 mm / 175.6 in
width1911 mm / 75.2 in
height1210 mm / 47.6 in
transmissionTremec TR6060 6-Speed Manual
gear ratios2.66:1, 1.78:1, 1.30:1, 1.00:1, 0.74:1, 0.50:1
final drive3.07:1
top speed~325.02 kph / 202 mph
0 – 60 mph~3.6 seconds
0 – 100 mph~8.0 seconds
0 – 1/4 mile~12.0 seconds
city fuel econ epa18.09 L/100 km or 18.09 mpg-us
hwy fuel econ epa10.69 L/100 km or 10.69 mpg-us
fuel capacity60.56 litres or 16 gal.
