1993→1995 Mazda RX-7 JM1FD


1993→1995 Mazda RX-7 JM1FD

1993→1995 Mazda RX-7 JM1FD

The third generation RX-7 was only sold in the U.S. and Canada for three years despite a Japanese production from 1992–2002. These were produced in the sixth series and had a body called the JM1FD. All cars had the 252 hp 13B-REW engine with twin oil-coolers, an electric sunroof, cruise control and the rear storage bins in place of the back seats.

The 3rd generation RX7 was unveiled at the 1991 Tokyo Motor Show and appeared on North American shores two years later. The car’s reduced weight put it below the Acura NSX, MR2, Nissan 300ZX and the second generation RX7. This was achieved by a systematic analysis of every components which resulted in a lighter harness, muffler, glass and oil cooler.

In Detail

tags jm1fd, rx7
submitted by Richard Owen
type Series Production Car
production years 1993 – 1995
built at Japan
engineers Takaharu Koyayakawa
production 13879
price $ $ 31,000
engine 13B 2-Rotor Wankel
position Front
aspiration Sequential Twin Turbo
fuel feed Bosch D-Jetronic
displacement 1308 cc / 79.8 in³
bore 80 mm / 3.1 in
stroke 240 mm / 9.4 in
compression 9.0:1
power 190.2 kw / 255 bhp @ 6500 rpm
specific output 194.95 bhp per litre
bhp/weight 200.63 bhp per tonne
torque 294.2 nm / 217 ft lbs @ 5000 rpm
redline 8000
body / frame Unitary Steel Monocoque
driven wheels RWD w/Torsen LSD
wheel type Cast Alloy
front tires 225/50R16
rear tires 225/50R16
front brakes Ventilated Discs
rear brakes Ventilated Discs
front wheels F 40.6 x 20.3 cm / 16.0 x 8.0 in
rear wheels R 40.6 x 20.3 cm / 16.0 x 8.0 in
steering Rack & Pinion w/Vairble Power Assist
f suspension A-Arms w/Coil Springs, Tube Shocks, Anti-Roll Bar
r suspension Multi-Link w/Coil Springs, Tube Shocks, Anti-Roll Bar
curb weight 1271 kg / 2800 lbs
wheelbase 2426 mm / 95.5 in
front track 1461 mm / 57.5 in
rear track 1461 mm / 57.5 in
length 4280 mm / 168.5 in
width 1750 mm / 68.9 in
height 1230 mm / 48.4 in
transmission 5-Speed Manual
gear ratios 3.48:1, 2.02:1, 1.39:1, 1.00:1, 0.72:1
final drive 4.10:1
top speed ~250.0 kph / 155.3 mph
0 – 60 mph ~4.9 seconds
0 – 1/4 mile ~13.5 seconds
drag 0.31 Cd
fuel capacity 75.70 litres or 20 gal.







Auction Sales History

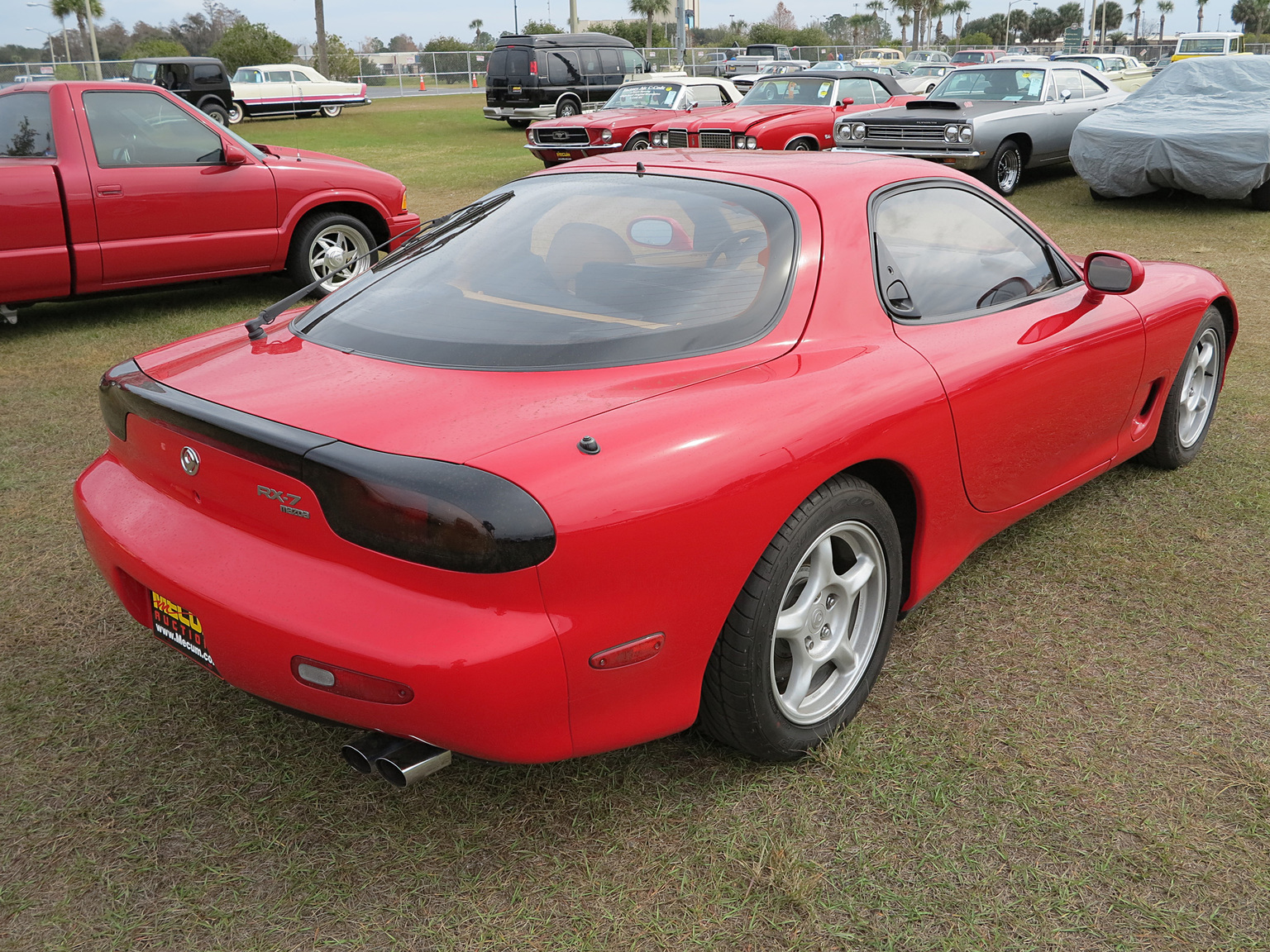

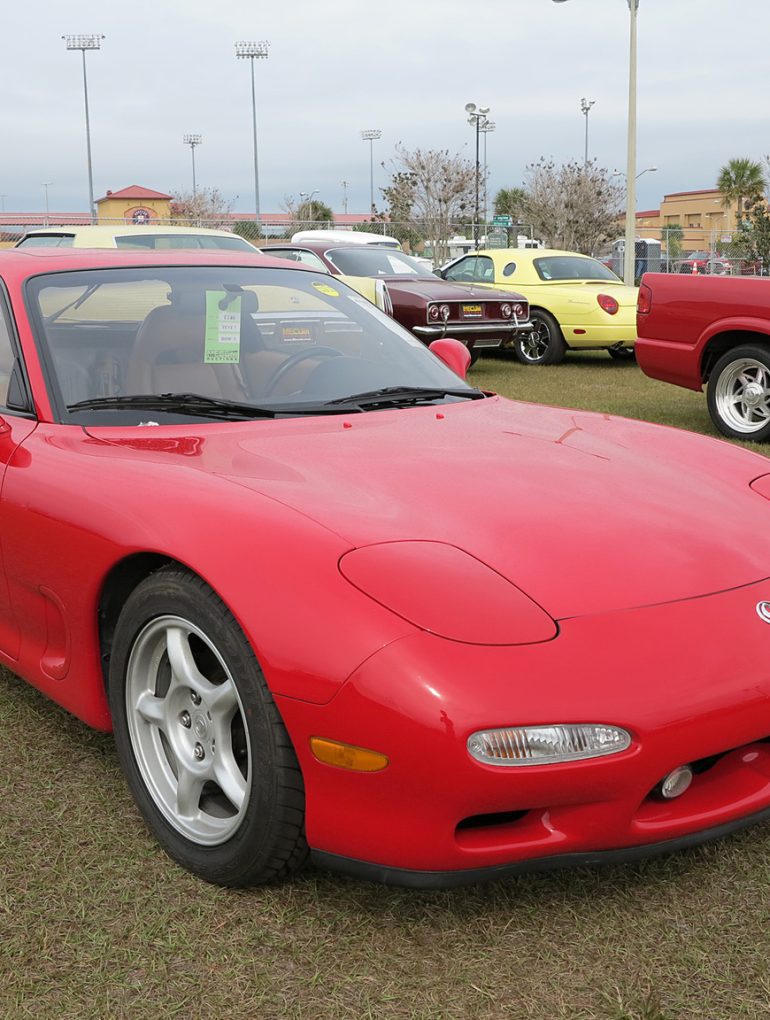

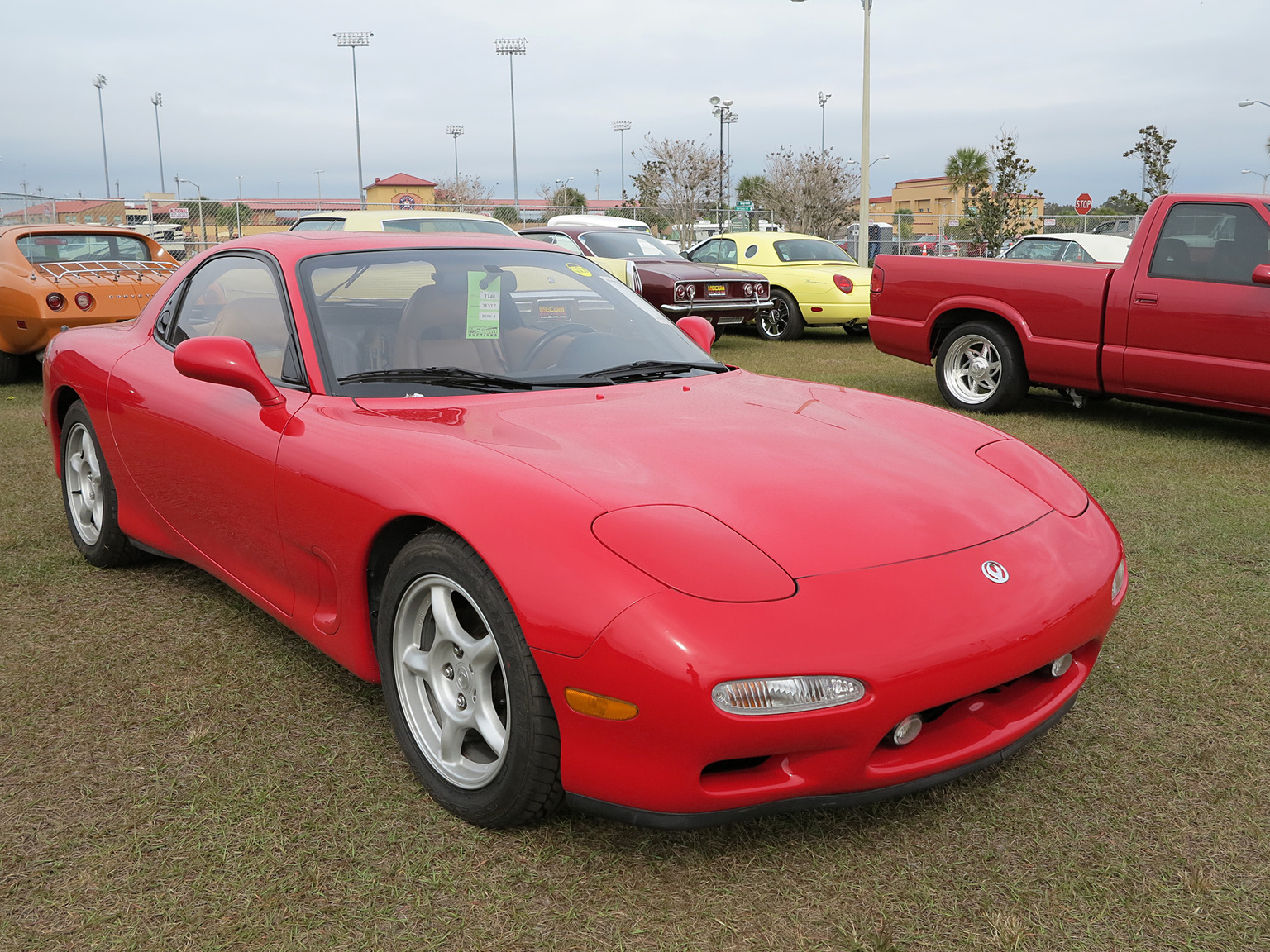

1993 Mazda RX7 Coupe – sold for $21,000 Believed to be 21,000 actual miles. No after market parts or accessories. 1.3 liter rotary engine. 5 speed manual transmission.
Auction Source: Kissimmee 2014, #WhereTheCarsAre by Mecum
