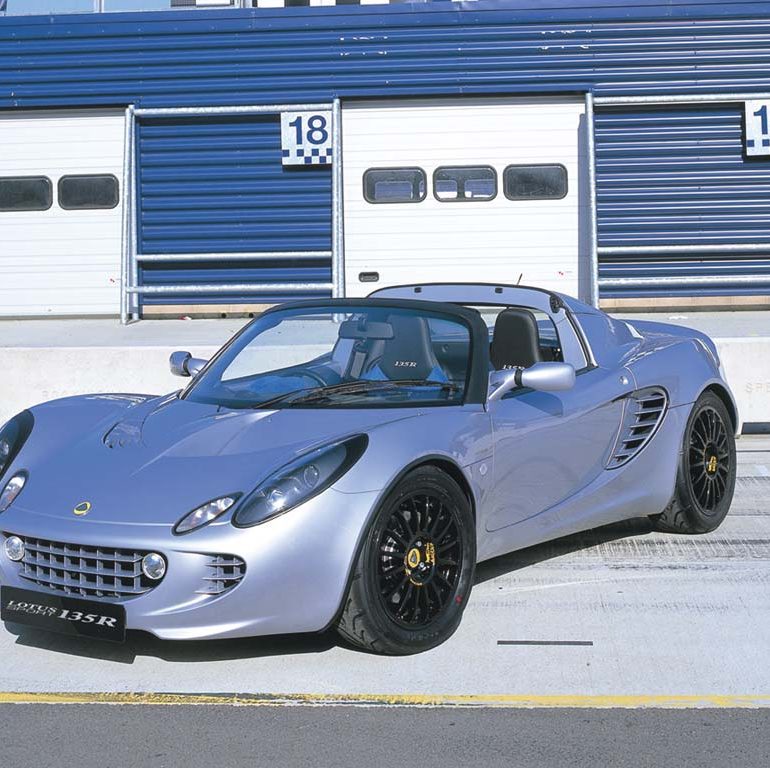

2003 Lotus Elise 135R


2003 Lotus Elise 135R

Developed by Lotus Sport and Performance in conjunction with the Lotus Ride and Handling team, the Lotus Sport Elise 135R has been designed to provide ultimate performance both on and off the track. Engine, suspension, wheel and tyre upgrades all contribute to what can only be described as the ultimate road and track Elise. Offering a more direct feel, the 135R affords the enthusiast driver with more immediate and sharper responses, developed to deliver exceptional driver involvement.

Engine

The power output of the engine is 135bhp. This has been achieved by modifying the ports of the cylinder head to improve gas flow, mixture and cylinder filling. The standard intake manifold has been replaced by a cast alloy version as used on the 111 range. Alongside a reprogrammed ECU these modifications further improve the Elise’s engine breathing’ allowing the driver to explore maximum engine revs in all gears increasing driver enjoyment, especially during track use.

Suspension

Lotus’ world famous Ride and Handling team has developed an optimum set-up for both road and track use. The Elise’s Bilstein dampers have been re-calibrated to give stiffer bump and rebound settings. The dampers are also fitted with adjustable upper spring platforms threaded onto the damper itself, offering a wide range of settings for any use. A stiffer adjustable anti-roll bar has also been fitted to provide optimum steering response.

2003 Lotus Elise 135R

Wheels & Tyres

The Lotus Sport Elise 135R is fitted with O.Z. Racing one piece lightweight cast alloy 16-spoke wheels. While the rear wheel size remains unchanged the front wheel size has increased from 5.5 inches to 6.5 inches to give a more positive turn-in during track conditions. The O.Z. wheels are fitted with Yokohama AO48 tyres which have been developed in conjunction with Lotus to suit the requirements of the performance driver, with special emphasis on track use.

Body

Externally the 135R will be recognisable by its striking colour and decals. Available in two new colours only, Silver Mica and Blue Mica, the 135R is fitted with two Lotus Sport 135R decals above each side repeater lamp and a larger decal at the rear. The F1 style diffuser has been utilised to accentuate aerodynamic performance.

2003 Lotus Elise 135R

Interior

Fitting its special edition status, the 135R has a bespoke interior limited to this model only. The instrument binnacle and column cowlings are trimmed in blue Alcantara, as are the seats with additional carbon leather trim and unique embroidery. Blue footwell carpets, embroidered with the 135R logo, are removable for track days.

2003 Lotus Elise 135R

In Detail

submitted by Richard Owen
engine Rover K-Series Inline-4
position Mid Transverse
aspiration Natural
valvetrain DOHC 4 Valves per Cyl
fuel feed Multiport Sequential Fuel Injection
displacement 1796 cc / 109.6 in³
power 100.7 kw / 135 bhp @ 6250 rpm
specific output 75.17 bhp per litre
bhp/weight 178.57 bhp per tonne
torque 171 nm / 126.1 ft lbs @ 4800 rpm
body / frame Composite Body Panels Over Aluminum Spaceframe Structure
front tires Yokohama AO48 195/50 R16
rear tires Yokohama AO48 225/45 R17
front brakes Cross Drilled & Vented Discs
f brake size x 282 mm / x 11.1 in
rear brakes Cross Drilled & Vented Discs
r brake size x 282 mm / x 11.1 in
front wheels F 40.6 x 16.5 cm / 16 x 6.5 in
rear wheels R 43.2 x 19.0 cm / 17 x 7.5 in
steering Unassisted Rack & Pinion
f suspension Double Wishbones w/Coil Springs over monotube Bilstein Dampers
r suspension Double Wishbones w/Coil Springs over monotube Bilstein Dampers
curb weight 756 kg / 1667 lbs
wheelbase 2300 mm / 90.6 in
front track 1457 mm / 57.4 in
rear track 1503 mm / 59.2 in
length 3785 mm / 149.0 in
width 1719 mm / 67.7 in
height 1143 mm / 45.0 in
transmission 5-Speed Manual
gear ratios 2.923:1, 1.750:1, 1.307:1, 1.033:1, 0.848:1, :1
final drive 4.20:1
top speed ~207.6 kph / 129.0 mph
0 – 60 mph ~5.2 seconds
