1956→1959 BMW 503 Coupé


1956→1959 BMW 503 Coupé

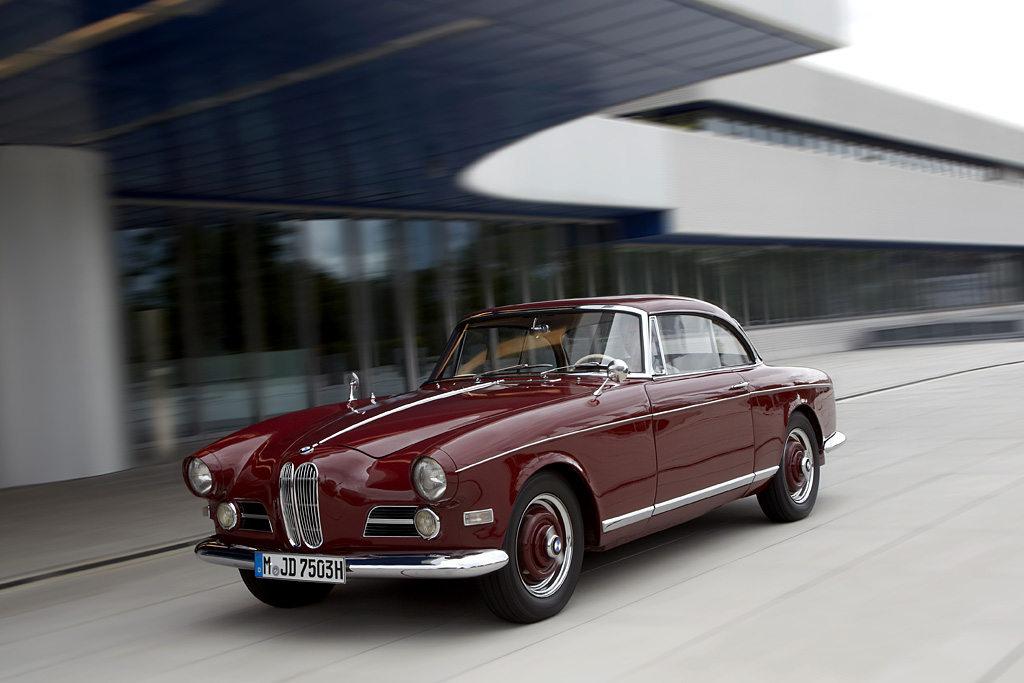

The BMW 503 Coupe Sport, year of manufacture 1959 - Exterior (07/2011).

1956→1959 BMW 503 Coupé

At the International Motor Show in Frankfurt in 1955, BMW presented not one, but two spectacular new automobiles, the BMW 503 Coupe and the BMW 507 Roadster. Both models were powered by the eight-cylinder engine, which had been increased to a capacity of 3.2 litres and which delivered 140 hp to the BMW 503 and a breathtaking 150 hp to the BMW 507. With features which included leather upholstery and electric windows, the four-seater BMW 503 fulfilled the burgeoning desire for luxury and extraordinarily elegant design during the early phase of Germany’s economic miracle.

The designs for the BMW 503 and BMW 507 were drafted by the young German designer Albrecht Graf Goertz. The former student of the famous industrial designer Raymond Loewy succeeded in melding long, stretched side contours and powerfully swept fronts with an elegance and lightness which until then had only been achieved by Italian automobile designers. Even today, this combination is still a perfect example of the sporting elegance which is also expressed by the BMW 6 Series Coupe.

The BMW 503 was also a pioneer in terms of technology. Parts of its bodywork were made of aluminium, the lightweight V8 engine accelerated the coupe to 190 km/h. A brake servo was part of the standard equipment and from 1957 onwards, the gearbox was married directly to the engine and for the first time was operated by a gear stick on the floor and not by a gear shift on the steering wheel, as had been the case up until then.

In Detail

type Series Production Car
production years 1956 – 1959
built at Germany
body stylist Graf Goertz
production 270
engine 90º V8
position Front, Longitudinal
aspiration Natural
block material Aluminum Alloy
valvetrain OHV, 2 Valves Cyl
fuel feed 2 Zenith 32 NDIX Carburettors
displacement 3168 cc / 193.32 in³
bore 82 mm / 3.2 in
stroke 75 mm / 3.0 in
compression 7.8:1
power 104.4 kw / 140 bhp @ 4800 rpm
specific output 44.19 bhp per litre
bhp/weight 93.33 bhp per tonne
torque 215.6 nm / 159 ft lbs @ 3800 rpm
body / frame Aluminum Body over Box-Steel Frame
driven wheels RWD
front brakes Drums
rear brakes Drums
steering Recirculating Ball
f suspension Double Wishbones w/Coil Springs, Anti-Roll Bar
r suspension Live Axle w/Hydraulic Dampers
curb weight 1500 kg / 3308 lbs
wheelbase 2835 mm / 11.1 in
front track 1400 mm / 55.1 in
rear track 1420 mm / 55.9 in
length 4750 mm / 187.0 in
width 1710 mm / 67.3 in
height 1440 mm / 56.7 in
top speed ~190 kph / 117.99 mph
0 – 60 mph ~12.8 seconds

Auction Sales History

1957 BMW 503 Coupe 69185 – sold for $220,000 3.2-Litre 503 Featuring the 507 V-8 Engine. One of Just 273 BMW 503 Coupes Produced. Matching-Numbers Example. Highly Original Throughout. Rare Factory-Fitted Single Rear Jump Seat. Equipped with Front Disc Brakes. Fascinating History and Prior Long-Term Single-Family Care. Eligible for Many Shows and Classic Touring Events.
Auction Source: The Amelia Island Auction by Gooding & Company
