1985โ†’1989 Hartge H35-24

1985 Hartge H35-24

1985โ†’1989 Hartge H35-24

The H35-24โ€™s were the top model in Hartgeโ€™s 1980โ€™s E30 H35 line up and was released in October of 1985. Conversions began on the BMW E30 range in 1981 initially as a tuning house until in 1985 when Hartge were granted manufacturer status by the German Motor Vehicle Authority (KBA). From then on all Hartge cars received a Hartge motorsport VIN plate that was attached to the vehicle in place of the original BMW one.

The H35 (from 1981) and H35-24 (from 1985) could have different motor configurations depending on that year they were produced and the market they were intended for, all were based on the BMW M30 โ€œbig sixโ€ Block. Initially the H35 using the 3 46 EB @ 199 kw (M30B34) from the 5 series BMW where the H35-24 used the 3 56 ED @ 210 kw (M88/3) 24 valve motor modified from the BMW M1 for BMWs use in the M635csi. From 1986 Hartgeโ€™s attention moved to the new E30 M3 this led to the development of the last of the H35โ€™s the H35-24s also initially with the M88/3.

Later H35 conversions used the next generation of BMW motors from the 5 and 6 series. From 1988 the H35 used the M30B35 and the H35-24 and 24s using the S38B35. Initial conversions where done on the BMW E30 323i until 1986 when the 325i was used as the donor into the early 1990โ€™s, bar the โ€œsโ€ that used the M3.

The H35-24 time in the limelight was relatively short as the H35-24s M3 conversions soon over shadowed it, therefore are a rare vehicle, with only six originally produced by the factory in 1985 with the M88/3.

Production numbers are difficult to determine as conversions/builds were only done on request and also carried out by authorised Hartge agents outside of Germany. Source: Hartge Brochures and Technical documentation (KBA & TUV submission 12/84)

In Detail

tags bmw, e30, m3
submitted by himck
type Professionally Tuned Car
production years 1985 – 1989
built at Beckingen, Germany
coachbuilder BMW
production 6
price $ $ 110,000

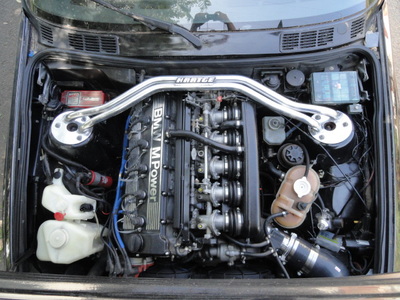

engine M88/3 Inline 6
position Longitudal
aspiration Natural
ignition Bosch
block material Cast Iron
valvetrain DOHC 24 valve
fuel feed Electronic Injection
displacement 3453 cc / 210.71 inยณ
bore 93.98 mm / 3.7 in
stroke 84 mm / 3.3 in
compression 10.5:1
engine designer BMW
power 210 kw / 281.60001 bhp
specific output 81.55 bhp per litre
bhp/weight 216.62 bhp per tonne
torque 340 nm / 250.8 ft lbs
redline 6500
body / frame Unitary Steel Monocoque
driven wheels RWD
f brake size 54 x 295 mm / 2.13 x 11.6 in
r brake size 33 x 258 mm / 1.3 x 10.2 in
front wheels F 40.6 x 17.8 cm / 16 x 7 in
rear wheels R 40.6 x 20.3 cm / 16 x 8 in
steering Rack and pinion
f suspension Strut
curb weight 1300 kg / 2867 lbs
weight distro 52 % / 48 %
wheelbase 2570 mm / 101.2 in
length 4450 mm / 175.2 in
width 1646 mm / 64.8 in
height 1379 mm / 54.3 in
transmission 5-Speed Manual
tran clutch single
gear ratios 3.72:1, 2.4000001:1, 1.77:1, 1.26:1, 1:1
final drive 4.23:1
top speed ~253 kph / 157.11 mph
0 – 60 mph ~5.9 seconds
fuel capacity 120 litres or 31.68 gal.
