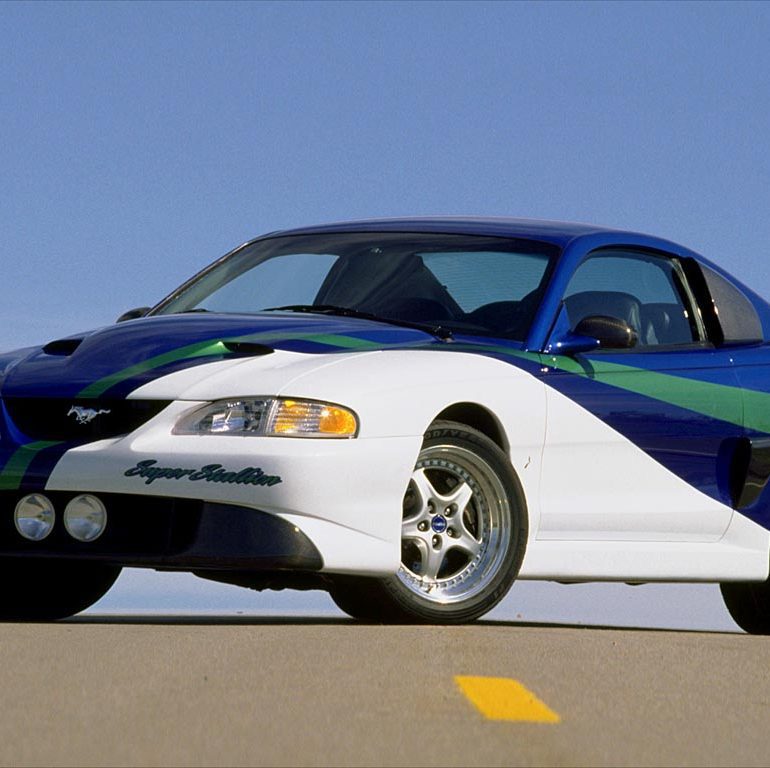

1998 Ford Mustang Super Stallion Concept


1998 Ford Mustang Super Stallion Concept

1998 Ford Mustang Super Stallion Concept

Running on alcohol or gasoline the Super Stallion was a show car capable of producing 545 bhp. Modified cylinder heads, twin throttle bodies and a Garett supercharger help the car achieve the 545 bhp when using alcohol.

1998 Ford Mustang Super Stallion Concept 1998 Ford Mustang Super Stallion Concept 1998 Ford Mustang Super Stallion Concept

In Detail

submitted by Richard Owen
built at Detroit, Michigan, USA
engine V8
aspiration Garett Supercharger
valvetrain DOHC, 4 Valves per Cyl
fuel feed Electric Injection
displacement 5400 cc / 329.5 in³
bore 90.2 mm / 3.55 in
stroke 105.8 mm / 4.17 in
compression 8.2:1
power 406.4 kw / 545.0 bhp @ 6000 rpm
specific output 100.93 bhp per litre
bhp/weight 294.44 bhp per tonne
torque 671.13 nm / 495.0 ft lbs @ 4750 rpm
front tires 265/40ZR18
rear tires 265/40ZR18
front brakes Brembro Vented Discs w/4-Pot Calipers, ABS
f brake size x 330 mm / x 13.0 in
rear brakes Brembro Vented Discs w/4-Pot Calipers, ABS
r brake size x 305 mm / x 12.0 in
front wheels F 45.7 x 21.6 cm / 18.0 x 8.5 in
rear wheels R 45.7 x 24.1 cm / 18.0 x 9.5 in
f suspension Dobel Wishbones w/Koni Adjustable Shock Absorbers
r suspension Rigid Axle
curb weight 1851 kg / 4081 lbs
wheelbase 2578 mm / 101.5 in
front track 1537 mm / 60.5 in
rear track 1556 mm / 61.3 in
height 1321 mm / 52.0 in
transmission Borg-Warner T56 6-Speed Manual
gear ratios :1
top speed ~281.6 kph / 175.0 mph
0 – 60 mph ~4.5 seconds
0 – 1/4 mile ~12.8 seconds
