2005→2010 Ford Mustang GT

‘Like the F-150 is to Ford trucks, Mustang is the soul of Ford cars. A pure performer, it’s the most affordable 300-horsepower car made and the best rear-drive performance car under $20,000.’

Since its dramatic 1964 introduction, Ford Mustang has been the icon of American performance and style, capturing hearts worldwide. For 2005, Mustang combines an all-new, fully modern architecture with all the soul that makes a Mustang a Mustang – bold style, a brawny engine and rear-wheel-drive excitement.

The Mustang takes its design language from the concept car that stole hearts along the auto show circuit and signaled that Americas only remaining muscle car would be introduced for 2005 with even more attitude.

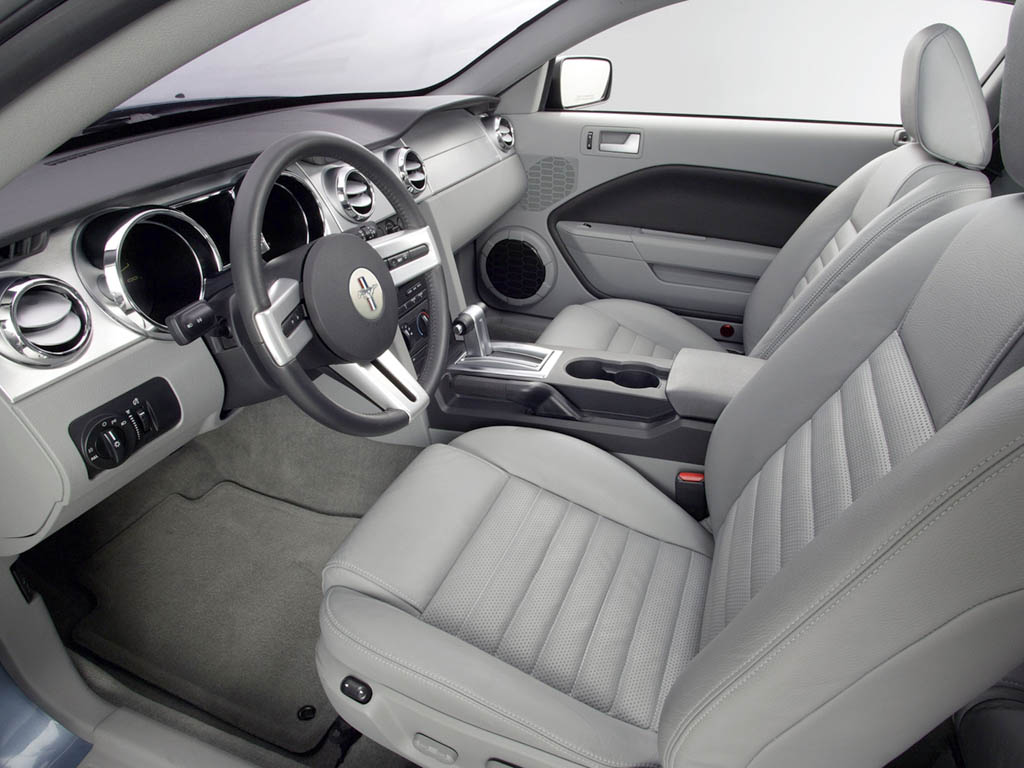

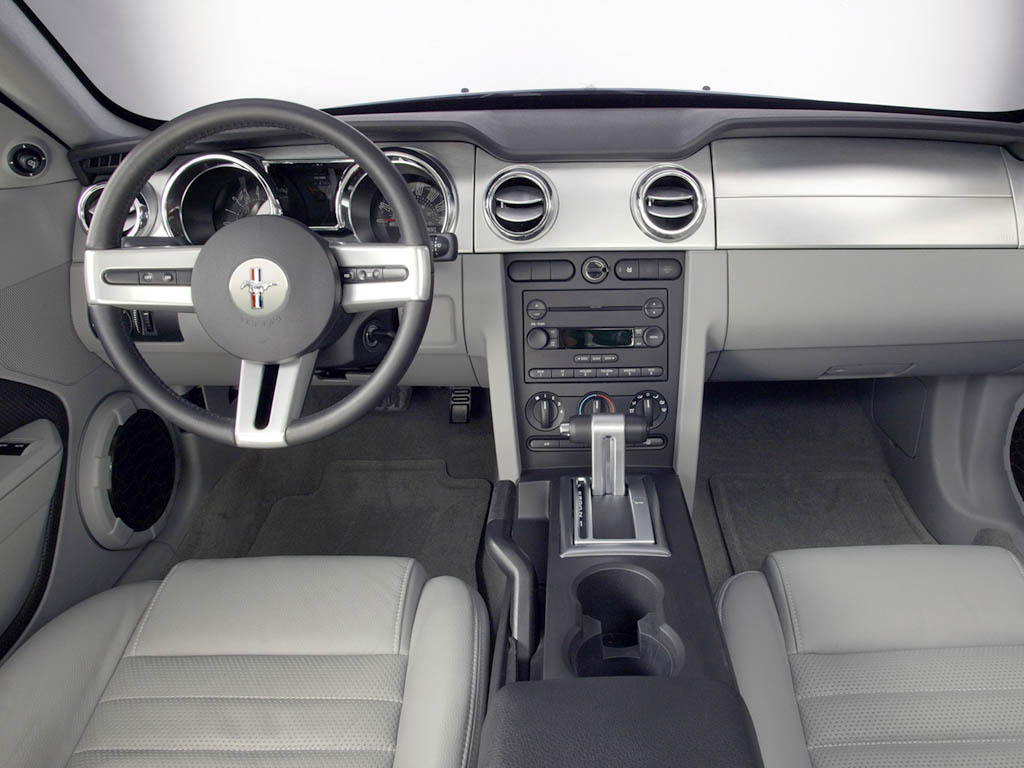

The cabin – a beneficiary of Ford’s tripled investment in interiors – is every bit as breathtaking and genuine as the exterior. Three distinct design themes celebrate Mustang history with modern materials and features, including an available industry-first, color-configurable instrument panel for almost unlimited personalization.

2005→2010 Ford Mustang GT

V8 Power

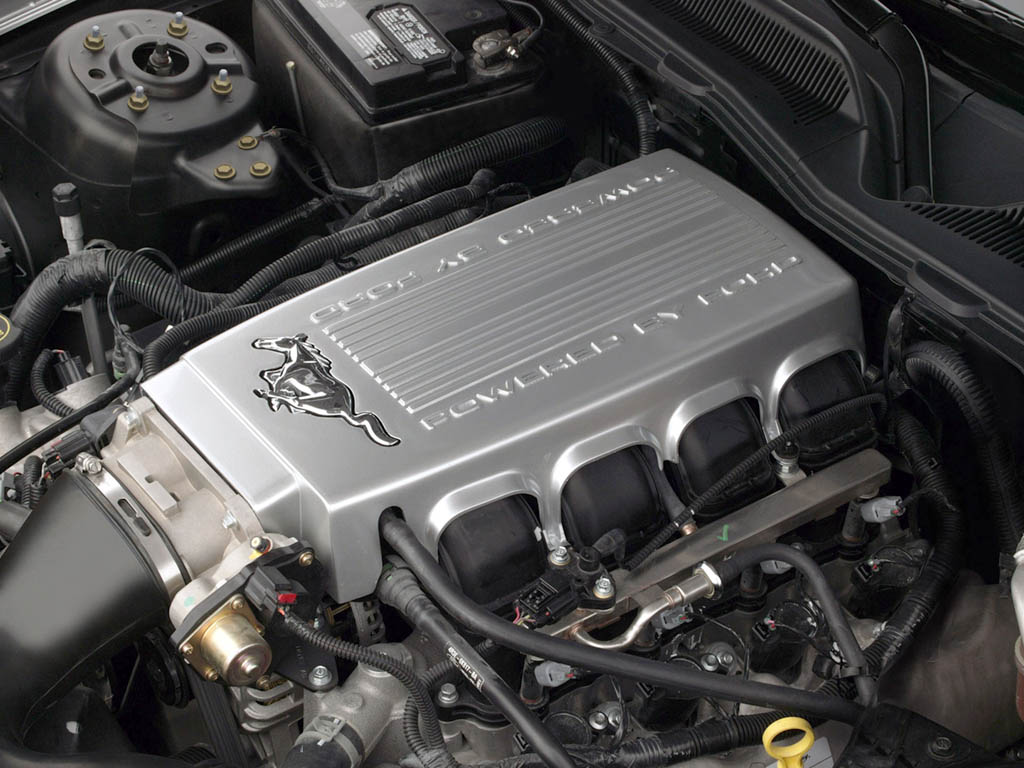

Muscular new engines infuse Mustang with its legendary tire-smoking performance. The 4.6-liter all-aluminum V-8 has three-valve heads and cranks out 300 horsepower. The 2005 Mustang GT is the first mainstream production Mustang to break into the 300-horsepower arena, a place formerly occupied only by legendary Cobra and Boss models.

Because of its all-aluminum construction, Mustang’s MOD V-8 – a member of Ford’s modular engine family – weighs 75 pounds less than a comparable cast-iron design and stokes up 40 more horsepower. Electronic throttle control, faster engine management controls and the new three-valve cylinder heads with variable camshaft timing all contribute to this impressive output.

The three-valve heads with VCT allowed engine designers to use a higher compression ratio with regular 87-octane gasoline to maximize the energy used by every drop of fuel. Intake runners with active charge motion control valves also shape each combustion event for strong, low-end torque and maximum high-rpm power.

2005→2010 Ford Mustang GT

Chassis

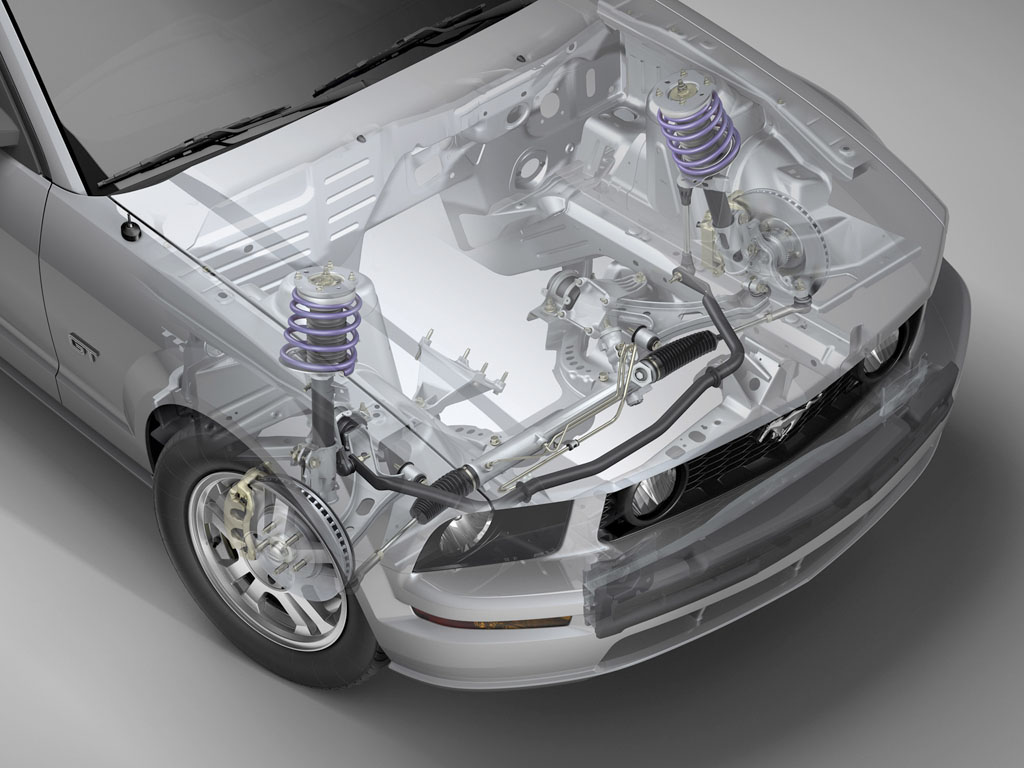

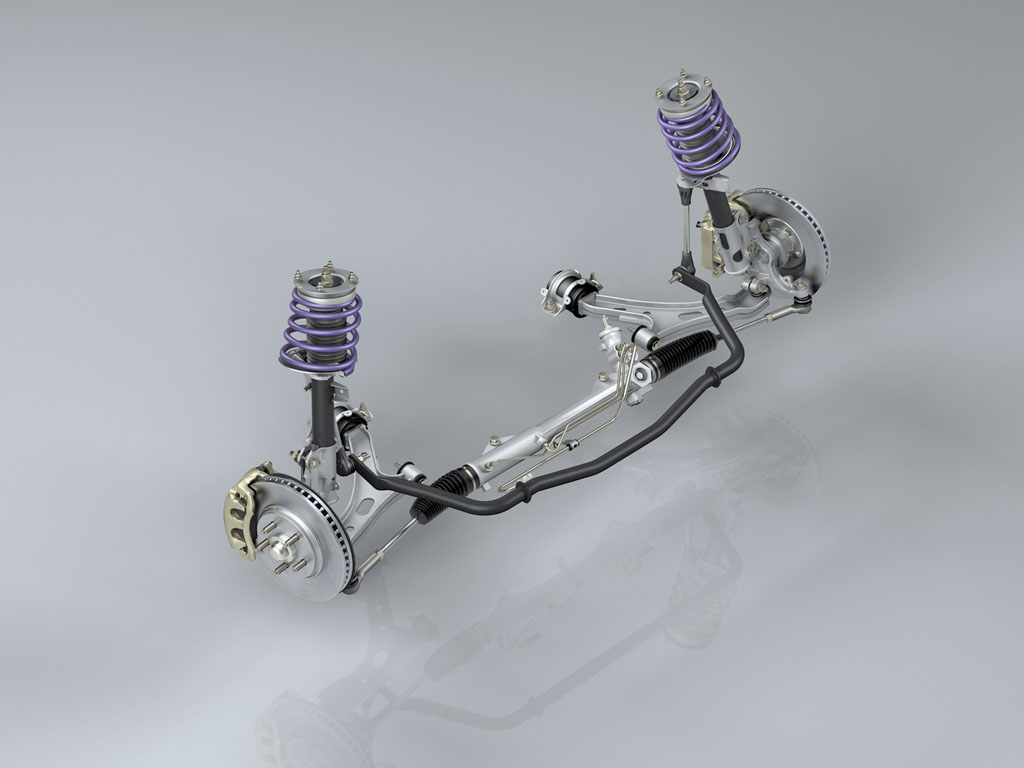

The MacPherson-strut front suspensions reverse L lower control arms are the product of a groundbreaking manufacturing technology used to produce steel control arms that actually weigh less than some comparable cast-aluminum designs. MacPherson struts – originally developed in the 1940s by Earl S. MacPherson, a Ford engineer – are widely renowned for their ability to deliver both comfort and control with reduced weight.

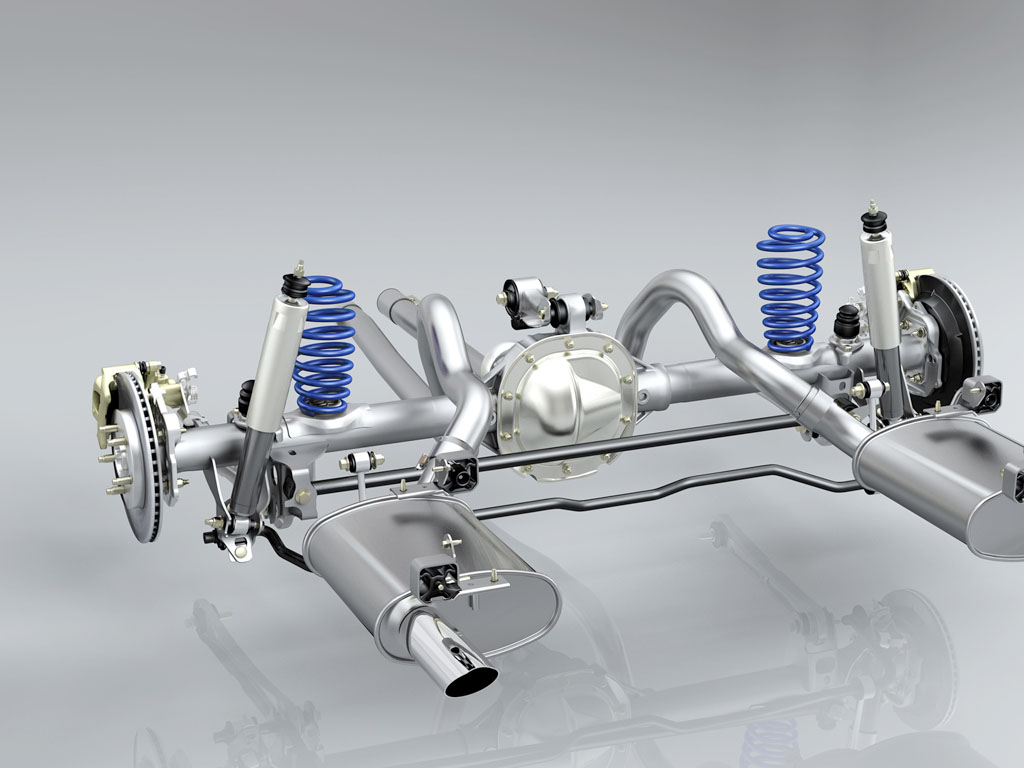

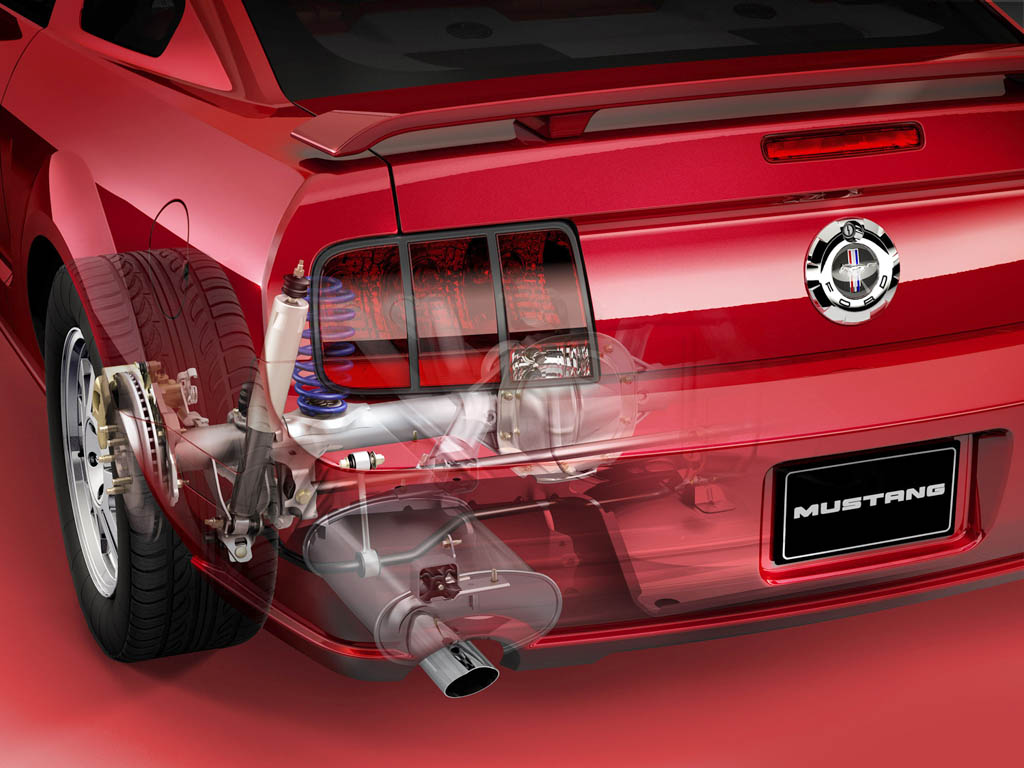

For 2005, Mustang’s rear suspension has a new three-link, solid axle architecture with a Panhard rod that provides precise control of the rear axle. A central torque control arm is fastened to the upper front end of the differential, while trailing arms are located near each end of the axle.

The standard four-wheel disc brakes have the biggest rotors and stiffest calipers ever fitted to a mainstream Mustang. Twin-piston aluminum calipers clamp down on 12.4-inch ventilated front brake discs on GT models – an increase of more than 15 percent in rotor size.

2005 Ford Mustang GT Gallery

2005→2010 Ford Mustang GT

In Detail

submitted by Richard Owen
type Series Production Car
production years 2005 – 2010
price $ $24 995 USD
engine Aluminum V8
position Front Longitudinal
valvetrain SOHC, 3 Valves per Cyl w/Varibale Camshaft Timing
fuel feed Electronic, Returnless & Sequential Ignition
displacement 4605 cc / 281 in³
bore 90.2 mm / 3.55 in
stroke 90.0 mm / 3.54 in
compression 9.8:1
power 223.7 kw / 300.0 bhp @ 5750 rpm
specific output 65.15 bhp per litre
bhp/weight 188.92 bhp per tonne
torque 433.86 nm / 320 ft lbs @ 4500 rpm
redline 6250
body / frame Unit Steel w/Aluminum Hood
driven wheels RWD
front tires P235/55ZR17 98W
rear tires P235/55ZR17 98W
front brakes Vented Discs w/Twin-Piston Calipers, ABS
rear brakes Vented Discs w/Single-Piston Calipers, ABS

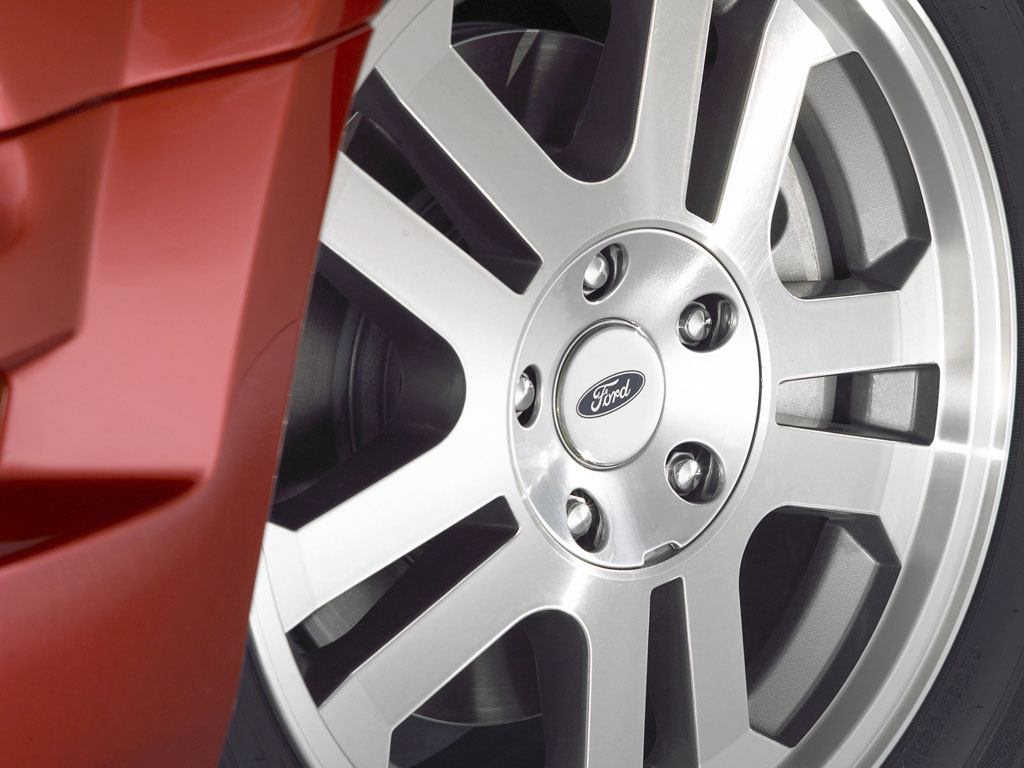

front wheels F 43.2 x 20.3 cm / 17.0 x 8 in
rear wheels R 43.2 x 20.3 cm / 17 x 8 in
steering Rack & Pinion w/Power Assist
f suspension Reverse L MacPherson Struts w/Stabilizer Bar, Coil Springs, Tube Shocks
r suspension Live Axle w/Stabilizer Bar, Panhard Rod, Coil Springs Tube Shocks
curb weight 1588 kg / 3500 lbs
wheelbase 2720 mm / 107.1 in
front track 1582 mm / 62.3 in
rear track 1588 mm / 62.5 in
length 4775 mm / 188.0 in
width 1877 mm / 73.9 in
height 1407 mm / 55.4 in
transmission Tremec 3650 5-Speed Manual or Automatic
gear ratios 3.34:1, 2.00:1, 1.32:1, 1.00:1, 0.067:1
final drive 3.55:1
top speed ~225.3 kph / 140.0 mph
0 – 60 mph ~5.5 seconds
0 – 100 mph ~14.0 seconds
0 – 1/4 mile ~14.0 seconds

Auction Sales History

2005→2010 Ford Mustang GT

2008 Ford Mustang GT 5-Speed – sold for $16,250. 2008 Ford Mustang GT 5-speed coupe. 2,735 actual miles. One owner car. Shop manuals and receipts included. Car inspected, suspension adjusted, and motor dyno-tuned by Modular Depot, a specialty Mustang shop located in Florence, KY, outside Cincinnati, OH. New drive train. New engine compartment bracing. New exhaust system, new braking, new tires. Four wheel adjustable suspension. 3M filmed paint. Hardened axles. Helical bearings in differential. Loaded with extra parts and accessories. $20,000 in parts alone. Auction Source: 2011 Monterey Daytime Auction by Mecum



Story by Ford Motor Co, edited by Supercars.net
